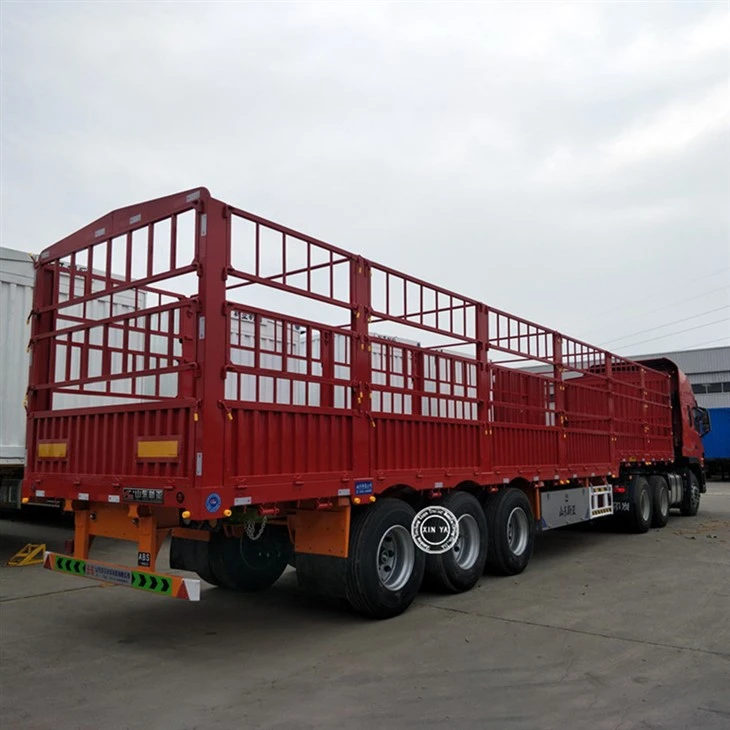

Fence Semi Trailer With Twist Locks
Dimensions：13000 × 2500 × 3400 mm (Customizable)
Load capacity：50–60 ton
Tare weight：8.2–8.5 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of fence semi trailer with twist locks in China, featured by high quality customized service and OEM service. If you're going to buy CE approved fence semi trailer with twist locks, welcome to get quotation from our factory.
Product Details
The main longitudinal beam of the fence semi trailer with twist locks is integrally formed by submerged arc welding with Q345B high-strength steel. Positioning bases are reserved on the deck and pre-installed with 12 sets of ISO twist locks. The twist lock bases are welded together with beam reinforcing liners to avoid local tearing under heavy container-locking loads. The fence is assembled with detachable square posts and mesh panels. Quick latches at the bottom of posts allow single-person disassembly and assembly without cutting or welding. All air pipelines are equipped with wear-resistant protection; tail light wiring harnesses are covered with corrugated tubes. Stress points including suspension, landing gear and kingpin receive rust removal and multi-layer painting to adapt to rainy, gravel and bumpy off-road conditions.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
13000 × 2500 × 3400 mm (Customizable) |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Fence height |
Detachable stake fence, fence height 1.5m (1.2m/1.8m optional). |
|
Platform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Heavy duty mechanical leaf spring suspension (preferred for African rough road), air suspension optional |
| King Pin | 2" (50#) bolted king pin, 3.5"(90#) optional, JOST available |
| Rim | 9.00-22.5 |
| Tire | 12R22.5 tubeless tire, 12 pcs + 1 spare tire |
|
Axle |
Brand:FUWA / BPW; Capacity: 13T16P QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company was established in 2010, covering an area of over 160 acres, with an annual production capacity of 3000-5000 units, stable delivery time, and sufficient production capacity.
We have our own laser cutting, fully automatic welding, CNC riveting, and electrophoretic coating lines, with fully automated key processes that do not rely on outsourcing.
Our Advantages
This fence semi trailer with twist locks,
The dual-function design greatly cuts customers' procurement costs. There is no need to buy separate flatbed container trailer and regular stake trailer. One unit handles both general bulk cargo and ISO container transport. Built-in embedded twist locks do not occupy extra cargo space. Fence panels can be switched quickly with minimal downtime. The whole structure is reinforced for impact resistance. Common and easily sourced spare parts reduce maintenance difficulty and failure rate, delivering higher uptime for long-distance heavy haul operations in Africa.
FAQ
Q: Can this trailer lock both one 40ft and two 20ft containers at the same time?
A:Yes. The 12 sets of ISO twist locks are arranged to match standard container corner castings. It supports either one 40ft container or twin 20ft containers. Please note that the total cargo weight cannot exceed the trailer's rated payload.
Q: What surface treatment do you use for twist locks and stake posts? Will they rust quickly in humid coastal areas?
A:Twist locks and fence posts go through sandblasting and anti-rust primer plus topcoat. We can offer hot-dip galvanization as an optional upgrade if customers operate in high humidity coastal regions.
Q: Is it necessary to remove all twist locks when only transporting bulk goods without containers?
A:No. The twist locks stay flush on the deck. You may keep them installed permanently. Only the fence stakes and mesh panels need to be fitted for bulk cargo.
Q: What tire brand options are available, and can you adjust tire specifications for local road requirements?
A:We provide domestic Chinese tire brands as standard. Famous international brands are optional. Tire specs can be modified to comply with local road and axle load regulations upon request.
Q: What is the typical lead time for one unit of this tri-axle fence trailer with twist locks?
A:Normally production lead time is 25–35 working days after receiving deposit. The timeline will be reconfirmed if you add special customizations such as air suspension or hot galvanizing.
