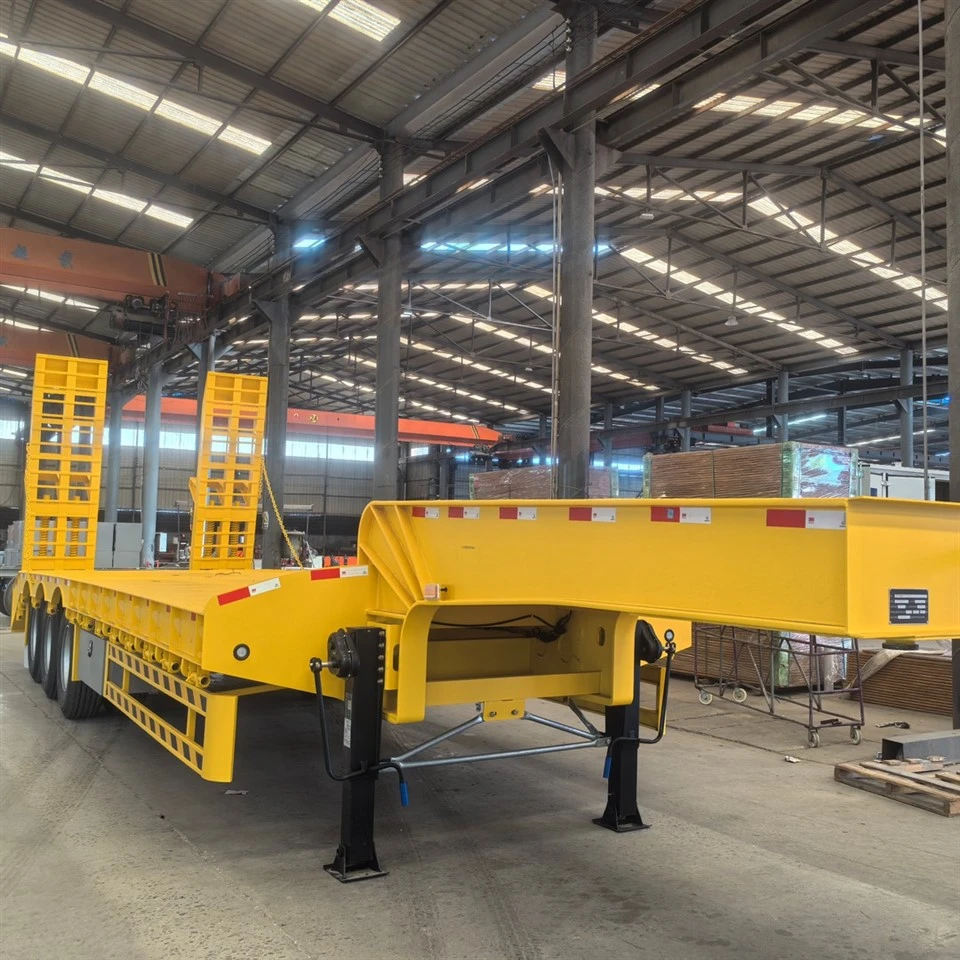

Low Bed Flatbed Trailer
Three axle low flatbed semi-trailer
Dimensions: 13000 * 2700 * 1100mm
Load capacity: ranging from 60T to 80T tons
The self weight is about 10 tons
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of low bed flatbed trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved low bed flatbed trailer, welcome to get quotation from our factory.
Product Details
Low-bed semi-trailers are mainly used to transport heavy machinery, such as excavators, road rollers and earthmoving equipment.
Product Parameters
|
Overall size(L*W*H)mm |
13000/16000*2700*11000 or Custom size |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |

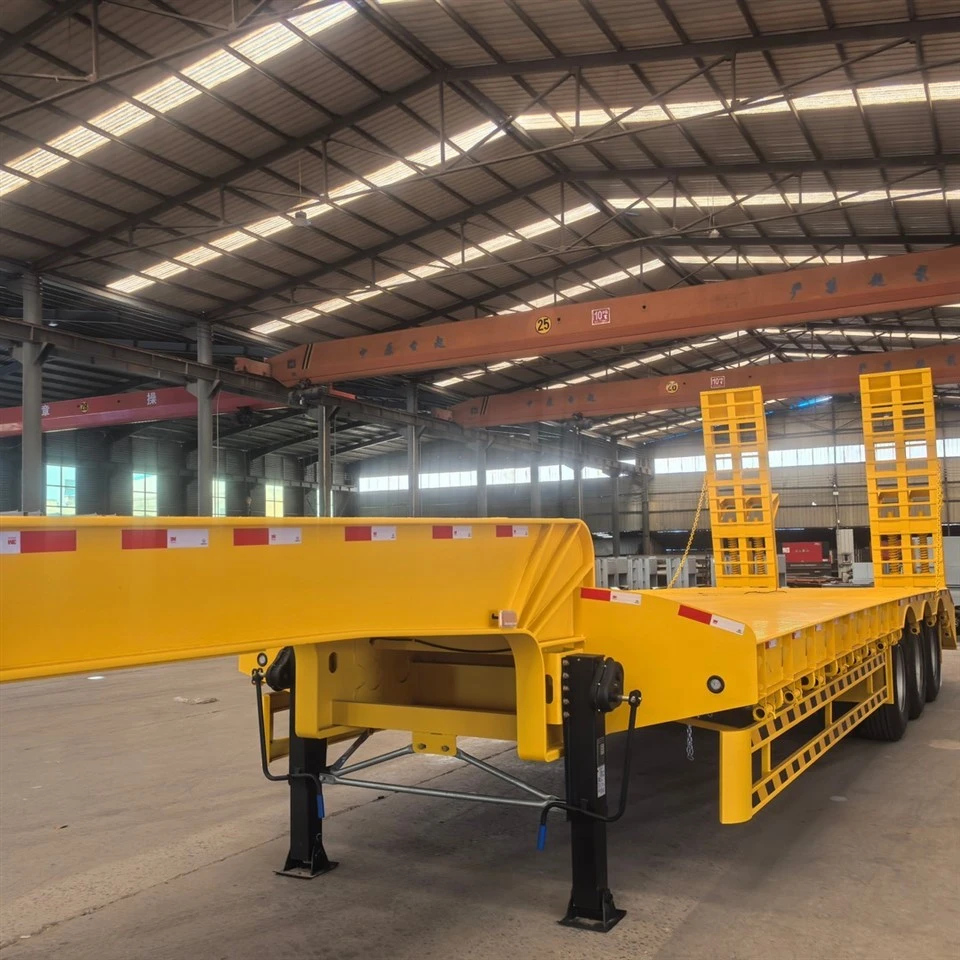

Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 14mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side beam |
250# "工" type |
|
plateform |
4mm checker plate |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. has 15 years of production and export experience. Its main models include flatbed semi-trailer, low bed semi-trailer, fence semi-trailer, dump semi-trailer, box semi-trailer, etc,
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Congo, Malaysia, Tanzania, Ethiopia, Kenya, Philippines, Vietnam, Mozambique, South Asia, Central America, MID East, Eastern Asia, South America, South-east Asia. We also welcome O E M and O D M orders.
Our Advantages
The main beam of this 3-axle low loader semi-trailer is made of Q345B steel. The side beams adopt 250mm I-channel steel, paired with 4mm diamond checkered plate to ensure cargo stability and safety.

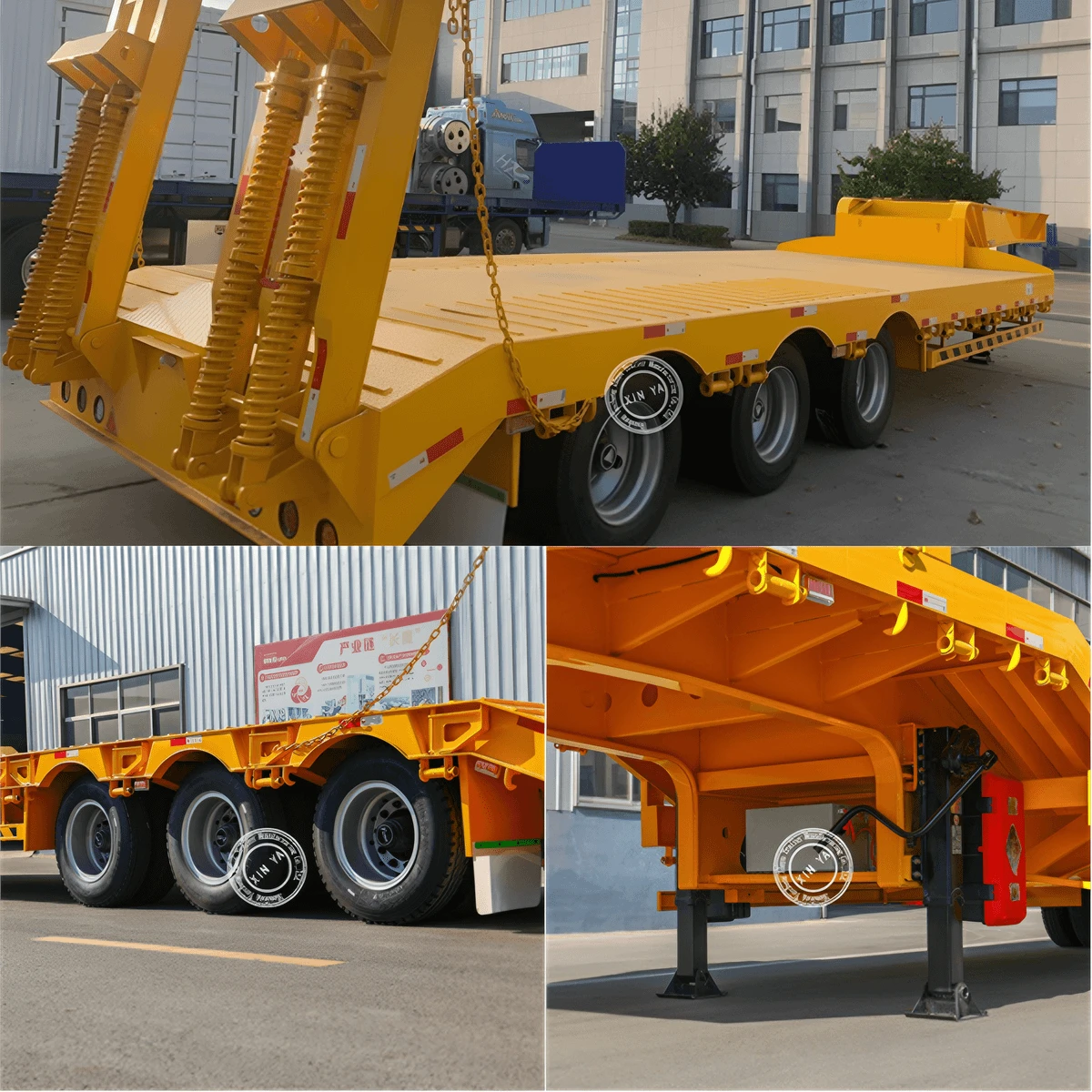

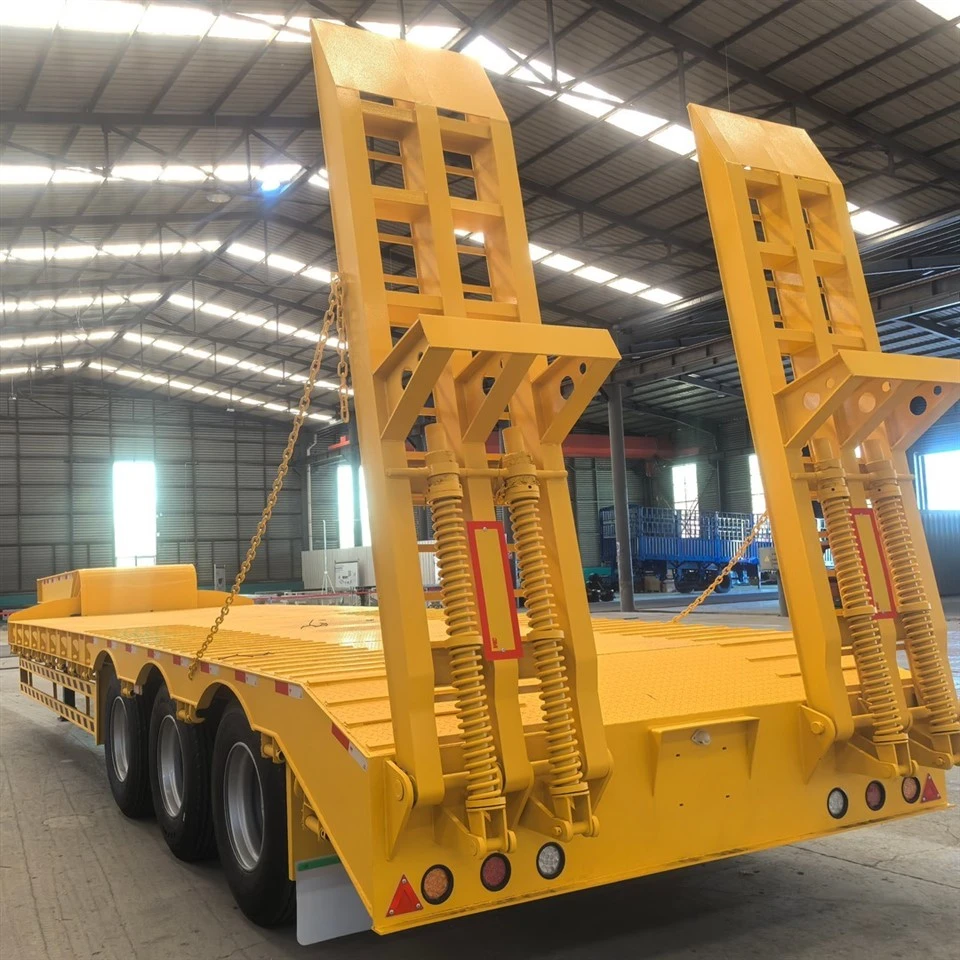

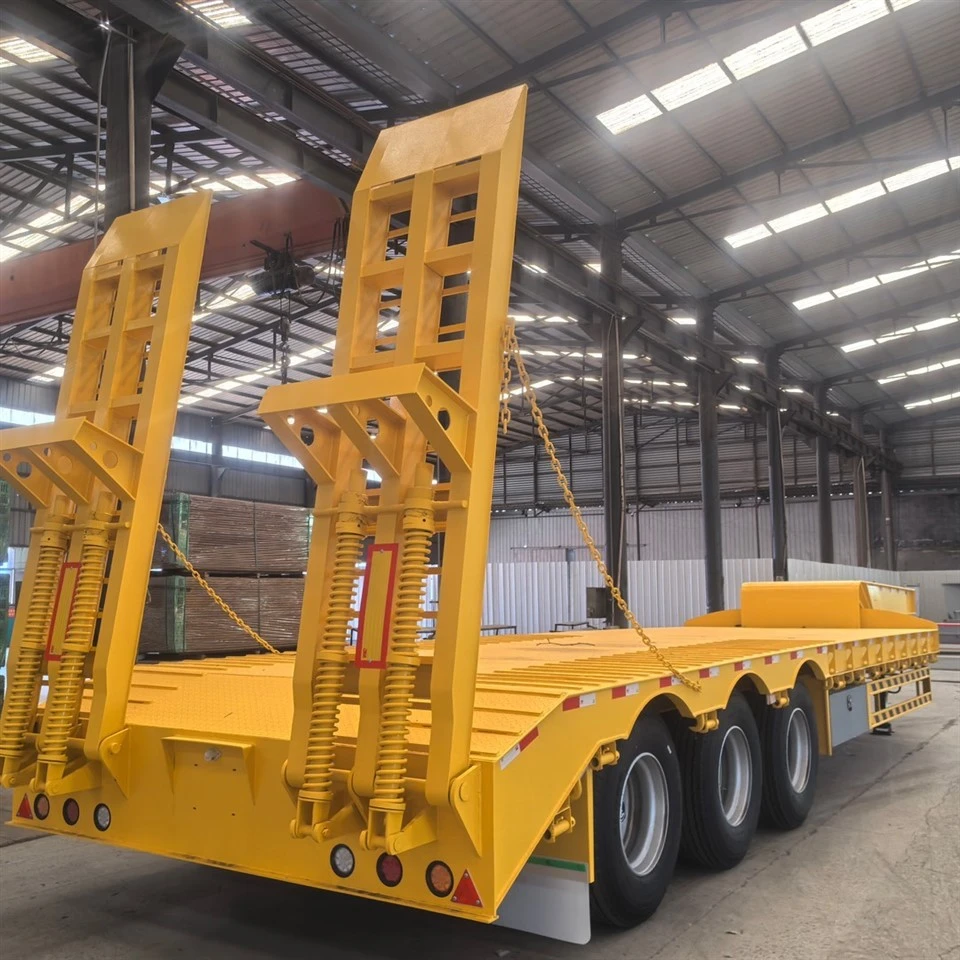

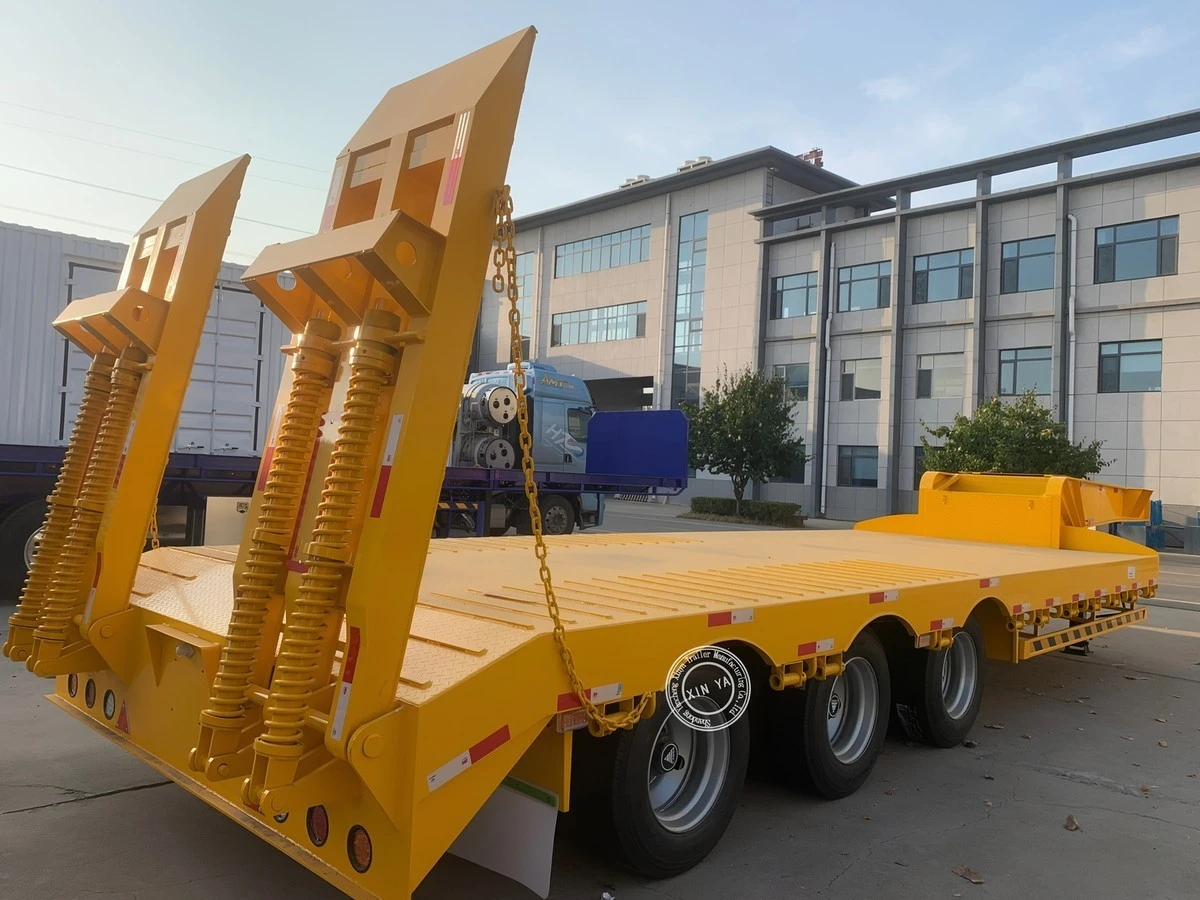

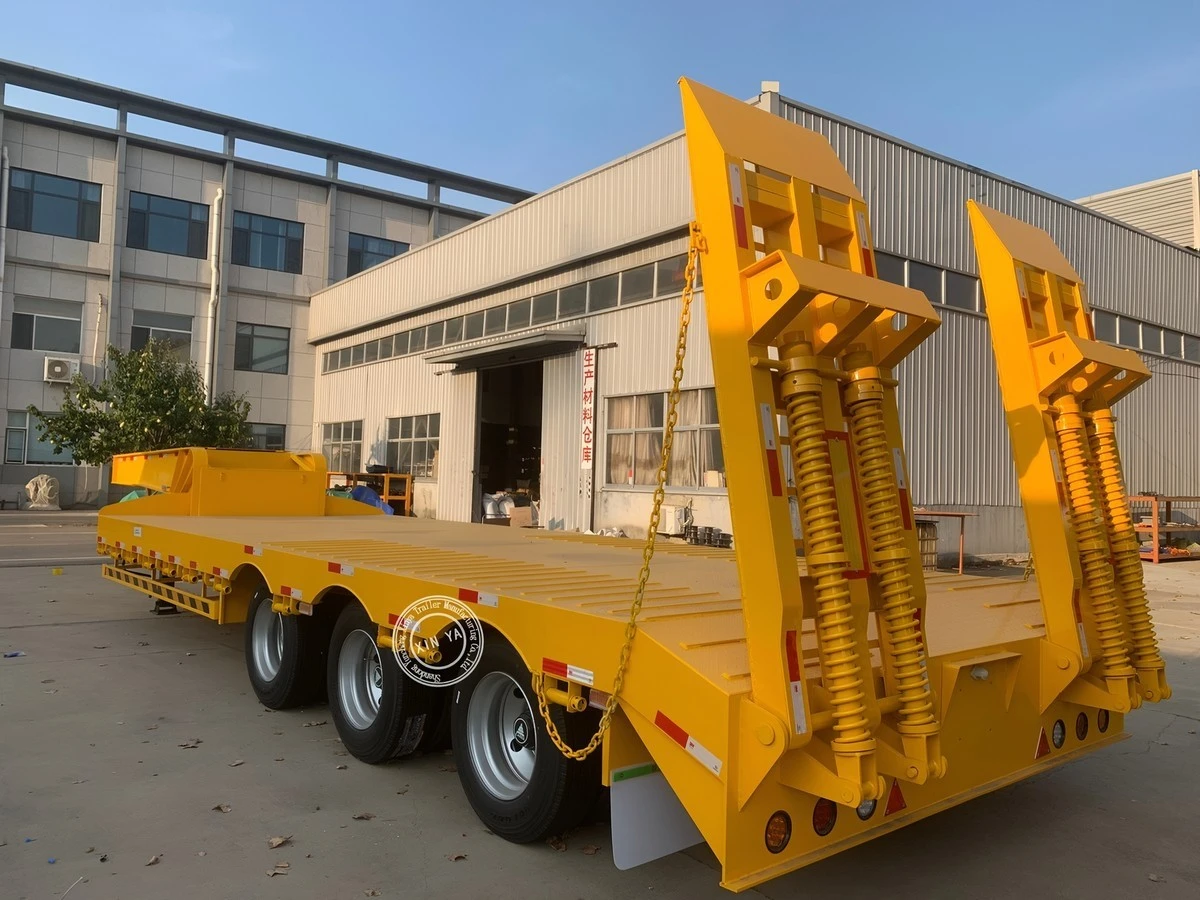

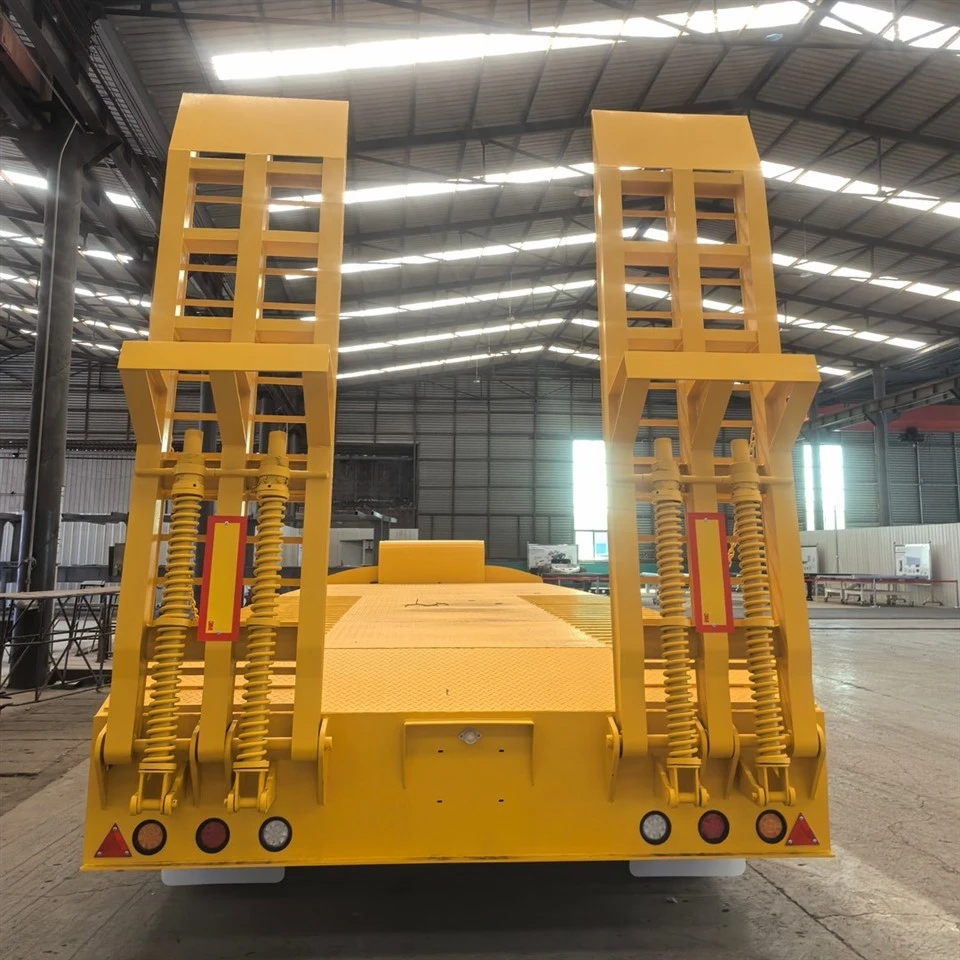

Optional ramps: Mechanical ramps and hydraulic ramps are equipped at the rear for easy self-loading and unloading of heavy machinery.
FAQ
1.Who is Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd?
Our factory supports OEM&ODM customization in Shandong, China
2.What types of semi trailers are available for selection?
We produce: low bed semi-trailer, flatbed semi-trailer, dump semi-trailer, and freight fence semi-trailer, etc
3.Can we print our own logo?
Yes,we offer OEM service.
