30/40ton Flatbed Semi-trailer
4 Axle Flatbed Semi Trailer with Front Board and Stake Posts for Sale, Ideal for Transporting Pipes, Containers, and Bulk Cargo.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 30/40ton flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 30/40ton flatbed semi-trailer, welcome to get quotation from our factory.
Product Details

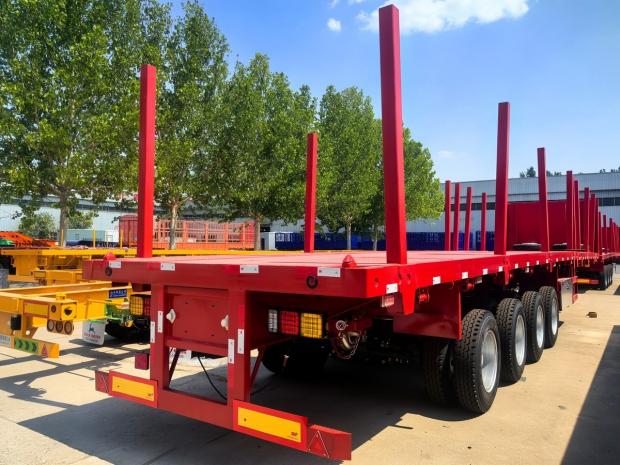

This 4-axle flatbed trailer is equipped with a front headboard, 16 removable stake posts, and 12 container twist locks, making it suitable for transporting containers, steel pipes, timber, and general cargo.
The main beam is manufactured from Q345B high-strength low-alloy structural steel, offering excellent load-bearing capacity, structural strength, and long-term durability under demanding transport conditions.
Product Parameters
|

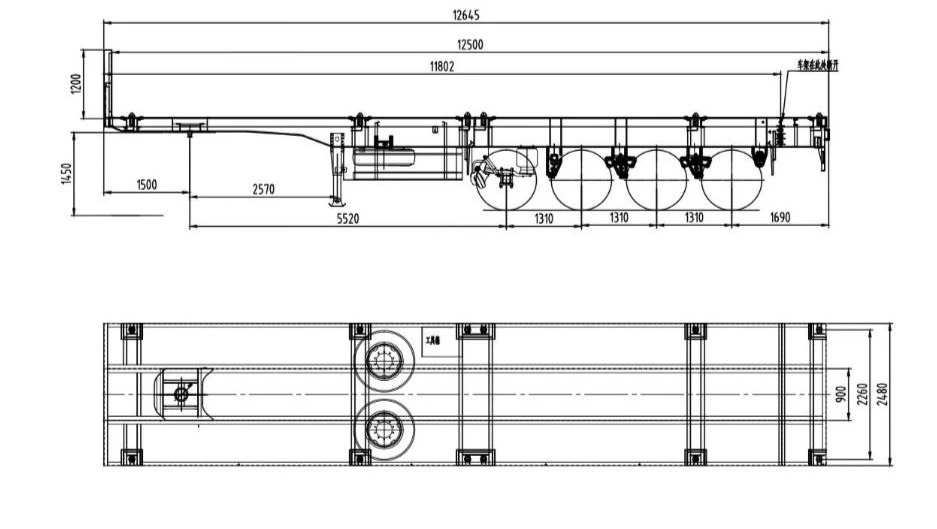

Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity large pad feet; JOST/China Brand |
|

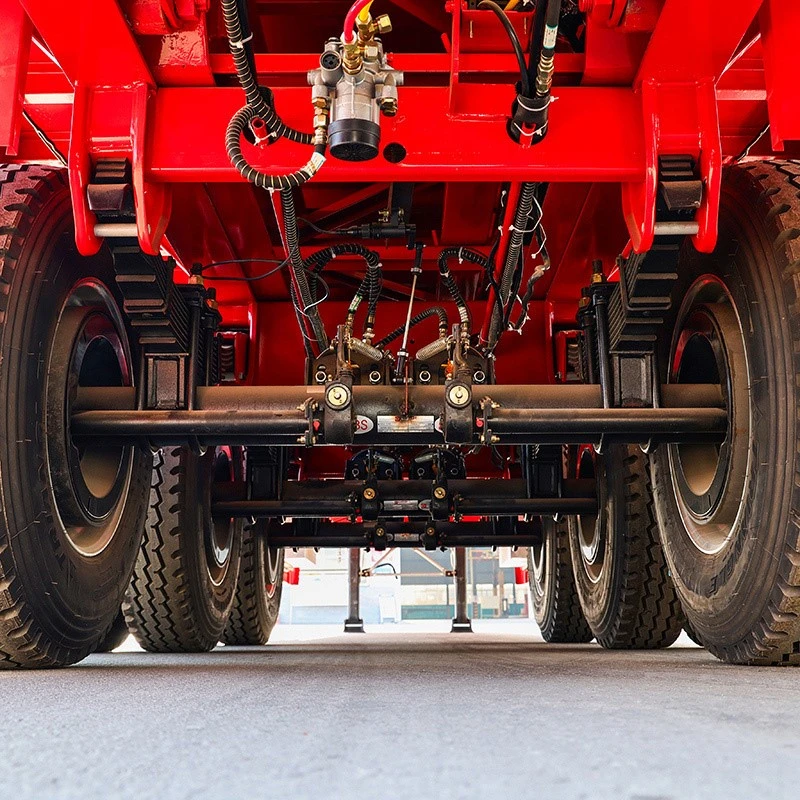

Suspension |
Mechanical suspension or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 4 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
|
sand blaster; Color optional; 1 coat of anticorrosive prime, 2 coats of final paints |
Our Company
Our Advantages
1. Factory Direct Sales, High Quality at Competitive Prices
With over 15 years of manufacturing and export experience, we offer flexible customization solutions to meet diverse customer requirements. Our trailers are widely exported to Africa, Southeast Asia, and the Middle East, earning a strong reputation for quality and reliability.
2. Robust and Durable Structure
The main beam is manufactured from Q345B l, combined with reinforced channel steel side beams and full cross members. Advanced automatic welding technology ensures superior structural integrity, making the trailer highly resistant to deformation and bending under heavy-duty operating conditions.
FAQ
1.Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
2.Q: What transportation methods can you provide?
A: We can provide sea, rail, and road transportation.
3. Q. What are your products?
A. We can produce flatbed semi trailers, low bed semi trailers, dump semi trailers, fence semi trailers, and special types of semi trailers
