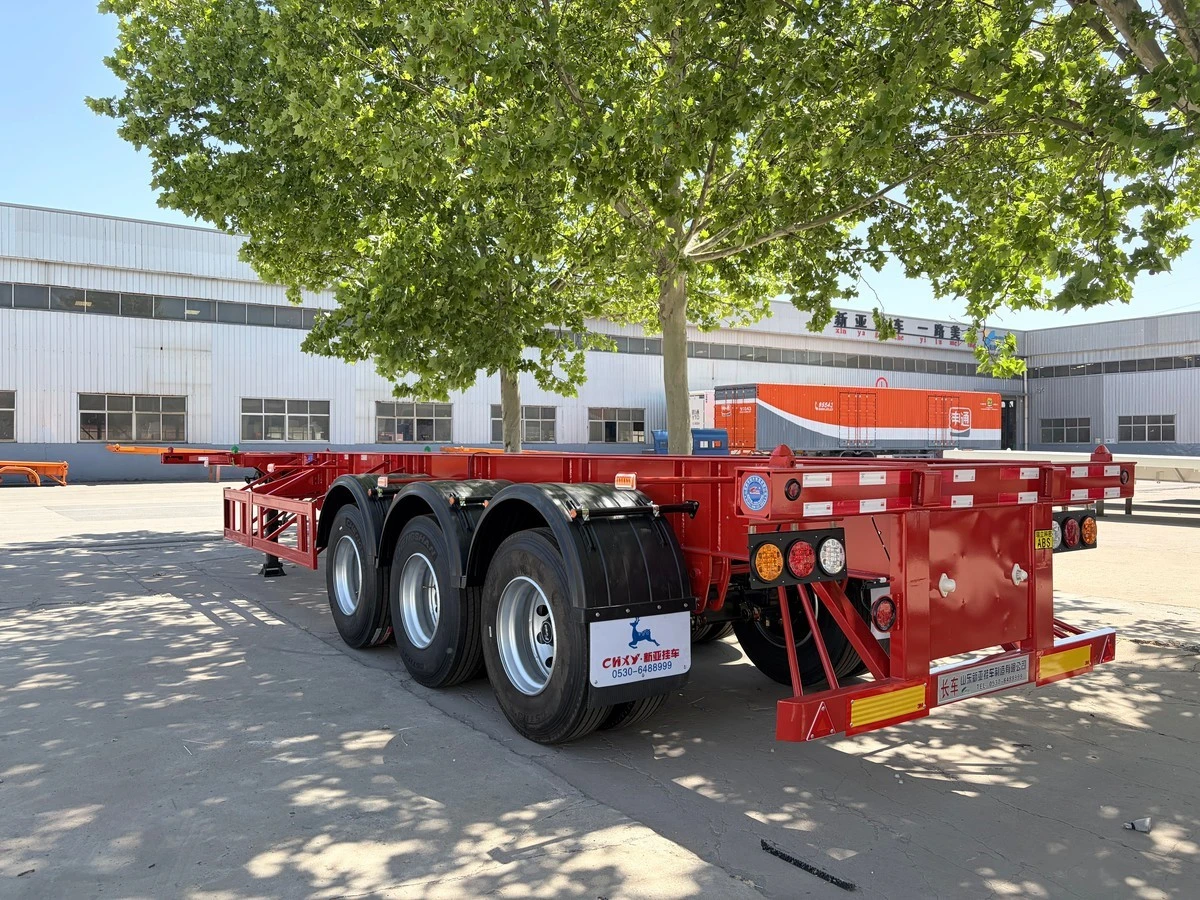

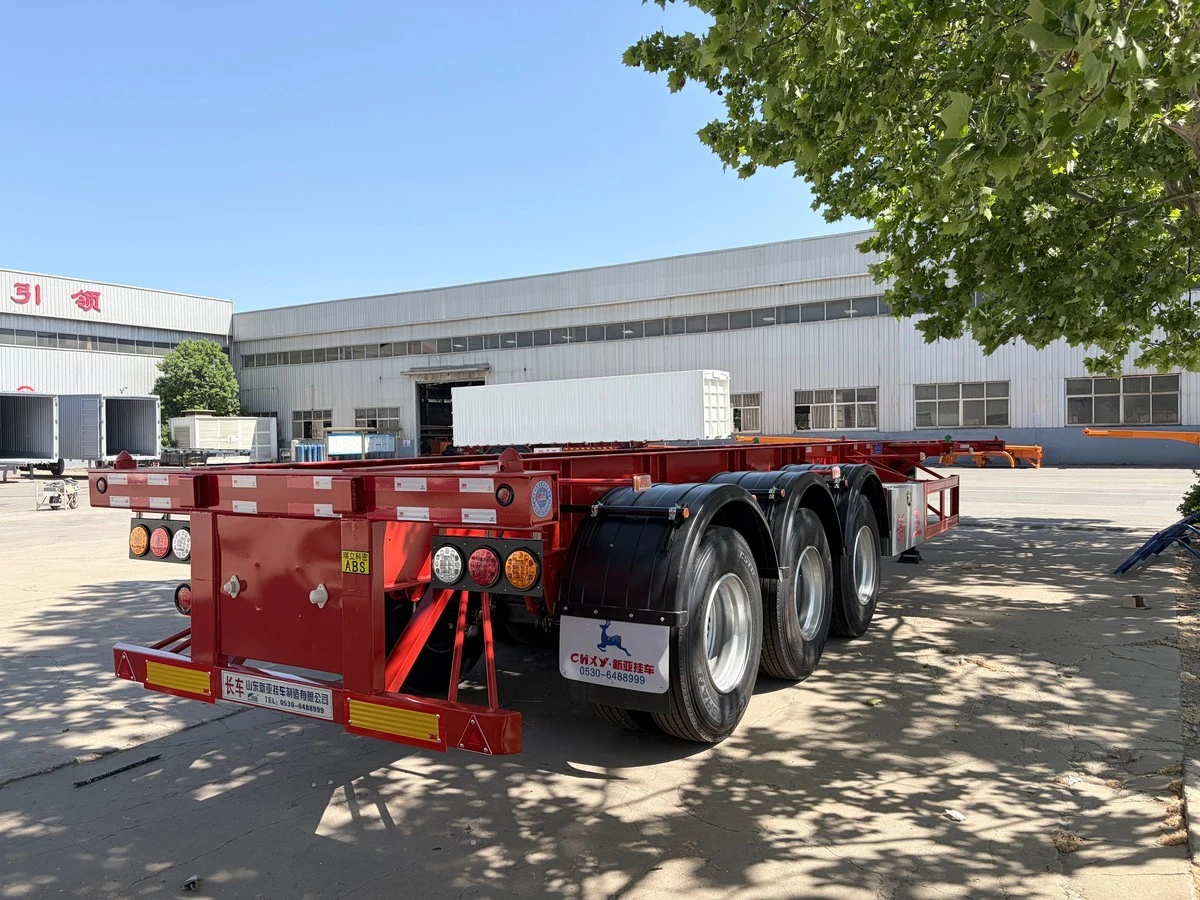

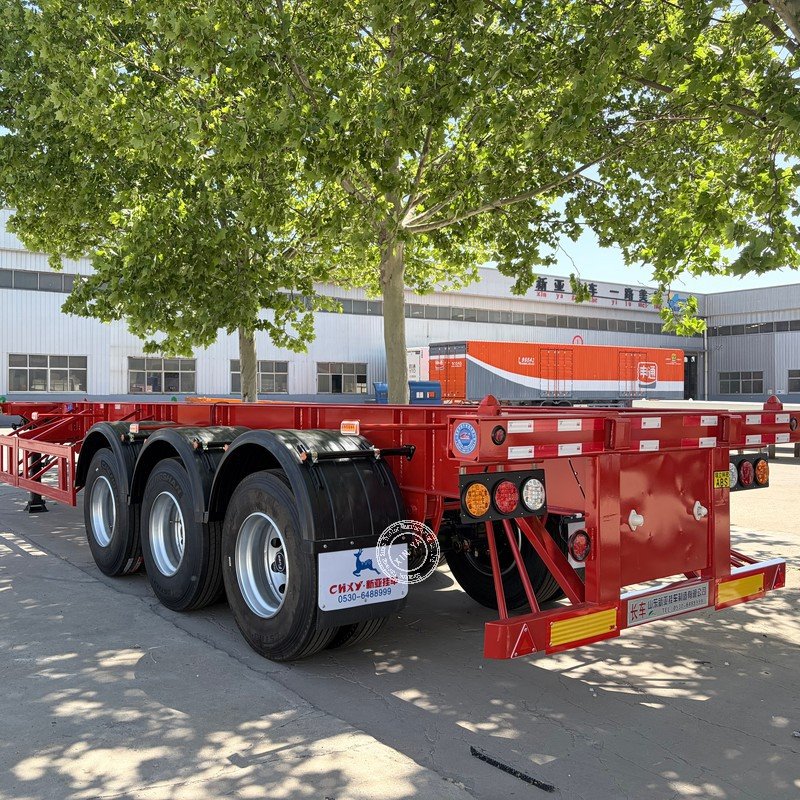

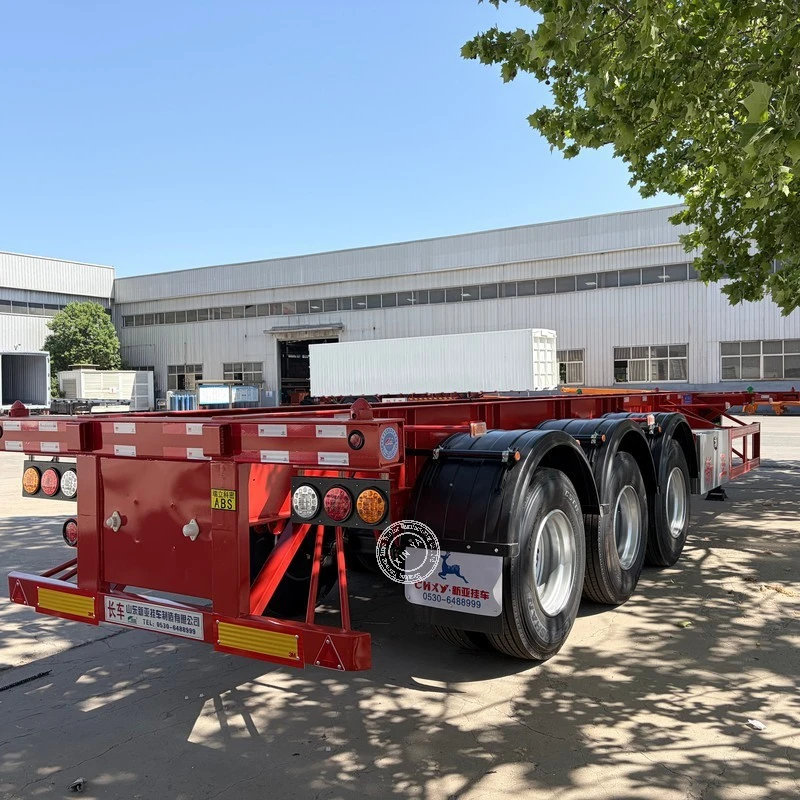

20/40ft Skeleton Semi-trailer
Size: 7200*2480*1570 or customized
Tare weight: 3.5T
Payload: 30T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 20/40ft skeleton semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 20/40ft skeleton semi-trailer, welcome to get quotation from our factory.
Product Details
This model can only be used for transporting containers and is a specialized semi-trailer; This model is mainly common in port areas; This model has a frame structure, with the front crossbeam and middle crossbeam used to secure the container
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|

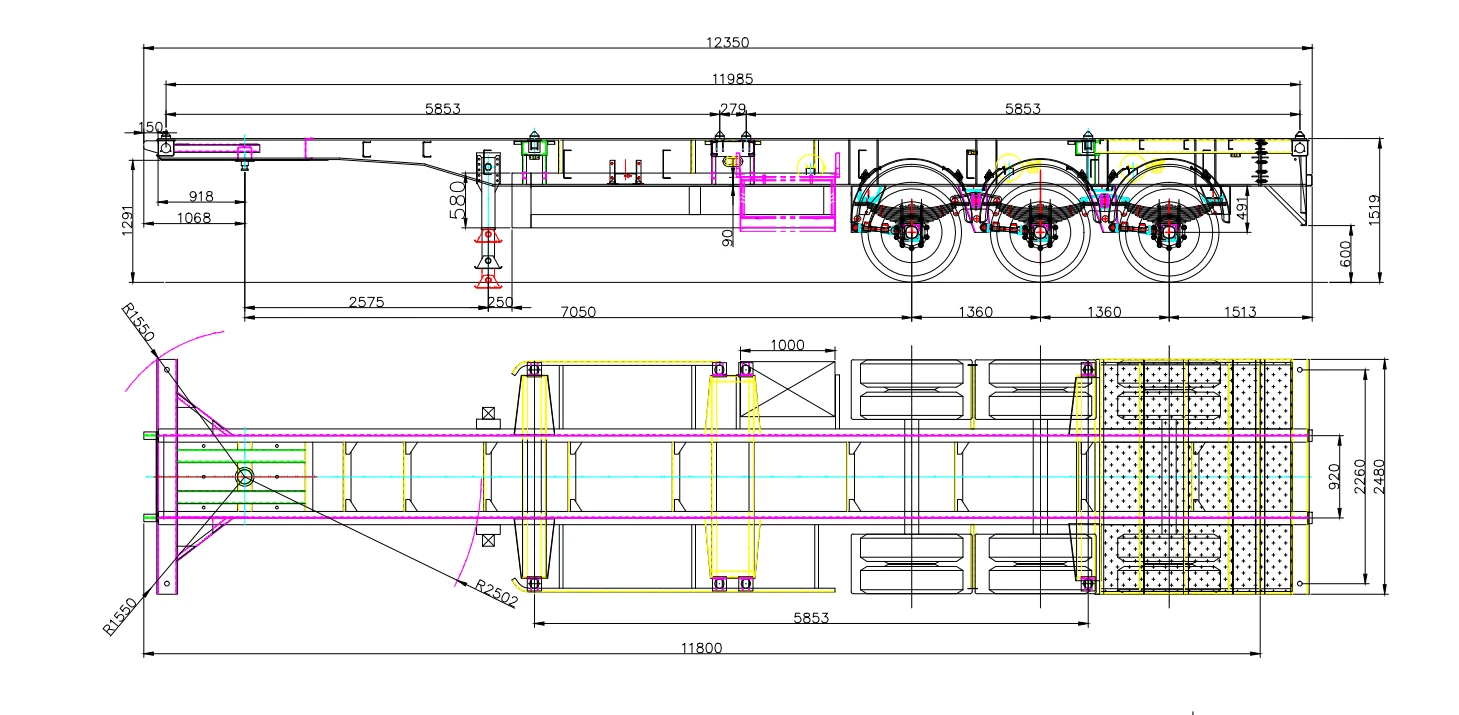

Overall size(L*W*H)mm |
7200*2480*1570 |
|
Material |
Q345B fabricated carbon steel |
|

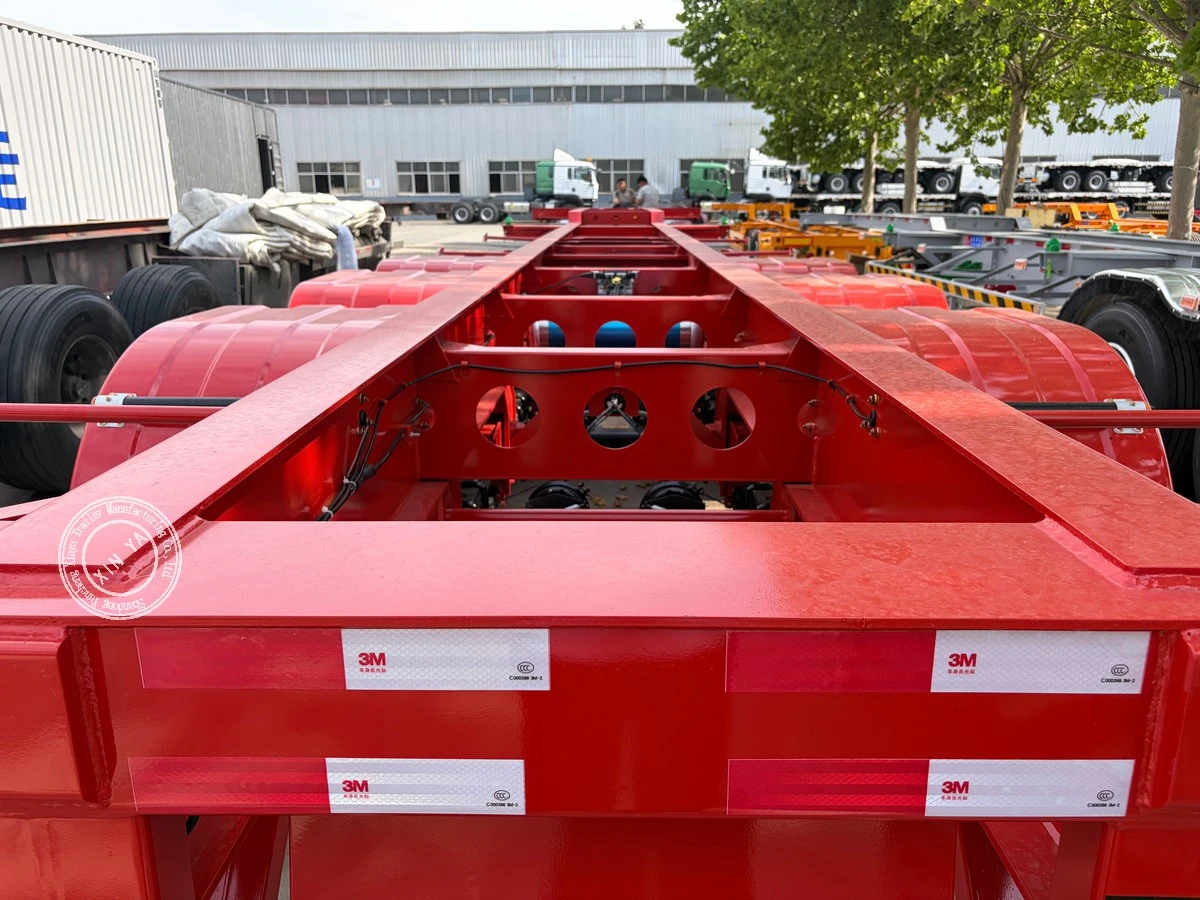

Main beam |
Material: Q345; Type: Straight Beam; Height: 400mm; Top Plate: 14mm; Bottom Plate: 16mm; Vertical Plate: 8mm; Process: Automatic Submerged Arc Welding |
|
plateform |
2-3mm checker plate |
|
Twist lock |
4 sets |
|

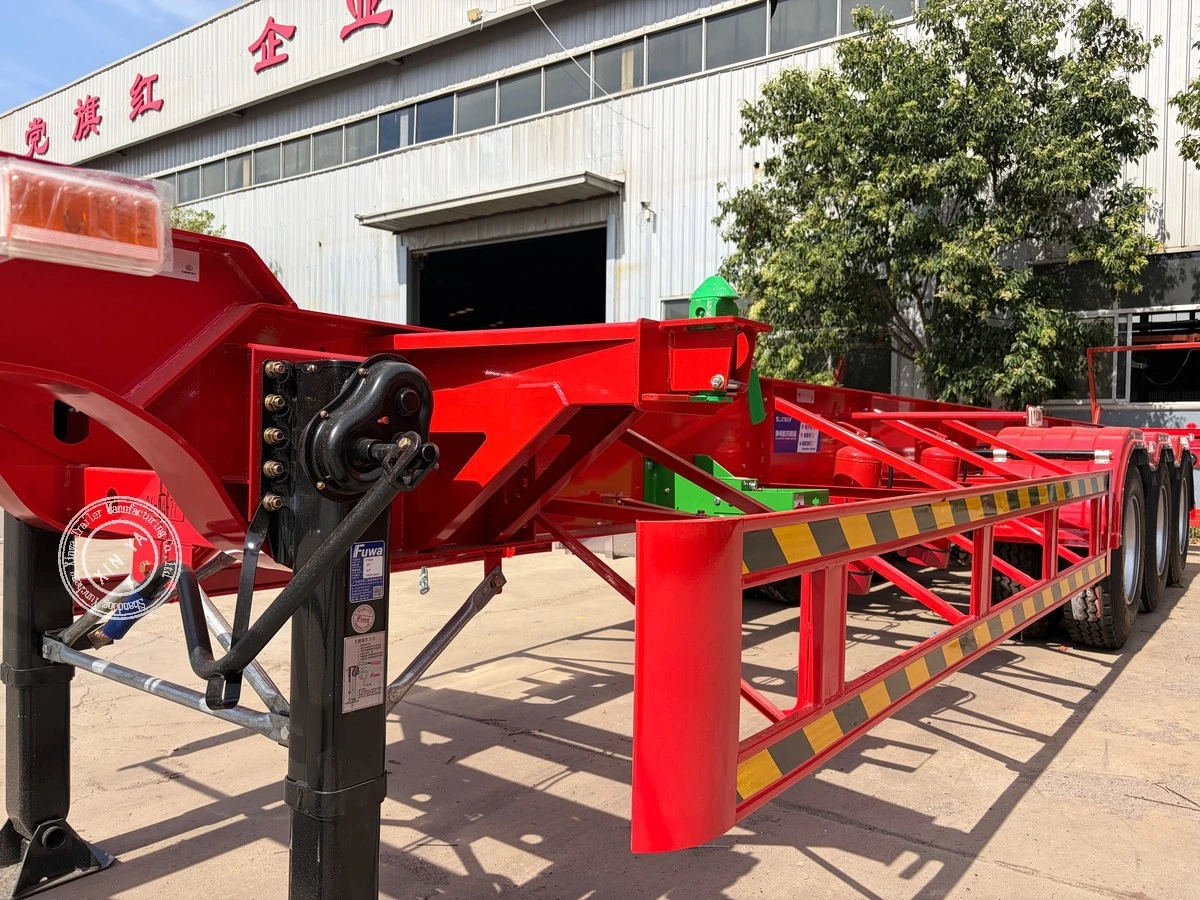

Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
drawbar pin |
50# |
|
brake system |
Brand: XINYA factory configuration Type: Double line braking Gas chamber: T30/30 * 2+T30 * 2 Gas storage tank: 40L * 1 ABS: None |
|
Suspension |
Mechanical suspension(Germany or America type) |
|
Axle |
Brand: XINYA factory configuration Capacity: 13T/16T QTY: 2 units |
|

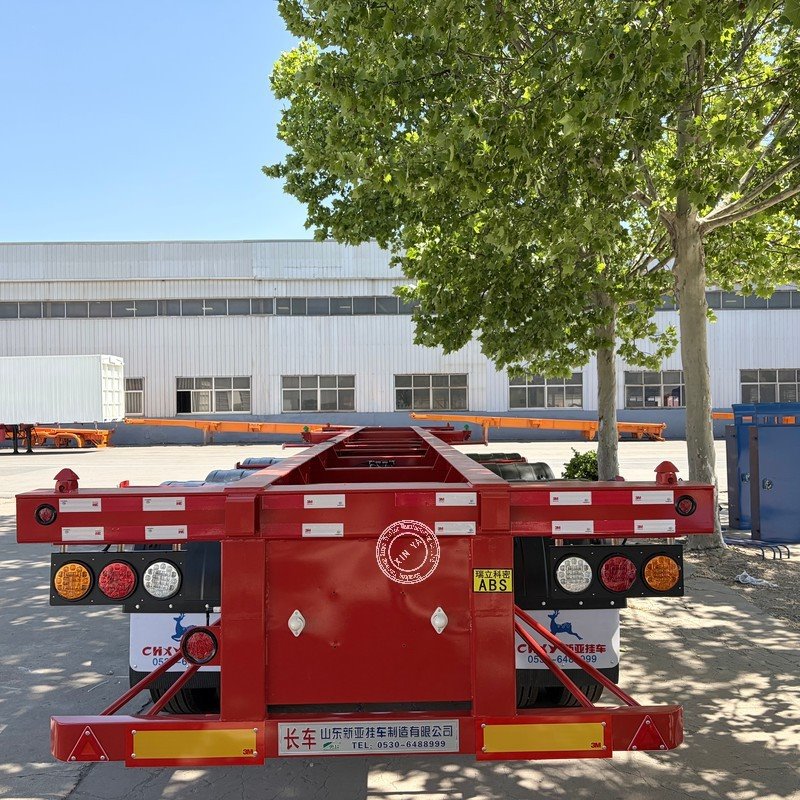

Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company Located in Yangzhuangji Town, Yuncheng County, Heze City, Shandong Province (the core area of Yuncheng Trailer Industrial Cluster). It produces 3,000 to 5,000 sets of various semi-trailers annually and owns automatic welding and stamping production lines, with 35 patents for trailer structures including lightweight frames, side-tipping dump trailers and pull-out container chassis.
Our Advantages
1.We have multiple utility model patents for our own container locks, suspensions, and pull-out frames. Our customers can load more cargo and save fuel costs, and we are compatible with African/Southeast Asian standard load regulations;
2.The frame is made of national standard high-strength manganese steel and Baosteel original sheet metal, which is resistant to torsion and not easily deformed during frequent loading and unloading at the dock.
FAQ
1. Is the price FOB or CIF?
A: Normally quoted on FOB China port.
2. Do you have the test and audit service?
A: Yes, we can assist to get the designated test report for product and the designated factory audit report.
3.What are the quality warrany principles?
A：30 working days after the prepayment is received
4. Which customs documents can you provide?
A: CI, PL, BL, CO. Buyers handle destination customs clearance.
