12/13m Flatbed Semi-trailer
Standard dimensions: 12500/13000*2500*1550mm
Payload Capacity: ranging from 40 to 80 tons, constructed from high-strength Q355B structural steel.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 12/13m flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 12/13m flatbed semi-trailer, welcome to get quotation from our factory.
Product Details

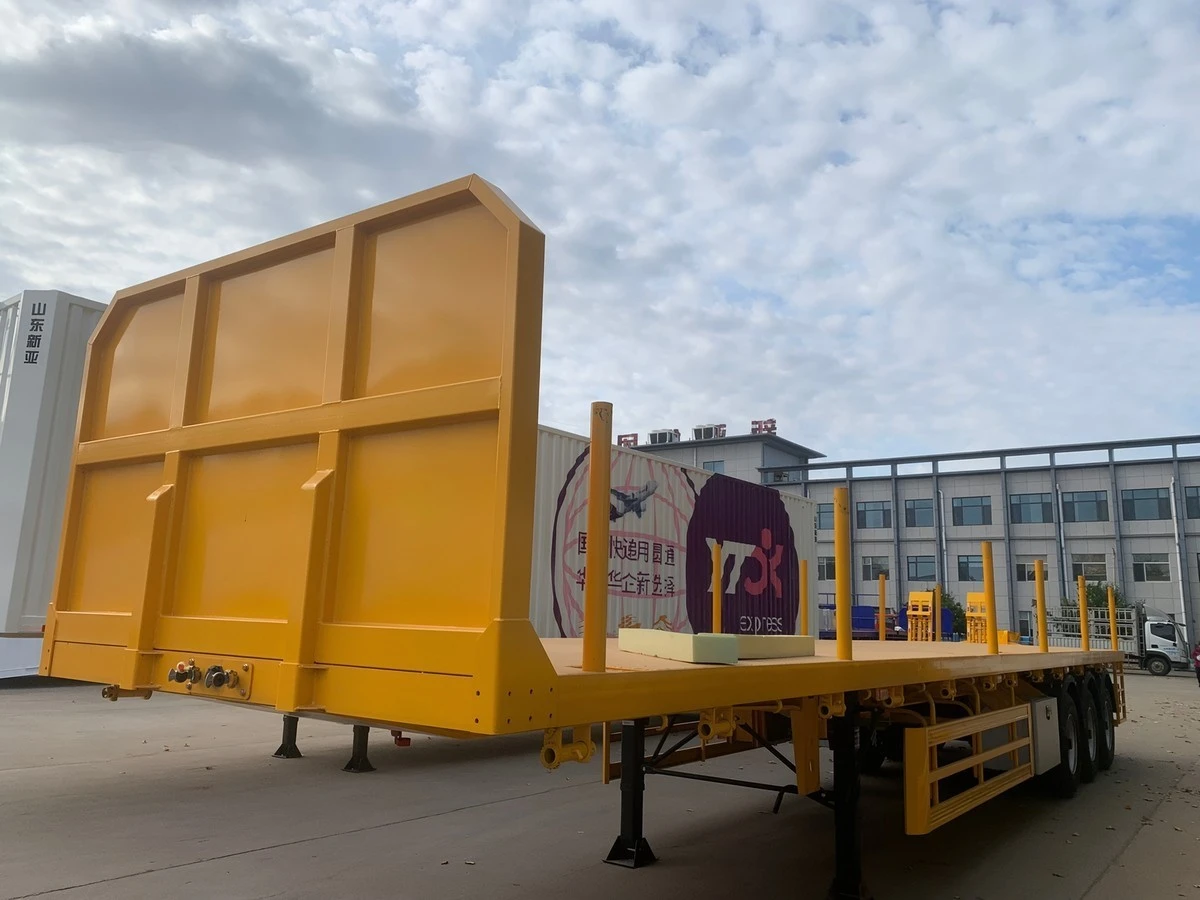

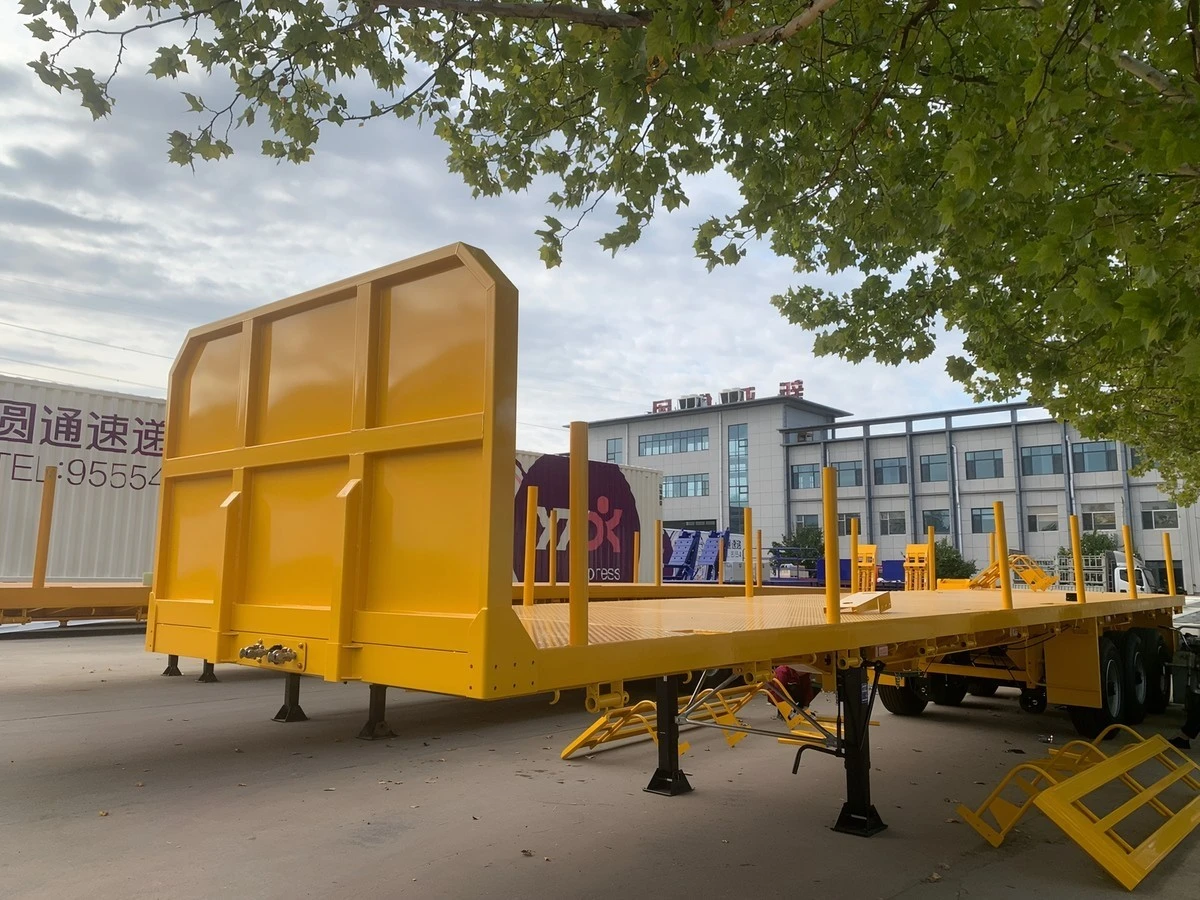

This tri-axle flatbed semi-trailer with front bulkhead is specially engineered for the Saudi Arabian market. It enables safe and efficient transportation of assorted commodities and plays a vital role in the haulage industry.
Product Parameters
|
Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
front bulkhead |
Equipped with front bulkhead and 12 stakes. |
|
plateform |
2-3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |

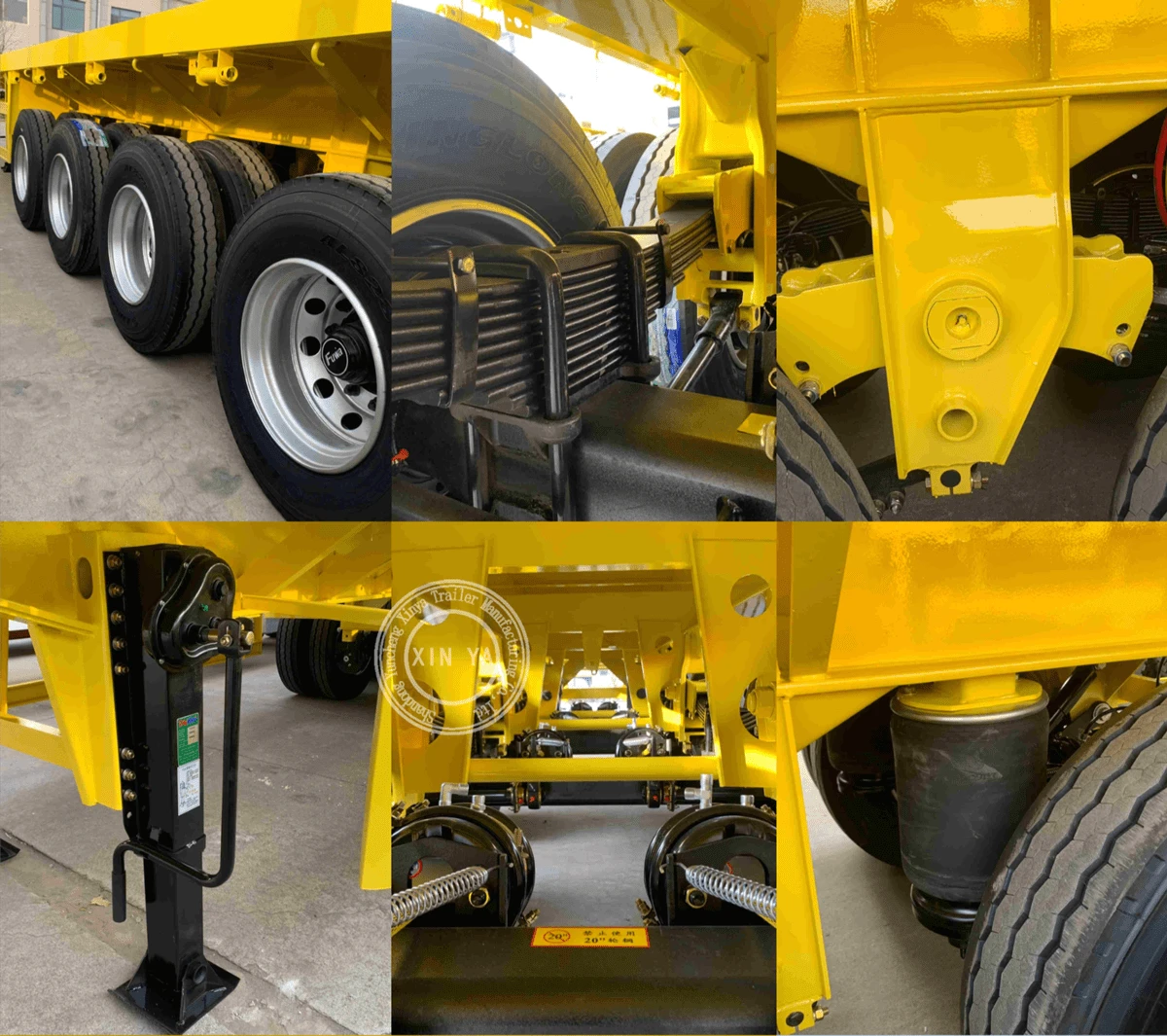

Product details
Our Company
Our Advantages
- Tri-axle flatbed semi-trailer fitted with front bulkhead and 12 removable stakes, featuring versatility, outstanding durability and structural stability.
- All key components adopt globally renowned brands, including BPW axles, JOST landing gears and WABCO emergency braking systems.
- Loading deck is constructed with 3mm diamond patterned floor plate, which greatly enhances surface friction for cargo loading.
FAQ
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
