Stake Fence Semi Trailer
Dimensions：13000 × 2550 × 3600 mm (Customizable)
Load capacity：50 – 60 ton
Tare weight：7.5 – 8.5 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of stake fence semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved stake fence semi trailer, welcome to get quotation from our factory.
Product Details

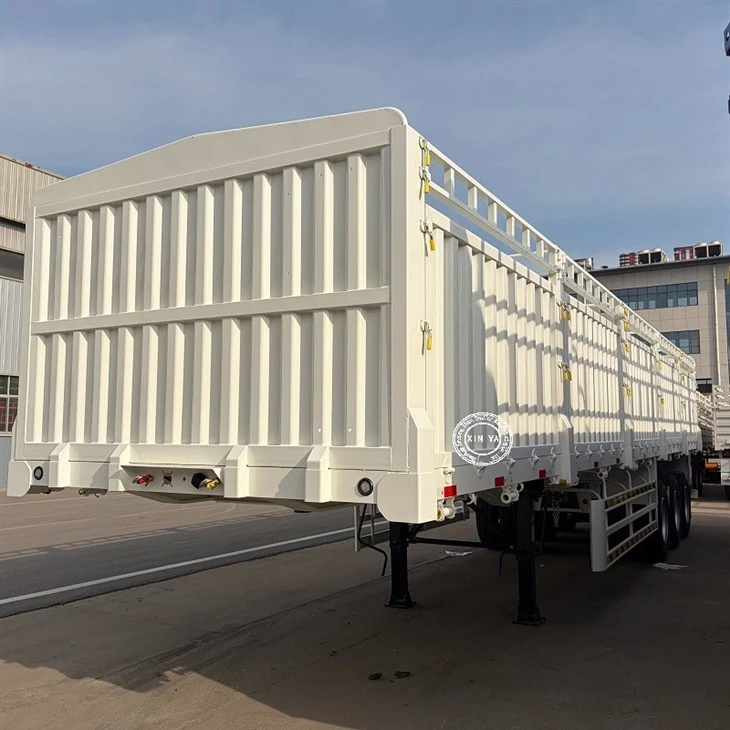

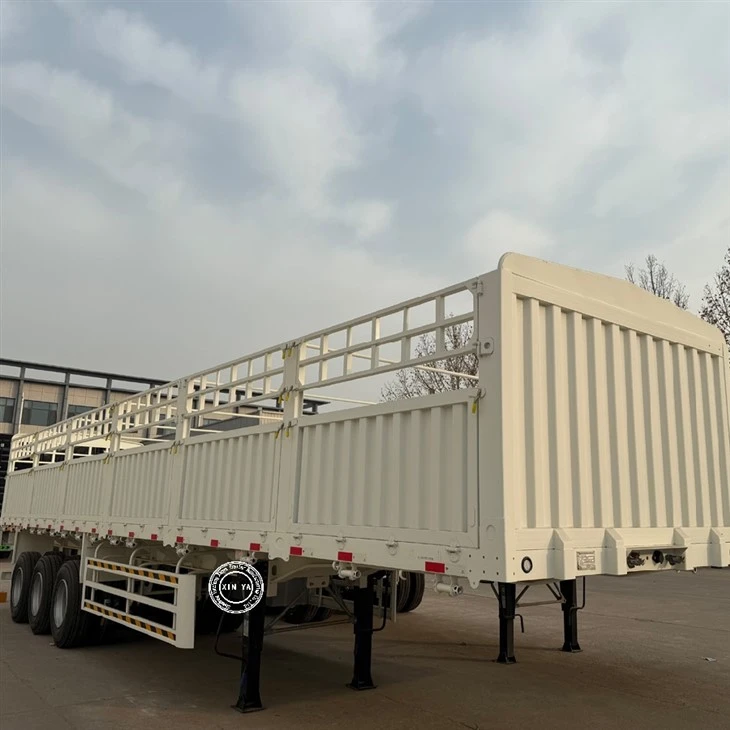

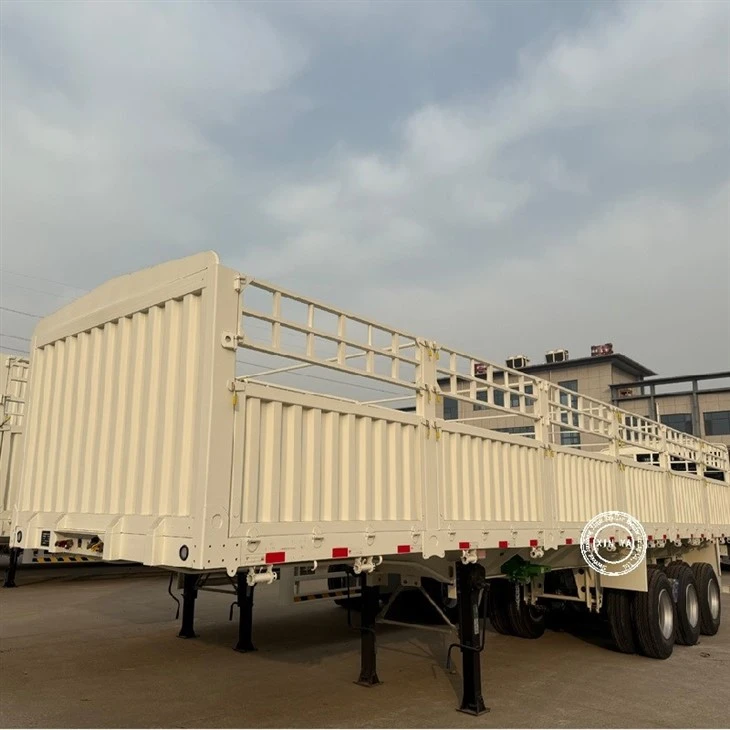

This stake fence semi trailer adopts integrated high-strength steel beam integral stamping and welding process, with optimized grid fence structure and dense and uniform pipe body layout. The detachable vertical stakes and side fences are designed with quick disassembly and assembly structure, which is convenient for flexible switching of various transportation modes. The whole vehicle adopts integral anti-rust pickling and high-temperature baking paint treatment, matched with high-standard pneumatic braking components and load-bearing suspension system, with fine workmanship in welding seams and overall stable and solid structural performance.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
13000 × 2550 × 3600 mm (Customizable) |
| Fence Height | 1800/2000/2200mm (Optional) |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Platform |
3-4mm checker plate |
|
Twist lock |
12 units (can deliver 40 or 20 feet container) |
|
Landing gear |
Capacity & 28T,Brand JOST |
|
Suspension |
Mechanical system with beams equaliser |
| King Pin | JOST 2"(50mm) / 3.5"(90mm) |
| Leaf Spring | 90mm(W) ×13mm(T) ×10 layers |
| Rim | 9.00×22.5 / 9.75×22.5 |
|
Axle |
3 Axles FUWA / BPW,13Ton /16Ton per axle |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Tire |
12R22.5 / 315/80R22.5 /12.00R20,12pcs+1spare |
Our Company
Covering an area of over 160 acres, our factory is equipped with full sets of automatic welding, cutting and professional anti-corrosion coating equipment. We have more than 300 professional employees and an annual production capacity of 3,000 to 5,000 units. Our product portfolio covers lightweight box trailers, curtain side trailers, grain fence semi-trailers, dump trailers, container skeletal trailers, low bed trailers and customized special vehicles.
Our Advantages
Compared with ordinary trailers, this stake fence semi trailer features light weight and high load-bearing capacity, effectively reducing vehicle self-weight and improving cargo transportation volume and economic benefits. The flexible fence disassembly design adapts to livestock, grain, bagged goods and bulk sundries transportation, with strong scene adaptability. It is equipped with mature and reliable walking and braking systems, with low failure rate, strong road adaptability and long service life, which can meet long-distance and high-frequency commercial transportation needs in various regions.
FAQ
Q: Is this fence trailer suitable for long-distance rough road transportation?
A: Yes. The trailer is equipped with reinforced integral beam and heavy-duty mechanical suspension, which effectively buffers bumpy pressure during driving. All key welding parts are strengthened and stress-relieved, making it adaptable to complex road conditions such as mountain roads, gravel roads and rural roads, very suitable for long-distance cross-region transportation.
Q: Can I freely adjust or remove the side fence and stakes?
A: All side stakes and fence panels are designed with plug-in and quick-release structure, no cutting or drilling required. Customers can disassemble partial or all fences according to cargo types, realizing open flat cargo transportation, bulk goods transportation and livestock transportation in one trailer.
Q: What anti-corrosion treatment does the trailer adopt?
A: The whole trailer undergoes complete shot blasting and derusting treatment before painting, adopting high-adhesion industrial primer and weather-resistant topcoat. The bottom and welding seams are specially coated with anti-rust paint, which effectively resists rain, humidity and oxidation, greatly extending the service life in humid and harsh environments.
Q: Can this trailer be customized in size and configuration?
A: We support full-range personalized customization. Trailer length, fence height, axle tonnage, suspension type, tire specification and auxiliary accessories can be adjusted according to local road standards and customer cargo needs to meet different market registration and transportation requirements.
