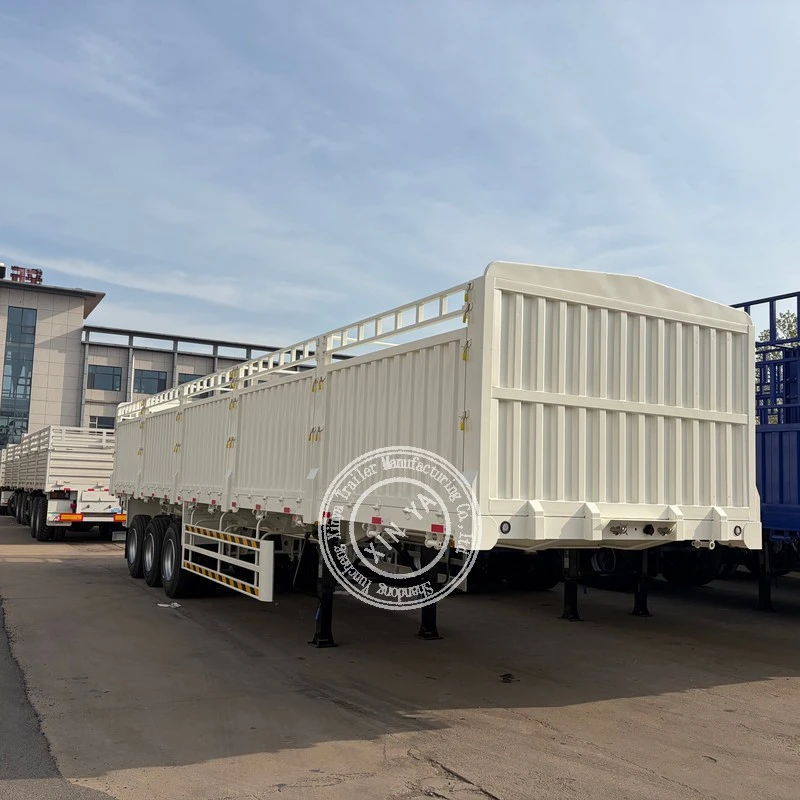

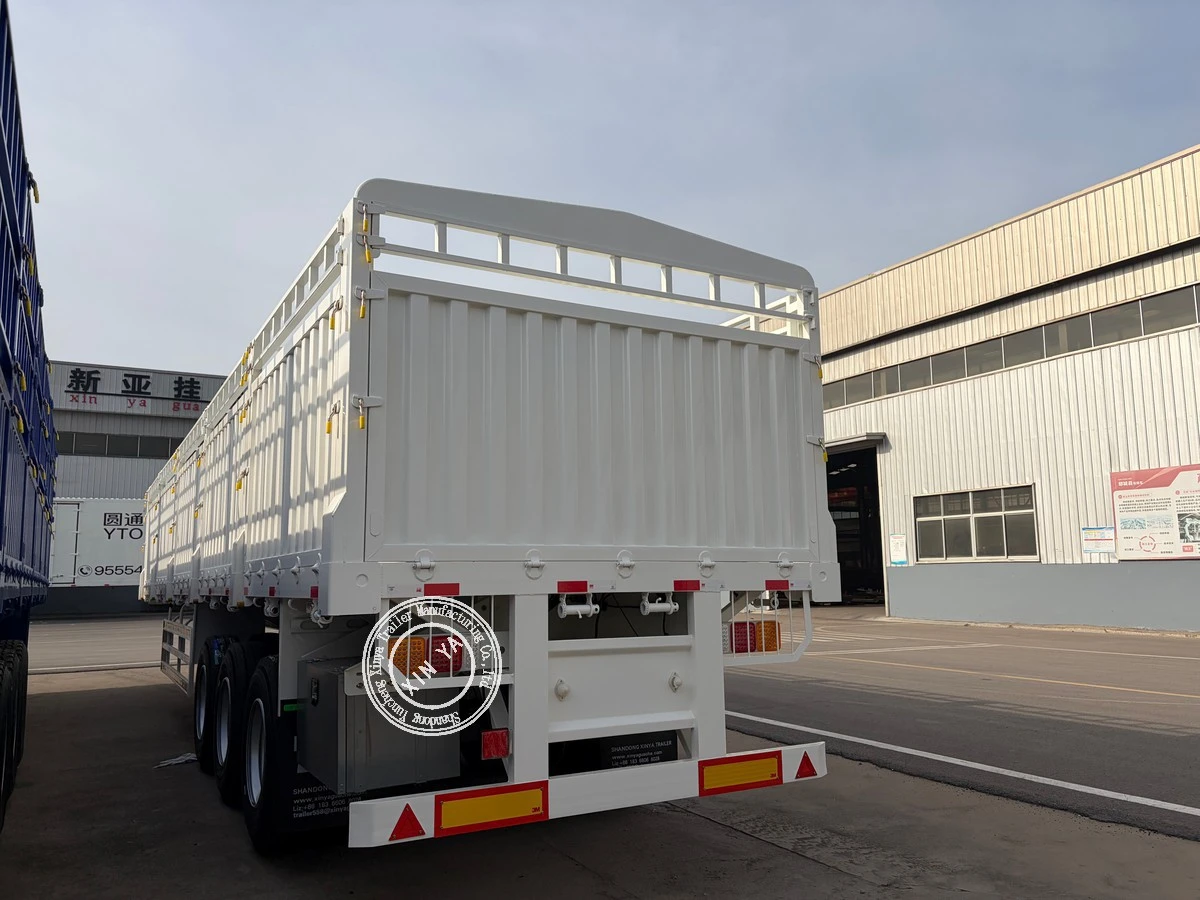

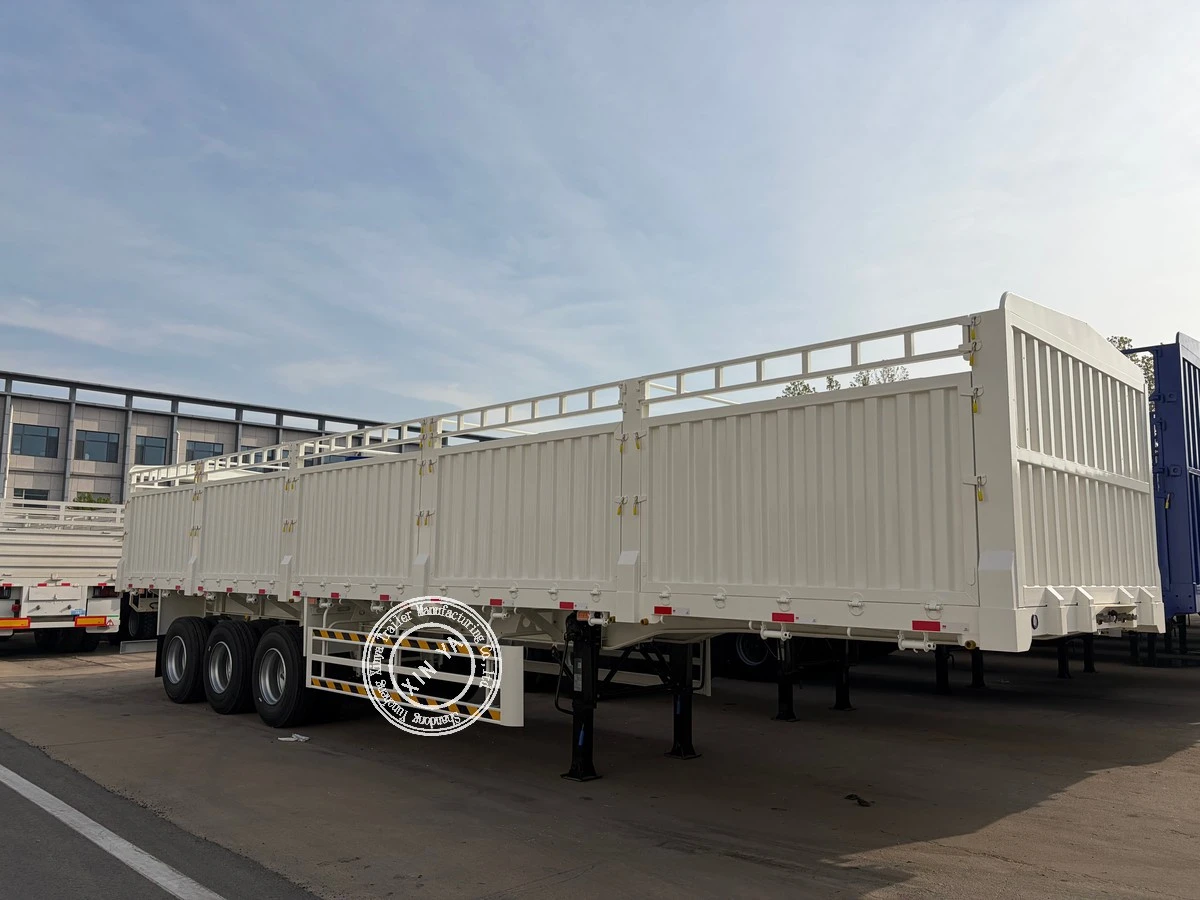

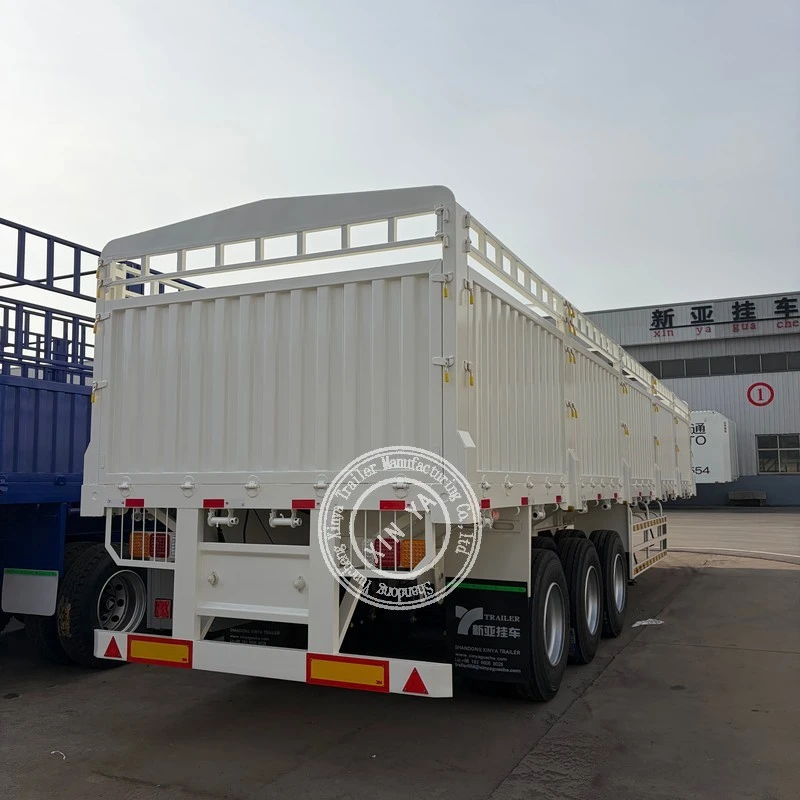

3/4-axis Fence Semi-trailer
Size: 12500*2250*3200mm or customized
Tare weight: 7T
Payload: 60T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 3/4-axis fence semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 3/4-axis fence semi-trailer, welcome to get quotation from our factory.
Product Details
The 3-axis fence car is lightweight, fuel-efficient, and cost-effective; Usage: General goods such as department stores, grains, vegetables, building materials, and express delivery, as well as light foam goods. 4-axis fence car has strong load-bearing capacity, greater stability, and good anti rollover performance; Usage: Heavy duty construction materials, ores, steel, large equipment and other heavy goods
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12500*2250*3200mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 500-600mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm |
|
King pin |
50#/90# |
|
Platform |
3-4mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T |
|
Suspension |
Mechanical system with beams equaliser |
|
Axle |
Brand: XINYA Capacity: 13T16P QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. We have over 15 years of experience in the production and export of trailers and other products, and have provided services to hundreds of customers in 35 countries and regions in Africa and Southeast Asia
Our Advantages
1. Mature welding technology: Lujin vehicles use automatic submerged arc welding technology to weld the main beam, while the longitudinal beam is welded using an automatic tracking submerged arc welding machine. All components are shot blasted to improve paint adhesion and painted before assembly to make the main beam more sturdy and durable
2. JOST/FUWA landing gear can be made of aluminum or steel; Designed to operate in high and low temperature environments ranging from 30 º C to 120 º C.
3. Vehicle electrophoresis and powder coating, strong rust prevention, suitable for humid/salt spray environments in Africa.
FAQ
1. What suspension do you use?
A: We have mechanical suspension and air suspension optional.
2. What's the kingpin size?
A: Standard 2" (50mm) or 3.5" (90mm) for choice.
3. What's the tire brand and size?
A: Triangle/Linglong brand, 12R22.5 standard size.
