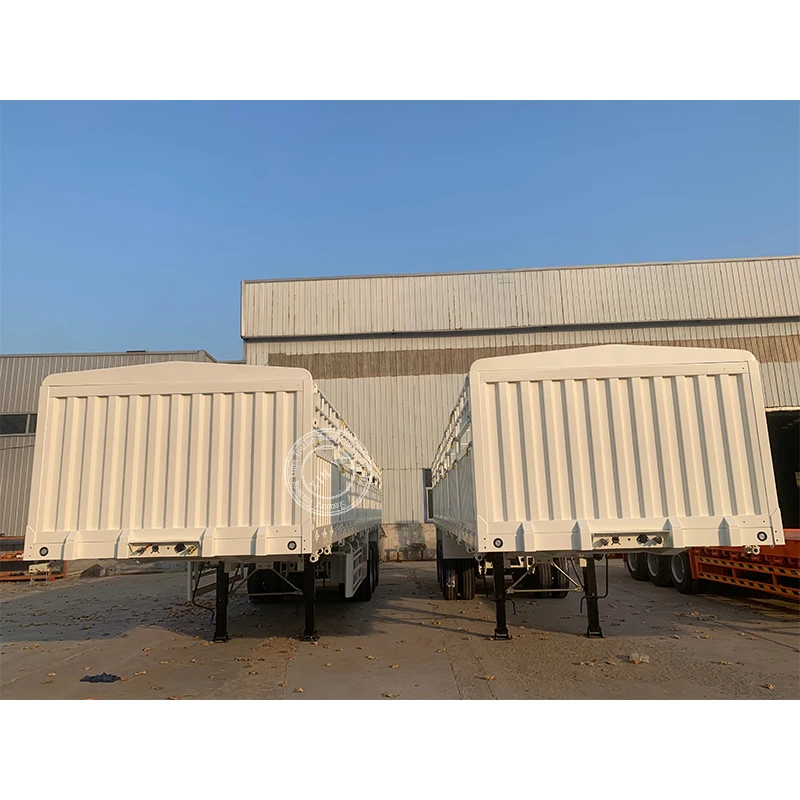

Fence Stake Semi Truck Trailer
Size: 12990*2540* 3485 or customized
Payload: 60T
Axle: 3 axles
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of fence stake semi truck trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved fence stake semi truck trailer, welcome to get quotation from our factory.
Product Details

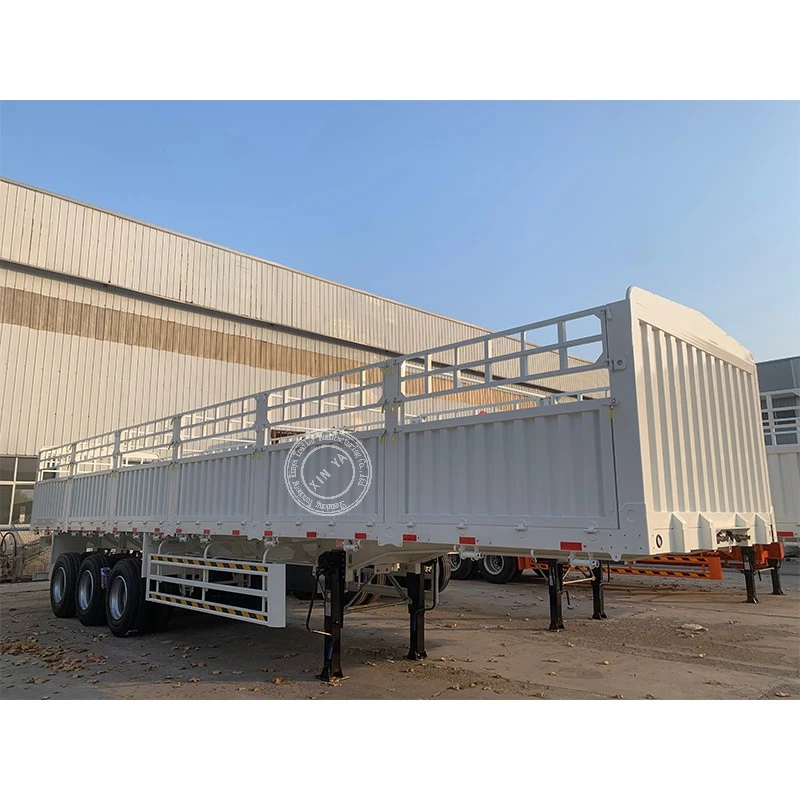

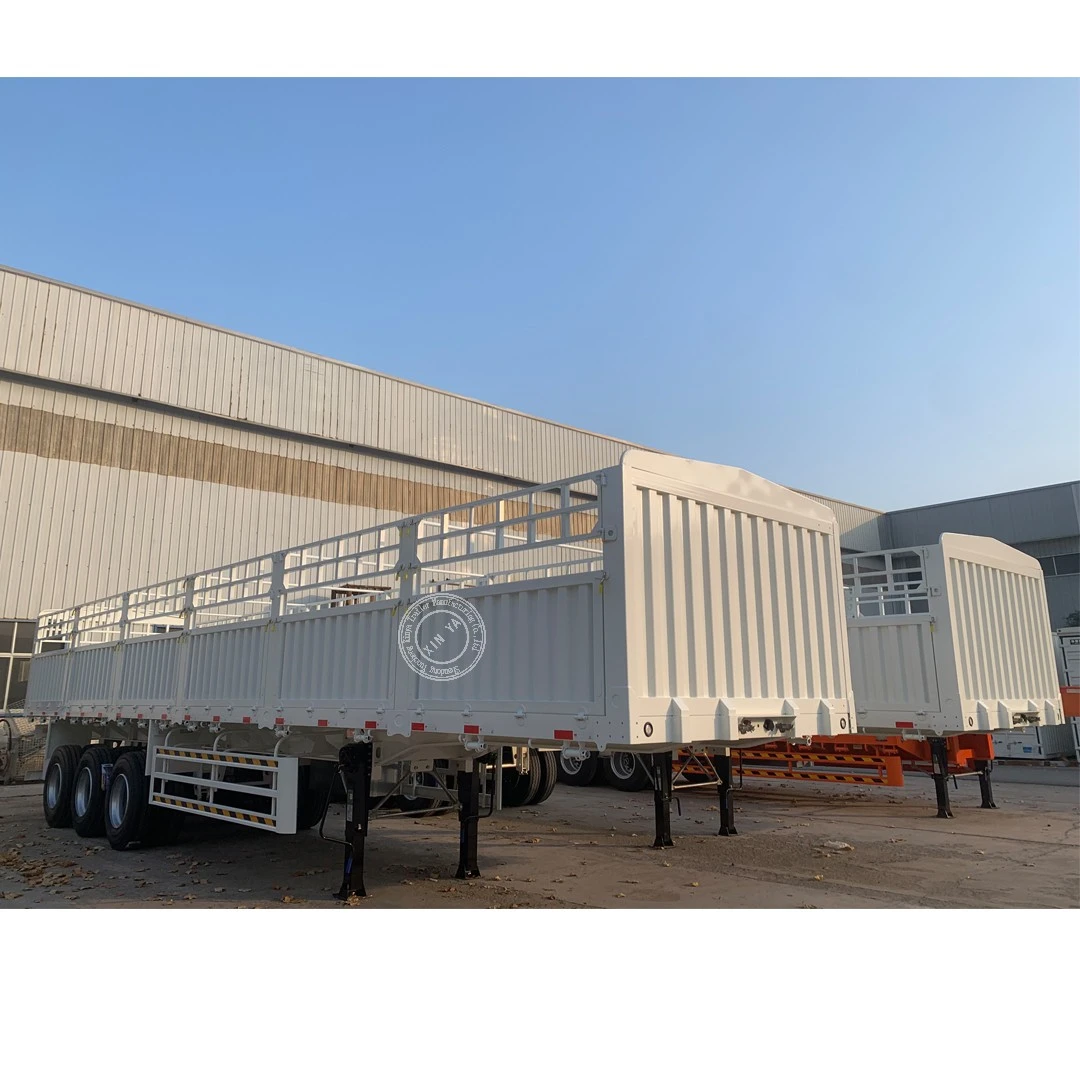

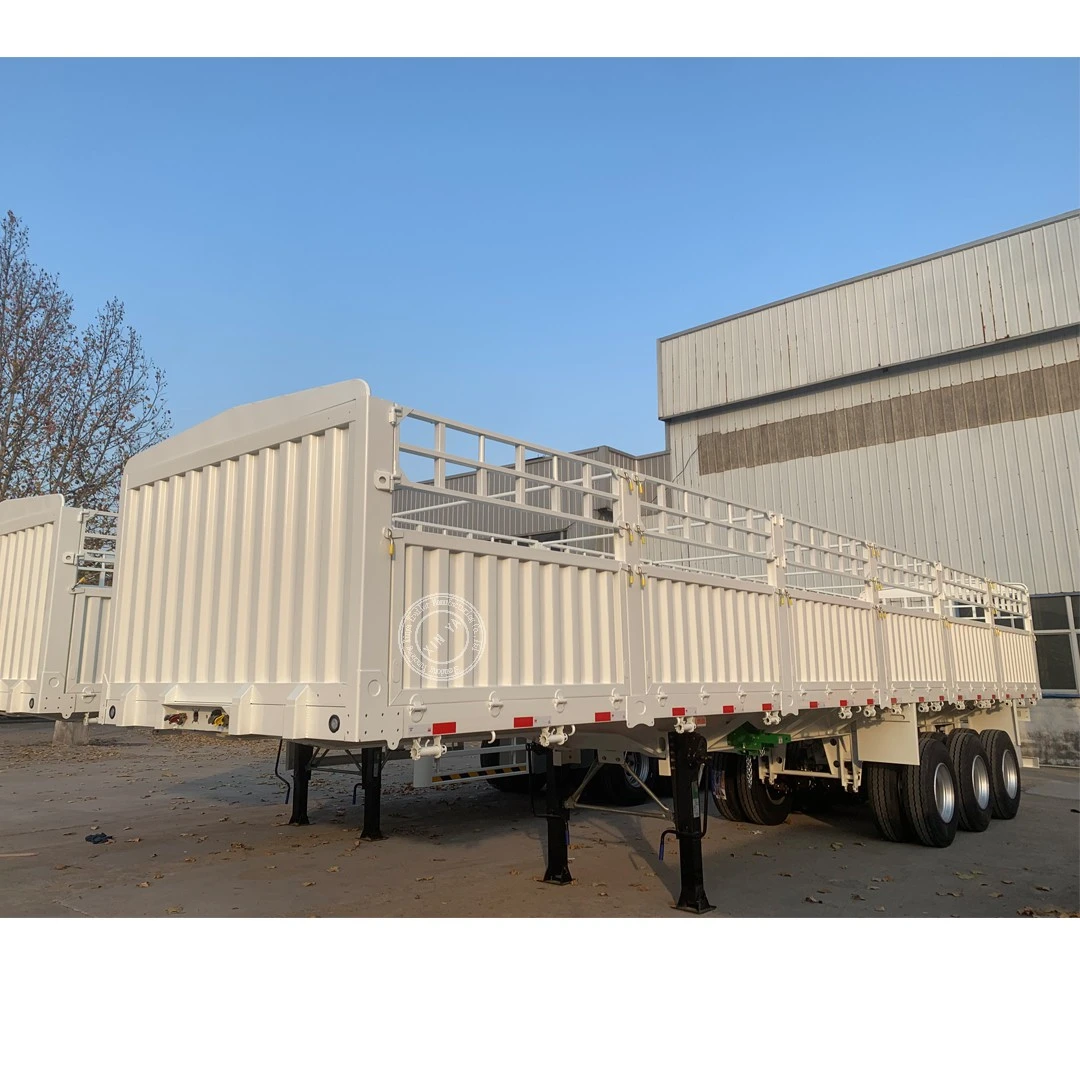

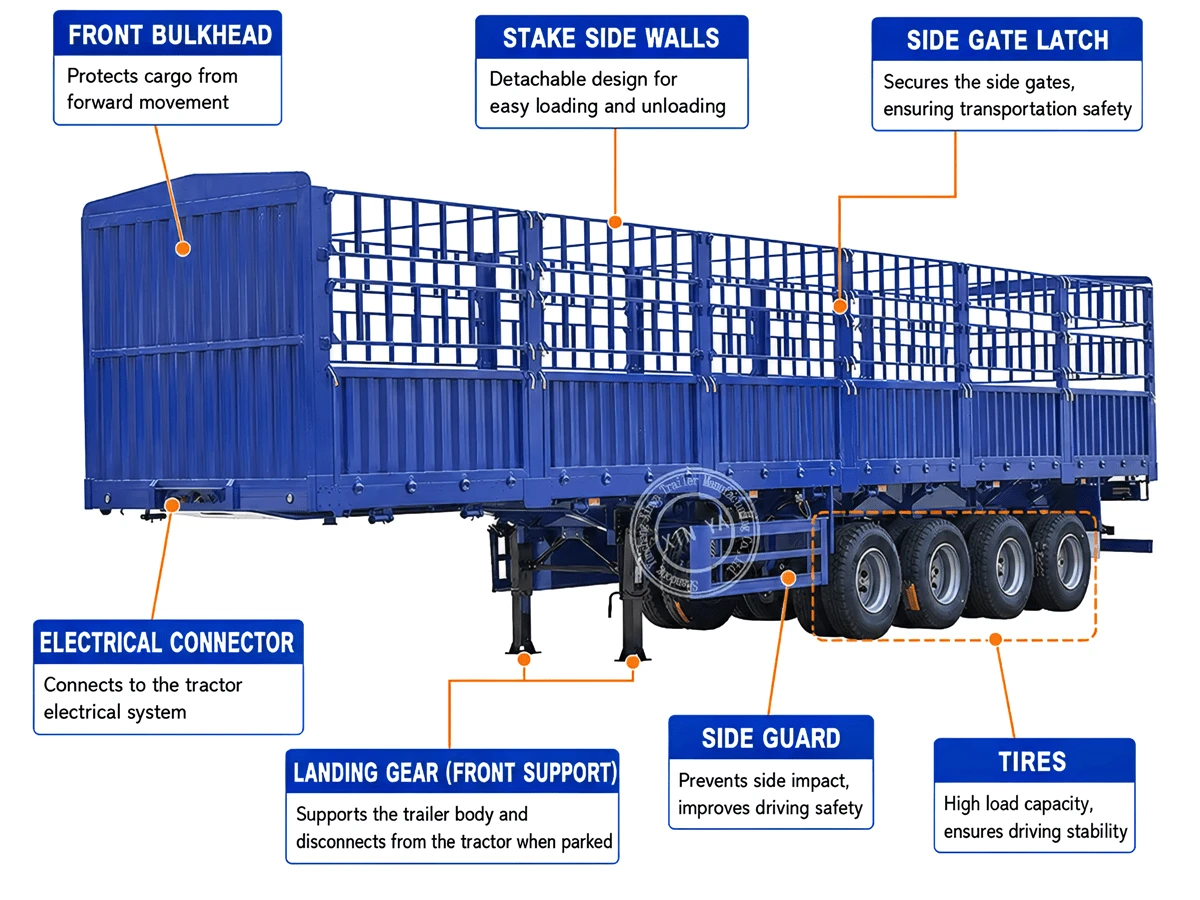

The fence posts of this model are vertical thick steel columns with a spacing of about 1 meter, which can be disassembled/overturned and turned into a flatbed truck when removed. Horizontal bars connect columns to form a grid, providing ventilation and preventing cargo from falling off.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12990*2540* 3485 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Platform |
3mm checker plate |
|
Twist lock |
12 units (can deliver 40 or 20 feet container) |
|
Landing gear |
Capacity & 28T,Brand JOST |
|
Suspension |
Mechanical system with beams equaliser |
|
Axle |
13T HCSV Brand with ABS and automatic slack adjuster & 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Tire |
12R22.5 & 12 units,Brand Triangle |
Our Company
Covering an area of over 160 acres, our factory is equipped with full sets of automatic welding, cutting and professional anti-corrosion coating equipment. We have more than 300 professional employees and an annual production capacity of 3,000 to 5,000 units. Our product portfolio covers lightweight box trailers, curtain side trailers, grain fence semi-trailers, dump trailers, container skeletal trailers, low bed trailers and customized special vehicles.
Our Advantages
1.Our fence semi-trailer weighs 0.5-1.2 tons lighter than regular factory trucks (about 7.5-8.5 tons for 3-axles).
2.The frame is made of high-strength steel and optimized by finite element analysis, which is thin and continuous, light and capable of pulling
3.The flower railing/warehouse grid adopts hollow and high-strength square tubes, which not only reduces weight but also maintains strength.
FAQ
1.How many axles do your semi-trailers have?
A: We have 2-axle, 3-axle and multi-axle models for choice.
2. What material do you use for the trailer body?
A: We adopt high-strength steel, durable and anti-corrosion.
3. What is the load capacity?
A: The standard load capacity is about 40-60 tons, can be adjusted as required.
