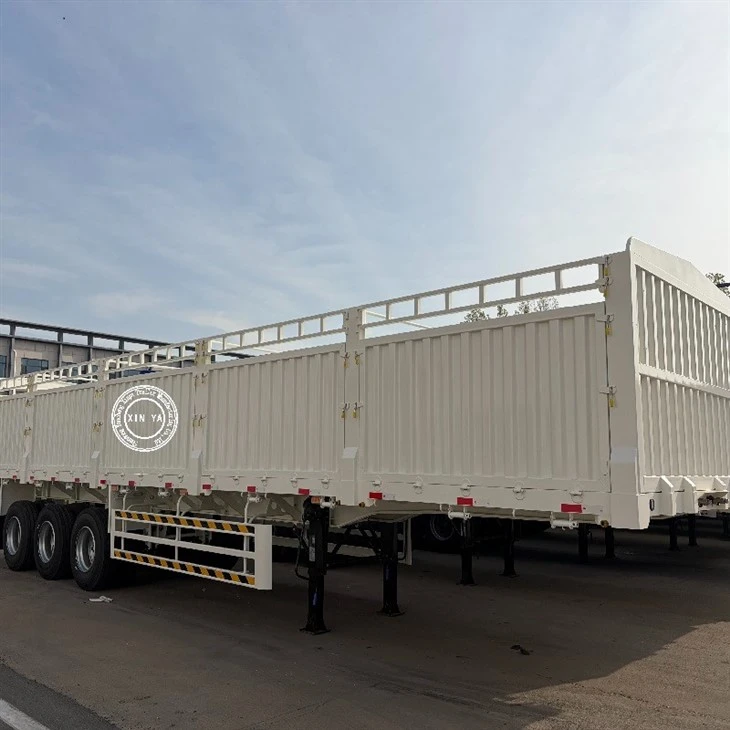

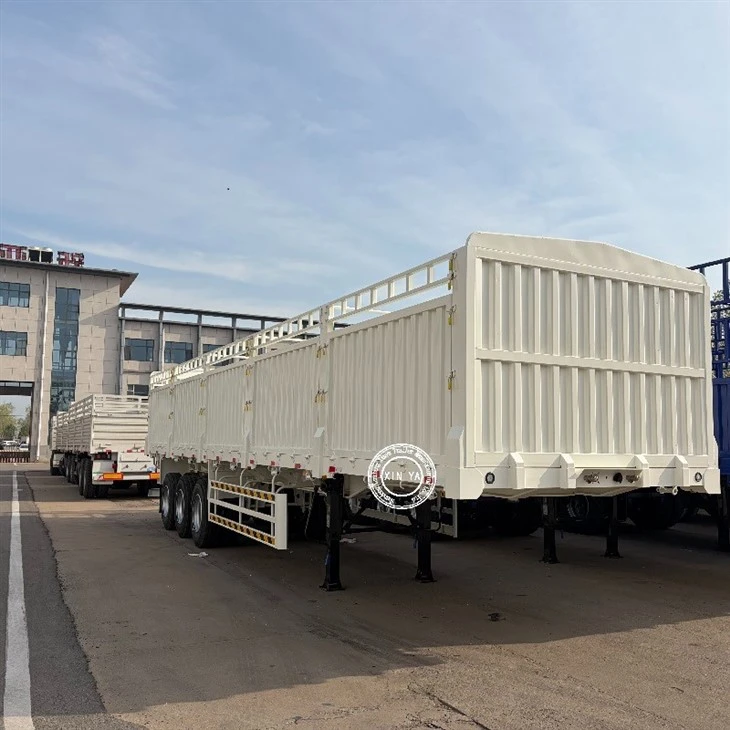

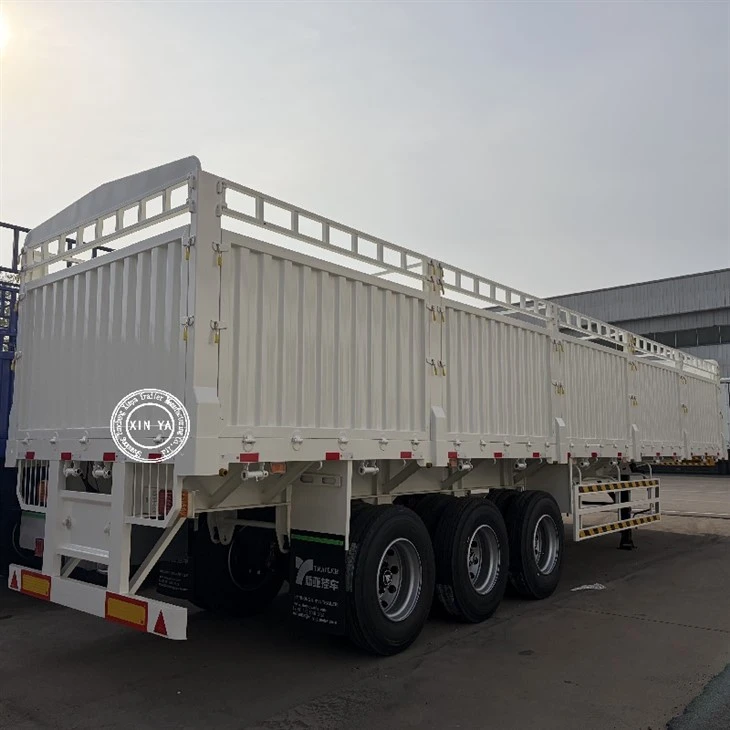

Stake Semi Trailer
Dimensions：12500 × 2500 × 3200 mm (customizable)
Load capacity：40 ton
Tare weight：About 8 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of stake semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved stake semi trailer, welcome to get quotation from our factory.
Product Details
The trailer stakes adopt independent plug-in structure without welding, which can be quickly installed or removed. The fence is welded with thickened square tubes for stable structure and anti-deformation performance. The chassis is manufactured by automatic submerged arc welding, and the anti-slip checkered floor is wear-resistant and impact-proof. Equipped with WABCO brake valve , it ensures reliable braking safety under heavy load. Multi-layer anti-corrosion painting protects the trailer against sun and rain, extending service life.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12500 × 2500 × 3200 mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
| Stake & Fence | Removable pluggable stakes, square tube lattice fence. Standard height 1.6m, height customizable |
|
Platform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
| Tire | 12R22.5 tubeless tire, total 12 pcs |
| Rim | 9.0-22.5 |
| King Pin | 2 inch (50#), JOST brand, bolt type |
|
Suspension |
Mechanical leaf spring suspension |
|
Axle |
Brand: FUWA / BPW /XINYA optional Capacity: 13T16P QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
This 3-axle stake semi trailer adopts pluggable removable fence design for easy disassembly. It supports both fenced cargo transport and flatbed loading, realizing multi-purpose use and greatly improving vehicle utilization. High tensile steel main beam delivers excellent torsion resistance and durability. The hollow lattice fence provides good ventilation, ideal for livestock and bagged agricultural goods. The leaf spring suspension offers strong load capacity to adapt to rough unpaved roads in Africa, with widely available spare parts for easy maintenance.
FAQ
Q: Can the stake fence be fully removed? Can it carry containers after removal?
A: The fence and stakes can be fully dismantled, turning it into a flatbed trailer. ISO twist locks can be fitted to load standard containers.
Q: Can I customize the fence height?
A: Customization is available. Standard height is 1.6m, and 1.8m / 2.0m higher versions are optional for different cargo.
Q: Is this trailer suitable for cattle and sheep livestock transport?
A: Yes. The lattice fence provides good ventilation for animals, it is a popular model for livestock transport in Africa.
Q: Can I choose air suspension?
A: Mechanical leaf spring suspension is standard; air suspension is available as an upgrade option.
