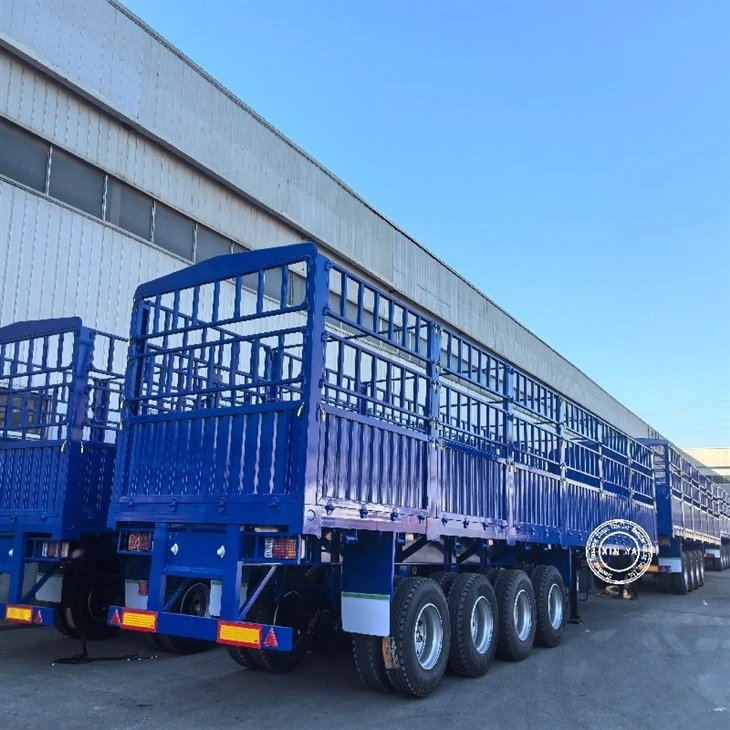

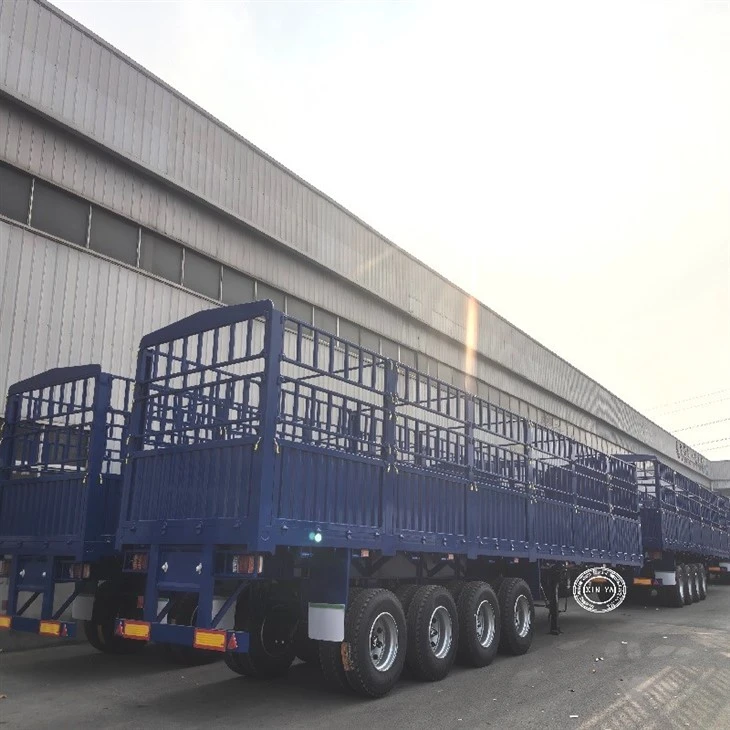

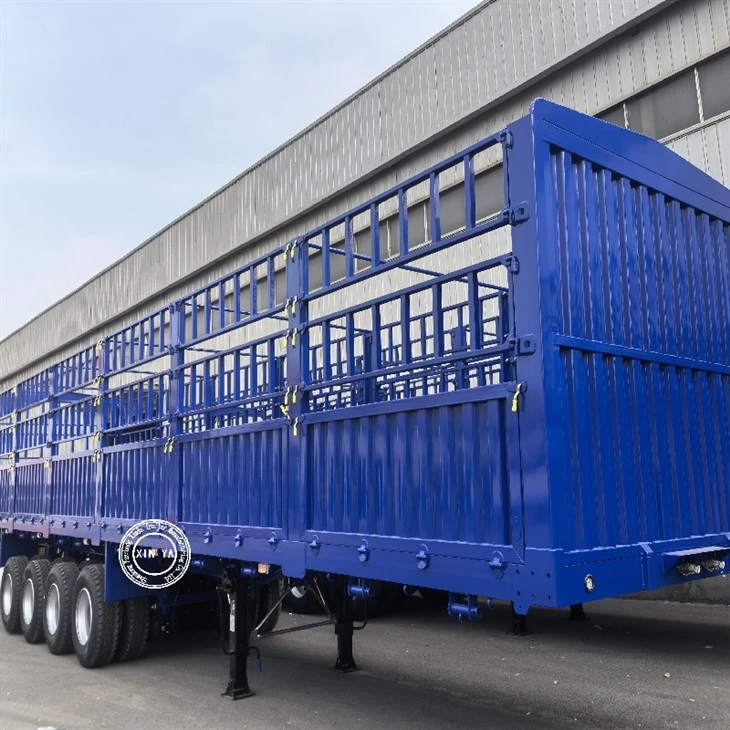

Fence Type Semi Trailer
Dimensions：13000×2500×3350 mm (customizable)
Load capacity：60–70 ton
Tare weight：8.5–9.0 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of fence type semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved fence type semi trailer, welcome to get quotation from our factory.
Product Details
This 4-axle Fence Type Semi Trailer adopts integrally formed Q345B high-tensile steel main beam and balanced four-axle load-bearing structure. The whole vehicle is treated with sandblasting derusting and multi-layer anti-corrosion painting. It is equipped with thickened square tube removable fence stakes, reinforced locks and anti-collision supports, anti-slip patterned steel floor, dual-line air brake system (ABS optional) and full set of LED lights. With exquisite workmanship and solid structure, it adapts to long-term heavy-duty and complex road transportation.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
13000×2500×3350 mm |
|
Loading capacity |
60–70 ton |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm |
|
Platform |
3mm checker plate |
|
King pin |
2 inch / 3.5 inch |
|
Landing gear |
28T |
|
Suspension |
Mechanical suspension or air suspension |
| Rim | 9.0-22.5 |
| Tire | 12R22.5 / 315/80R22.5,16 pcs |
|
Axle |
Brand: FUWA / BPW /XINYA Capacity: 13T16P QTY: 4 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
The four-axle Fence Type Semi Trailer design features uniform force distribution and stronger load capacity, effectively improving rated payload and driving stability while reducing axle and tire wear. The detachable fence structure enables flexible operation and fast loading & unloading, suitable for bulk cargo, grain, bagged goods, livestock and other multi-scenario transportation. With reasonable tare weight, reliable anti-corrosion performance and low failure rate, it greatly cuts transportation and maintenance costs, delivering higher cost performance than ordinary 3-axle trailers.
FAQ
Q: What is the maximum load capacity of the 4 axle fence trailer?
A:The standard payload is 60–70 tons. With reinforced beam configuration, it can reach 75–80 tons for heavy-duty transport.
Q: Is the fence removable?
A: Yes, all side stakes are fully removable. You can quickly disassemble the fence for container cargo, bulk cargo or flatbed usage.
Q: What brand of axles do you use?
A: Standard with FUWA 13Ton axles, BPW and 16-ton heavy-duty axles are optional.
