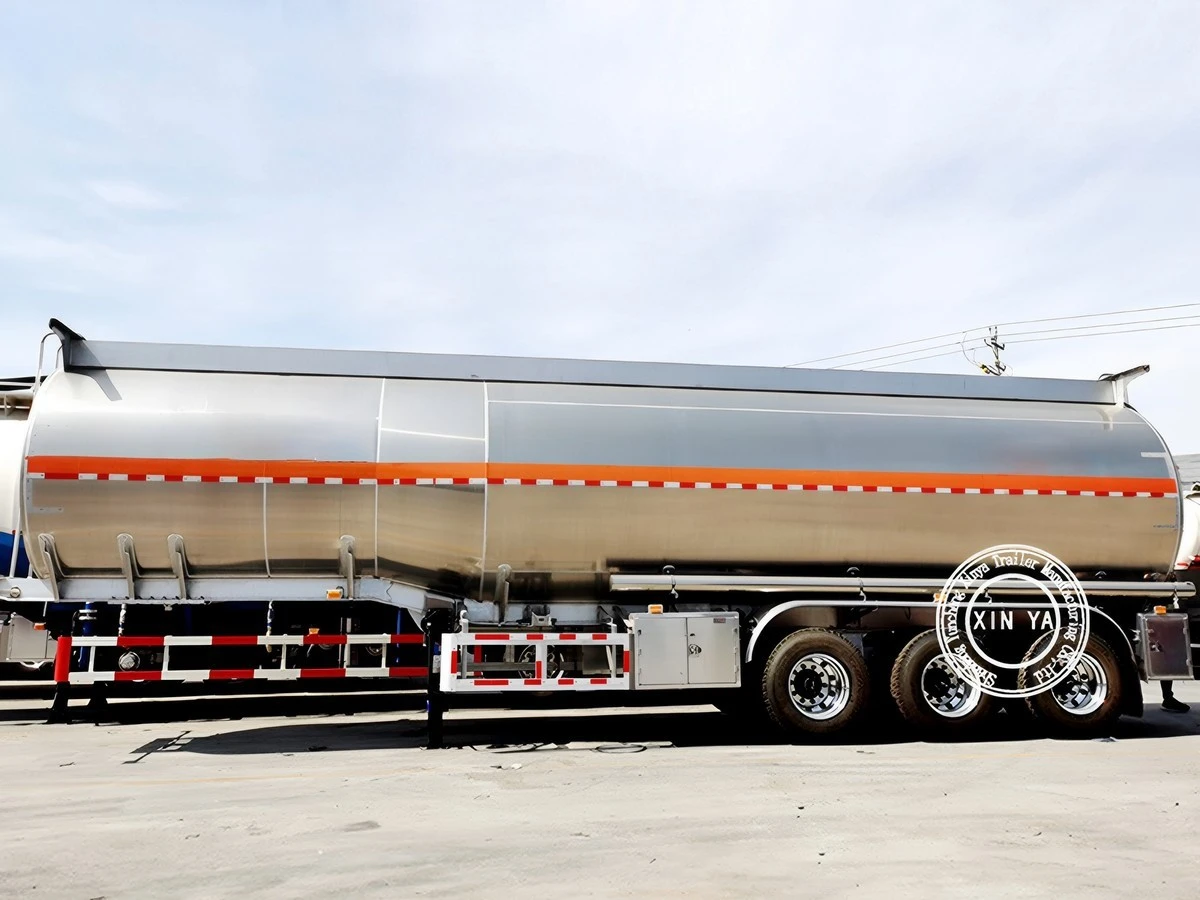

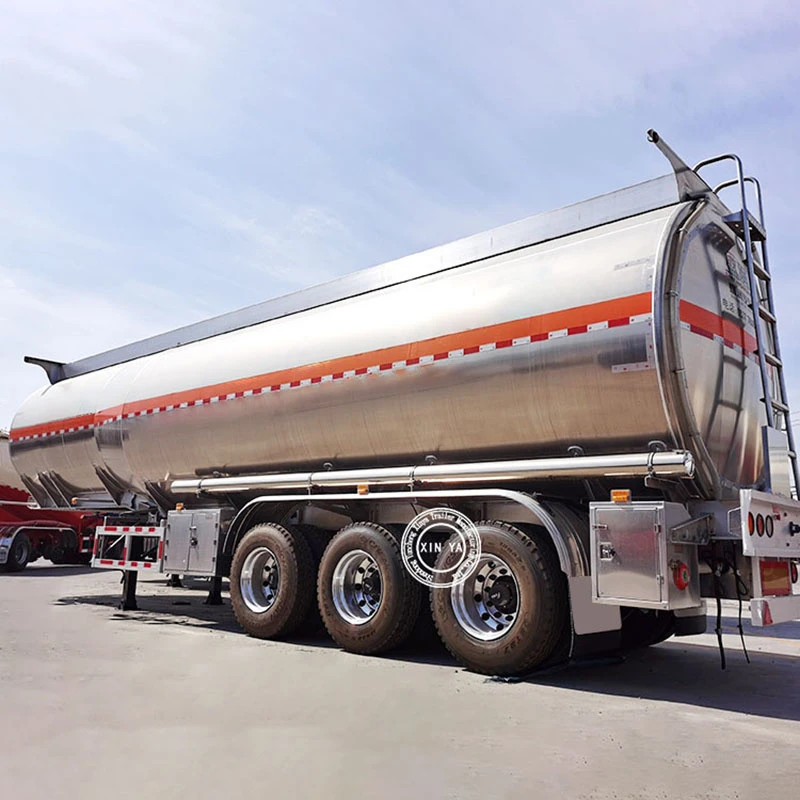

Aliminum Alloy Oil Tanker Trailer
The 45000 liter aluminum tanker trailer has excellent anti-corrosion performance
Tank body material: Aluminum alloy
Suspension: Heavy duty mechanical suspension
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of aliminum alloy oil tanker trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved aliminum alloy oil tanker trailer, welcome to get quotation from our factory.
Product Details
A semi-trailer oil tanker is divided into two parts: the tank body part and the skeleton or driving part that supports the tank body.
The rear structure of a semi-trailer oil tanker truck is roughly the same, divided into two types: rear double axle (two axles) and rear triple axle (three axles)
Product Parameters
|
Overall size(L*W*H)mm |
11800*2490*3800mm |
|
Capacity |
42 m3 |
|
Main beam |
Type: straight type; Height: 680mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Tyre |
365/65R22.5, |
|
Rim |
Aluminum alloy, 11.75-22.5, 6 units |
|
Mudguard |
Plastic or steel |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Air suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. specializes in producing a full range of semi trailers, including skeleton semi trailers, flatbed semi trailers, low flatbed semi trailers, dump semi trailers, fence semi trailers, oil tank trucks, and bulk cement tank trucks. In addition, we are also authorized dealers of new trucks from China National Heavy Duty Truck Group and Shaanxi Automobile Group, which can meet the diverse vehicle needs of customers in the transportation and logistics industry.
Our Advantages
1.High-Strength Aluminum Alloy: Constructed with 6mm 5454 aluminum alloy for the tank and frame, ensuring durability and lightweight performance.
2.Advanced Braking System: Includes Wabco relay valves, dual circuit electrical system, and multiple brake chambers for safety.
3.Customizable Tank Options: Supports customization for tank capacity, discharge valves, and axle brands to meet specific client demands.
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
