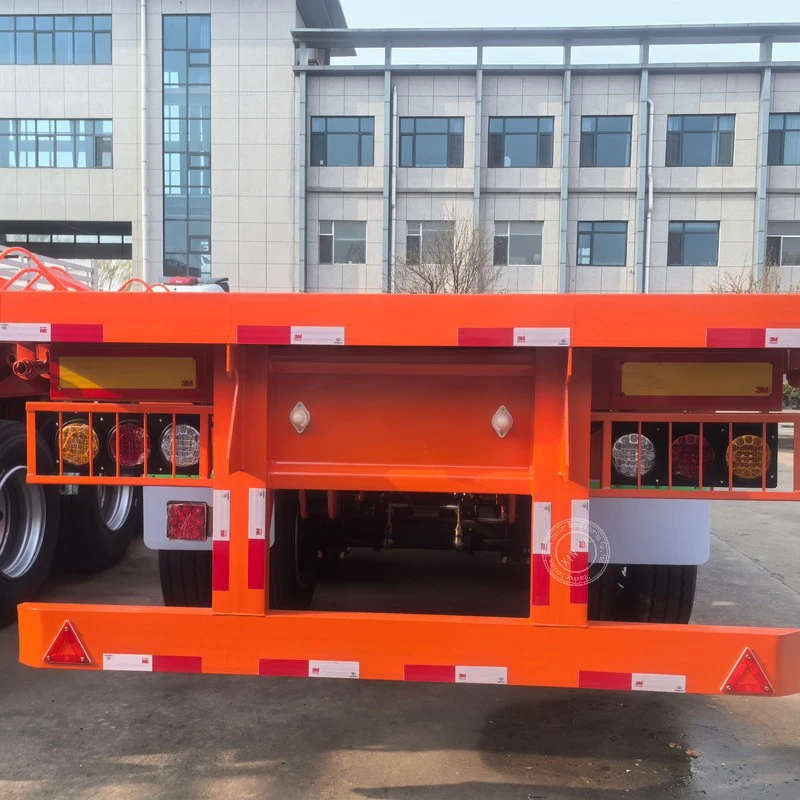

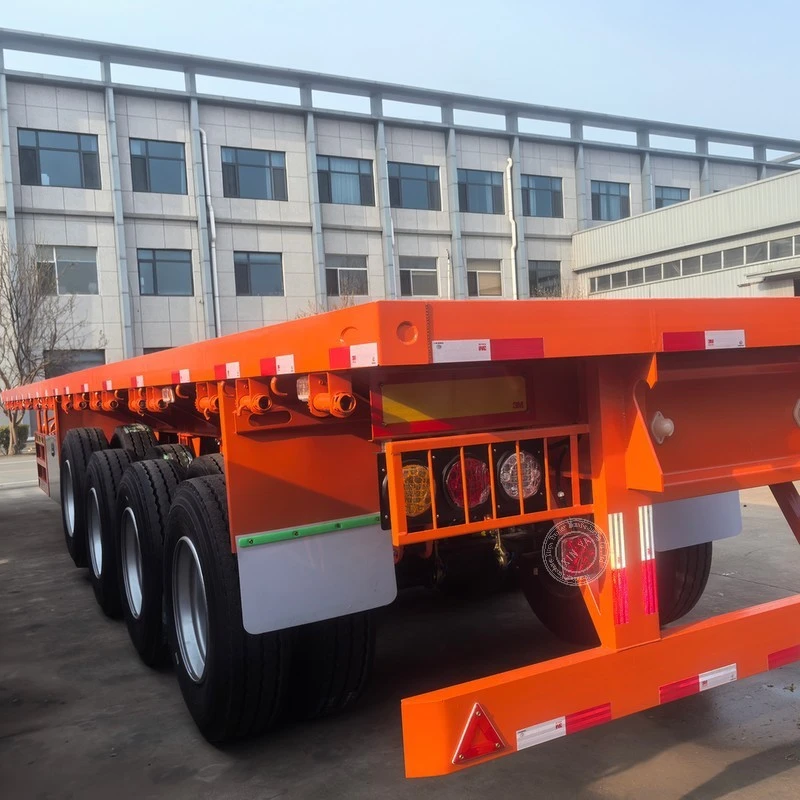

Straight Beam Flatbed Semi-trailer
Size:12500*2500*1510 or customizable
Tare weight: 7T
Payload: 50-80T
Axle:13T*4 units fitted with an air-sprung liftable front axle.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of straight beam flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved straight beam flatbed semi-trailer, welcome to get quotation from our factory.
Product Details

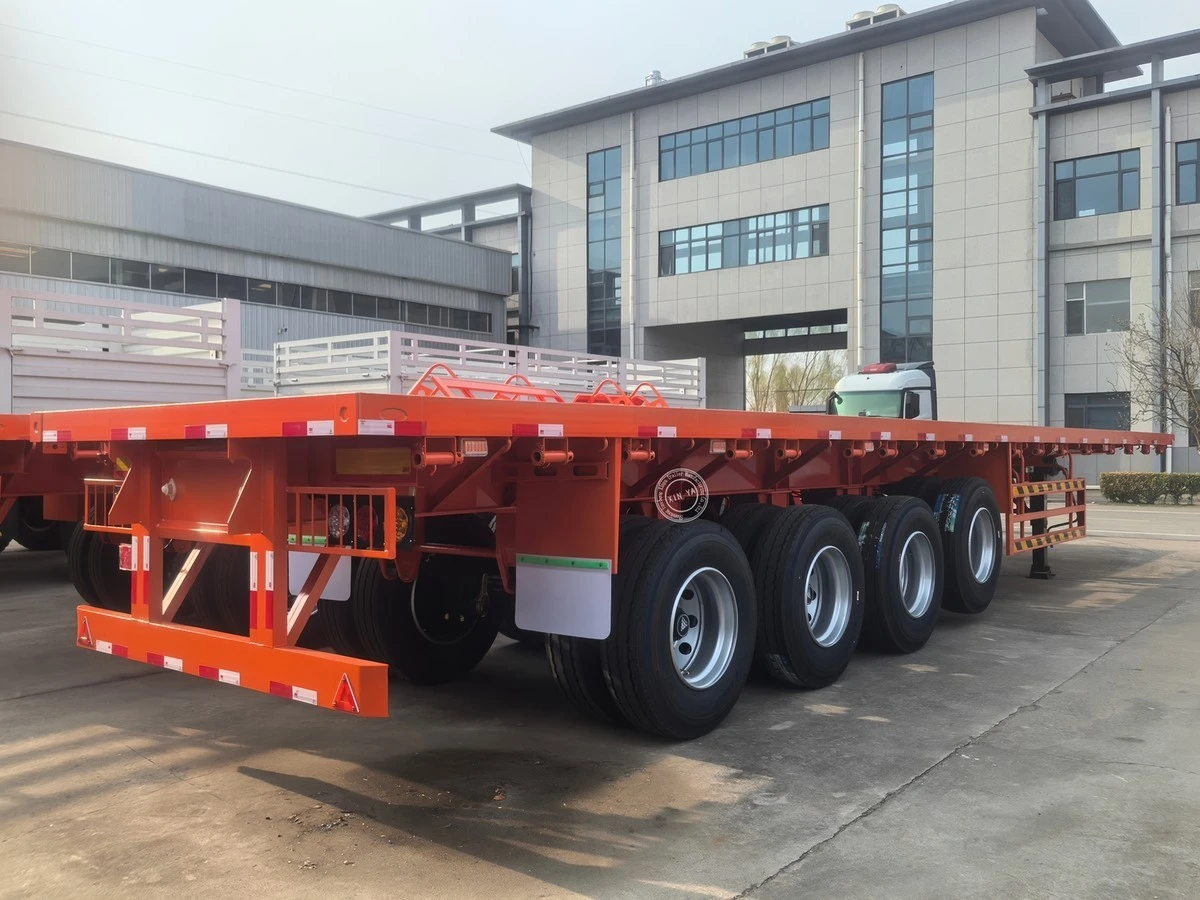

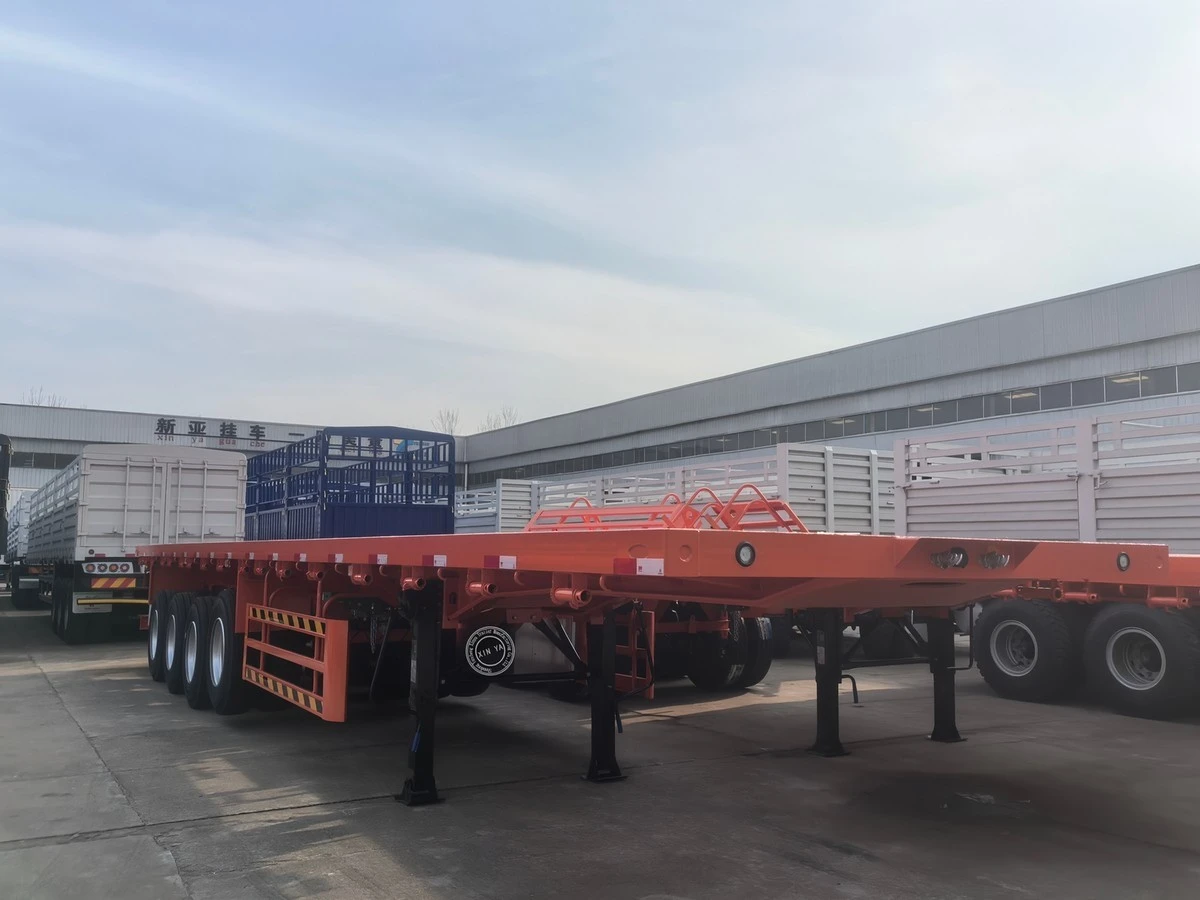

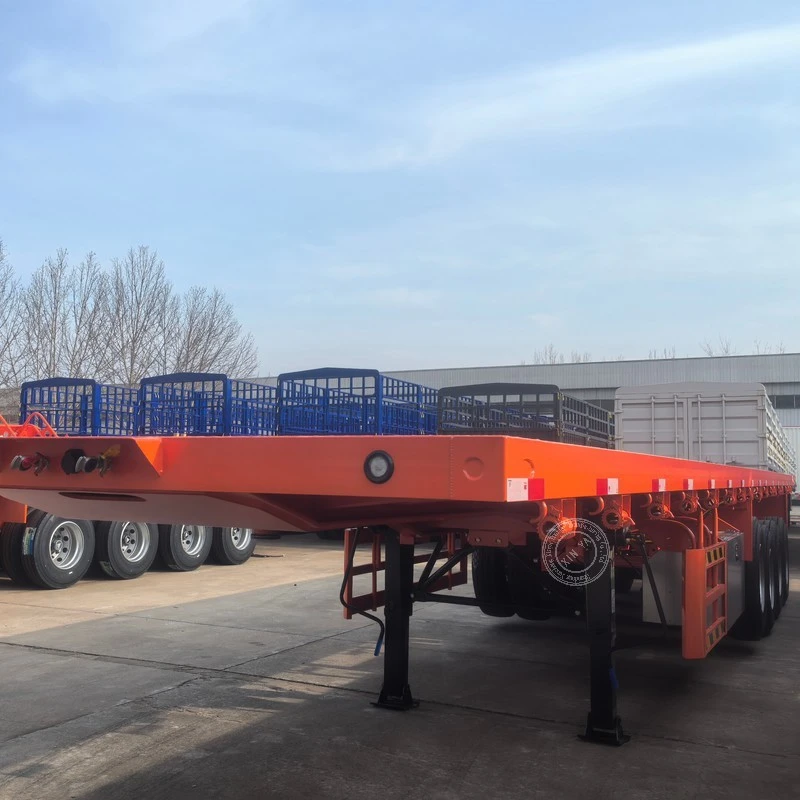

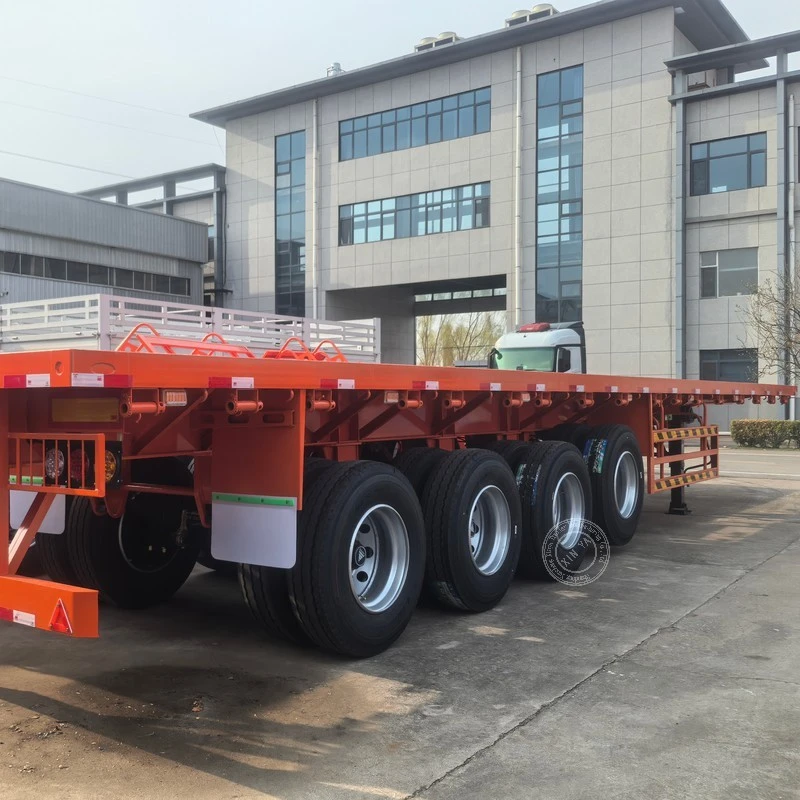

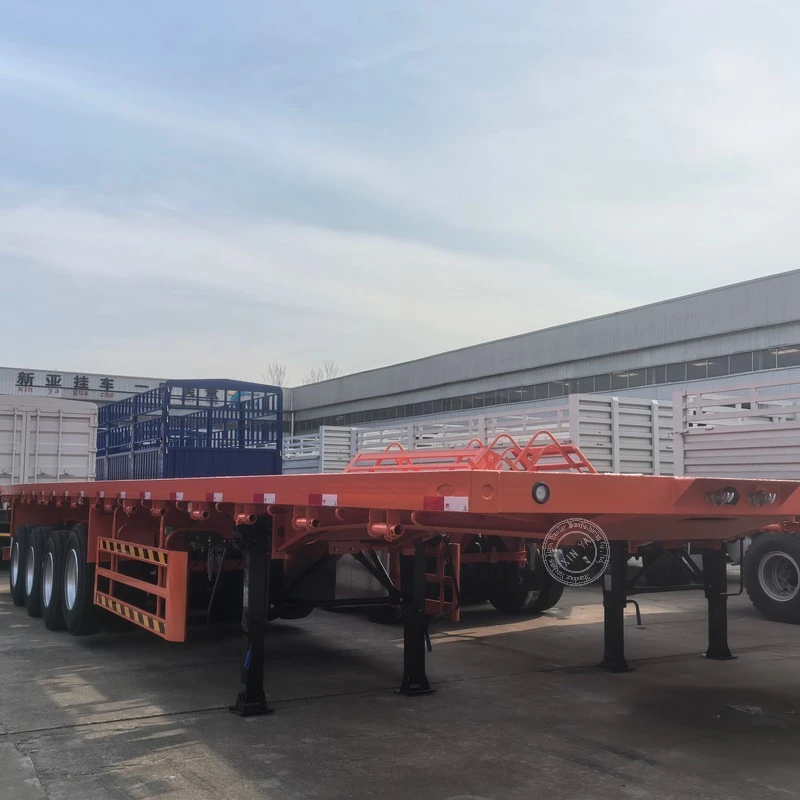

This 4-axle straight-frame flatbed semi-trailer is fitted with an air-sprung liftable front axle. All four axles drop to the ground to share load weight during heavy haulage, while the front axle can be lifted off the ground under empty or light-load conditions. It is ideally suited for heavy cargo and container transportation.
Product Parameters
|
Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 4units |
|
Tyre |
Brand: chengshan/Triangle; Type: 12R22.5-18PR; double mounted; QTY: 16 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Protectors |
Mudguard; Mud-flags behind rear axle; Mid & Rear Side protection; |
Our Company
Our Advantages
1.Cut down maintenance costs The front axle can be lifted when empty to minimize tyre wear, extend tyre service life and slash overall maintenance expenditure.
2. Excellent versatility Fitted with reputable-brand components including FUWA/BPW axles and WABCO braking systems. Optional front bulkhead and stakes can be installed on the flat deck for transportation of timber, steel pipes and oversize cargo.
FAQ
1.Do you support OEM & ODM?
We can do both OEM and ODM
OEM: We can produce semi trailers based on your drawings, requirements, specifications, and brand
ODM: We provide our own drawings and designs, and then adjust them according to the customer's needs
2.When can I get the price?
Please provide accurate trailer size, load capacity, and road conditions. Typically, an accurate quote will be provided within 8 hours
3.How long is your delivery time?
The production cycle of ordinary semi-trailer models is 20-25 days, and the production cycle of special semi-trailer models is 30-35 days
