2 Axle 40ft Flatbed Semi Trailer
Dimensions：12400 × 2480 × 1570 mm (customizable)
Load capacity：40 ton
Tare weight：About 7 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 2 axle 40ft flatbed semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 2 axle 40ft flatbed semi trailer, welcome to get quotation from our factory.
Product Details
The main beam of the 2 axle 40ft flatbed semi trailer is integrally welded with high-strength steel, featuring good toughness, anti-twist performance and non-deformation, which greatly extends the service life. The thickened checkered steel plate floor is anti-slip and wear-resistant, meeting the stacking and fixing requirements of various cargoes. Equipped with standard container twist locks, dual-circuit brake system and high-quality axles, as well as a scientific wheelbase layout, it delivers excellent driving stability and safety. Adopting anti-corrosion painting technology, the trailer resists wind, rain and rust abrasion in all aspects, and the rigorous craftsmanship ensures long-term stable operation.
Product Parameters
|
Overall size(L*W*H)mm |
12400 × 2480 × 1570 mm (customizable) |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
Twist lock |
12 units |
|

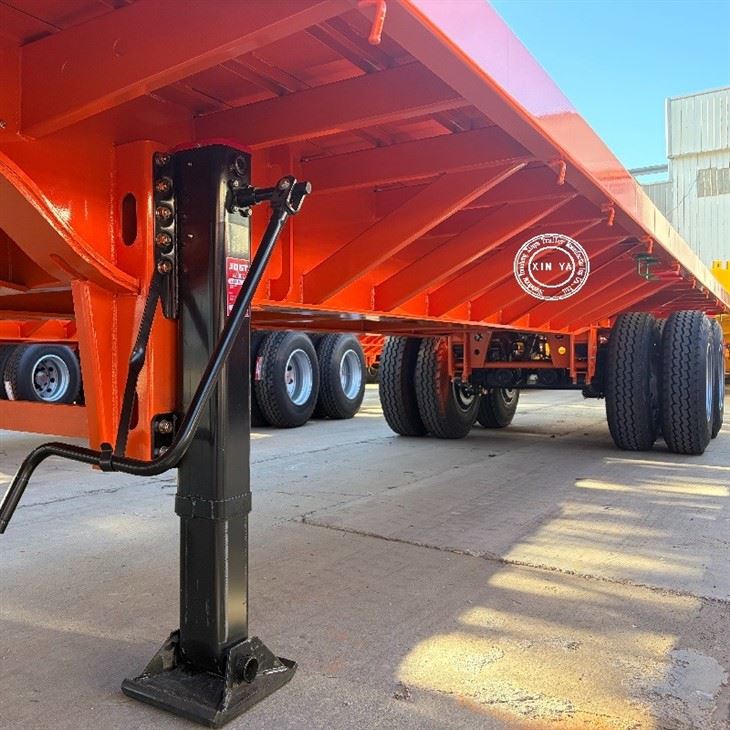

Landing gear |
Standard 28Ton, JOST brand or FUWA |
| Rim | 8.5-20, 10-hole steel disc rim |
| Tire | 12R22.5 tubeless tire, total 8 pcs |
| King Pin | 2 inch (50#), JOST brand, bolt type |
|
Suspension |
Mechanical suspension |
|
Leaf Spring |
90*13-10 4/6/8 sets, Funiu ocTaiyue etc. |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 2 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Brake system |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber;Two 40L air tanks, ABS Optional |
Our Company
Our Advantages
Designed with lightweight and high-strength structure, this 2-axle 40ft flatbed semi-trailer ensures stable overall structure and excellent load-bearing performance while effectively reducing the tare weight. It helps customers increase freight income and reduce fuel consumption. Adaptable to multiple transportation scenarios, it can carry standard containers, large equipment and general cargo with high versatility. Equipped with premium industry accessories, the trailer features stable braking and reliable traveling performance, adapting to complex road conditions and long-term high-frequency operations with low maintenance costs and high comprehensive practicability.
FAQ
Q: Can this 2 axle 40ft flatbed semi trailer load two 20ft containers at the same time?
A: Yes. The trailer is fitted with multiple sets of retractable ISO twist locks. All lock positions comply with international container standards. It can carry one 40ft container or two 20ft containers side by side. It is also available for transporting bare machinery, steel and other bulk cargo.
Q: Can I change the axle brand? What is the lead time?
A: FUWA, BPW or domestic OEM axles are optional to match your budget and local operating requirements. The normal production lead time is 25-35 working days.
Q: What is the load capacity of this trailer? Is it suitable for long-distance transport on gravel roads in Africa?
A: Its rated payload is 40 tons. It adopts leaf spring suspension with good shock absorption and impact-resistant structure, which fits long haul transportation on unpaved gravel roads in Africa.
Q: Is the trailer paint resistant to humid coastal corrosion?
A: The whole trailer adopts two-layer anti-corrosion painting with zinc-rich primer and polyurethane topcoat for improved rust resistance. We can upgrade to thicker anti-corrosion coating for coastal high salt spray areas.
