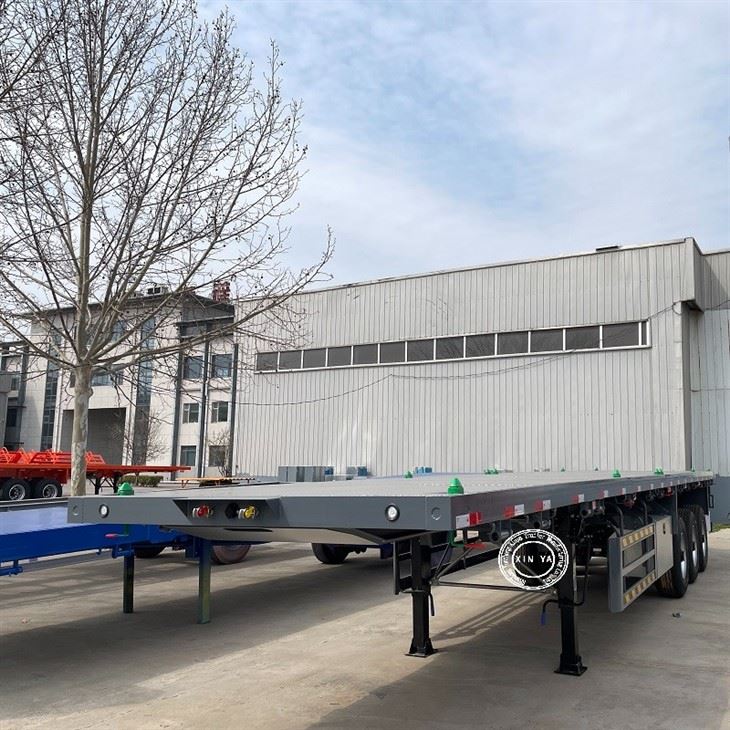

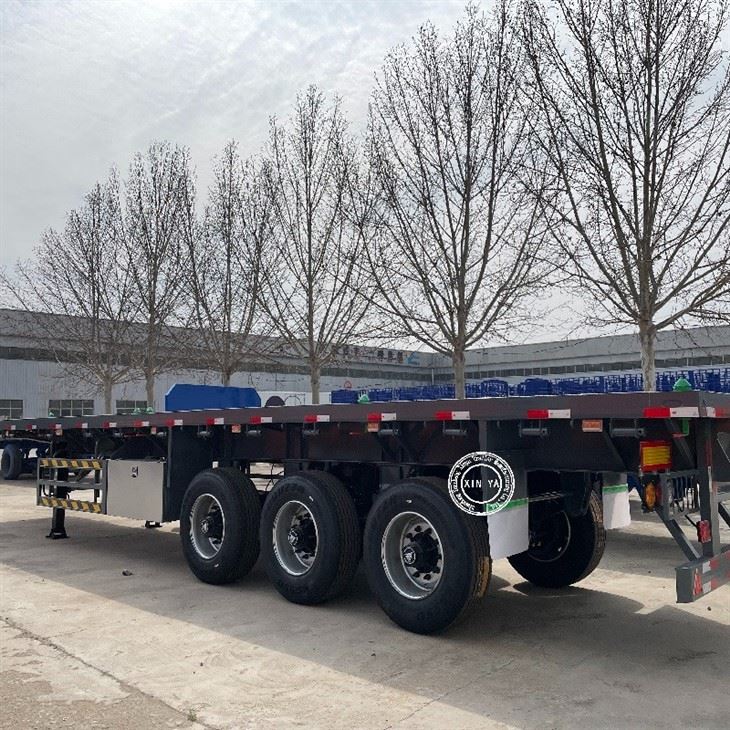

Cargo Hauling Flatbed Semi Trailer
Dimensions：12500 × 2500 × 1550 mm (customizable)
Load capacity：40 ton
Tare weight：About 7 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of cargo hauling flatbed semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved cargo hauling flatbed semi trailer, welcome to get quotation from our factory.
Product Details
This cargo hauling flatbed semi trailer adopts high-strength Q345B steel for the main beam with 3mm anti-slip checkered steel floor. It is equipped with 3 pieces of 13T FUWA axles, American mechanical leaf spring suspension, 12R22.5 tubeless tires, JOST 2-inch king pin and 28T two-speed landing gear. The trailer has dual-line air brake system, 24V full LED lighting system and side guard & rear bumper. 12 sets manual twist locks are installed to carry both 20ft and 40ft ISO containers, and shot blasting surface treatment effectively improves anti-corrosion performance.
Product Parameters
|
Overall size(L*W*H)mm |
12500 × 2500 × 1550 mm |
|
Material |
Q345B |
|
Main beam |
Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Side beam |
14#C type; Q235 |
|
Cross beam |
8# C type; Q235 |
|
plateform |
2-3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
| King Pin | JOST 2 inch bolt-in king pin |
|
Suspension |
Mechanical suspension or Air suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
| Rim | 9.00-22.5 |
|
Tyre |
Brand: chengshan/Triangle/Linglong; Type: 12R22.5-18PR; double mounted; QTY: 12 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Tool box |
1 unit; include: 1 tyre spanner, 1 gudgeon sleeve & 1 cranking bar & instruction sheet |
Our Company
Our Advantages
Our flatbed semi trailer features robust welding structure and strong load capacity, suitable for long-distance highway transportation of steel, machinery, bulk goods and containers. The matched well-known brand accessories guarantee stable performance and low failure rate. The anti-slip floor and complete safety protection parts improve operation safety. Flexible design supports multi-scenario cargo transport, and the anti-rust painting extends service life, bringing lower maintenance cost for end users.
FAQ
Q: What cargo can this flatbed semi trailer carry?
A: It can transport steel coils, construction machinery, bulk goods, steel plates, as well as 20ft and 40ft ISO standard containers.
Q: What is the maximum payload of the 3 axle flatbed trailer?
A: Rated payload is 40 tons. We can customize heavier load versions such as 45 tons or 50 tons upon request.
Q: Can you customize the trailer size, color and accessories?
A: Yes. Trailer length, painting color, stake pockets, tool boxes and other spare parts are all available for customization.
Q: What brand are the axles and brake parts?
A: Standard configuration uses FUWA axles and WABCO brake valves. JOST king pin and landing gear are equipped as standard.
