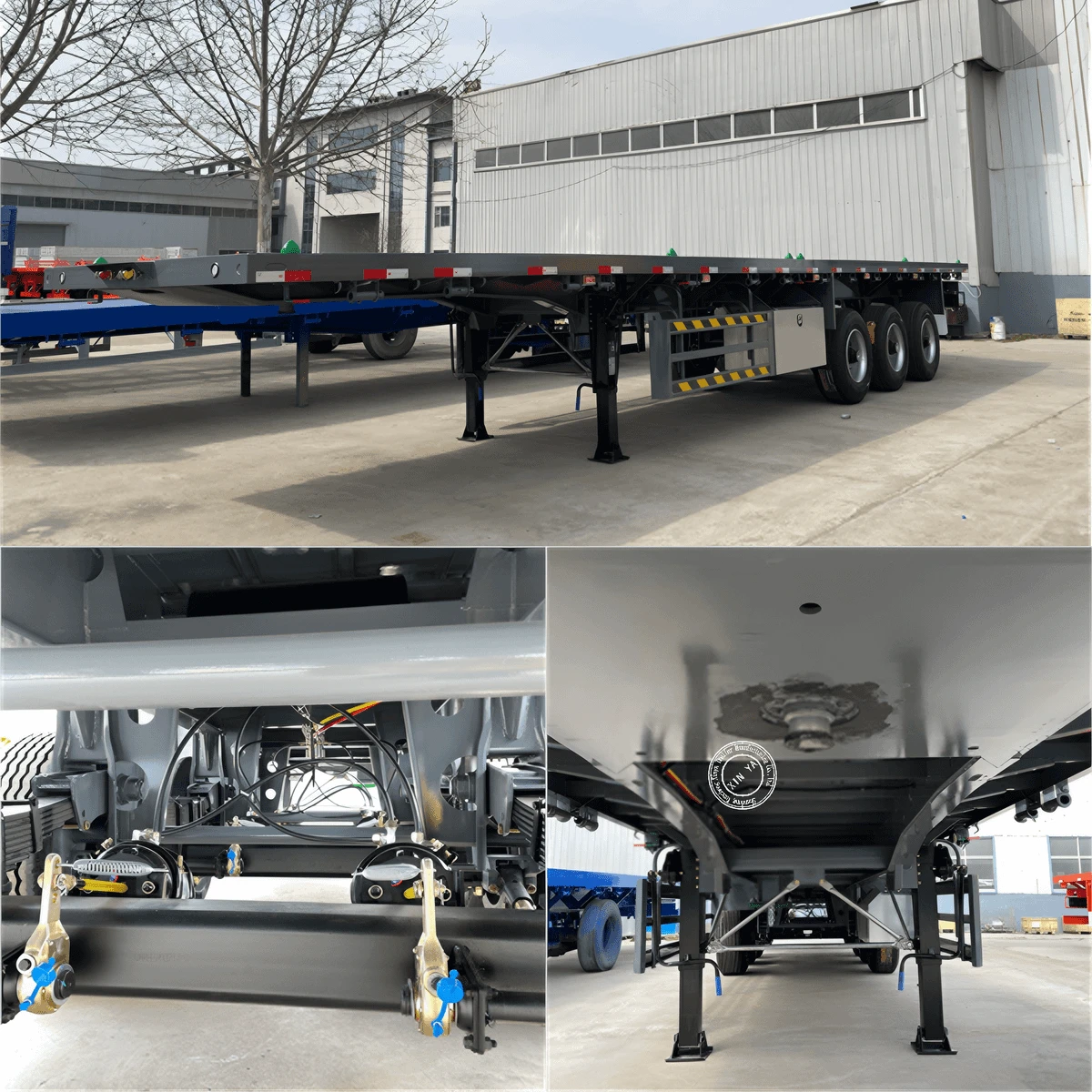

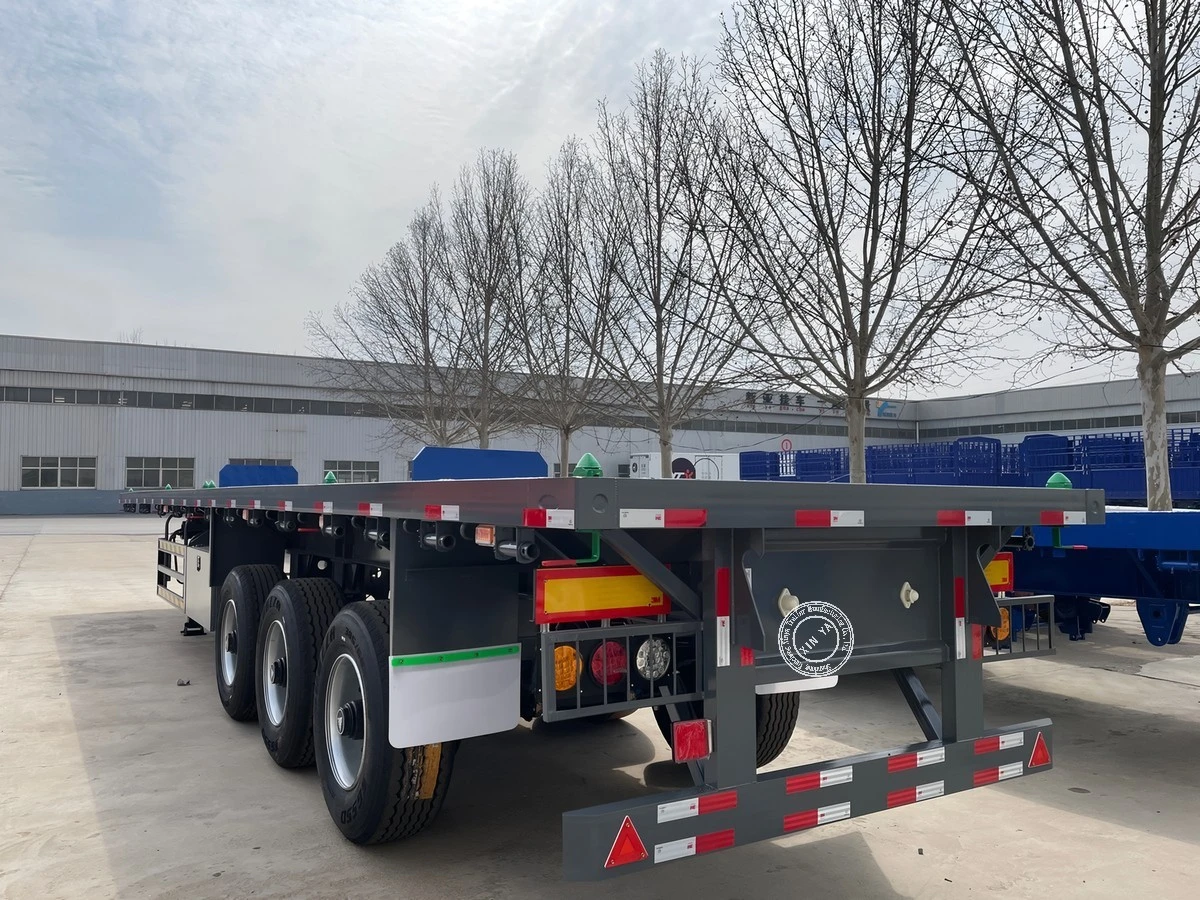

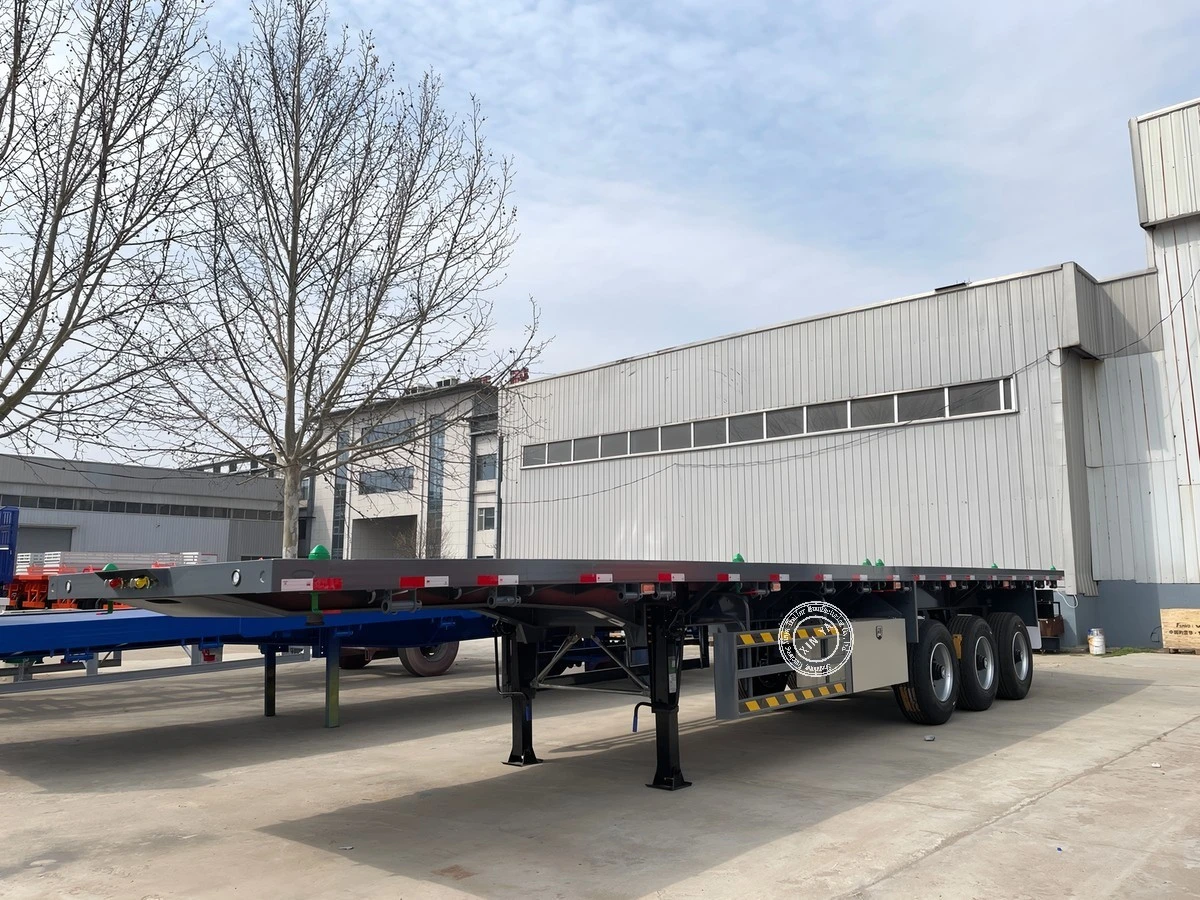

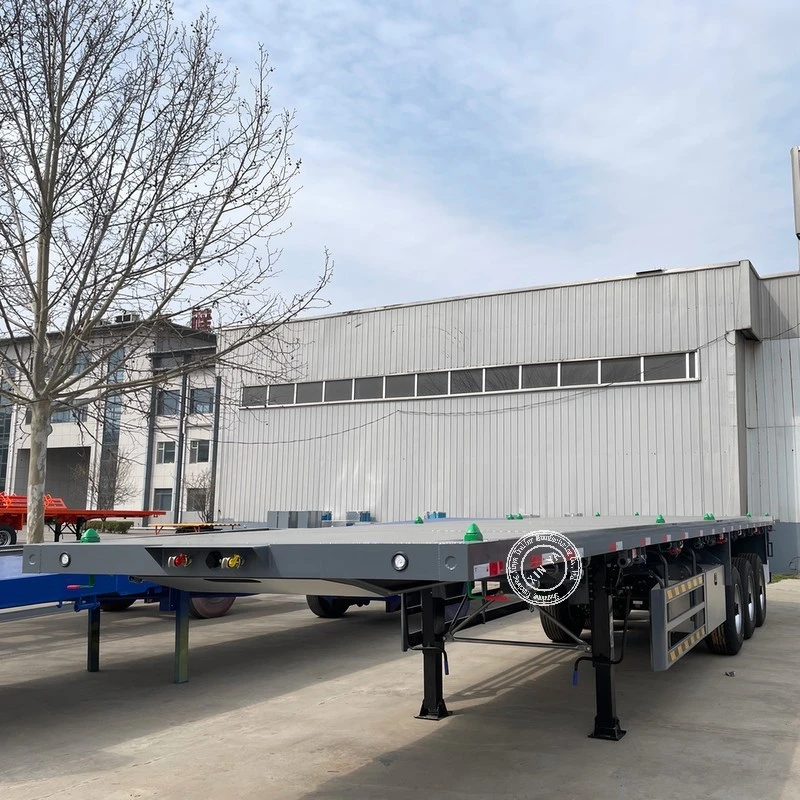

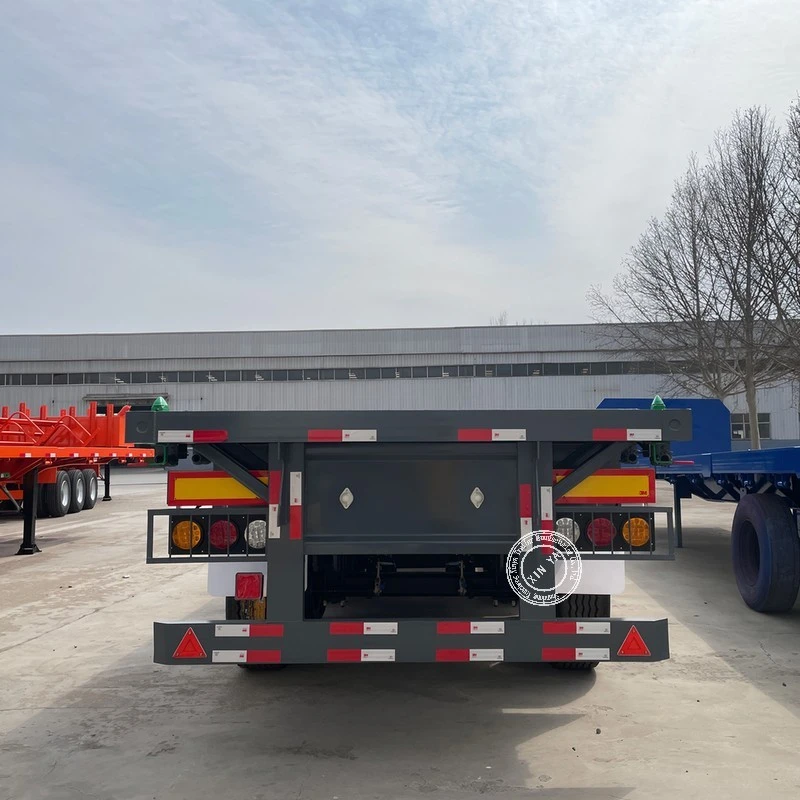

Flatdeck & Platform Semi Trailer
Selling a three-axis flat deck platform semi-trailer
Customizable according to customer needs: 2/3/4 axles, axle brands, and color brand logos
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of flatdeck & platform semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved flatdeck & platform semi trailer, welcome to get quotation from our factory.
Product Details
The main longitudinal beams are constructed from high-strength low-alloy structural steel Q355 or Q345B and formed in one piece via automatic submerged arc welding. The entire trailer undergoes sandblasting treatment before being coated with one layer of anti-corrosion primer and two layers of topcoat for outstanding corrosion resistance.
Product Parameters
|
Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q345B fabricated carbon steel |
|
Payload |
40T-80T |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 6/8mm Process: welded by automatic submerged-acr |
|
plateform |
2/3mm checker plate |
|
Twist lock |
4 pcs or 8 pcs or 12 pcs container lock |
|
Landing gear |
Standard 28Ton, JOST brand or FUWA |
|
Suspension |
Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Certification |
CE, ISO9001, DOT, CCC, ISO/TS16949, BV & SGS |
Our Company
Our Advantages
- The flatbed semi-trailer boasts excellent loading capacity, shortening loading/unloading duration and cutting labor costs.
- It is widely applicable to industrial production, logistics transportation, port terminals and other scenarios.
- Cost-effective & high efficiency: A single flat deck semi-trailer is capable of fulfilling diverse haulage requirements.
FAQ
1.What materials are used for semi-trailer trailers
The main beam can be made of Q345B/Q355/T700 high-strength steel,
2.What painting process is used for semi-trailer
The entire semi-trailer is coated with 1 layer of sandblasting anti rust primer and 2 layers of topcoat
3.What are the regular dimensions and load capacity
Standard dimensions: 6,200/12,480mm × 2,500mm × 1,520mm, or custom-made dimensions available; rated payload ranges from 30 to 80 tons, OEM and ODM customization are acceptable.
