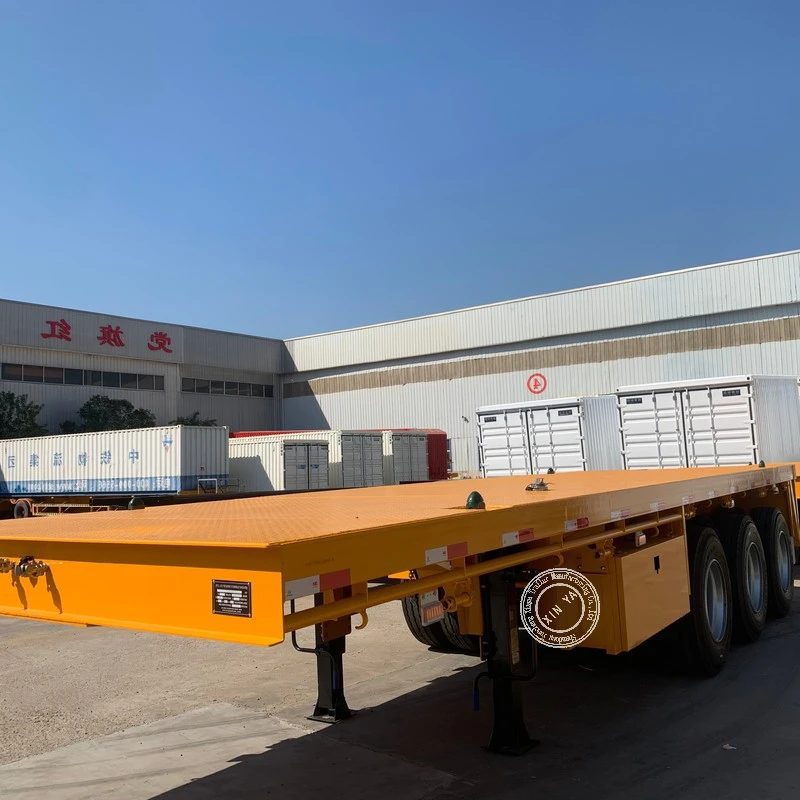

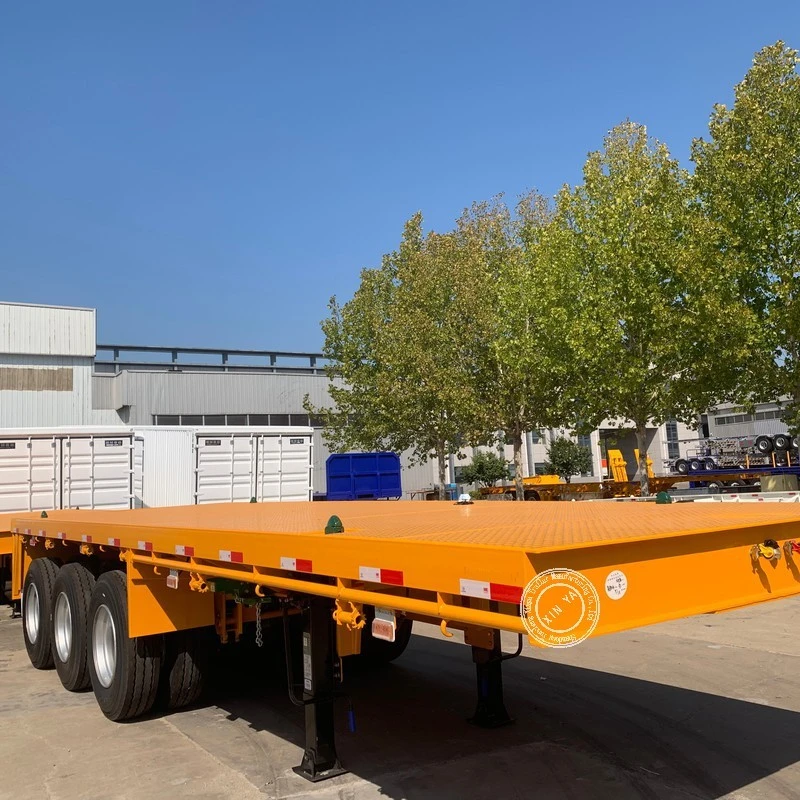

Tri Axle Flatbed Truck Trailer
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of tri axle flatbed truck trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved tri axle flatbed truck trailer, welcome to get quotation from our factory.
Product Details
The main beam adopts submerged arc welding technology, and the whole vehicle undergoes shot blasting and rust removal treatment; The bottom plate adopts 3mm thick patterned plate. The overall frame is subjected to shot blasting treatment, which can effectively remove welding stress and residues.
The vehicle is equipped with international first-line brand components, including FUWA axles, BPW axles, JOST legs, WABCO brake valves, etc.
Product Parameters
|
Overall size(L*W*H)mm |
6200 / 12480mm*2500mm*1520mm or customized size |
|
Tare Weight |
6.5-7Ton |
|
Main beam |
Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
3mm checker plate |
|
Twist lock |
4 pcs or 8 pcs or 12 pcs container lock |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
- Designed without side stakes, this model features full flat deck, compatible for hauling 20ft, 40ft and 45ft standard containers.
- Versatile in application; optional front bulkhead plus removable stakes are available to accommodate multi-industry cargo transportation.
- As an integrated manufacturer combining production and trade, we accept OEM & ODM orders with an annual output of 4,000~5,000 semi-trailers.
- Full-vehicle warranty is provided; all core components are sourced from world-famous international brands.
FAQ
Q: Which certificate do you have?
A: Our company has passed ISO9001 quality management system certification, IATF 16949 automotive industry quality management system certification, CCC China mandatory product certification, and SGS international certification
Q: What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q: How can we obtain a quotation?
A: Please contact us for specifications such as D tonnage, size, shape, quantity, surface treatment, etc.
