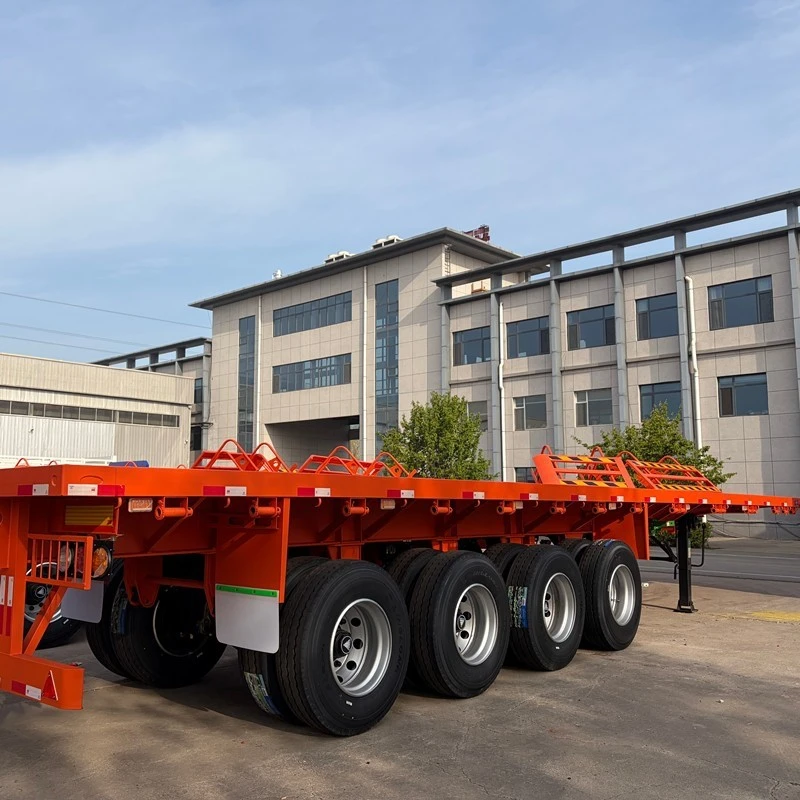

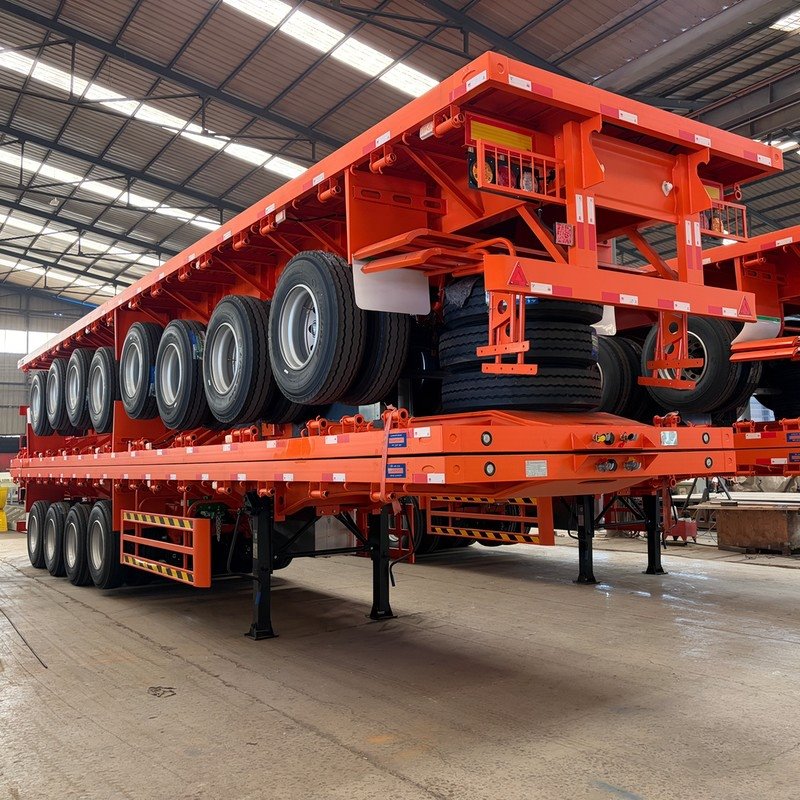

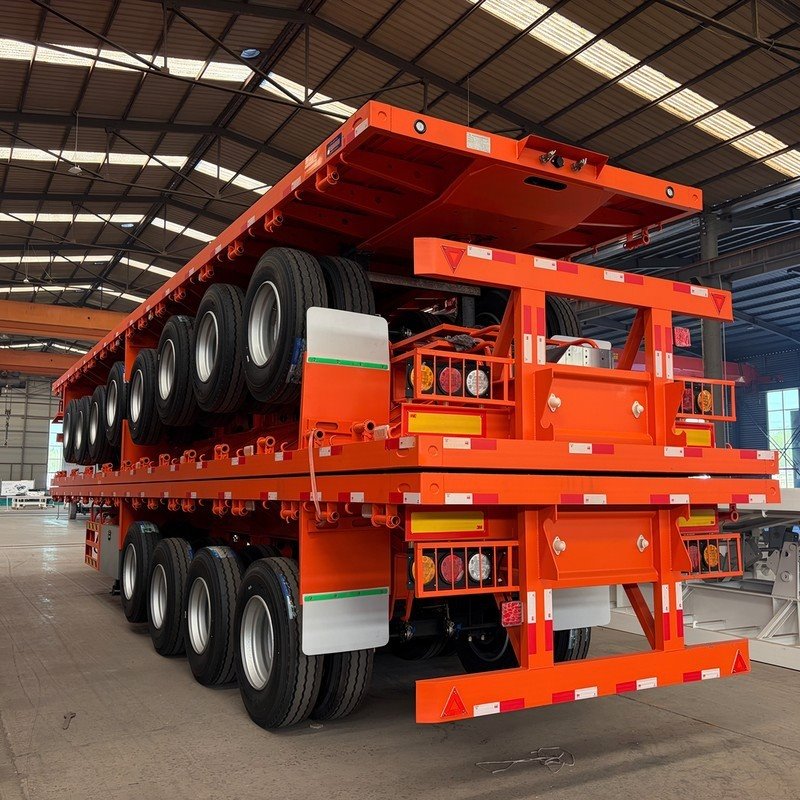

3/4 Axles Flatbed Semi-trailer
Overall size(L*W*H)mm: 12400*2500*1510
Material: Q345B fabricated carbon steel
Main beam: Height: 480mm;Upper plate: 14mm；Bottom plate: 16mm;Middle plate: 8mm
Plateform: -3mm checker plate
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 3/4 axles flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 3/4 axles flatbed semi-trailer, welcome to get quotation from our factory.
Product Details
This 4-axle flatbed semi-trailer is equipped with lift axles, engineered specifically for hauling standard shipping containers. It also accommodates diversified cargo including oversize & overweight loads, pipelines and steel products, ranking among the most versatile semi-trailer models across the transportation sector.
Product Parameters
|
Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
|
Leaf spring |
Size: 90mm*13mm; Qty: 10+10+10 |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 4 units |
|
Tyre |
Brand: chengshan/Triangle/Linglong ; Type: 12R22.5-18PR; double mounted; QTY: 16 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
1.Side rails of our flatbed semi-trailers are fabricated from 160mm channel steel, and full-length cross members adopt 100mm channel steel to keep the chassis free from deformation.
2.The trailer is fitted with a 3mm diamond checker plate floor, granting superior compression resistance and prolonging the trailer's service life.
3.We develop customized solutions to suit diverse road conditions, and our dedicated sales engineers provide one-on-one personalized service.
FAQ
1. How can we get a quote?
Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.
2. Which shipping way can you provide?
Can we provide sea, rail, and road transportation
3. Are you a factory or a trading company
As a professional semi-trailer manufacturer integrating production and trade, we offer direct factory pricing to our customers.
