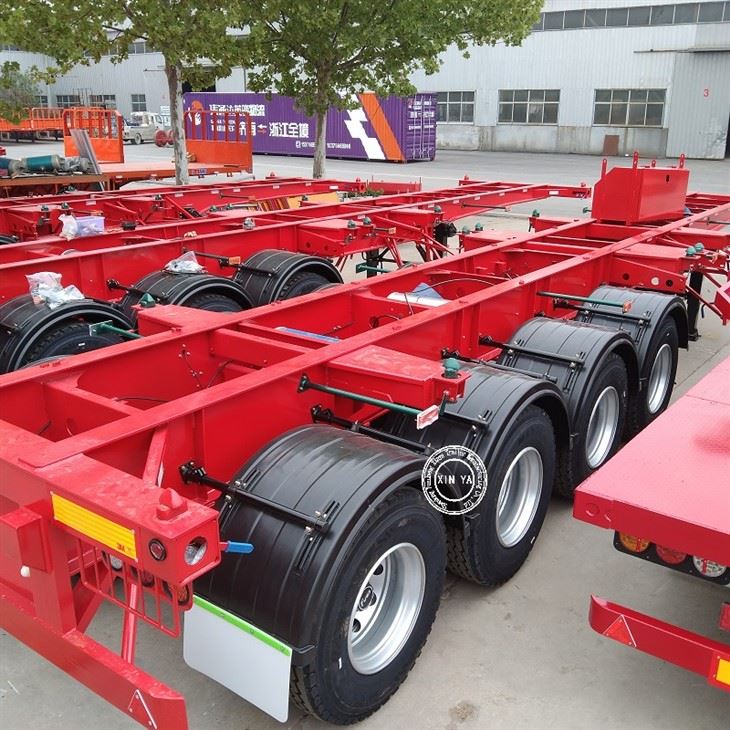

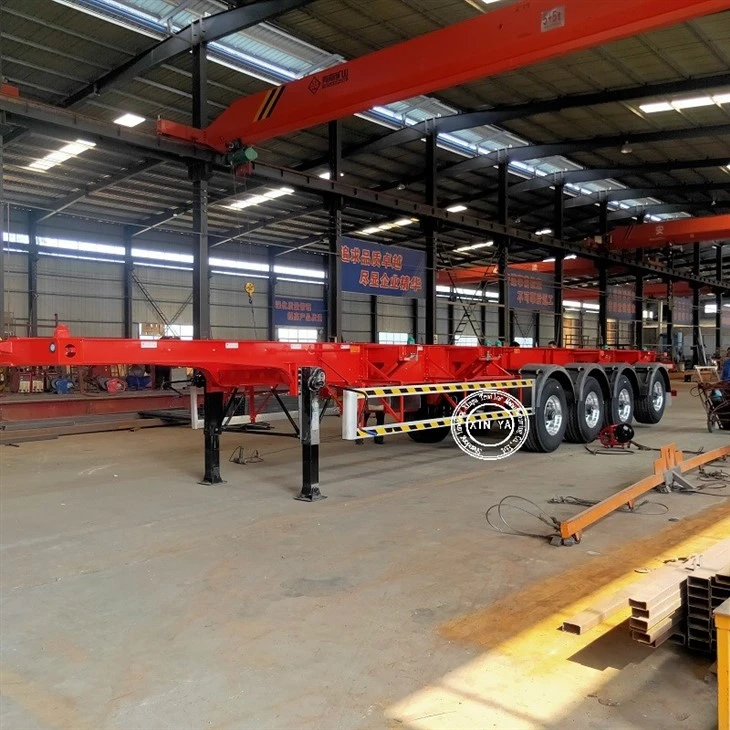

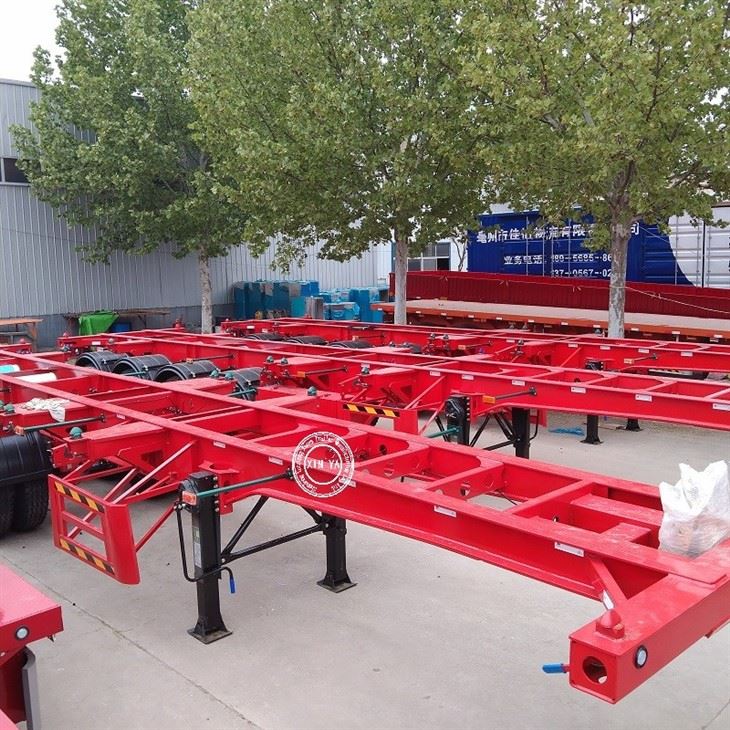

4 Axle Skeleton Semi Trailer
Dimensions：12400 × 2480 × 1550 mm
Load capacity：50 ton
Tare weight：7.8 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 4 axle skeleton semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 4 axle skeleton semi trailer, welcome to get quotation from our factory.
Product Details
All main beam and cross beam joints adopt multi-layer continuous full welding instead of spot welding. Welds are polished smoothly without slag or sharp stress points, effectively preventing weld cracking and frame peeling under long-term bumpy road conditions.All electrical wires and air pipes are fixed inside the main beam with professional clips and wear-resistant sleeves, avoiding exposure to sand, rain and vibration. It greatly reduces air leakage, circuit failure and tail light breakdown during field operation.The thickened rear protection beam is bolted instead of fully welded. In case of minor rear collision, only the protective part needs replacement, no frame cutting or repairing, saving maintenance time and cost.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12400 × 2480 × 1550 mm |
|
Material |
Q345 fabricated carbon steel; Type: straight type; Height: 500mm; |
|
Main beam |
Upper plate: 14mm; Bottom plate: 16mm Middle plate: 6mm |
|
Twist lock |
12 units ISO standard manual twist locks |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension or Air suspension |
|
Tyre |
Brand: Chengshan/Triangle/Linglong / Double Coin; |
| King Pin | 2 inch (50mm) bolt-in kingpin, JOST brand |
| Rim | 9.00-22.5 steel rim |
|
Axle |
Brand: BPW/FUWA/XINYA 4×13Ton |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
|
sand blaster; |
Our Company
Our Advantages
This 4 axle skeleton semi trailer adopts integrally welded Q345B high-strength steel frame. The four-axle design distributes axle load evenly, allowing heavier container loads while complying with local road weight limits, ideal for fully loaded heavy container transport. Reinforced plates are applied on high-stress areas, fitted with 12 sets of ISO manual twist locks to support one 40ft or twin 20ft containers and secure boxes firmly. Heavy-duty leaf spring suspension absorbs shocks from rough African roads. Sandblasting anti-corrosion coating protects the chassis against dust and rain. Compared with 3-axle models, it reduces stress on individual axles and tires, cutting downtime and maintenance cost during long-distance heavy haulage.
FAQ
Q: What is the main advantage of 4 axle skeleton trailer over 3 axle version?
A: The 4-axle design spreads total load onto four axles to reduce single axle weight. It meets axle weight regulations in many African regions for heavy loaded containers. It also reduces tire and axle wear and extends service life under long-distance heavy transport.
Q: How many twist locks are equipped? Can it carry two 20ft containers?
A: 12 sets manual ISO twist locks come as standard. Lock positions are arranged for twin 20ft containers. It supports 1×40GP/40HQ or 2×20GP. Operators can switch loading mode by adjusting twist locks.
Q: Can we install lift axle to lift one axle when empty?
A: Lift axle system is optional. One axle can be lifted under empty or light load condition to reduce tire rolling resistance, save fuel and reduce tire wear for port inland round trips.
Q: What suspension options are available and which road condition fits each?
A: Standard mechanical leaf spring suspension is low-cost and easy to repair for stony and rough unpaved roads. Air suspension is optional for better shock absorption to protect containers and cargo on paved long-haul routes.
Q: What inspections are done before delivery to guarantee export quality?
A: Weld seam inspection and stress test are carried out after welding. The chassis is sandblasted. Full air circuit, electric circuit and brake pressure tests are completed. Heavy load simulation test is performed before shipment. Inspection photos and videos can be provided.
