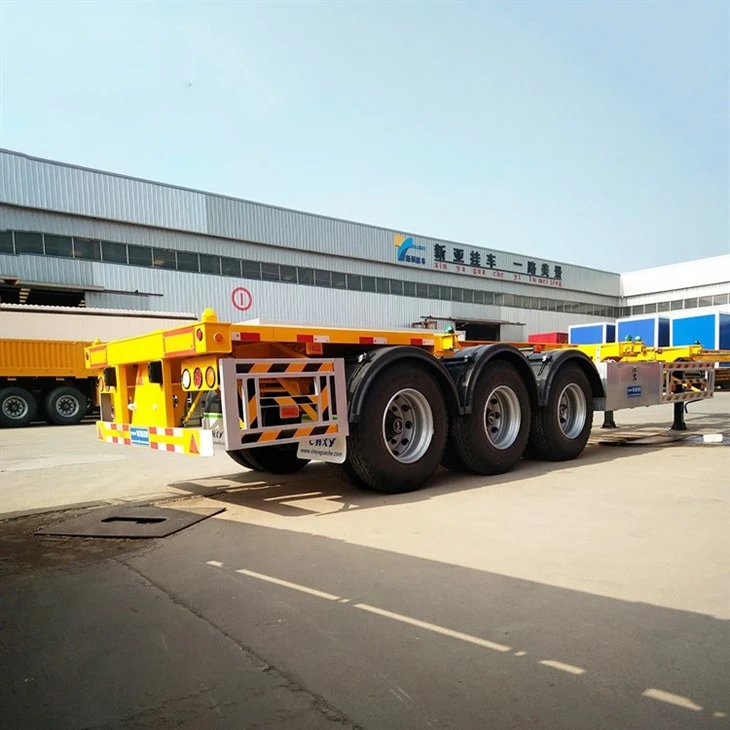

40 Ton Skeleton Trailer
Dimensions：12400 × 2480 × 1550 mm
Load capacity：40 ton
Tare weight：6.5 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 40 ton skeleton trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 40 ton skeleton trailer, welcome to get quotation from our factory.
Product Details
Every welding joint of this 40-ton skeleton trailer undergoes full penetration submerged arc welding to eliminate hidden cracking risks. The twist lock base plate is thickened and reinforced to withstand frequent container loading and unloading operations at terminals. All wiring harnesses are wrapped with wear-resistant sleeves, and air pipelines are fixed with anti-vibration clamps to reduce loosening caused by continuous road vibration. We adopt sandblasting pretreatment before painting to remove rust and oxide scale. Double coating treatment greatly improves anti-corrosion performance, so the frame stays intact under humid coastal or dusty inland environments. The tail lamp bracket is reinforced to avoid damage from frequent reversing and bumping.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12400 × 2480 × 1550 mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Material: Q345; Type: Straight Beam; Height: 480mm; Top Plate: 14mm; Bottom Plate: 16mm; Vertical Plate: 8mm; Process: Automatic Submerged Arc Welding |
| Cross Member | 16#channel steel |
|
Plateform |
2-3mm checker plate |
|
Twist lock |
4 sets |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Drawbar pin |
2 inch standard, 3.5 inch optional, bolt-on type |
|
Brake system |
Brand: XINYA factory configuration Type: Double line braking Gas chamber: T30/30 * 2+T30 * 2 Gas storage tank: 40L * 1 ABS: None |
|
Suspension |
Mechanical suspension or Air suspension |
| Tyre | 12R22.5 / 315/80R22.5, total 12 pcs |
| Rim | 9.0-22.5, 12 pcs |
|
Axle |
Brand: XINYA factory configuration Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
Our 40-ton 40ft container skeleton semi trailer adopts high-tensile Q345B manganese steel for the main frame, delivering high structural rigidity while keeping the tare weight lighter to maximize cargo capacity. Retractable twist locks are precisely positioned to firmly lock ISO containers, avoiding shifting during long-distance transportation. We offer renowned brand axle options like FUWA and BPW. The dual-line air brake system with optional ABS ensures stable braking performance on rough roads. Robust landing gear supports safe decoupling from the tractor. Custom painting and component selections are available. This skeleton trailer fits inland depots and port haulage, well adapted to poor road conditions in African and Southeast Asian countries.
FAQ
Q: What container sizes can this skeleton trailer carry?
A: It can load one 40ft ISO container, or two 20ft containers at the same time.
Q: What is the maximum rated load capacity?
A: Rated payload reaches 40 tons, suitable for heavy container transport.
Q: Can I choose different brand axles?
A: Yes. FUWA, BPW and local alternative axles are optional according to your market demand.
Q: Is this trailer suitable for rough unpaved roads?
A: The mechanical leaf spring suspension is reinforced. It works well on bumpy and uneven roads common in Africa and Southeast Asia.
Q: Can we customize the color or add extra accessories?
A: Sure. Paint color, ABS, spare tire racks and toolboxes can be customized.
