Port Skeleton Semi Trailer

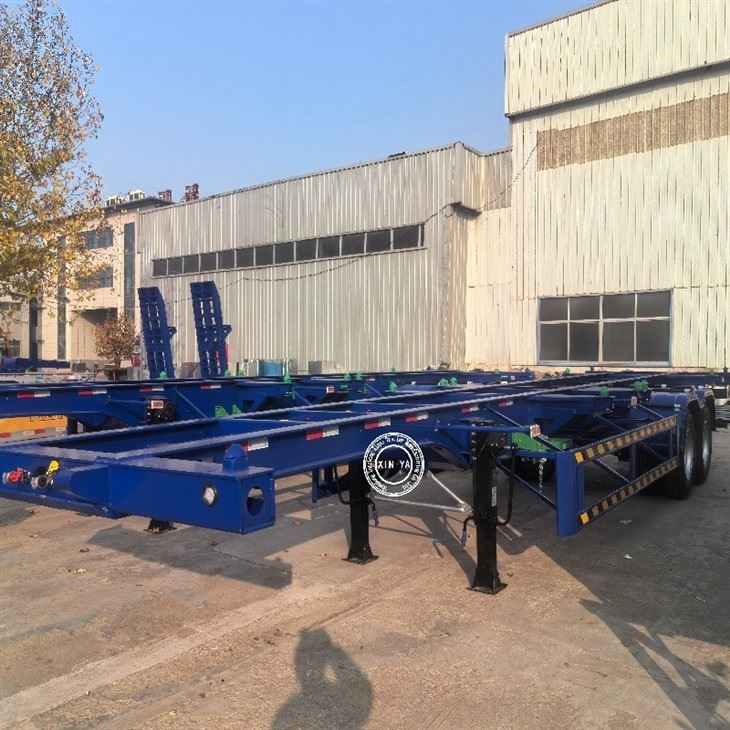

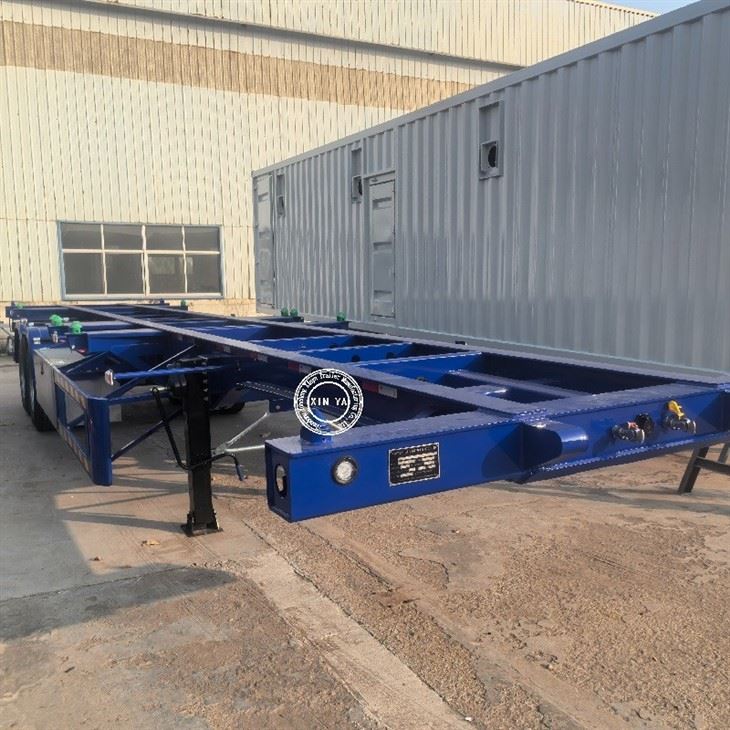

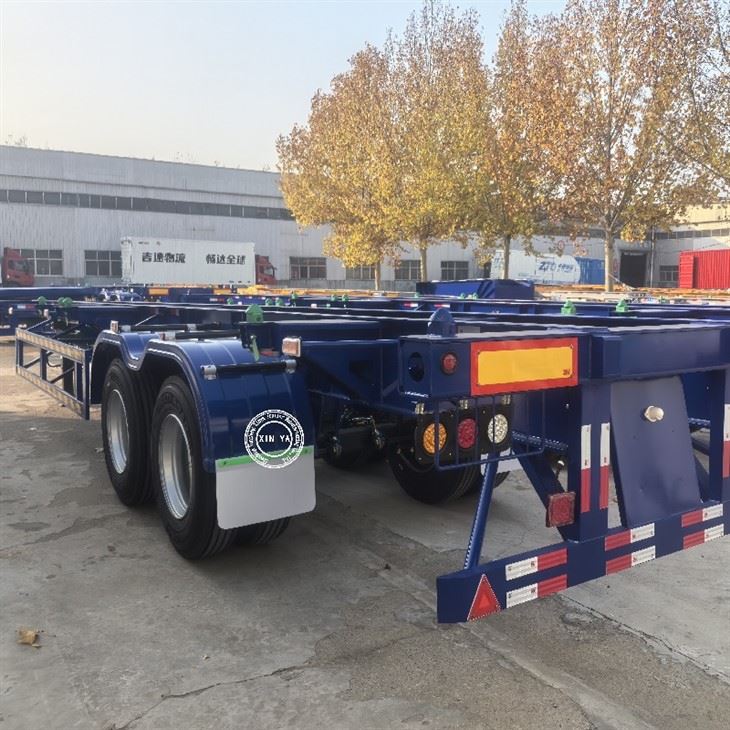

2 Axle Port Skeleton Semi Trailer
Dimensions：12400 ×2500 ×1550 mm
Load capacity：29-30 ton
Tare weight：5.2-6.0Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of port skeleton semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved port skeleton semi trailer, welcome to get quotation from our factory.
Product Details
This 2‑axle port skeleton Semi Trailer is mainly designed for port / terminal short‑shuttle operation, not recommended for long‑haul over‑loaded highway transport. If customer needs long‑distance heavy container haulage, tri‑axle version will be the better choice.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12400 ×2500 ×1550 mm |
|
Material |
Q345; Type: I type; Height: 500mm; |
|
Main beam |
Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(90×16mm) or Air suspension(China brand or BPW brand) |
| Rim | 8 pcs,9.00‑22.5 |
|
Tyre |
Brand: Chengshan/Triangle/Linglong / Double Coin; |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T |
| King Pin | 2‑inch (50mm),or 3.5‑inch (90mm) |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
|
sand blaster; |
Our Company
Our Advantages
This 2‑axle port skeleton Semi Trailer,
- Small turning radius, excellent maneuverability for narrow port terminal yard, ideal for short‑distance shuttle transport
- Cost‑effective purchase price, lower than tri‑axle model, good for port fleet bulk procurement
- Simple structure with fewer failure points, low maintenance cost, spare parts widely available worldwide
- Open hollow frame without solid floor; container bears load directly, good ventilation, less water accumulation & corrosion.
FAQ
Q: What is painting process, suitable for tropical coastal area?
A: SA2.5 sandblasting, anti rust primer plus 1 2 top coats. Extra heavy anti corrosion coating can be added for high salt spray coastal tropical regions.
Q: What damage will overload cause?
A: Overload will cause main beam crack & deformation, axle over heat, leaf spring breakage, fast tyre wear and serious driving safety risks.
Q: What are main wearing parts for flatbed trailer?
A: Tyres, brake pads, air chamber seals and wiring harness. Main beam and frame are structural parts and not easy to damage under proper operation.
