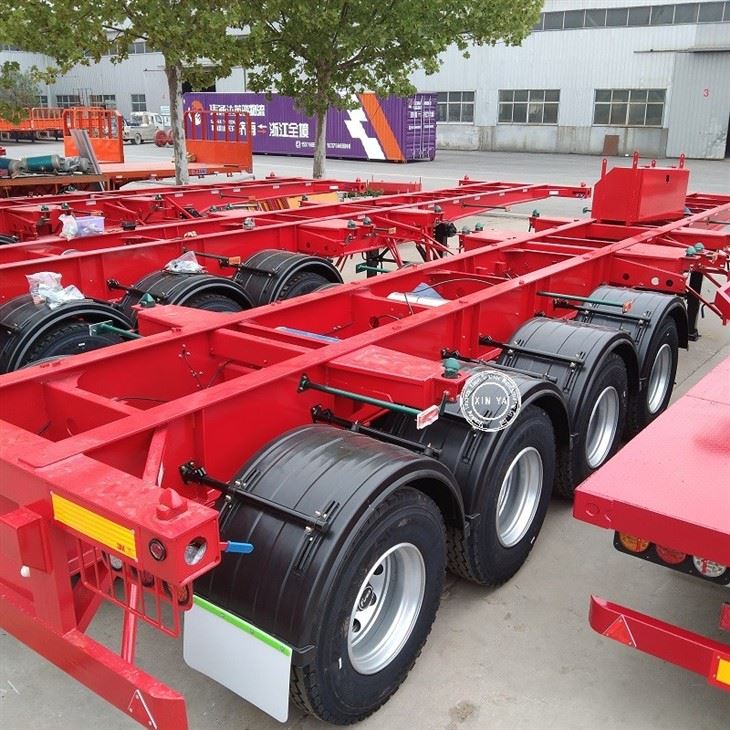

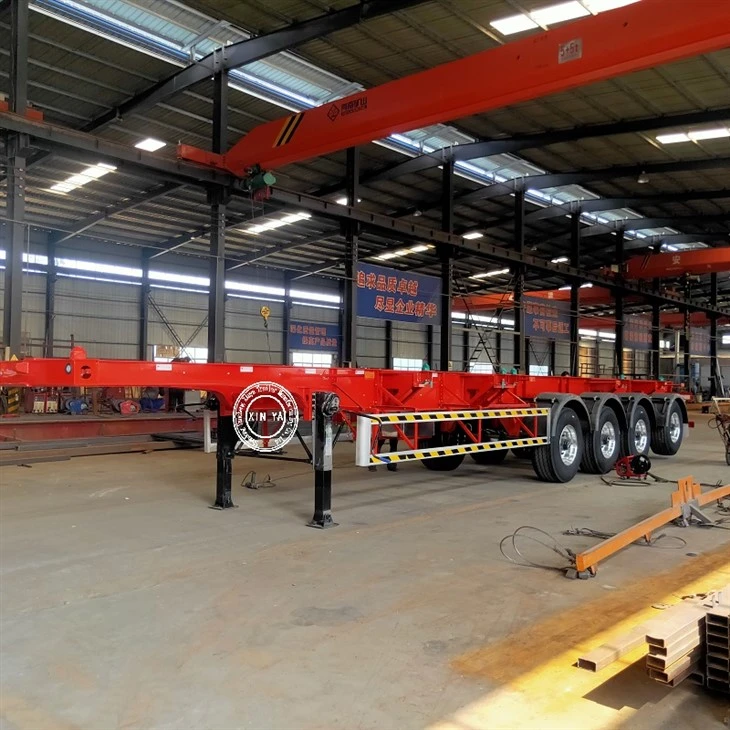

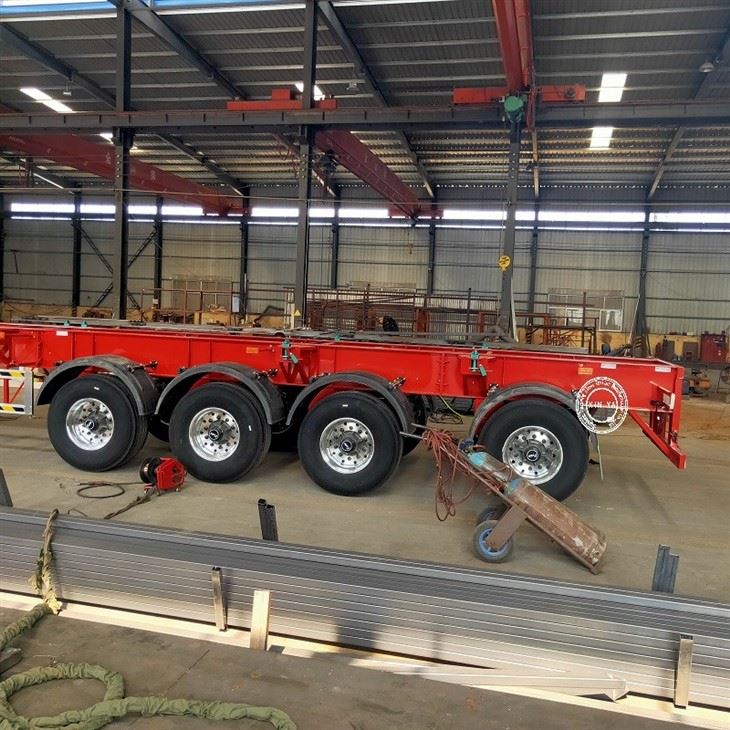

Heavy Duty Skeleton Semi Trailer
40ft 4 Axle Heavy duty Skeleton Semi Trailer
Dimensions：12400×2480×1580 mm
Load capacity：52 ton
Tare weight：6.8-7.3Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of heavy duty skeleton semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved heavy duty skeleton semi trailer, welcome to get quotation from our factory.
Product Details
4‑axle heavy‑duty skeleton semi trailer is specially designed for over‑weight containers and poor road conditions. Higher GVW capacity, lower spare‑parts loss, ideal for fleets mainly running heavy‑load long‑distance transport.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12400×2480×1580 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Material: Q345; Type: Straight Beam; Height: 500mm; Top Plate: 14mm; Bottom Plate: 16mm; Vertical Plate: 8mm; Process: Automatic Submerged Arc Welding |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; |
|
King pin |
3.5‑inch bolt‑in king pin(2‑inch optional) |
|
brake system |
Dual‑line air brake, T30/30 air‑chamber, large‑volume air tank; ABS optional |
|
Suspension |
Heavy‑duty mechanical leaf spring suspension(Air suspension / lift axle optional) |
| Tyre | 12R22.5, 16 pcs heavy‑duty tyre |
| Rim | 9.00‑22.5,16 pcs |
|
Axle |
Brand: XINYA/FUWA / local brand optional Capacity: 13T heavy‑duty axle QTY: 4 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company is located in the Yuncheng trailer industry cluster, with centralized procurement of steel, axles, and accessories. The cost of raw materials is low, and the quotation for the same configuration is better than the industry average price.
Our Advantages
4‑axle heavy‑duty skeleton semi trailer,
- Greatly improved loading capacity. Four axles distribute load evenly, suitable for heavy dry container, reefer container and ISO tank container, meet high GVW regulation in some countries.
- .Excellent reliability on rough roads. Dense cross‑beams and gusset plates, anti‑torsion & anti‑impact, resist frame crack & deformation for long‑haul bad‑road conditions in Africa.
- Lower spare‑part consumption & operating cost. Less load per axle, reduce wear of tires, axles and leaf springs, cut maintenance frequency.
- Multi‑scene application. Works for port shunting and cross‑country heavy‑load long‑distance haulage.
FAQ
Q: What is the anti-corrosion process?
A: Full sand blasting + 1 primer + 2 topcoats, hot-dip galvanized optional for coastal areas.
Q: Can I customize color and logo?
A: Custom brand logo, body color and printing are available.
Q: What is the service life?
A: 8–12 years service life with regular maintenance, durable high-strength steel frame.
