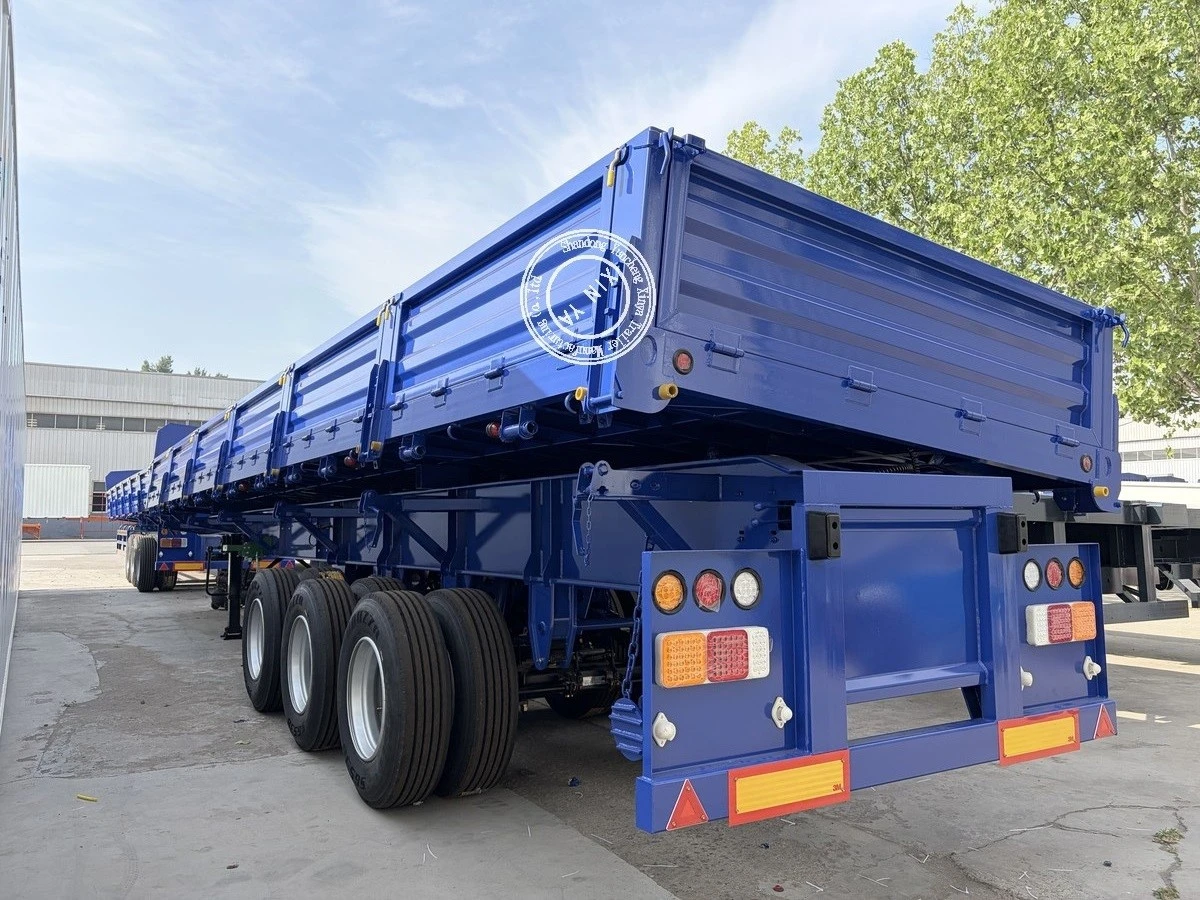

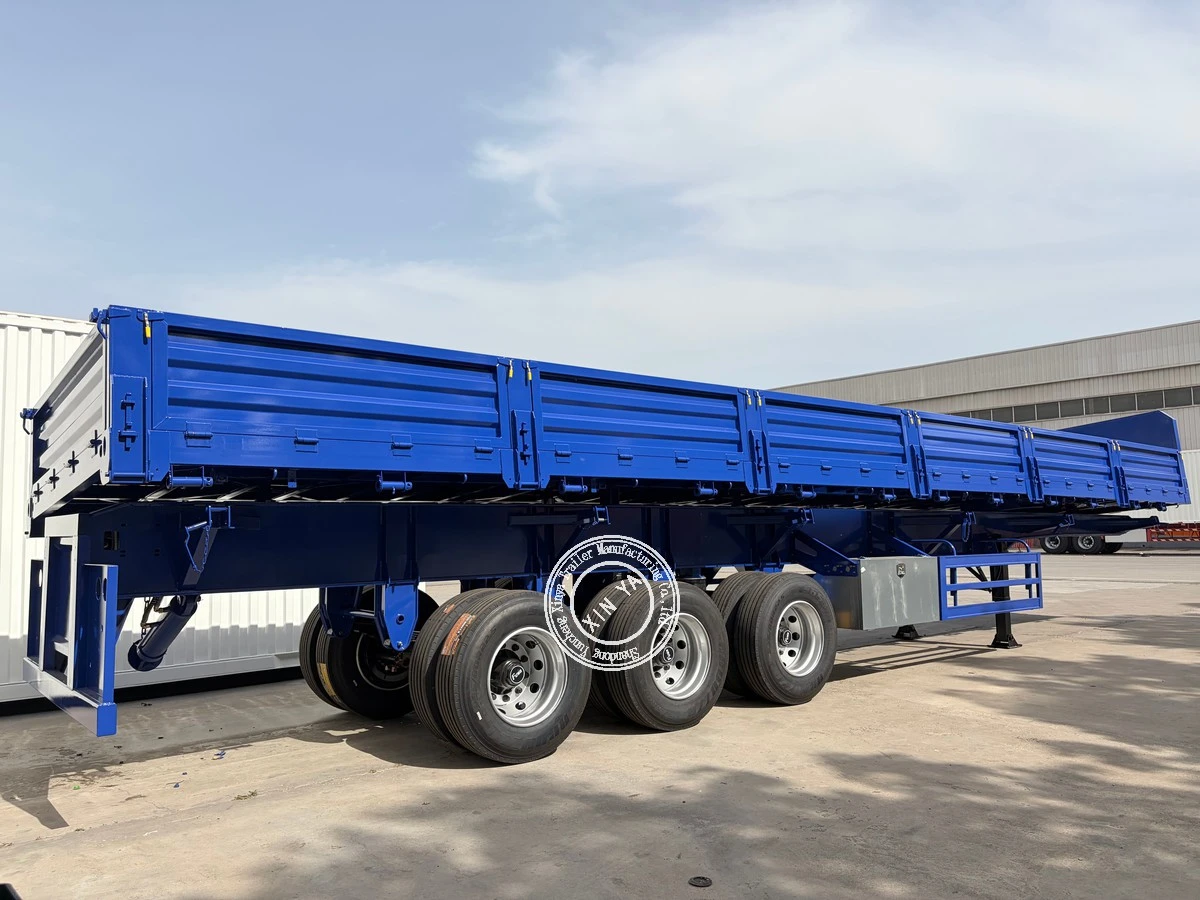

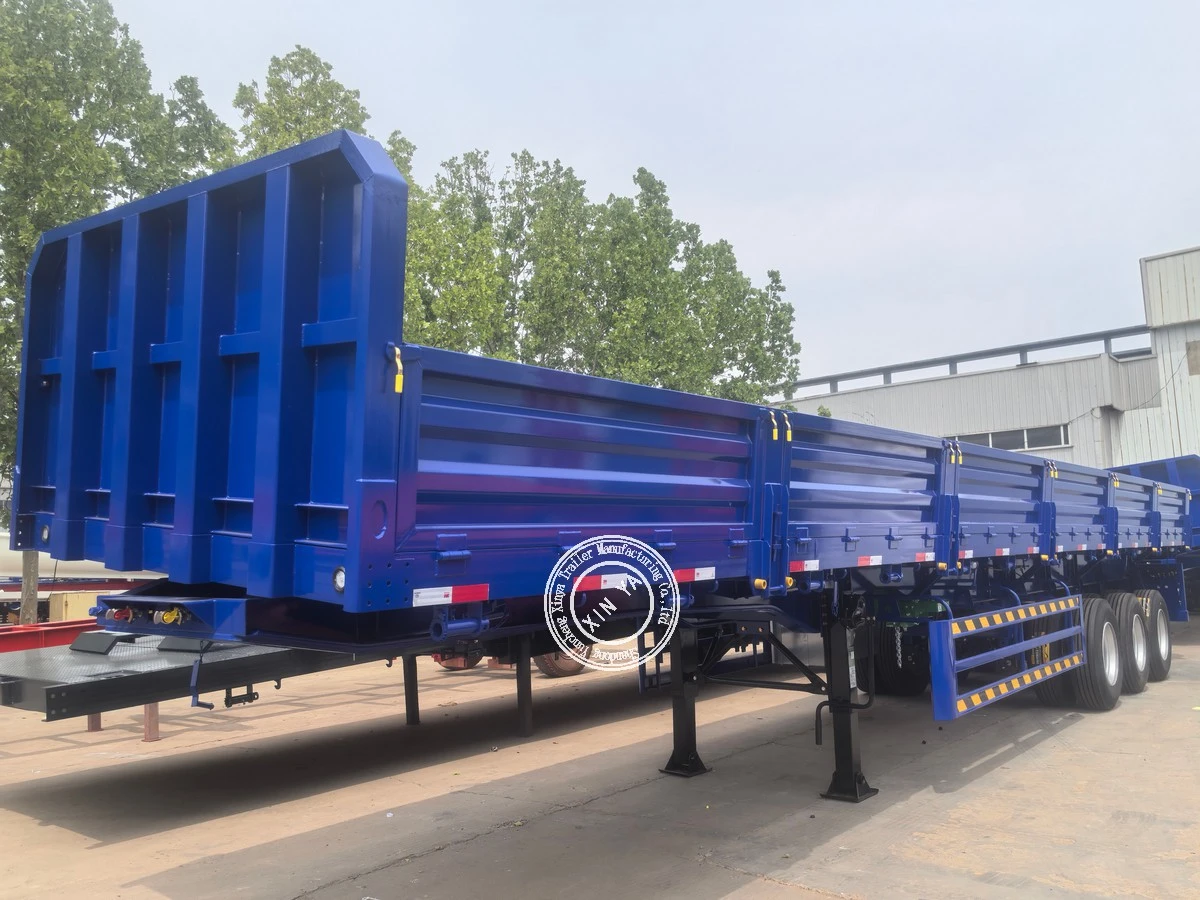

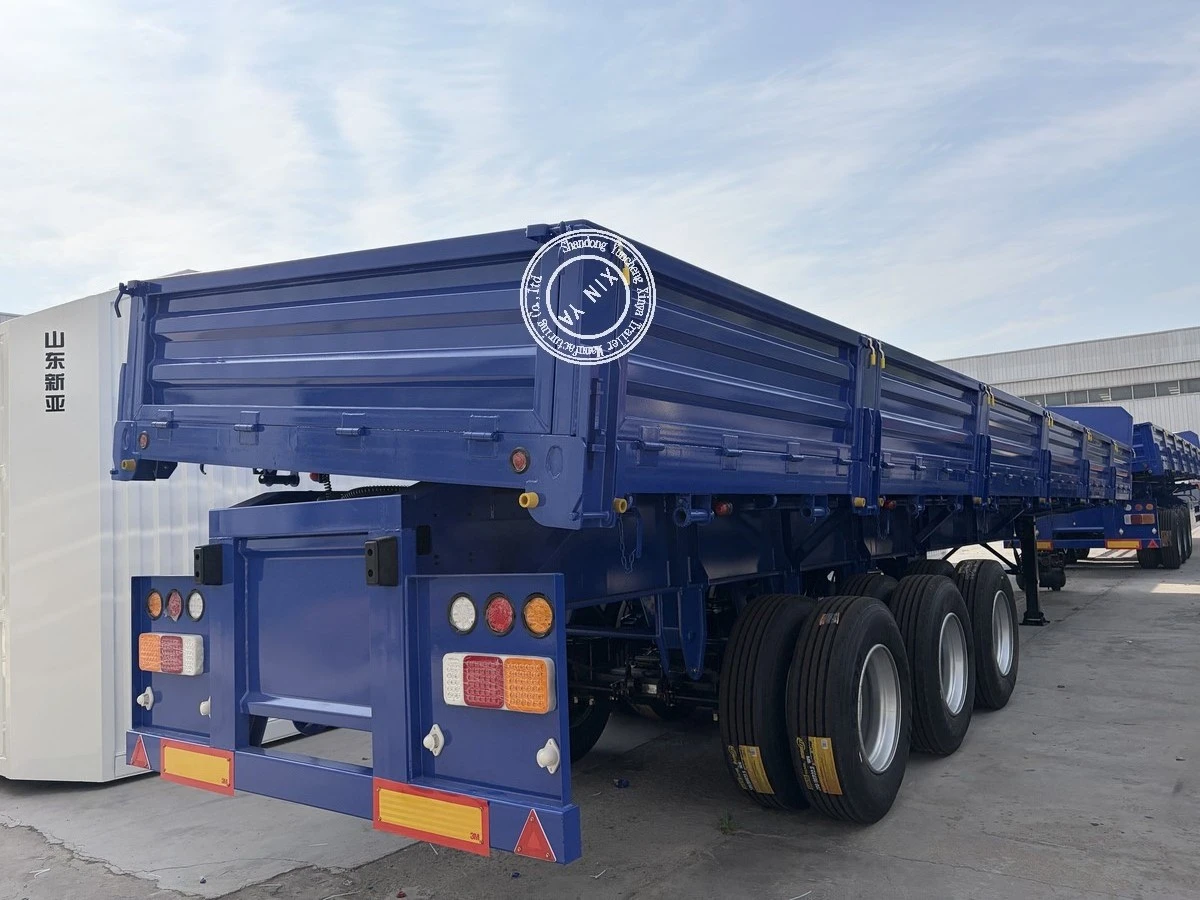

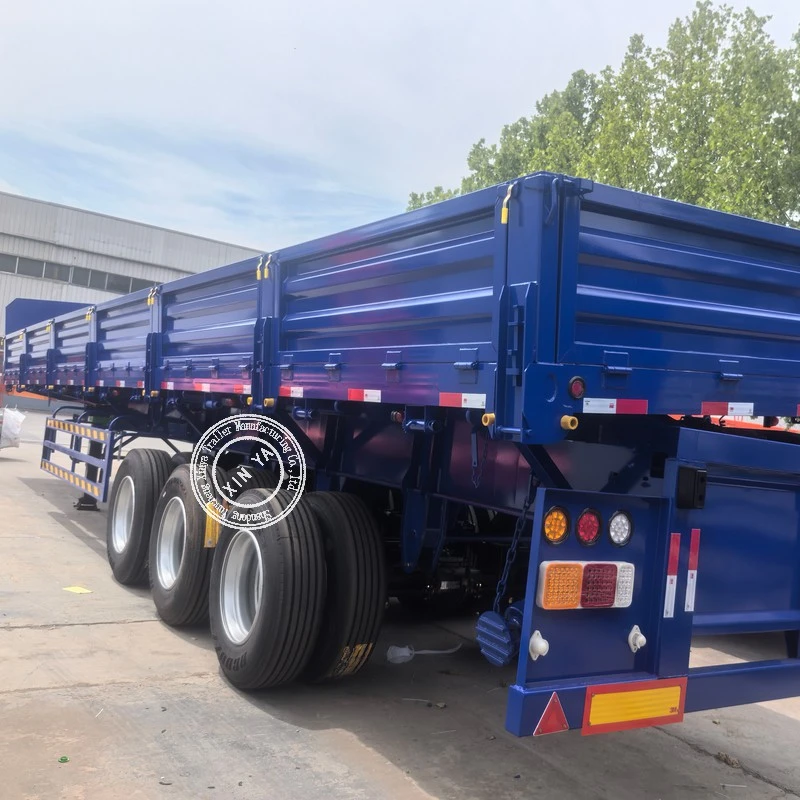

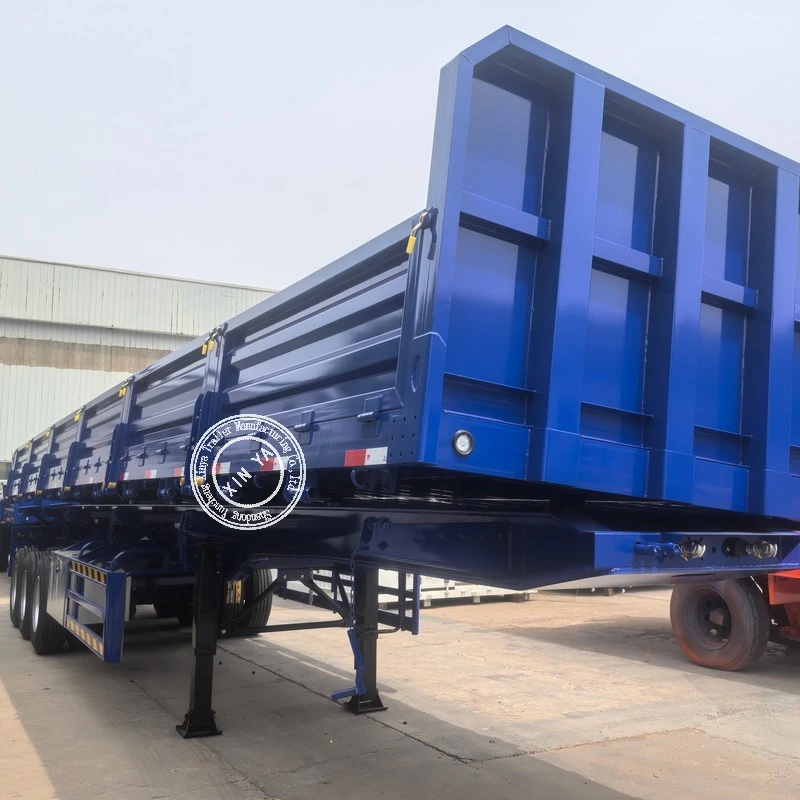

Side Dump Semi-trailer

Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of side dump semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved side dump semi-trailer, welcome to get quotation from our factory.







Lead Time: According to quantity and seasons, the lead time is different.

Overall size(L*W*H)mm	13000*2550*3100mm
Material	Q345B fabricated carbon steel
Main beam	Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr
Tyre	12R22.5 ×12
plateform	2-3mm checker plate
Twist lock	12 units
Landing gear	28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand
Suspension	Mechanical suspension or Air suspension
Axle	Brand: BPW/FUWA/XINYA Capacity: 13T QTY: 3 units
Electric system	24V LED light; waterproof wire; 7 ways (7 wire harness);Tail lamp with turn signal & brake light & side lamp & reflector etc.





After more than ten years of development, Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. has achieved outstanding results in the field of foreign trade. With a diversified product portfolio and high-quality product quality, our business has successfully expanded to Southeast Asia, Central Asia, Africa, Russia, South America and other countries along the "the Belt and Road". At present, we have established long-term and stable cooperative relationships with more than 200 domestic and foreign agents and overseas customers, and our annual export volume has steadily increased. We can provide customized solutions, comprehensive after-sales service, and cargo transportation support to ensure smooth and efficient cooperation.





1.The main frame is fabricated from high-strength Q345B structural steel. All beams are welded via submerged arc automatic welding, which prevents frame deformation and ensures optimal load-bearing performance.

2.Adopting well-known brand axles and suspension systems, with excellent performance and high reliability, ensuring the good performance of the vehicle.
