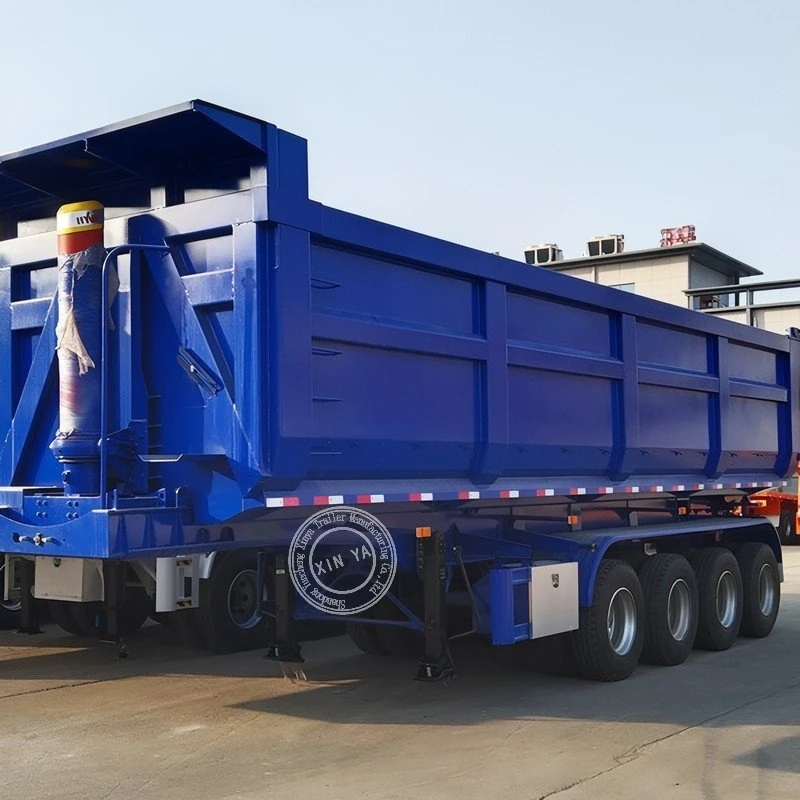

U-shaped Rear Dump Semi-trailer
Size: 9000*2500*3300mm or customized
Tare weight: 10T
Payload: 50-80T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of u-shaped rear dump semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved u-shaped rear dump semi-trailer, welcome to get quotation from our factory.
Product Details

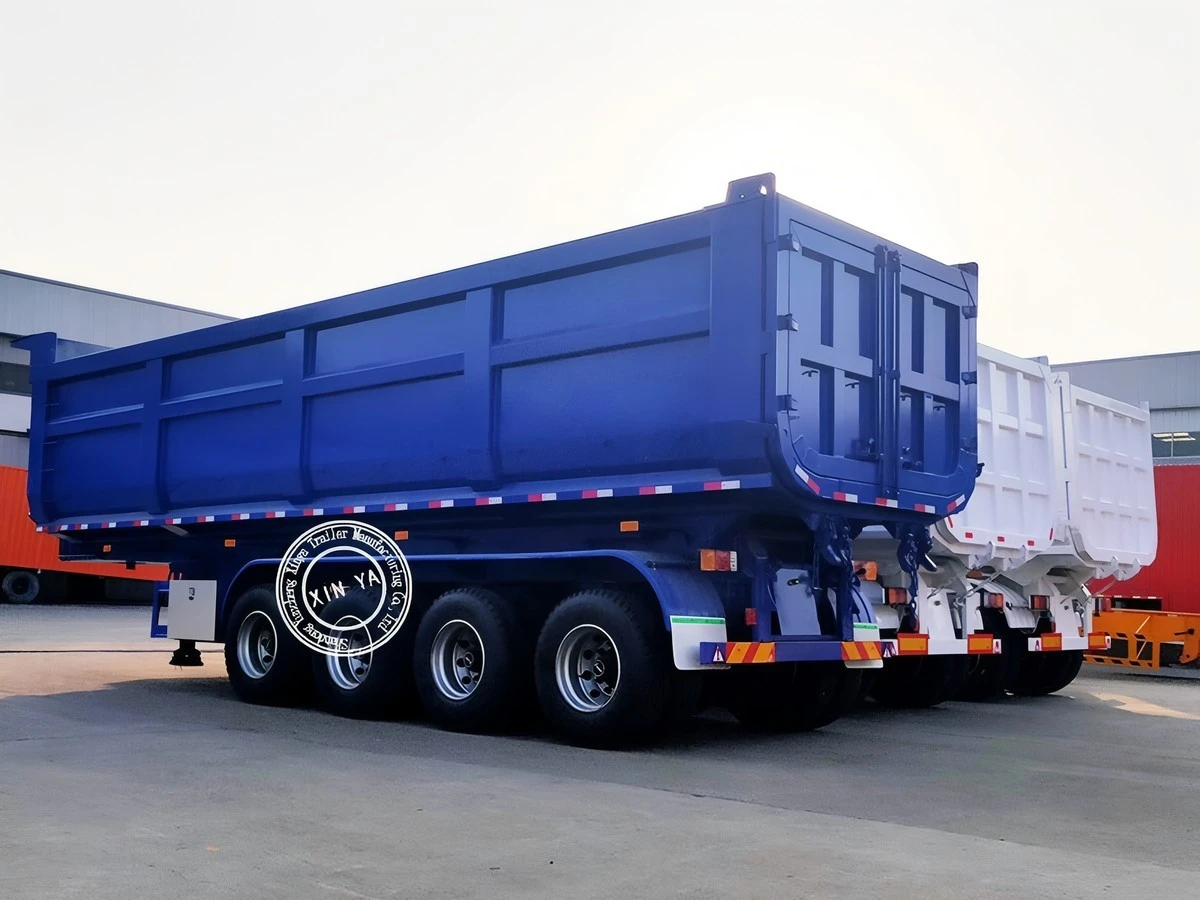

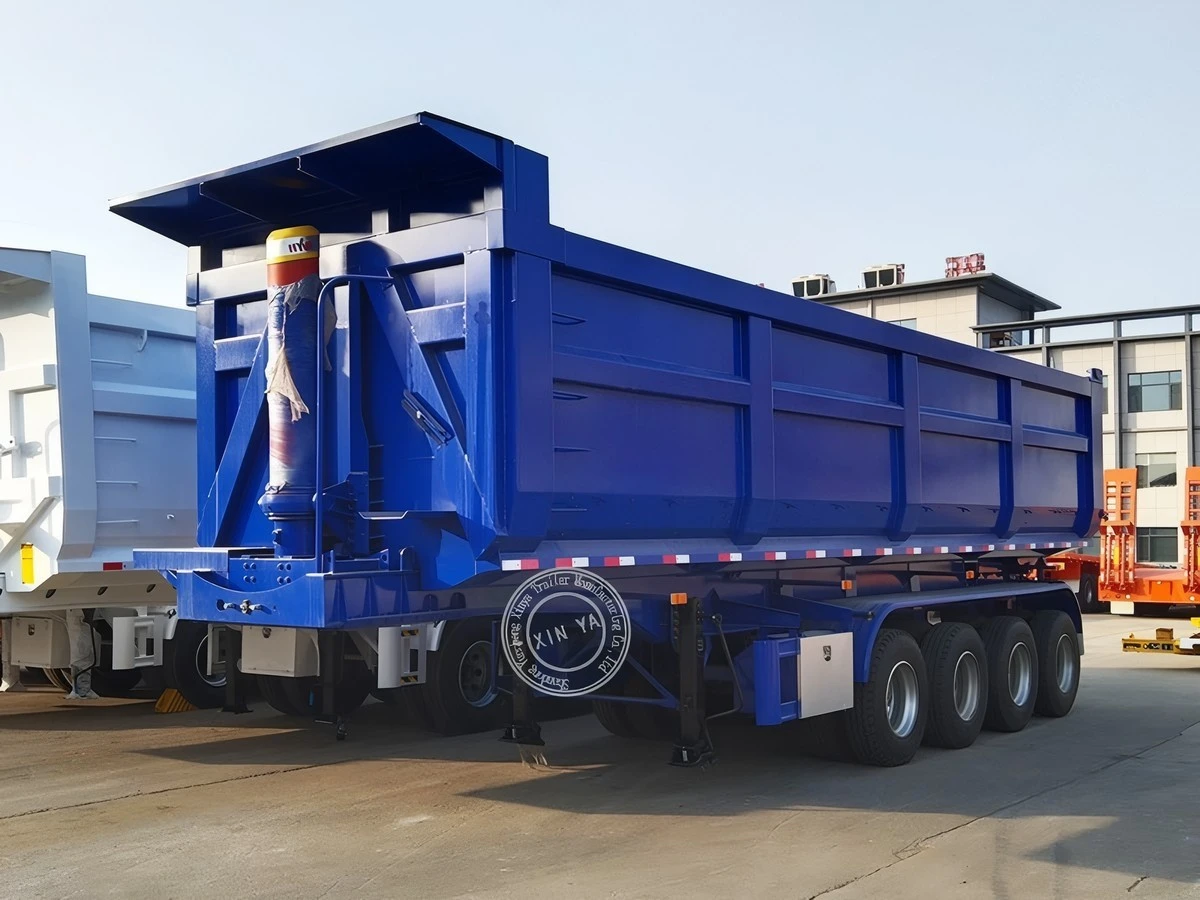

The 4 Axle U-shaped rear dump semi transporter is made of high-strength steel, which is durable when loaded with sand, small stones, or rocks. The loading capacities are 40 tons, 60 tons, and 80 tons respectively
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
9000*2500*3300mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 10mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
Twist lock |
12 units |
|
Tyre |
Brand: Chinese famous brand Type: 315/80R22.5 ; double mounted; QTY: 12+1 spare tyre |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension or Air suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. was established in 2010, mainly producing container transport semi-trailer, flatbed semi-trailer, flatbed flatbed transport semi-trailer, goose neck flatbed transport semi-trailer, atmospheric dangerous goods tanker series, dump truck series, etc. (more than 100 types of products). The company fully absorbs advanced technology, actively engages in technical cooperation, and provides customers with competitive products based on its strong capabilities.
Our Advantages
1.We can provide two axle, three axle, and four axle dump semi trailers with a load capacity of 40-80 tons according to customer needs. We guarantee to provide
High quality products and highly competitive prices.
2.We use HYVA brand hydraulic cylinders to ensure smooth operation of the trailer hydraulic system. HYVA is a well-known brand in the field of hydraulic systems.
3.Adequate cargo hold space. Optional U-shaped or rectangular tank body. Using full thickness special steel for stronger load-bearing capacity.
FAQ
1. Do you offer reinforced type for heavy cargo?
A: Yes, we have heavy-duty version with thicker beam and plate.
2. What type of rear door is equipped?
A: Standard double rear door, swing door or rear dump door is optional.
3. Can we add side protection and rear protection?
A: Side and rear guards are standard equipped to meet export safety standards
