Detachable Side Fence Trailer
Dimensions：12500 /13000 × 2550 × 2900 mm (Customizable)
Load capacity：60 ton
Tare weight：8.5–9.0 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of detachable side fence trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved detachable side fence trailer, welcome to get quotation from our factory.
Product Details

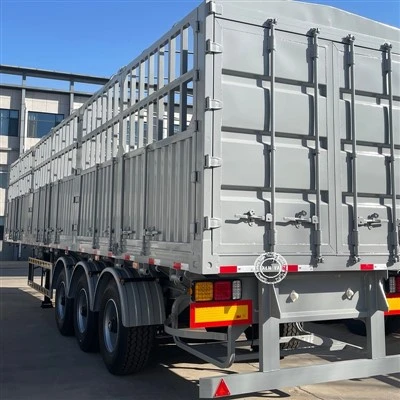

This detachable side fence semi trailer features full side panels with quick pin-lock design for fast assembly and removal without cutting or welding, different from normal stake trailers with separate posts. Its main beam is fabricated with T700 high-tensile steel and reinforced by dense cross members for stable load bearing. The side fence frame is built with thickened Q355B square tubes and internal stiffeners. The hollow fence design keeps good ventilation and avoids damp and heating of bagged goods. The chassis is sandblasted for anti-corrosion treatment. Brake pipelines are neatly routed and wiring harnesses are protected against abrasion. The front board and rear gate can be reinforced separately. Fence height, panel quantity and lock types are customizable to fit different loading methods and long-distance heavy-duty road conditions.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12500 /13000 × 2550 × 2900 mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm |
|
Platform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T |
|
Suspension |
Mechanical system with beams equaliser |
| King Pin | 2 inch (50mm) bolted king pin, 3.5 inch optional |
| Tire | 12 units, 12.00R22.5 / 315/80R22.5, spare tire optional |
|
Axle |
Brand: FUWA / BPW /XINYA Capacity: 13T16P QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company has complete ISO9001, CCC, SGS, and WMI certifications, ensuring smooth customs clearance in Africa, Southeast Asia, and the Middle East. Our products are widely sold across China and exported to Southeast Asia, Africa and other international markets. Adhering to the principle of quality-oriented and customer first, Xinya Trailer provides cost-effective products and one-stop after-sales solutions for global partners.
Our Advantages
The full detachable side fence enables easy switch between fenced mode and flatbed mode. Without side panels, it can carry over-length steel pipes and large structural parts; with fences installed, it works well for bagged bulk cargo. One trailer handles multiple cargo types and cuts fleet investment. The quick pin locks are easy for one person to operate and shorten loading cycles. As integrated panels instead of loose stakes, the side fence provides better spillage control for bagged materials. The chassis has ample load reserve for long-haul heavy transport, and spare parts are widely available locally for easy maintenance, ideal for fleets with mixed cargo.
FAQ
Q: Is there storage space for side fences after removal?
A: We can add hanger brackets on both sides of the frame. Removed fence panels can be hung on the trailer frame for transit instead of separate storage.
Q: How long does it take to remove or install one side fence?
A: A skilled worker can finish one full side within 8–12 minutes, much faster than traditional separate stake fences.
Q: Can the lock pins pop open automatically on bumpy roads?
A: Pins come with spring anti-drop clips to prevent accidental release. Bolt-style double locking is an upgrade option for extremely rough roads.
Q: Can I remove only one side fence and keep the other side?
A: Yes. Left and right panels are independent. Single-side removal supports side forklift loading.
