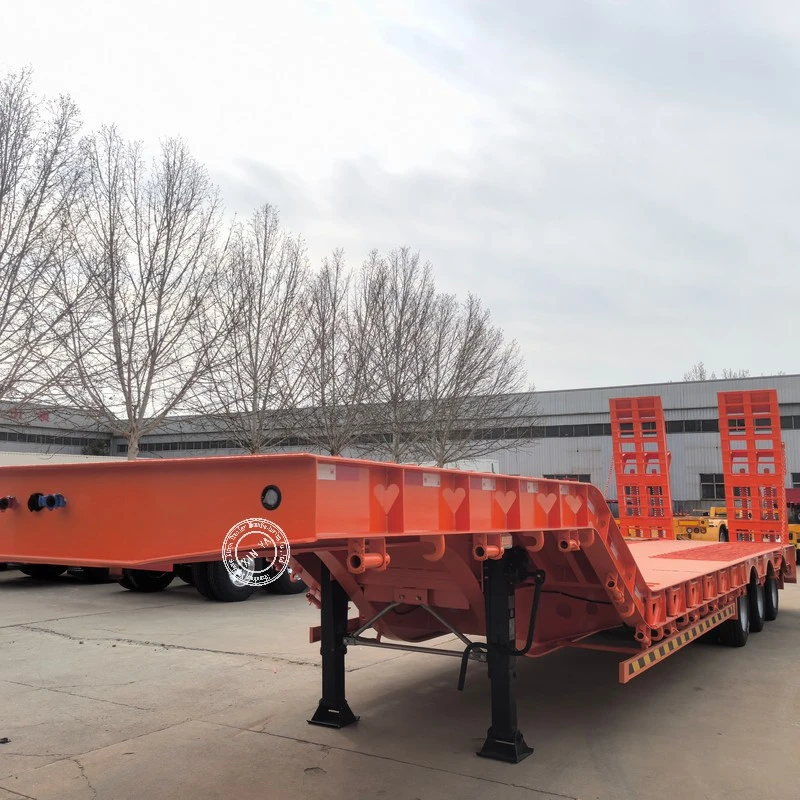

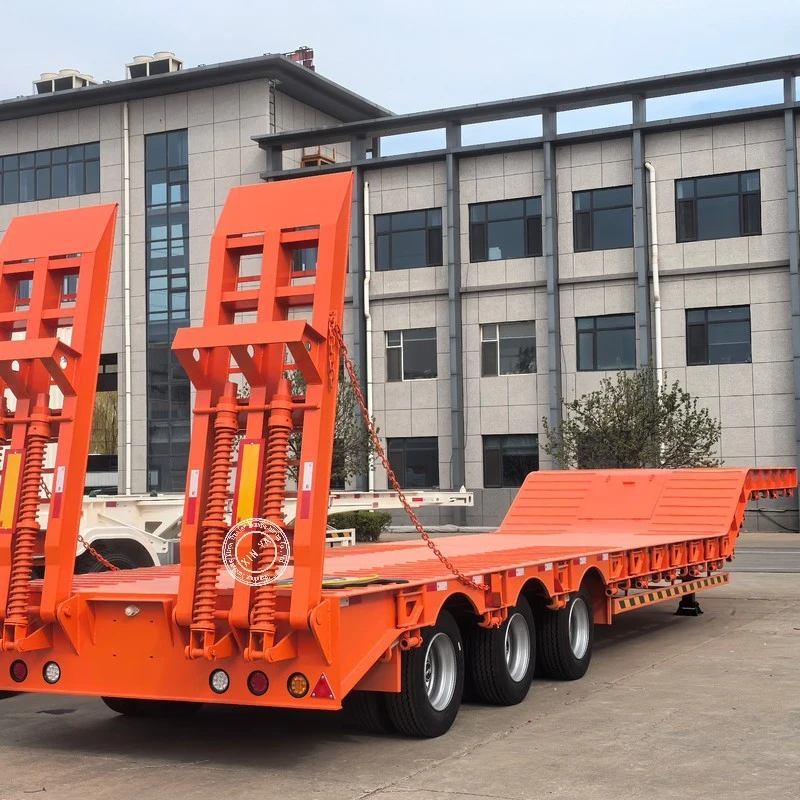

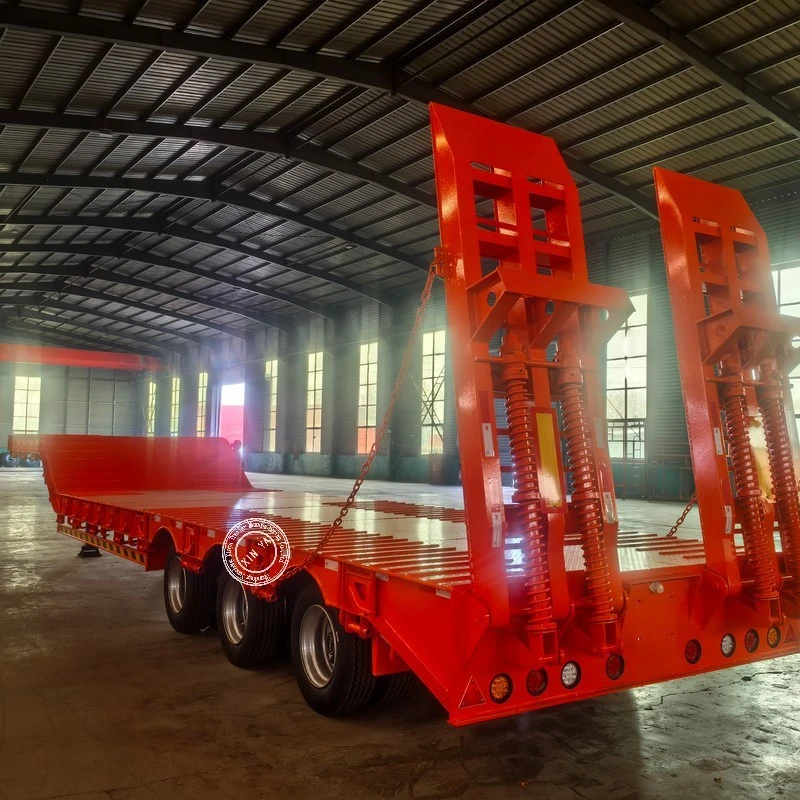

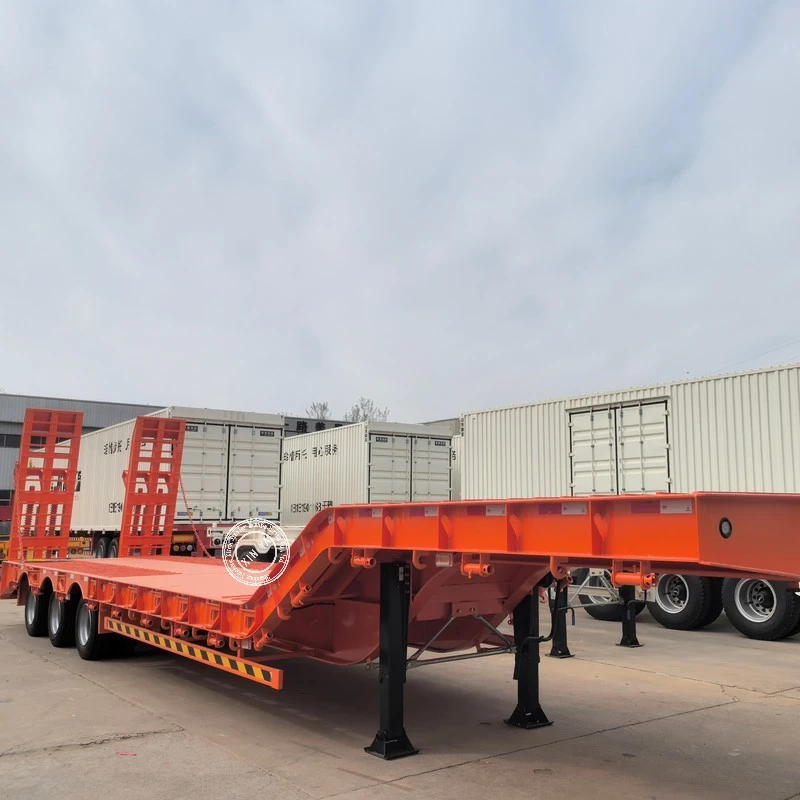

80 Ton Lowbed Semi-trailer
Dimensions: 15800 * 3000 * 1520mm
With a load capacity of 60-80T, we also offer customized low bed trailers weighing over 100 tons
Approximately 10 tons in weight
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 80 ton lowbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 80 ton lowbed semi-trailer, welcome to get quotation from our factory.
Product Details
The 80 ton low bed trailer is designed specifically for high and light transportation, providing reliable transportation for large industrial projects, mining operations, and transportation engineering machinery
Product Parameters
|
Overall size(L*W*H)mm |
15800*3000*1520 or Custom size |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 22mm Middle plate: 14mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side rail |
250# "工" type |
|
plateform |
4mm checker plate |
|
king pin |
3.5" |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity |
|
Suspension |
Mechanical suspension |
|
Rear Loading Ramps |
2 units. Spring loaded & manually operated with safety chain |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
1.The chassis of the low bed semi-trailer is sand-blasted, primed and finished with two coats of topcoat. All accessories are partially galvanized. Under normal wear and tear, the paint finish is guaranteed against dulling and fading for 3 years.
2.All accessories are sourced from leading brands. Equipped with FUWA axles and JOST/FUWA landing gears, the trailer suffers far fewer breakdowns.
3.This low bed trailer adopts a low-center-of-gravity design. Even in areas with poor road conditions, this 80-ton low loader ensures safe transportation under heavy loads, rough roads and severe weather.
FAQ
1.What is your minimum order quantity?
The minimum order quantity is 1 unit, but for bulk cargo and container shipping, we suggest 3 or 2 units as more cost-effective options
2.How can I obtain the price of a semi-trailer?
You can contact us through WhatsApp/email!
You only need to provide the type, size, load capacity, and requirements for accessories of the trailer
