60 Ton Lowbed Semi-trailer
The low bed semi-trailer has a goose neck structure, with a lower cargo platform and a width of approximately. 3 meters, which can be widened as an option
Low flatbed semi-trailer is mainly used for transporting engineering equipment and large machinery, commonly used for excavator transportation
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 60 ton lowbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 60 ton lowbed semi-trailer, welcome to get quotation from our factory.
Product Details
The main beam of this low bed trailer is constructed from high-strength Q345B steel. With a beam depth of 500mm, it delivers excellent load capacity, low vehicle gravity and stable running performance.
Product Parameters
|
Overall size(L*W*H)mm |
13000/16000*2700*11000 or Custom size |
|
Total gross weight approx. |
67-87T |
|
Dead weight approx. |
8-10T |
|
Payload approx. |
60-80T |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 14mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side rail |
250# "工" type |
|
plateform |
4mm checker plate |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. The company is equipped with intelligent production facilities.
In recent years, we have introduced a full range of advanced equipment, including automatic riveting production lines, laser cutting systems and coating production lines.
Our Advantages
- We adopt top-tier brand components to prolong the service life of the trailer and effectively cut down maintenance costs.
- A total of 24 heavy-duty rope tighteners and 18 cast iron rope hooks are installed on the sides to guarantee cargo safety and stability.

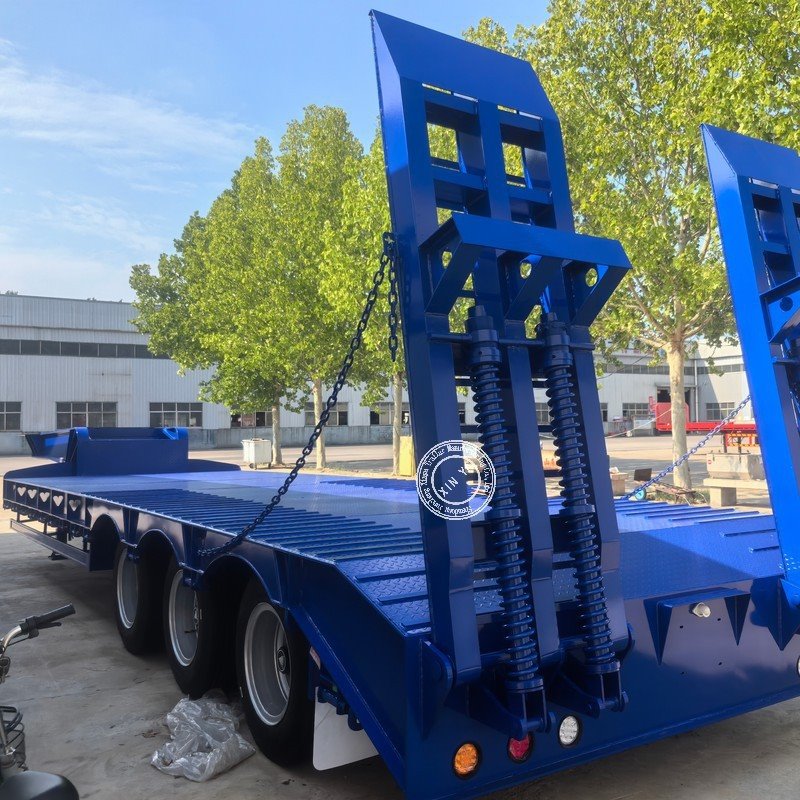

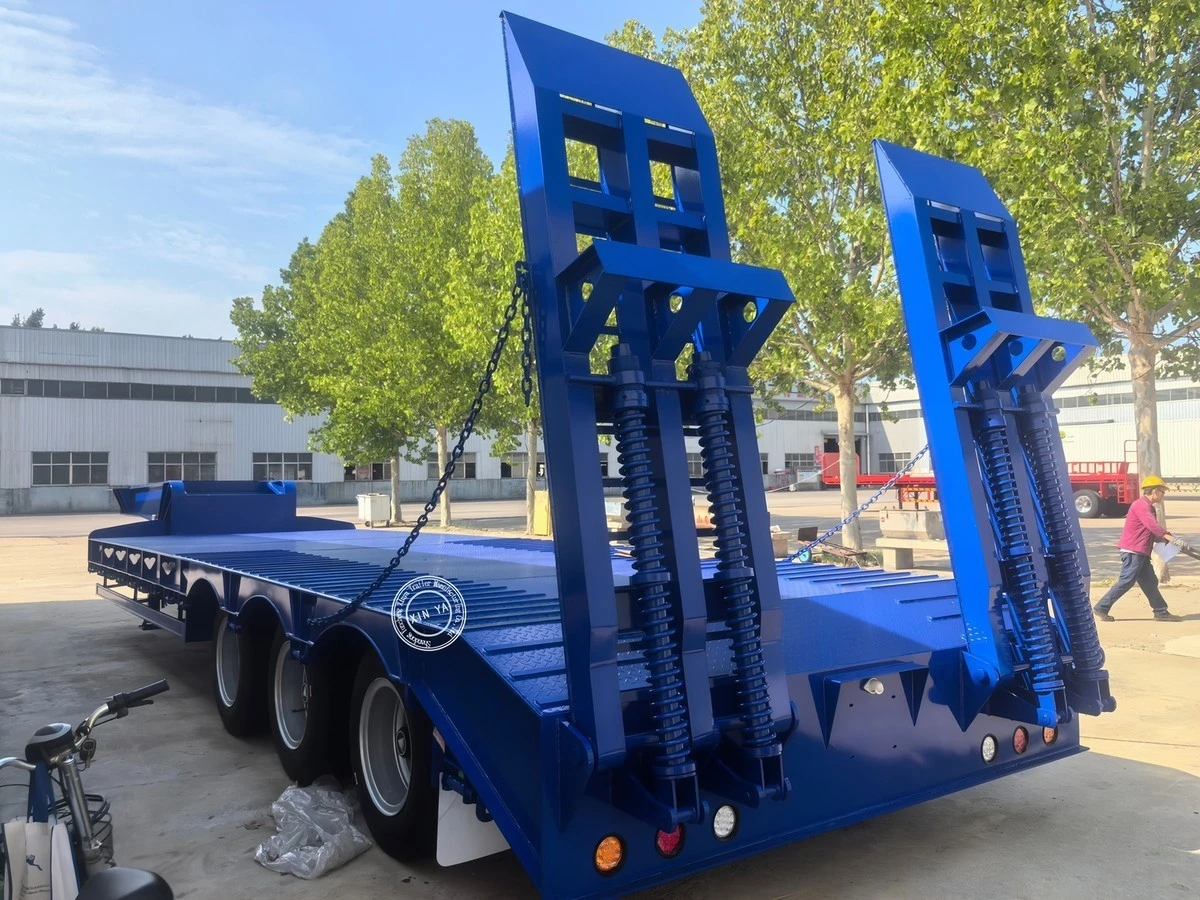

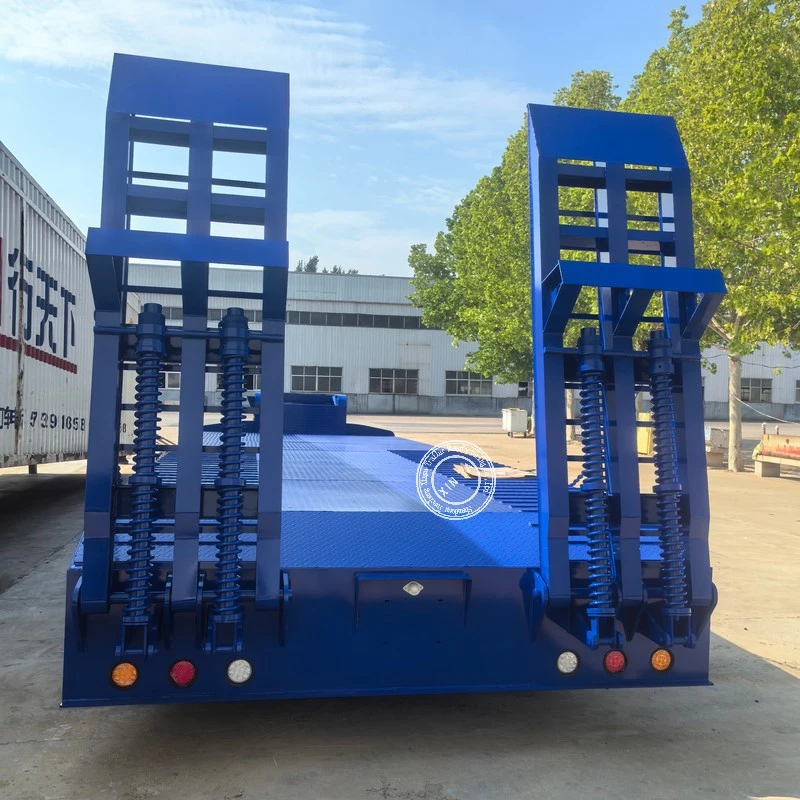

- The spring-assisted ramp features simple structure, high durability, low failure rate and excellent cost performance.
FAQ
1.What transportation methods do you use for international delivery?
We arrange reasonable logistics based on the address you provided, mainly including sea transportation, railway transportation, and road transportation
2.This is my first time buying a trailer, how should I choose?
You only need to provide the following information;
What goods are you transporting (loose cargo, containers, heavy equipment)
What are the road conditions in that country
