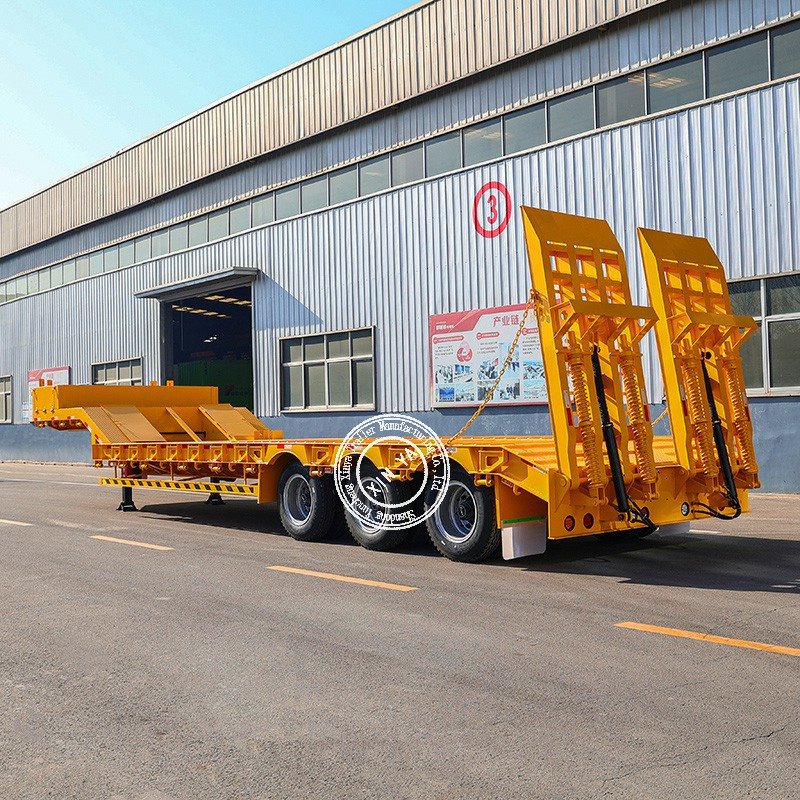

Hydraulic Ladder Lowbed Semi-trailer
3axle hydraulic ladder low bed semi-trailer, equipped with three 16 ton Fuhua bridges with a bearing capacity of 60-80 tons
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic ladder lowbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved hydraulic ladder lowbed semi-trailer, welcome to get quotation from our factory.
Product Details

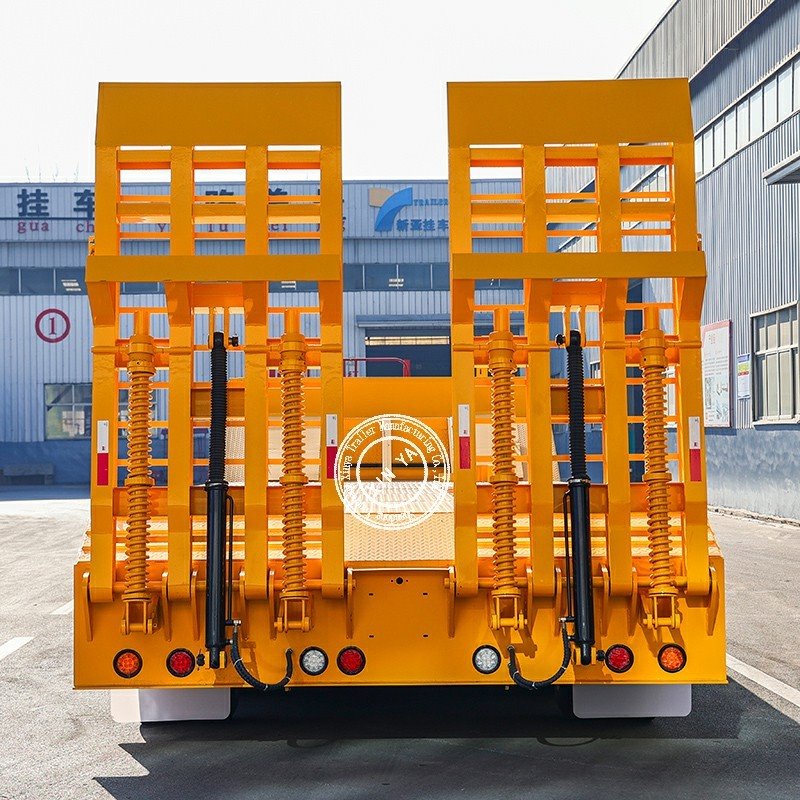

This 80-ton low bed semi-trailer is equipped with two hydraulic ramps. It is easy to operate and can be handled by a single person, which shortens loading and unloading time. Featuring smooth movement and high load capacity, it is compatible with various types of machinery.
Product Parameters
|
Overall size(L*W*H)mm |
13000/16000*2700*11000 or Custom size |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 16mm Process: welded by automatic submerged-acr |
|
Side rail |
300# "工" type |
|
plateform |
4mm checker plate |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
- The main beam of this low bed trailer is made of Q355B steel. Extensions are installed on both sides to widen the vehicle, meeting the transportation requirements for over-width equipment.
- The lighting system adopts high-brightness LED lamps, which feature long service life, excellent impact resistance and waterproof performance. The products have obtained 3C certification and are exempted from inspection.
- This low bed semi-trailer is fitted with mechanical suspension with superior load-bearing capacity. The 3-axle design distributes loads effectively under heavy loads. Additionally, the mechanical suspension allows easy later maintenance with low maintenance costs.
FAQ
1. Your semi-trailer has its own brand?
Yes, we have our semi-trailer brand called Yongchao
2.What are your strengths?
We provide manufacturing of high-quality semi trailers; For example: flatbed semi-trailer, fence semi-trailer, low bed semi-trailer, dump semi-trailer, skeleton semi-trailer, etc
3.Can you customize a trailer?
Of course, you can provide dimensions, load capacity, configuration, materials, or if you have your own drawings, we can customize them according to your needs
