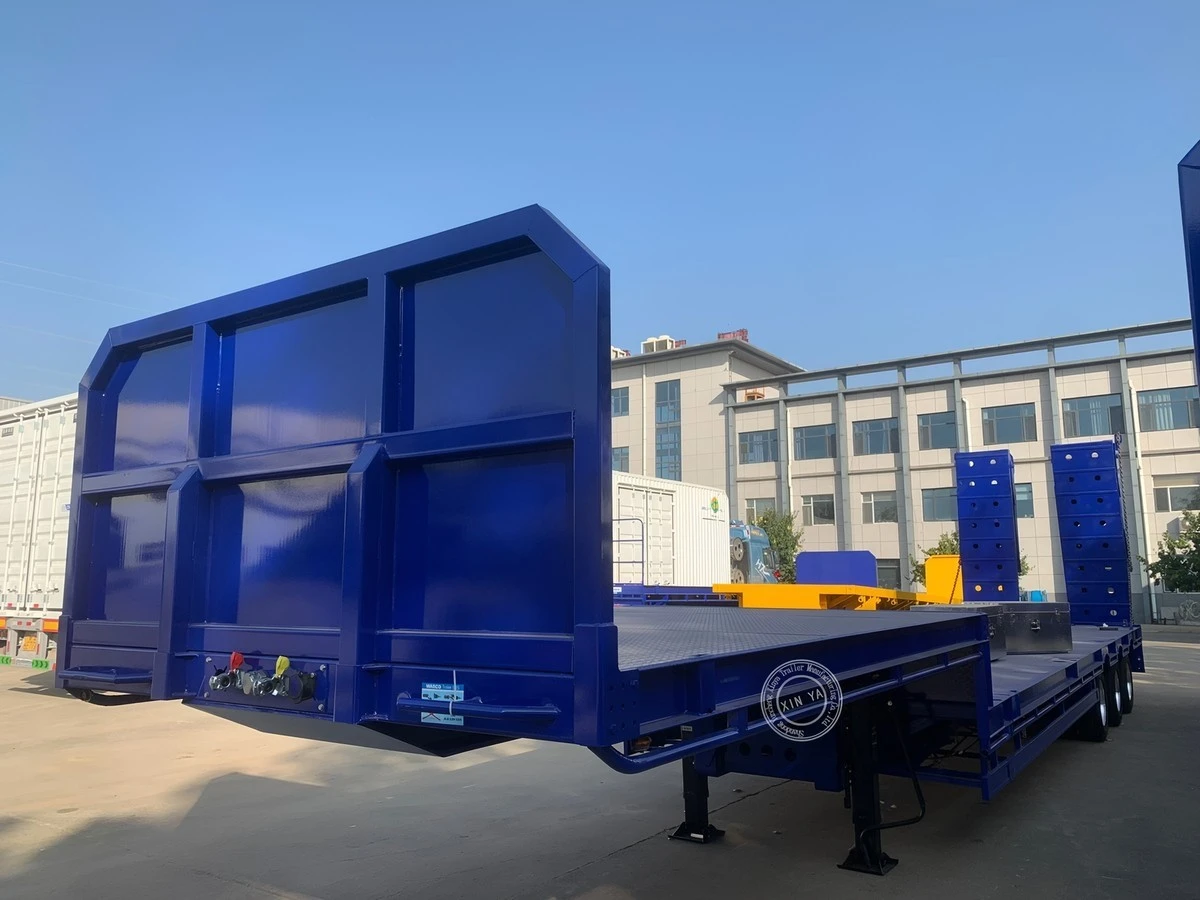

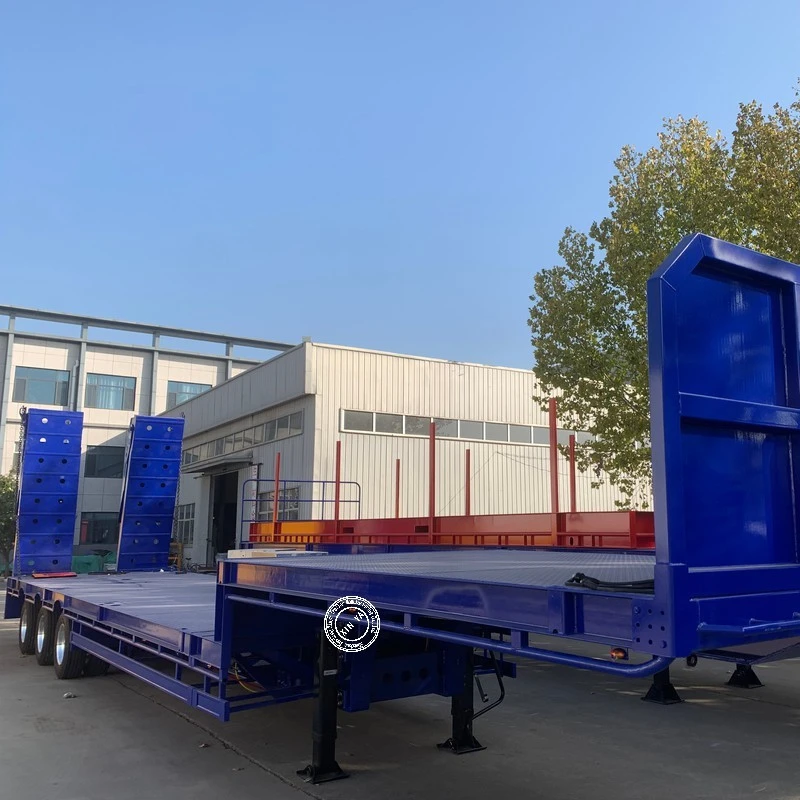

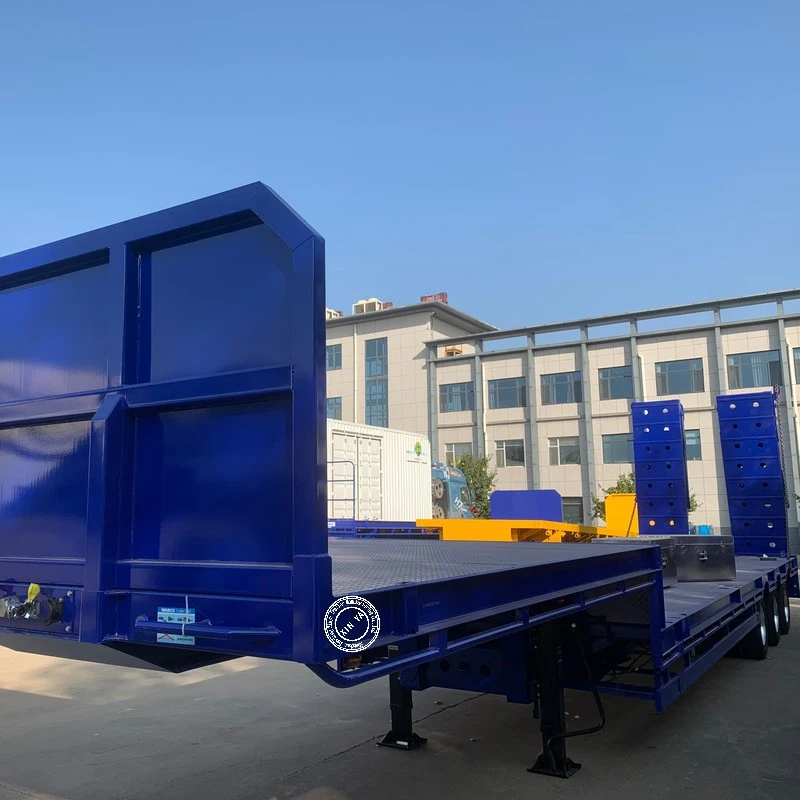

Gooseneck Lowboy Semi-trailer

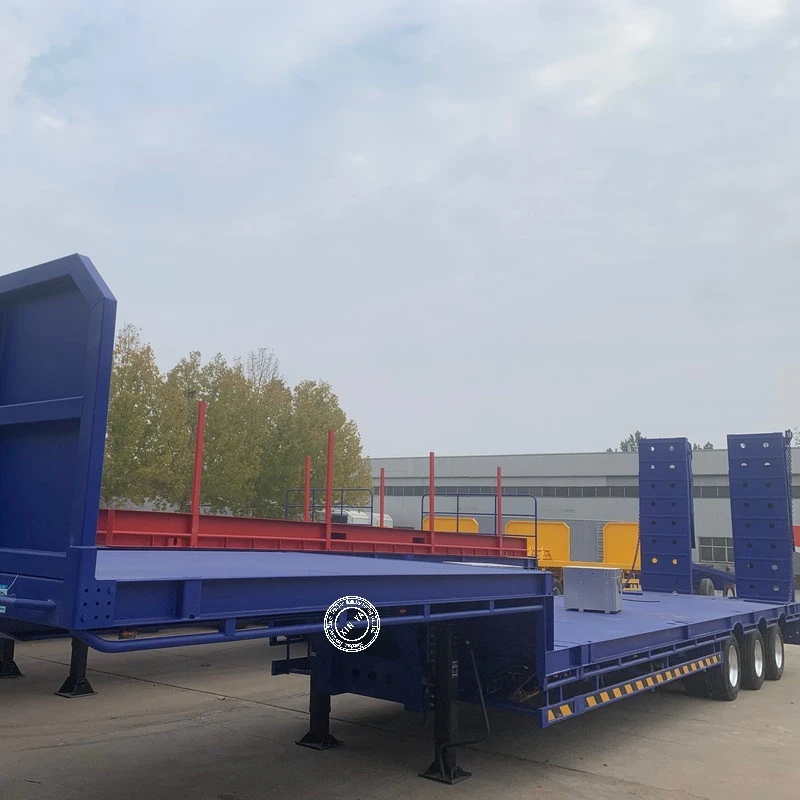

This Gooseneck Lowboy semi transporter is equipped with dual hydraulic ramps at the rear
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of gooseneck lowboy semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved gooseneck lowboy semi-trailer, welcome to get quotation from our factory.
Product Details
The platform adopts a low bed design, effectively reducing the height of the cargo platform and facilitating the transportation of heavy machinery. It is equipped with a 4mm patterned bottom plate to ensure the stability and safety of goods during transportation

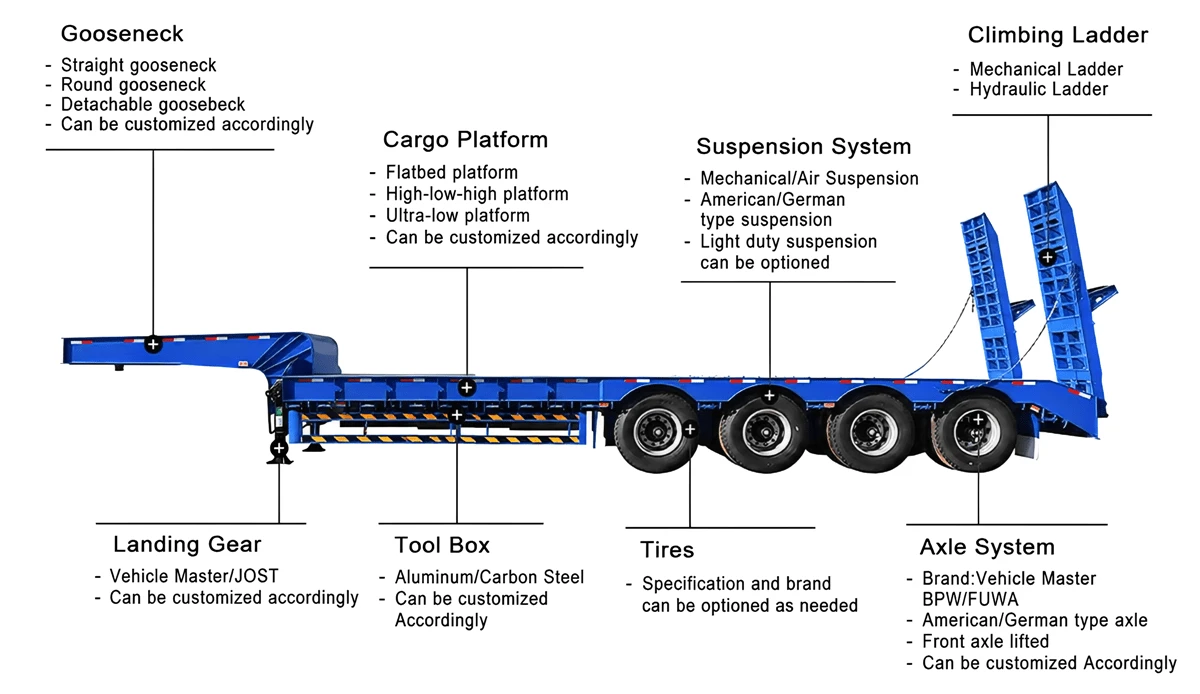

Product Parameters
|
Overall size(L*W*H)mm |
13000/16000*2700*11000 or Custom size |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20/22mm Middle plate: 12/14/16mm Process: welded by automatic submerged-acr |
|
plateform |
4/5mm checker plate |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Leaf Spring |
90mm*13mm*10/90mm*16mm*10Pcs |
|
Rim |
9.00*22.5/6.5-20 (12/16 Pieces) |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is an integrated industry and trade enterprise, a large Chinese automotive modification enterprise that integrates product design, production, and sales, with an annual production capacity of over 5000 vehicles. The main products are land transport trailers and special vehicles, such as low flatbed semi trailers, container flatbed semi trailers, dump semi trailers, tank semi trailers, automobile transport semi trailers, animal transport fence semi trailers, and other special function trailers. Since its establishment in 2010, our company has nearly 15 years of industrial manufacturing experience and has obtained over 45 Chinese patents
Our Advantages

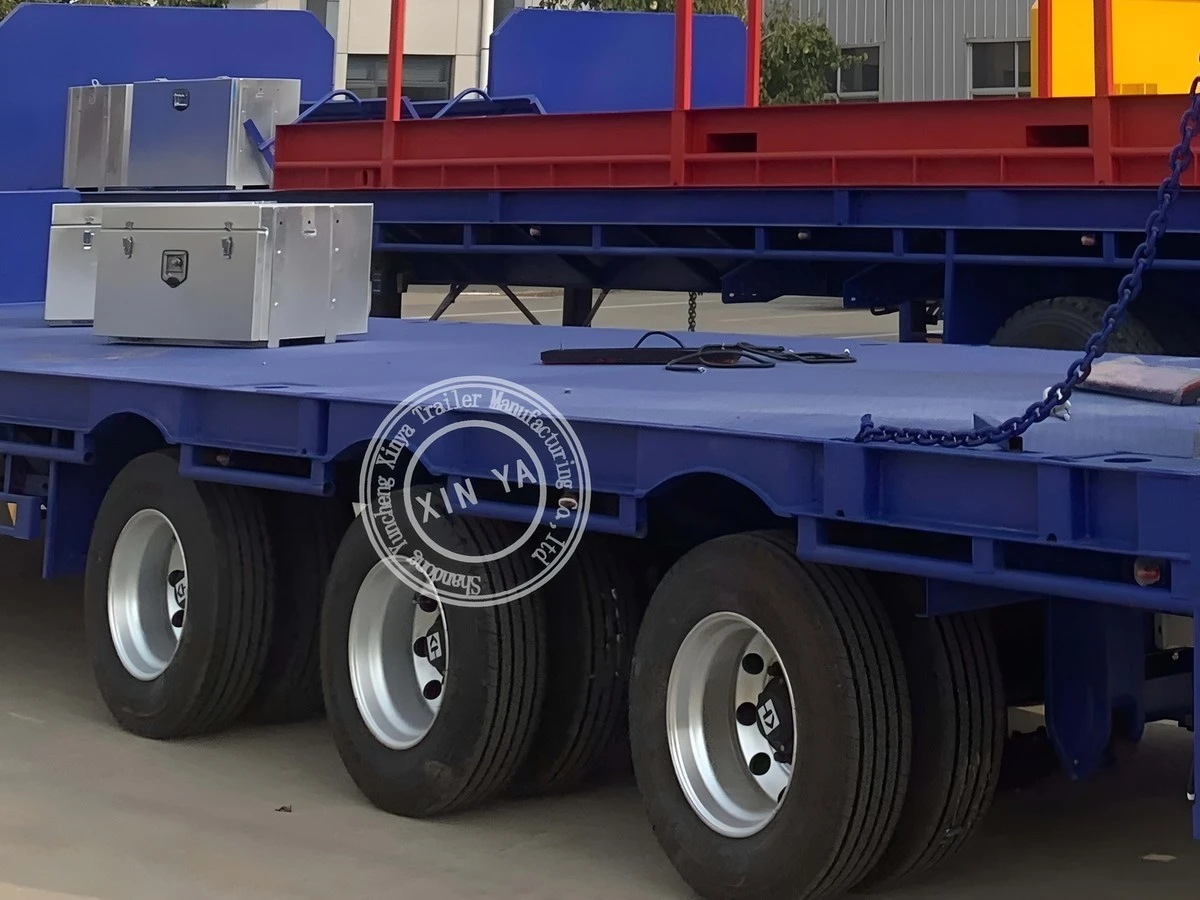

1. Axle and Suspension: Three axle 12 tire twin tire installation, combined with mechanical suspension, with strong load-bearing capacity and even load distribution, can transport construction machinery, excavators, bulldozers

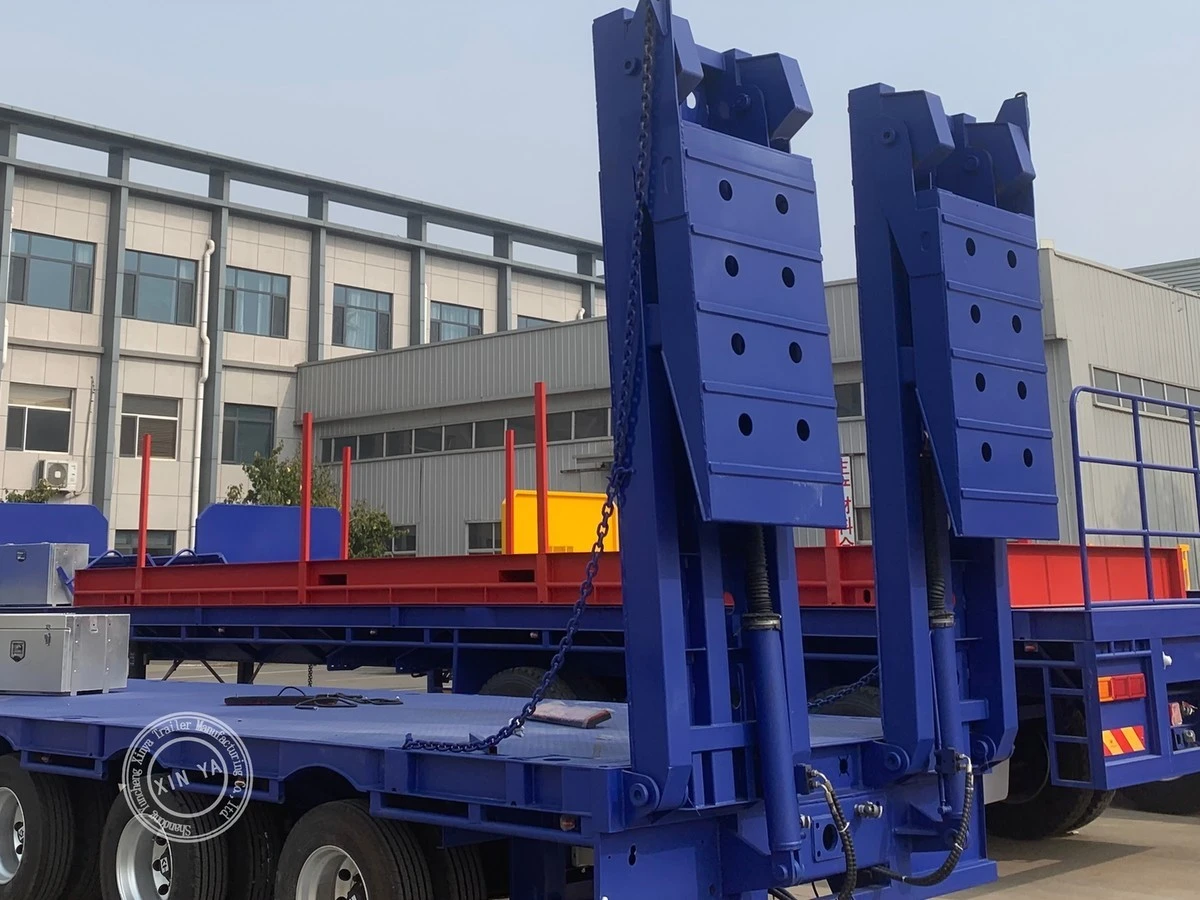

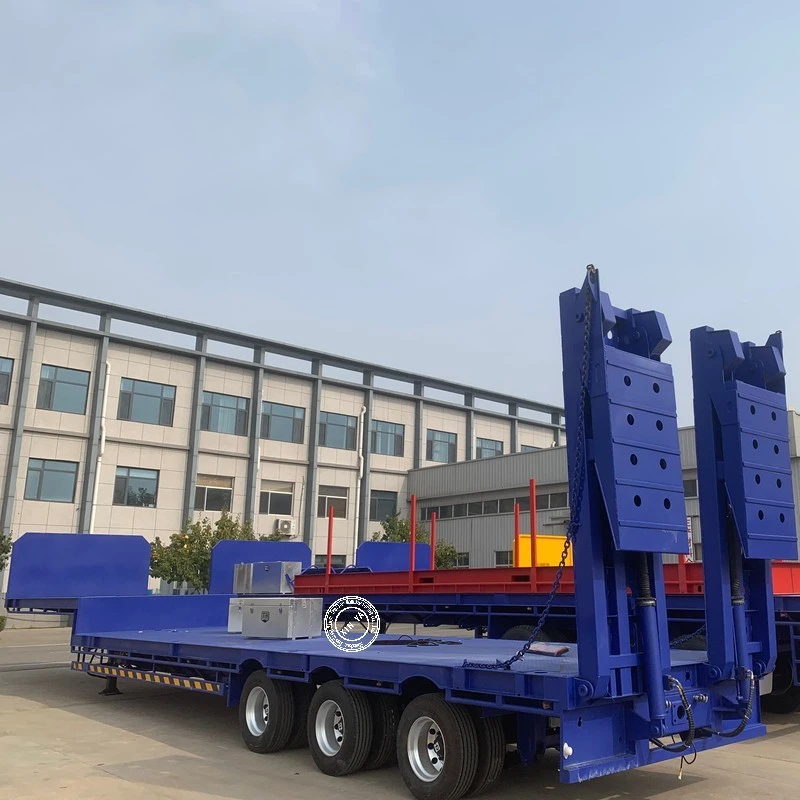

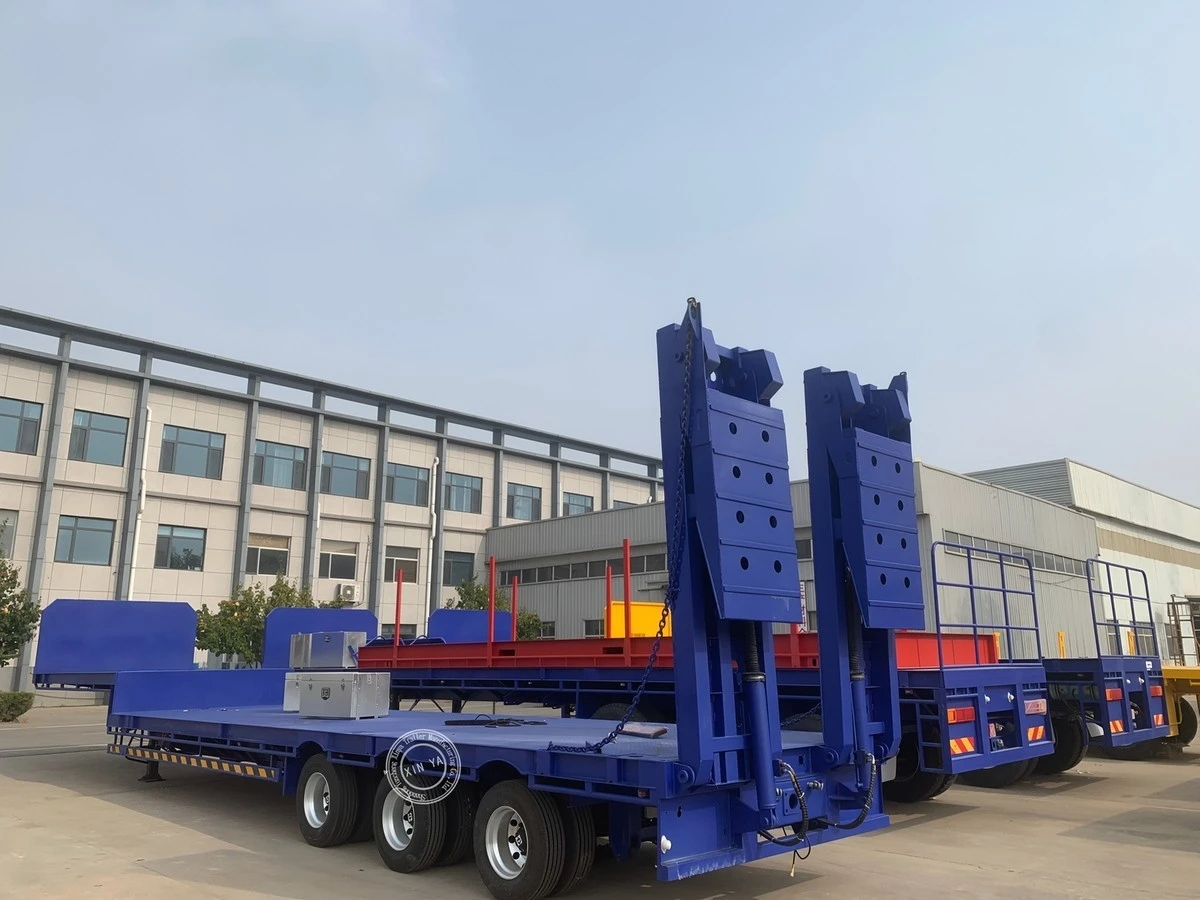

2.Hydraulic ladder system: A single person can complete the lifting operation, and large machinery can climb up and down by themselves, greatly saving loading and unloading time
FAQ
1.What can you provide me?
-One-year warranty, maintenance personnel can go abroad for repairs, free accessories and models.
2.How can I confirm whether your products will meet my needs?
-You can tell us your needs such as size, material, volume, height and other information, our professional sales will provide solutions, and we supply OEM services.
3.How to trust us?
The good faith management is our philosophy,and you are welcome to visit our company at any time.
