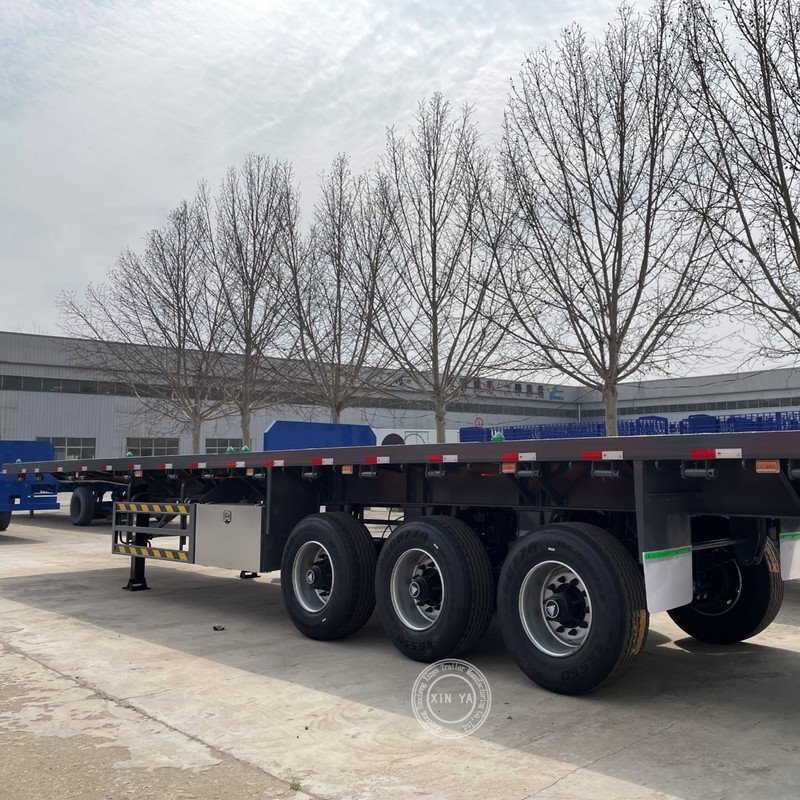

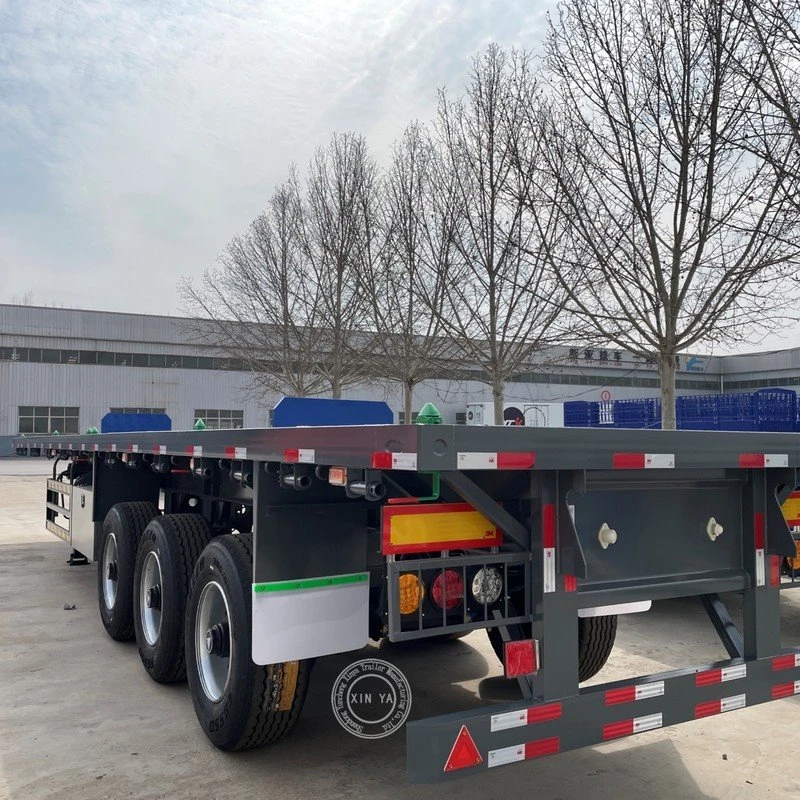

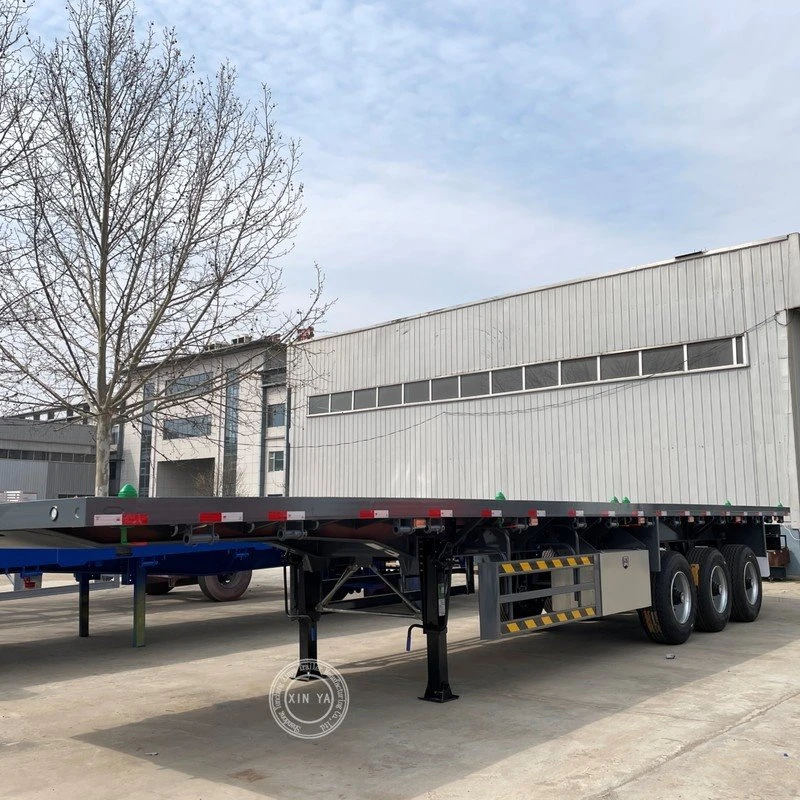

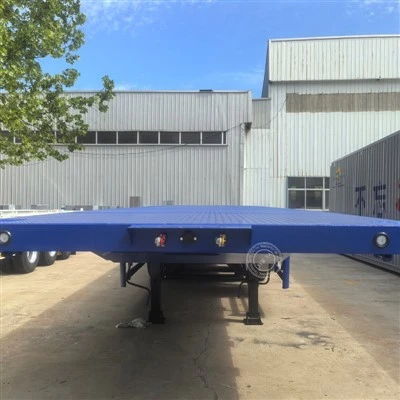

Flat Deck Semi Trailer
Overall Dimensions: 12400*2500*1510
Payload: 30T
Undertake OEM orders
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of flat deck semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved flat deck semi trailer, welcome to get quotation from our factory.
Product Details

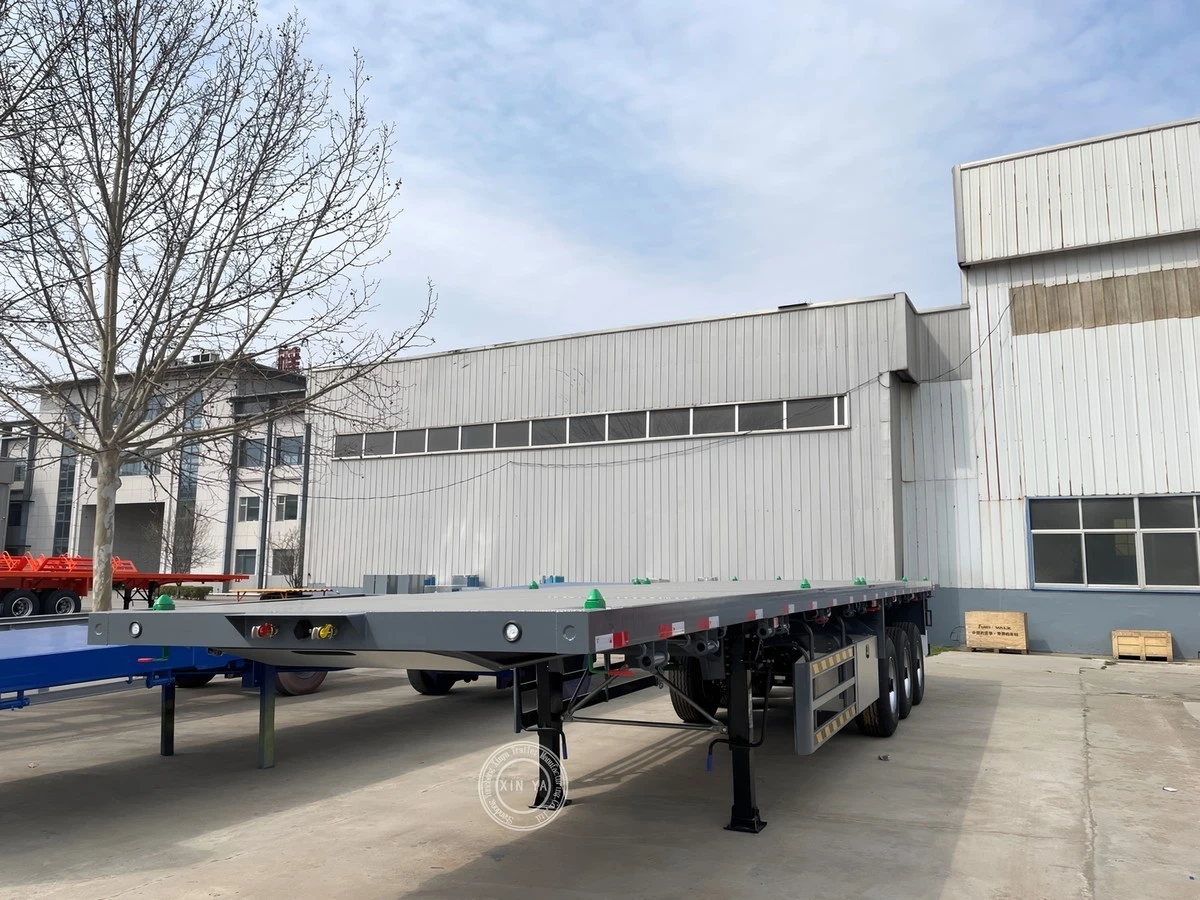

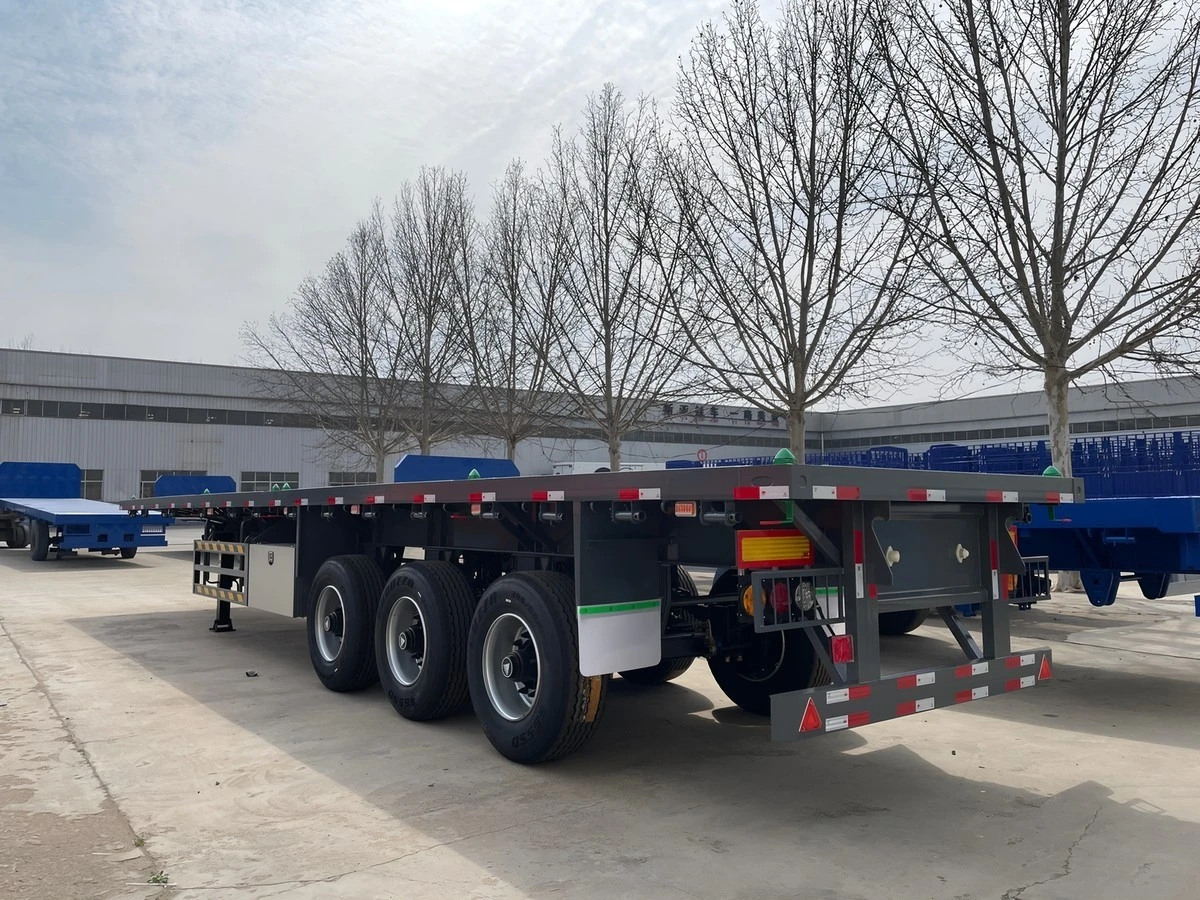

This flat deck semi-trailer adopts straight beam design equipped with three 13-ton axles, with a loading capacity of 30~40 tons.
Constructed from lightweight Q355 high-strength steel and fitted with 2mm checker plate, the trailer features excellent bending resistance and extended service life.
Product Parameters
|
Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q355 |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Tyre |
Brand: chengshan/Triangle; Type: 385/65R22.5; QTY: 6 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
- Equipped with tensile testing machine, our steel material achieves tensile and yield strength over 800MPa with high strength, good toughness and excellent fatigue resistance. We purchase steel directly from steel mills to guarantee raw material quality.
- The coating is warranted against fading and loss of gloss within 3 years; no paint peeling except normal abrasion.
- All spare parts come with three guarantees service. Even the reflective tape is sourced from renowned brand 3M.
FAQ
1)Why you will select Xinya trailer ?
Because we pay more attention to our customer requirment.we produce as the customer requirment completely
2)What superiority Xinya trailer have ?
Good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you
3)What product Xinya can supply?
Big trailer company not only have superiority product .our product is diversity
4) Can you do OEM and ODM?
Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
5)Can we use our own logo?
Yes, we can print your private logo according to your request.
