Flatbed Semi-trailer With Axle Lifting

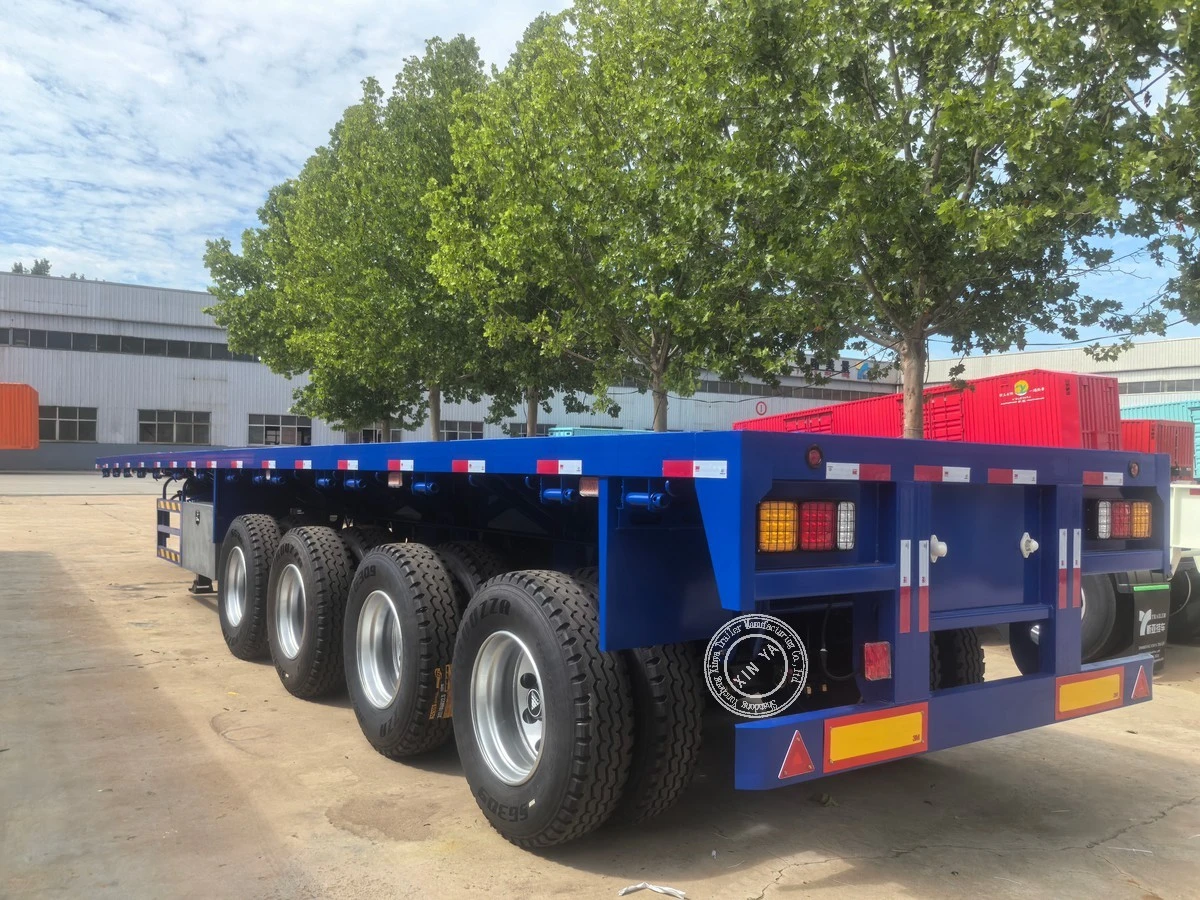

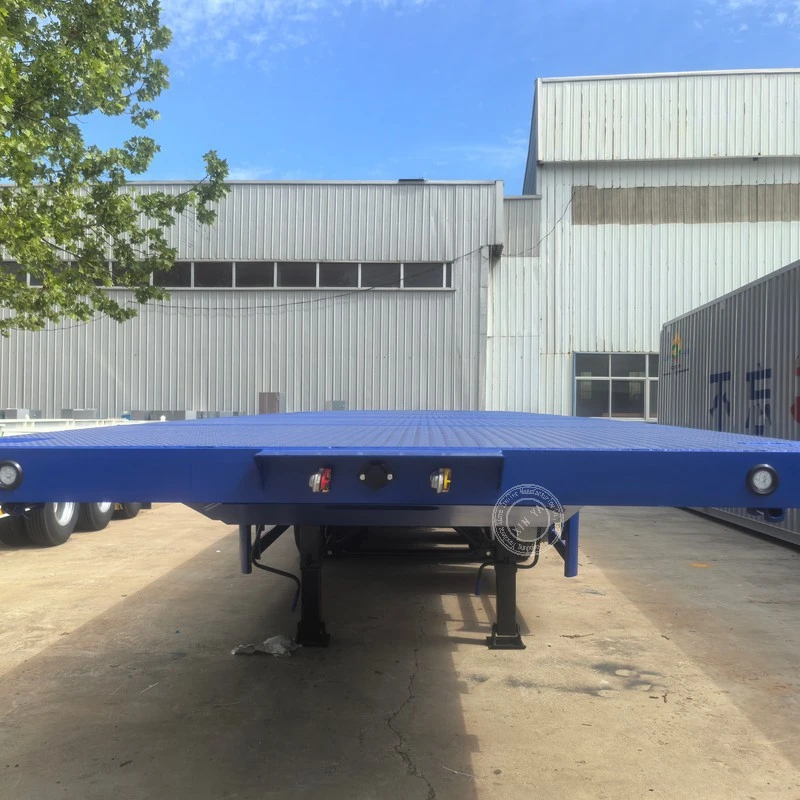

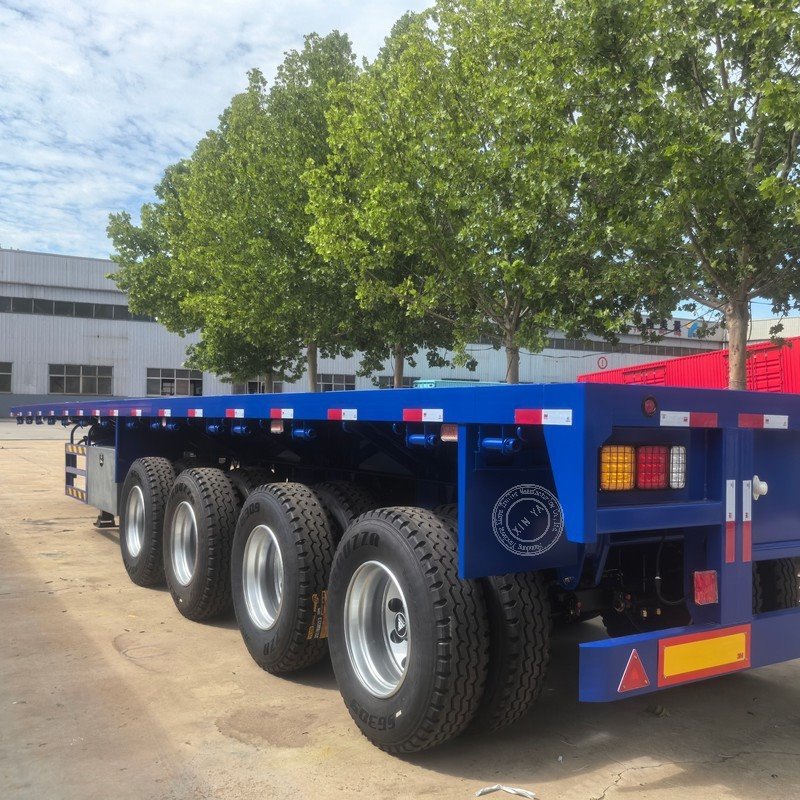

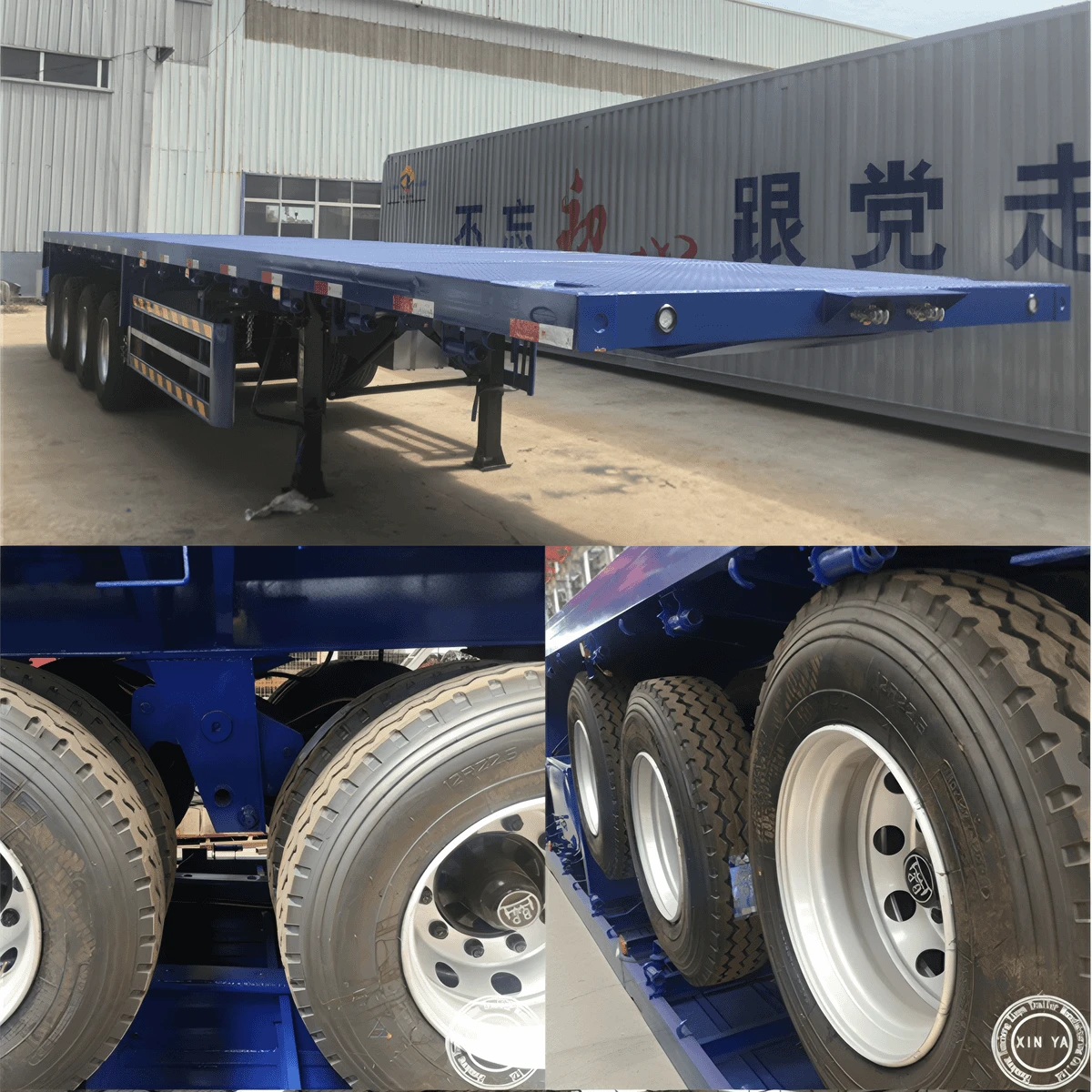

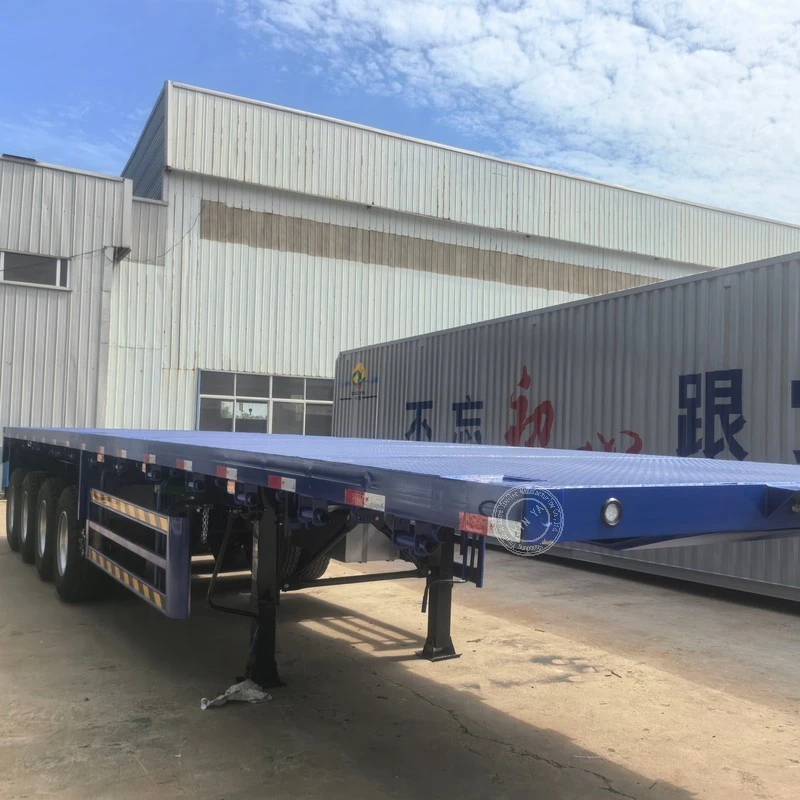

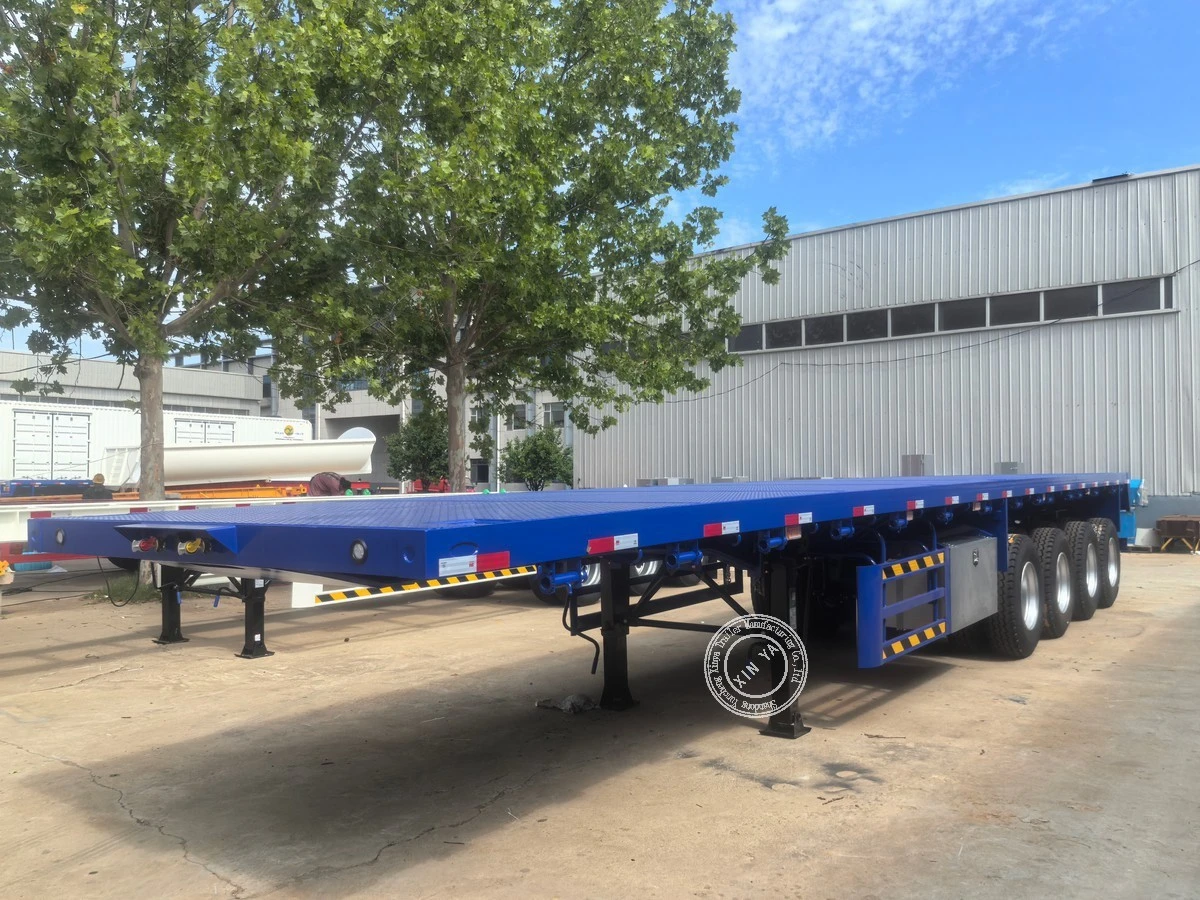

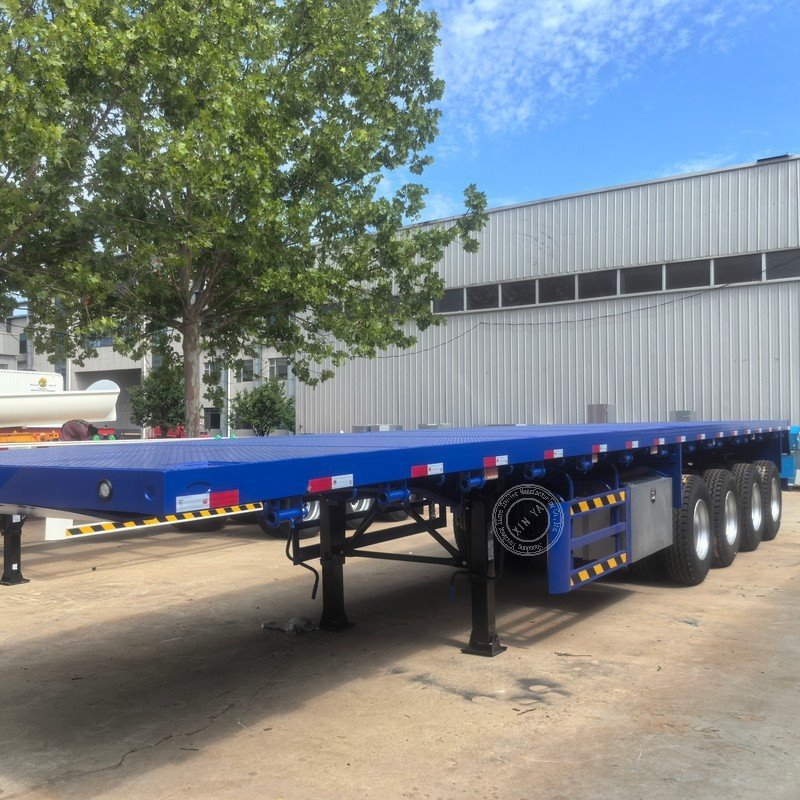

This 4-axle flatbed semi-trailer is equipped with one axle air suspension and one lift axle system, suitable for transporting 20ft, 40ft and 45ft containers.
We also provide customized solutions per customer requirements.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of flatbed semi-trailer with axle lifting in China, featured by high quality customized service and OEM service. If you're going to buy CE approved flatbed semi-trailer with axle lifting, welcome to get quotation from our factory.
Product Details
This 4-axle flatbed semi-trailer is fabricated from Q355B carbon steel and welded via automatic submerged-arc welding (SAW), which greatly enhances its load capacity and service life.
Product Parameters
|

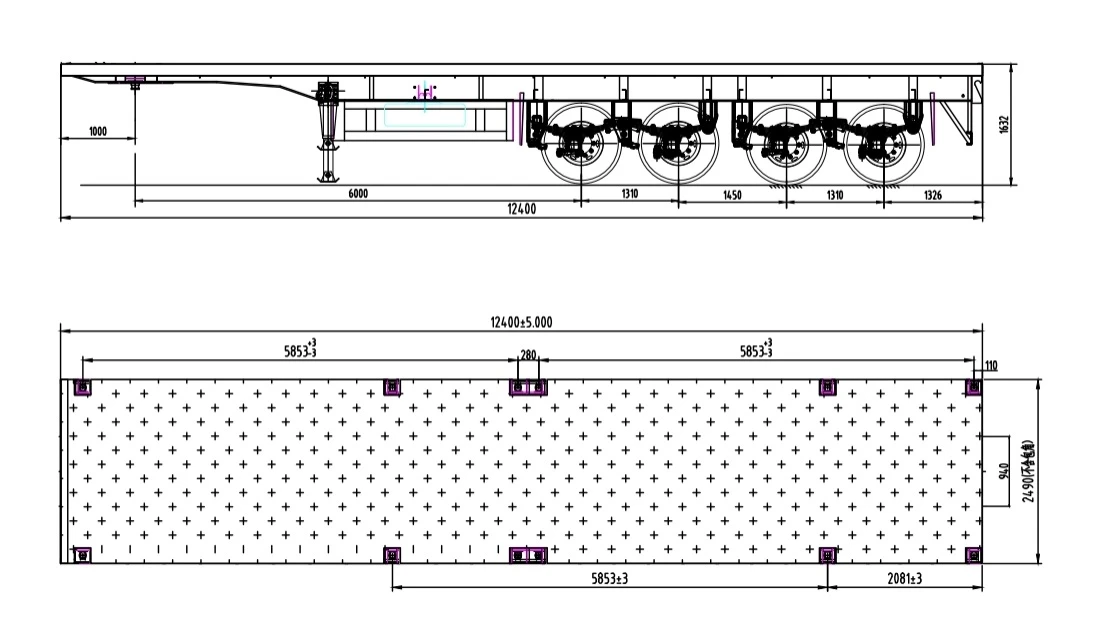

Overall size(L*W*H)mm |
12400*2500*1510 |
|
Material |
Q355B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8/10mm Process: welded by automatic submerged-acr |
|
plateform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity JOST/China Brand |
|
Suspension |
Air suspension (domestic brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 4 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Tool box |
1 unit; include: 1 tyre spanner, 1 gudgeon sleeve & 1 cranking bar & instruction sheet |
Our Company
Our Advantages
- Both sides of the flatbed semi-trailer adopt I-beam structure, equipped with 14mm side beams and 8mm through beams. The trailer features high rigidity and excellent fatigue resistance.
- The trailer surface is shot blasted, then applied with one coat of anti-corrosion primer and two coats of top paint.
- Fitted with 12 container twist locks to ensure safe and stable cargo transportation.
FAQ
1.Are you a manufacturer or a trading company?
We are a factory that produces and manufactures semi trailers, with 15 years of production and export experience
2.What type of semi-trailer do you produce?
We produce various semi-trailer models including:
Flat semi-trailer, low bed semi-trailer, fence semi-trailer, dump semi-trailer, skeleton semi-trailer, extendable semi-trailer
3.What types of axle brands do you have?
We can equip trailers with different types of axle brands. For example: FUWA/BPW/Chinese brands
