Truck Flatbed Trailer

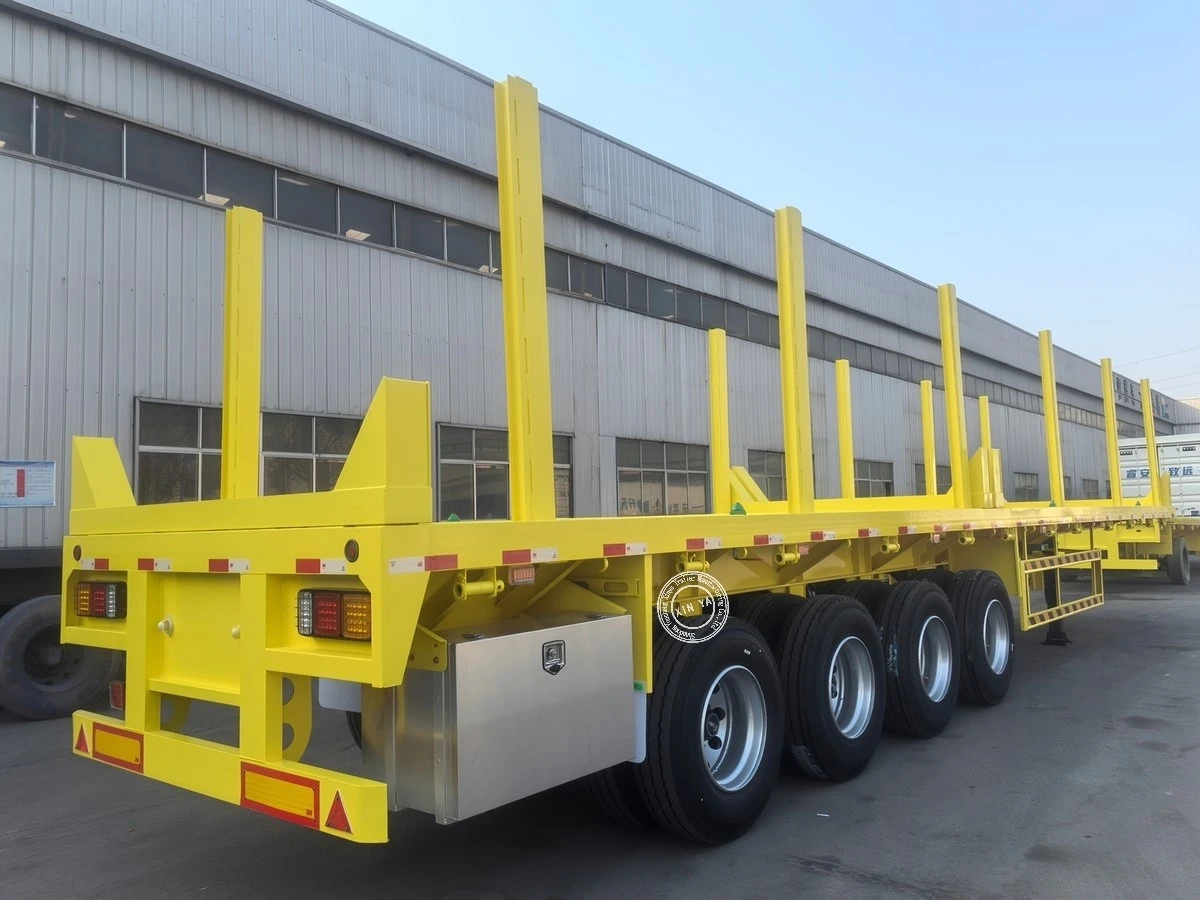

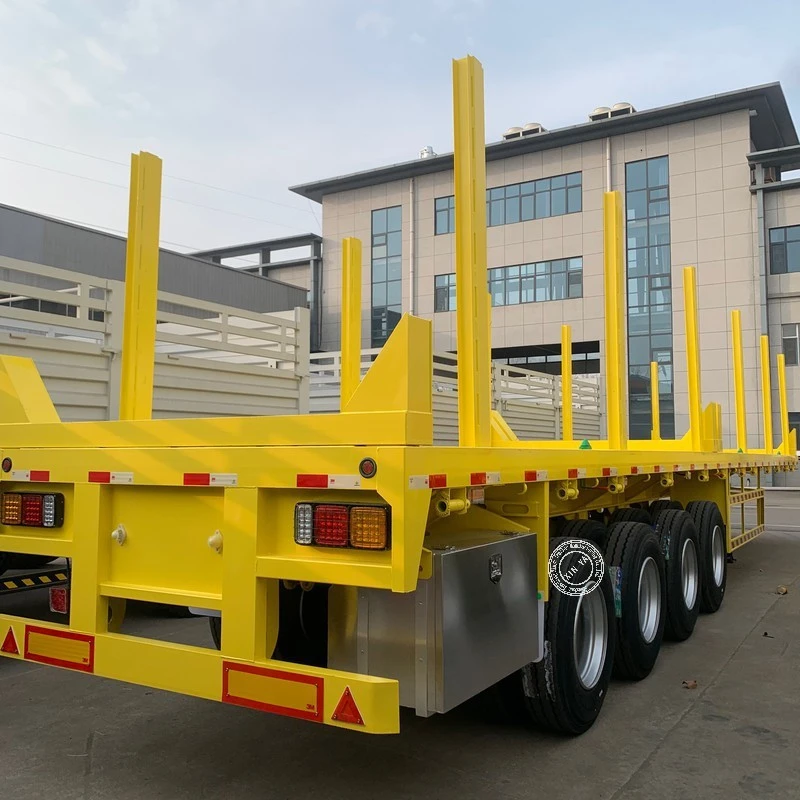

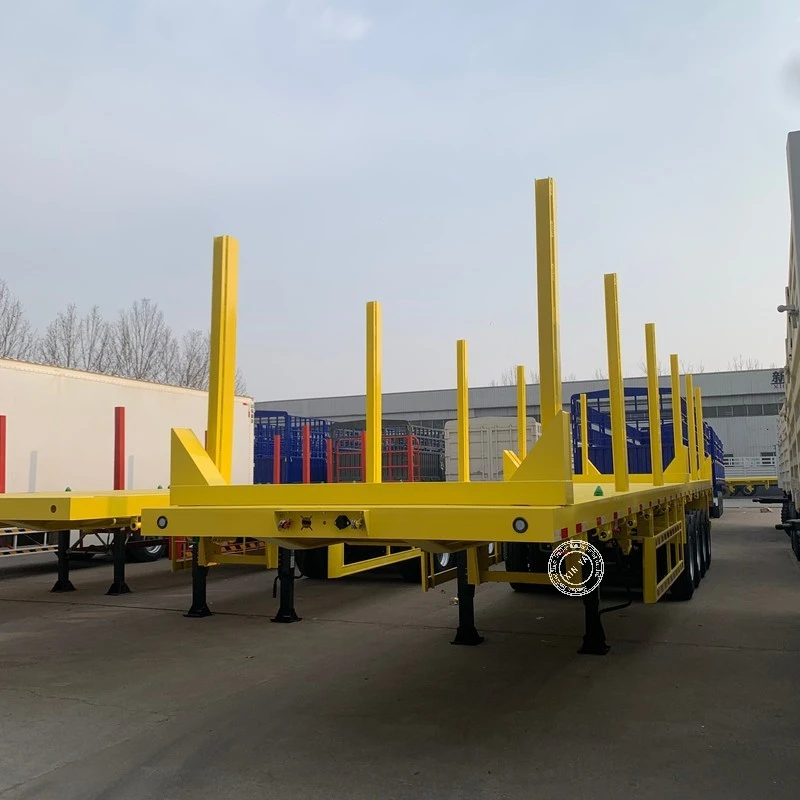

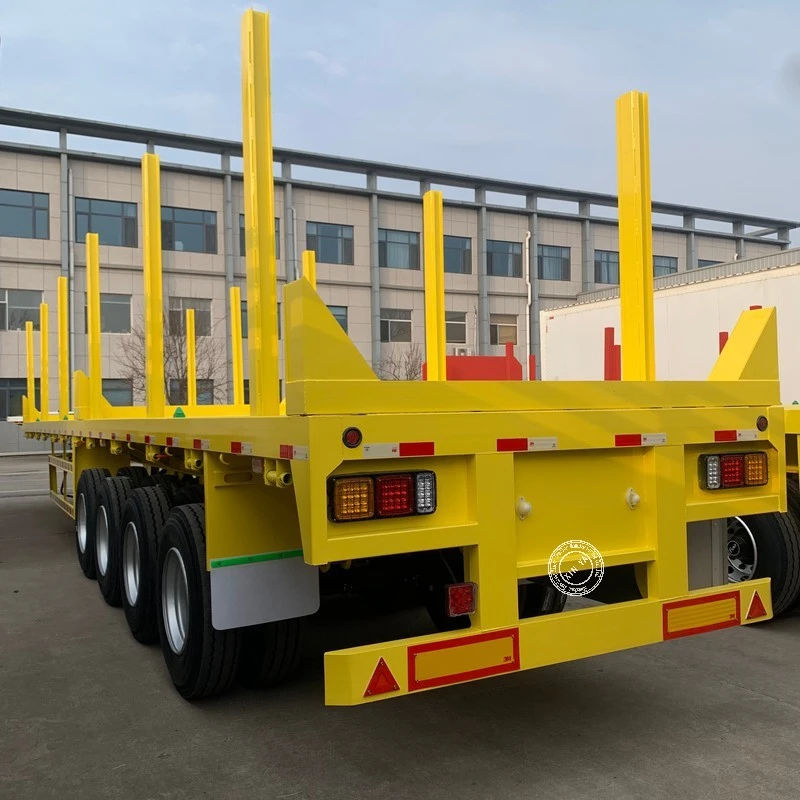

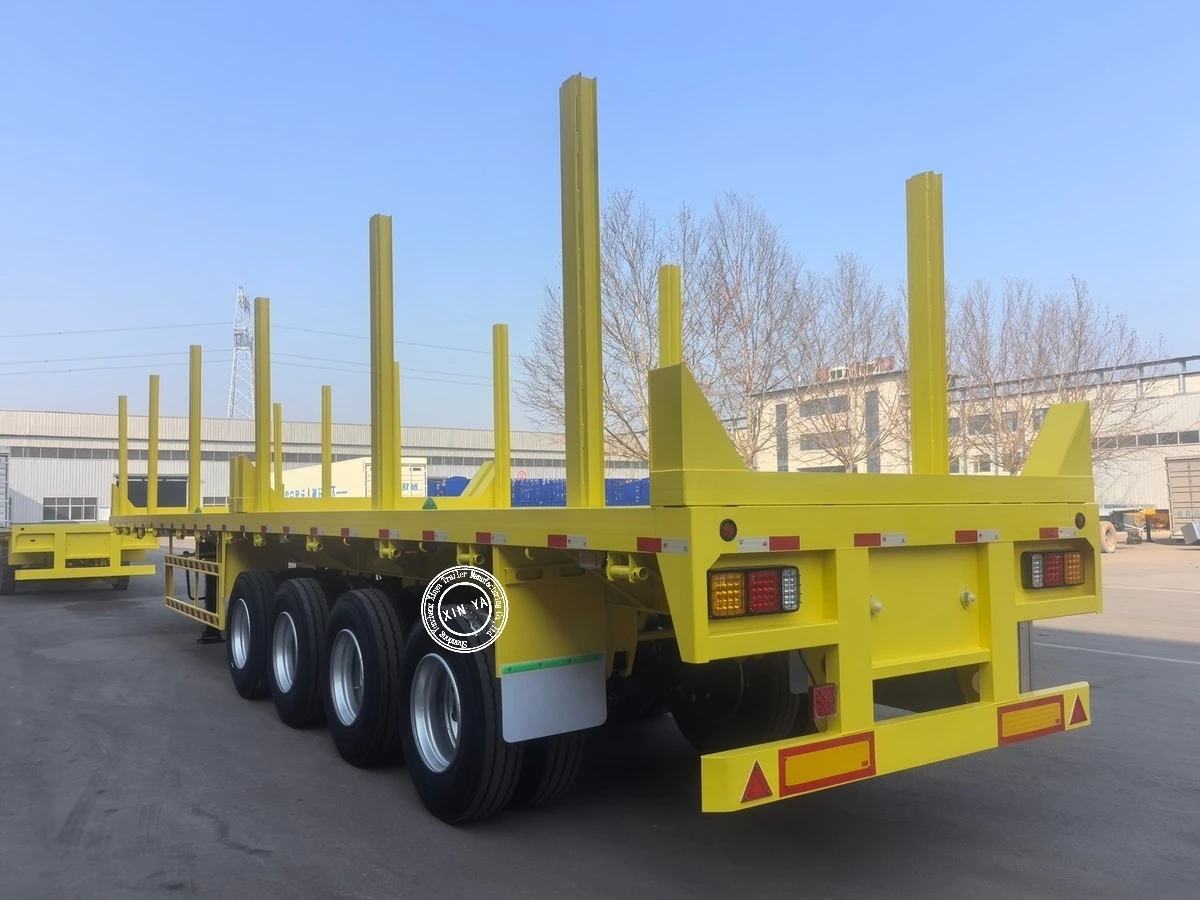

This 4-axle flatbed semi-trailer can be fitted with 12 removable posts. It is ideal for timber transportation, and also suitable for containers and oversize cargo.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of truck flatbed trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved truck flatbed trailer, welcome to get quotation from our factory.
Product Details
Overall dimensions of this flatbed semi-trailer: 14000 × 2500 mm. The 500 mm-high main beams are made of Q345B high-strength steel.
The whole trailer is sprayed with one coat of anti-corrosion primer and two coats of top paint.
Product Parameters
|
Overall size(L*W*H)mm |
14000*2500*1510 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8/10mm Process: welded by automatic submerged-acr |
|
Side beam |
16#C type; Q235 |
|
Cross beam |
8/10# C type; Q235 |
|
plateform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity ;JOST/China Brand |
|
Suspension |
Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 4 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Tyre |
Brand: chengshan/Triangle;/Linglong Type: 12R22.5-18PR; double mounted; QTY: 16 units |
Our Company
Our Advantages

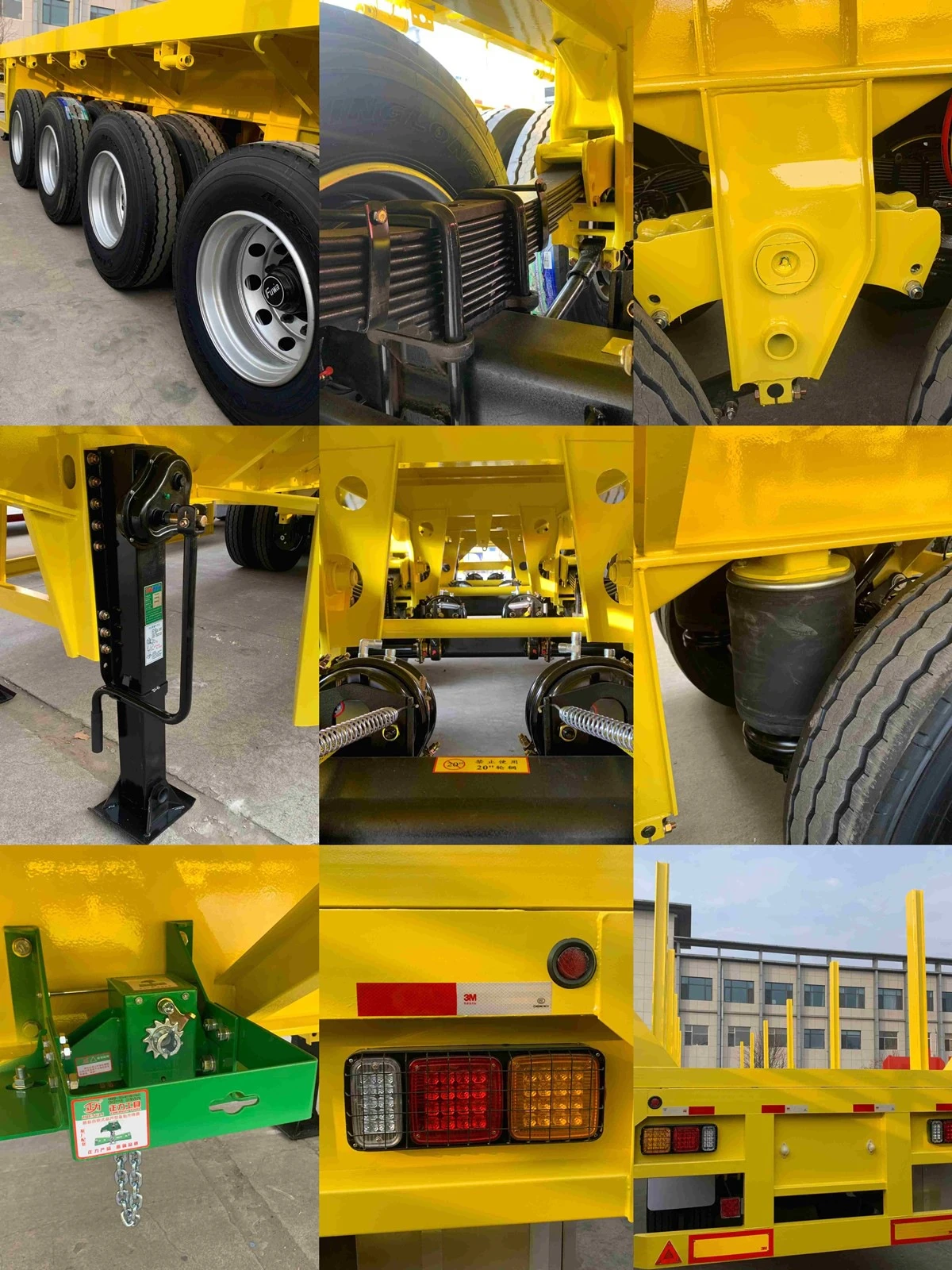

1. The 4-axle flatbed trailer is equipped with a lift axle function. Under heavy loads, all axles share the load pressure, while under light loads, the lift axle can be raised to reduce tire wear and improve fuel efficiency.
2. The entire trailer adopts an automatic submerged arc welding (SAW) process, ensuring strong, durable, and aesthetically pleasing weld seams.
3. Air suspension can be equipped with either high-quality Chinese brands or the renowned BPW brand according to customer requirements.
FAQ
Q: What sizes of containers can it carry?
A: The 3-axle flatbed semi-trailer can transport one 40ft container or two 20ft containers. The 4-axle model is suitable for 20ft, 40ft and 45ft containers.
Q: Can I customize a semi-trailer according to the requirements?
A: Of course, you only need to provide the size, tonnage, and configuration requirements
Q: Can the posts be removed or installed?
A: Yes. Removable posts are available. The trailer comes standard with 12 posts and 12 container twist locks.
