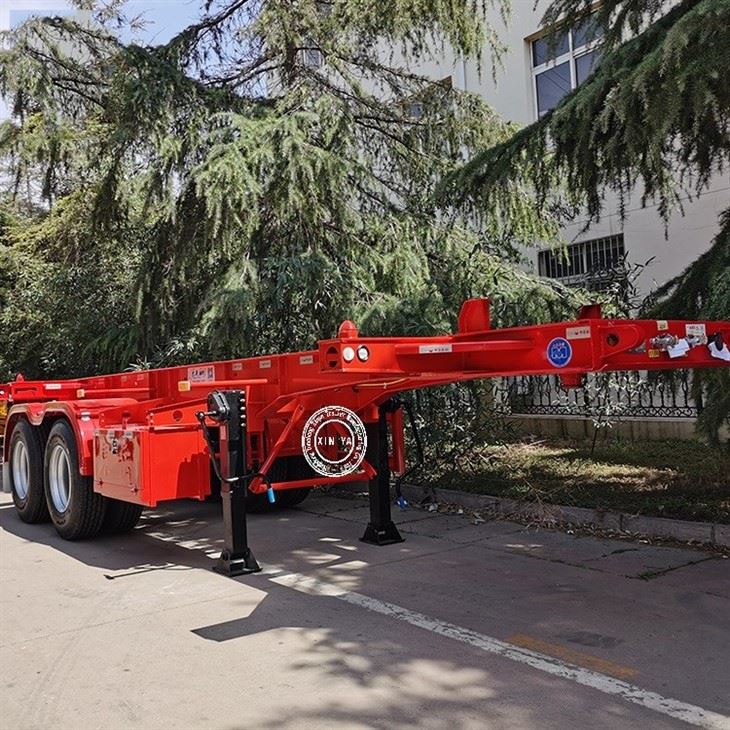

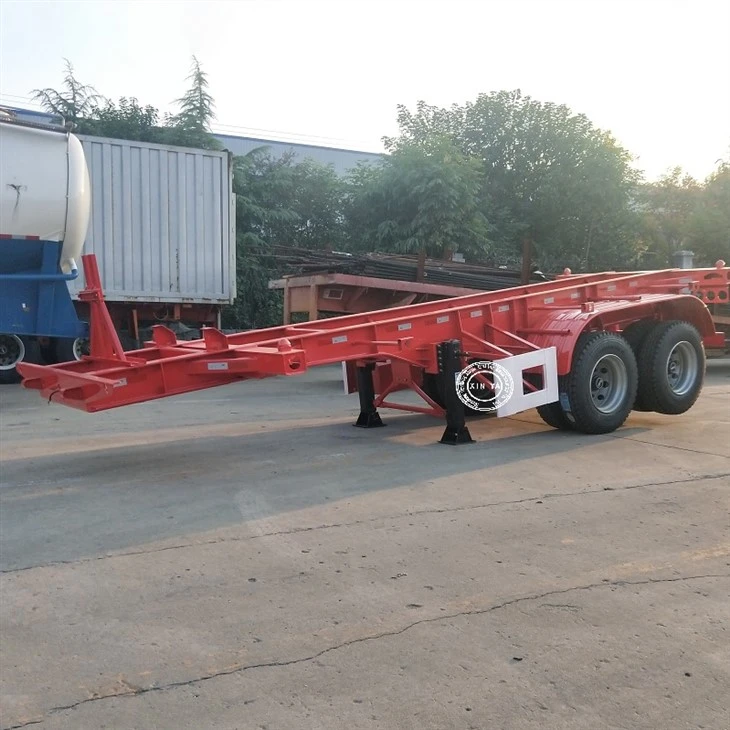

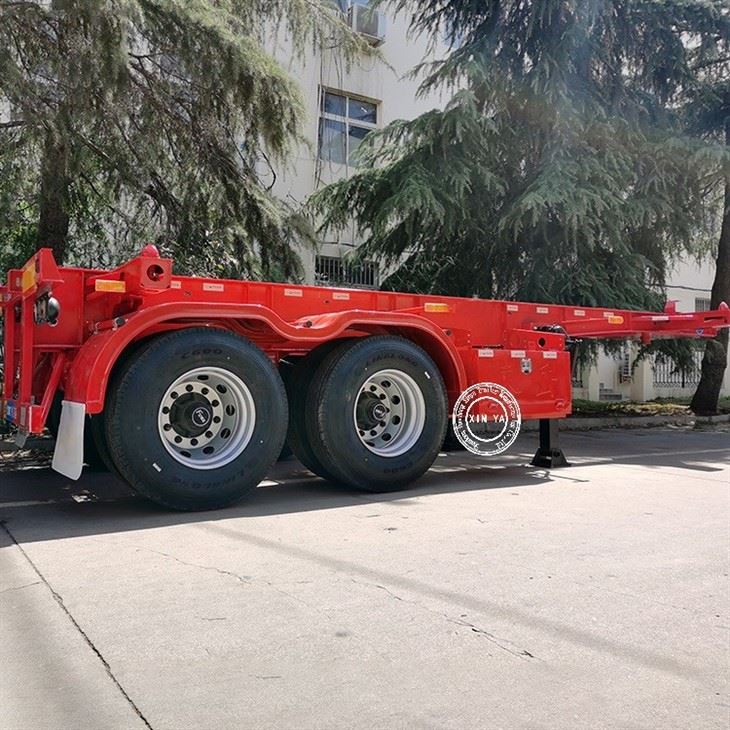

2 Axle 20ft Container Chassis Trailer
Dimensions：7200 × 2480 × 1550 mm
Load capacity：30 ton
Tare weight：4.2 Ton
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 2 axle 20ft container chassis trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 2 axle 20ft container chassis trailer, welcome to get quotation from our factory.
Product Details
This 2 axle 20ft container chassis trailer adopts integrated welded high tensile steel frame. Four corner twist locks securely lock 20ft ISO containers. Dual axle assembly delivers steady running on uneven roads. Complete air brake system ensures travel safety. Compact lightweight design cuts fuel consumption and suits frequent container handling at depots.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
7200 × 2480 × 1550 mm |
|
Material |
Q345B fabricated carbon steel |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical leaf spring suspension (Air suspension optional) |
| Kingpin | 2 inch / 3.5 inch interchangeable kingpin |
| Tire | 11R22.5 / 12.00R22.5 tubeless tire |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13ton/16ton optional QTY: 2 units |
Our Company
Our Advantages
Our 2 axle 20ft container chassis trailer features lightweight Q345 high-strength steel frame, which effectively reduces dead weight while maintaining structural rigidity. The four-corner heavy-duty twist locks ensure quick and reliable container locking and unloading. The mechanical leaf spring suspension delivers stable performance on rough roads, perfectly matching Africa's complex road conditions. Standard WABCO-style air brake system guarantees safe braking. Simple structure brings low maintenance cost and easy spare parts replacement, ideal for depot and port short-haul container transport.
FAQ
Q: Can this trailer carry 40ft container?
A: No. It is specially designed for single 20ft ISO container only, cannot load 40ft container.
Q: What is the maximum load capacity?
A: Rated max payload is 30 tons. We can customize axles with higher tonnage if you need heavier loading.
Q: Can I choose air suspension instead of mechanical suspension?
A: Yes, air suspension is optional. Air suspension offers better shock absorption, suitable for road with many bumps
Q: Is the kingpin replaceable?
A: Yes, 2 inch and 3.5 inch kingpin are available for different tractor heads.
Q: What about after-sales and spare parts supply?
A: We provide one-year warranty. Core spare parts such as twist locks, axles and brake parts are easy to source locally in Africa.
