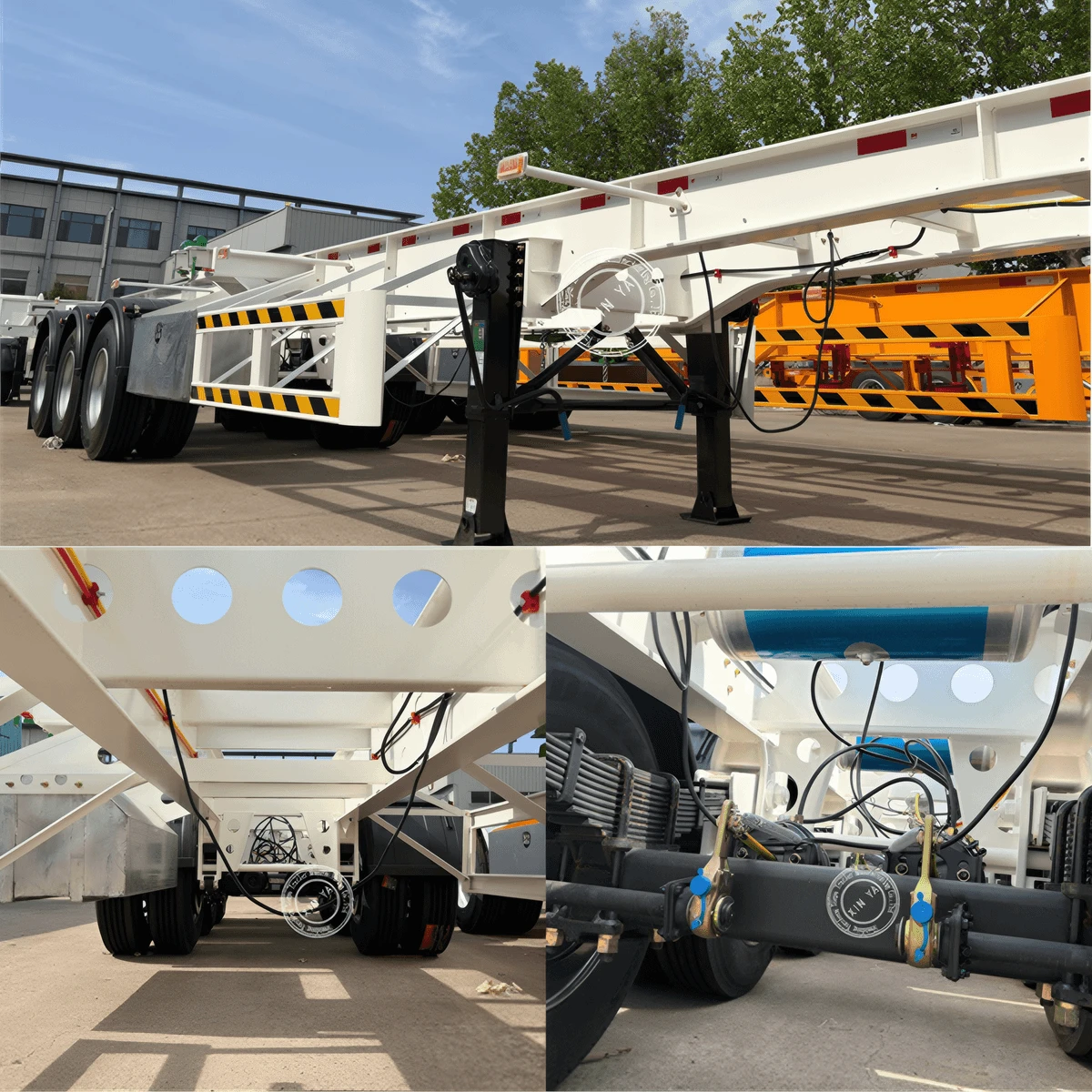

2/3-axis Skeleton Semi-trailer
Size: 12350*2480*1520 or customized
Tare weight: 5.7T
Payload: 30-40T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 2/3-axis skeleton semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 2/3-axis skeleton semi-trailer, welcome to get quotation from our factory.
Product Details
Our company's main product is this model, which has customer requirements for front axle lifting or air suspension. The export vehicles of this model are mainly 20 and 40 foot frames and dock racks
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12350*2480*1520 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
plateform |
2-3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension with beams equaliser |
|
Axle |
Brand: XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company's products cover more than 20 provinces and cities across the country, and we have long-term support for leading express logistics companies.
With self operated import and export qualifications, skeleton trailers are exported to more than ten countries in Africa, Southeast Asia (Nigeria, Indonesia, Cambodia, Philippines, Tanzania) and other regions all year round.
We have perfect production chain and various advanced testing equipment.
No need to worry about quality and delivery time.
Our Advantages
The 3-axle 40 foot skeleton semi-trailer is suitable for carrying 2 * 20 foot and 40 foot container transportation
This model has a frame structure, with a front crossbeam and a middle crossbeam used to secure the container.
FAQ
1.Do you support OEM & ODM?
A: Yes, custom size, color, logo and suspension configuration are acceptable.
2.What certificates do you have?
A: ISO certificates; CO certificate can be issued for customs clearance.
3.What if goods get damaged on arrival?
A: We take loading photos before shipment. We send free replacement parts upon valid damage photos.
