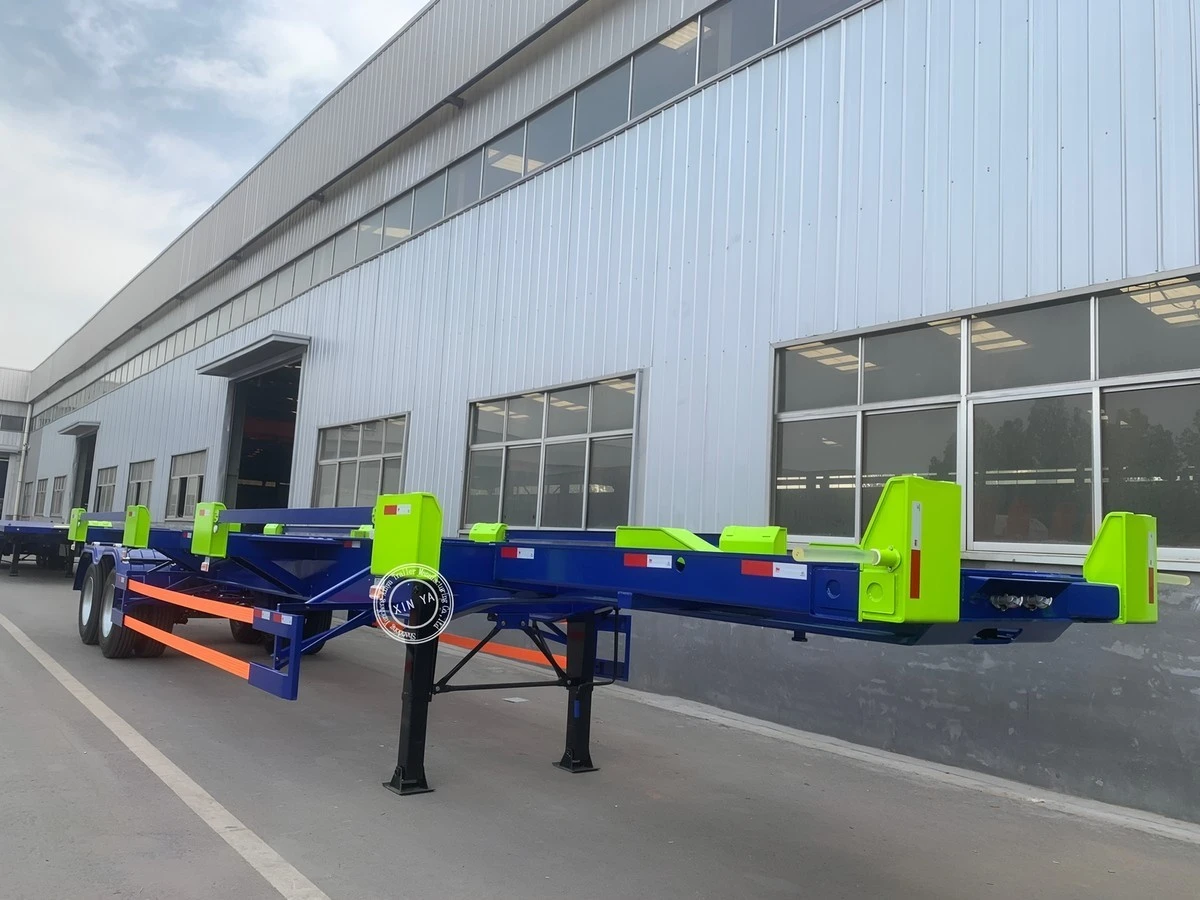

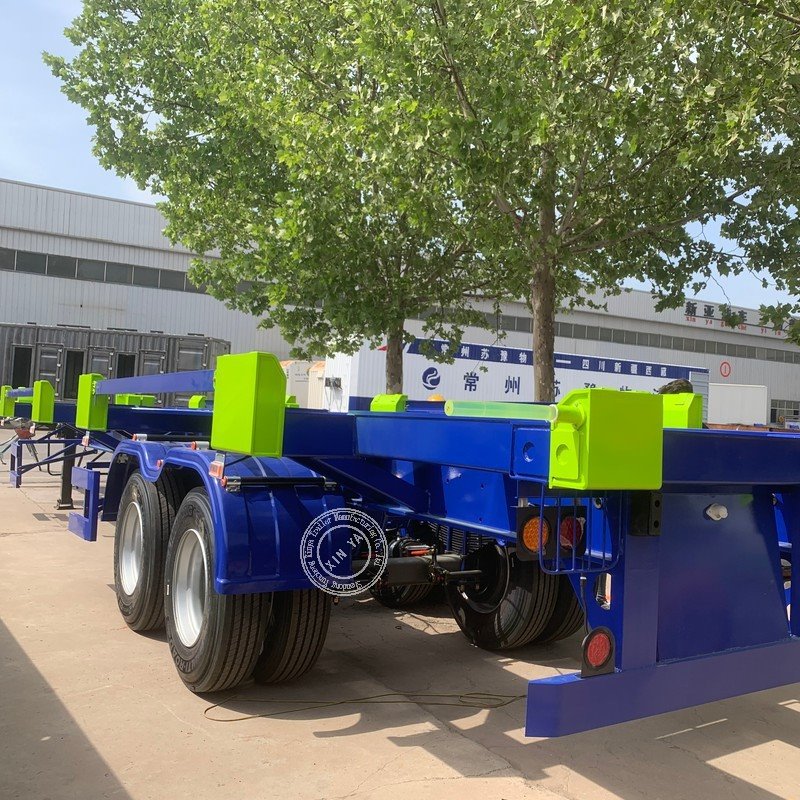

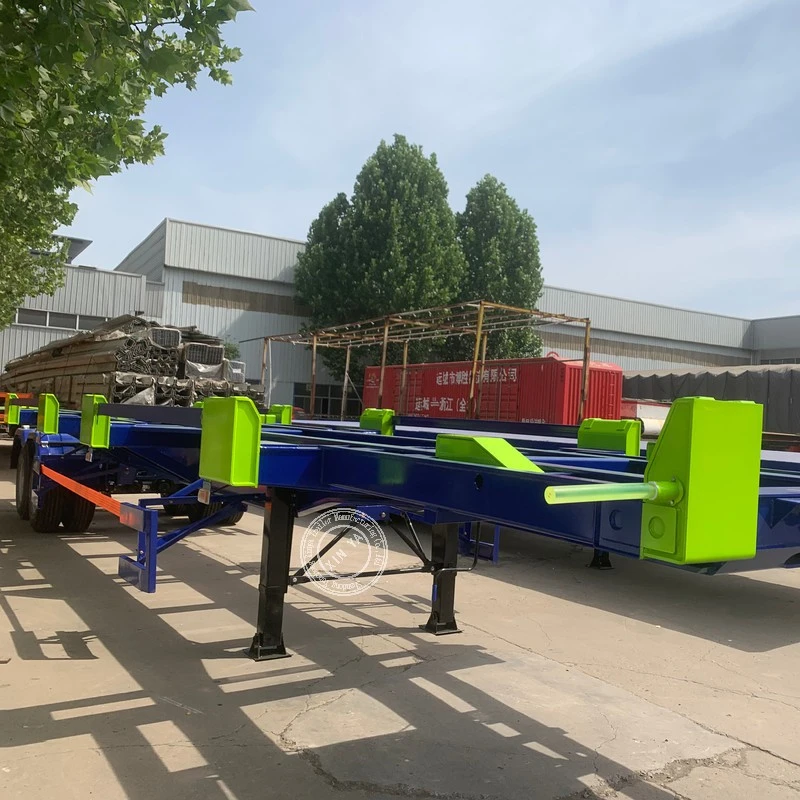

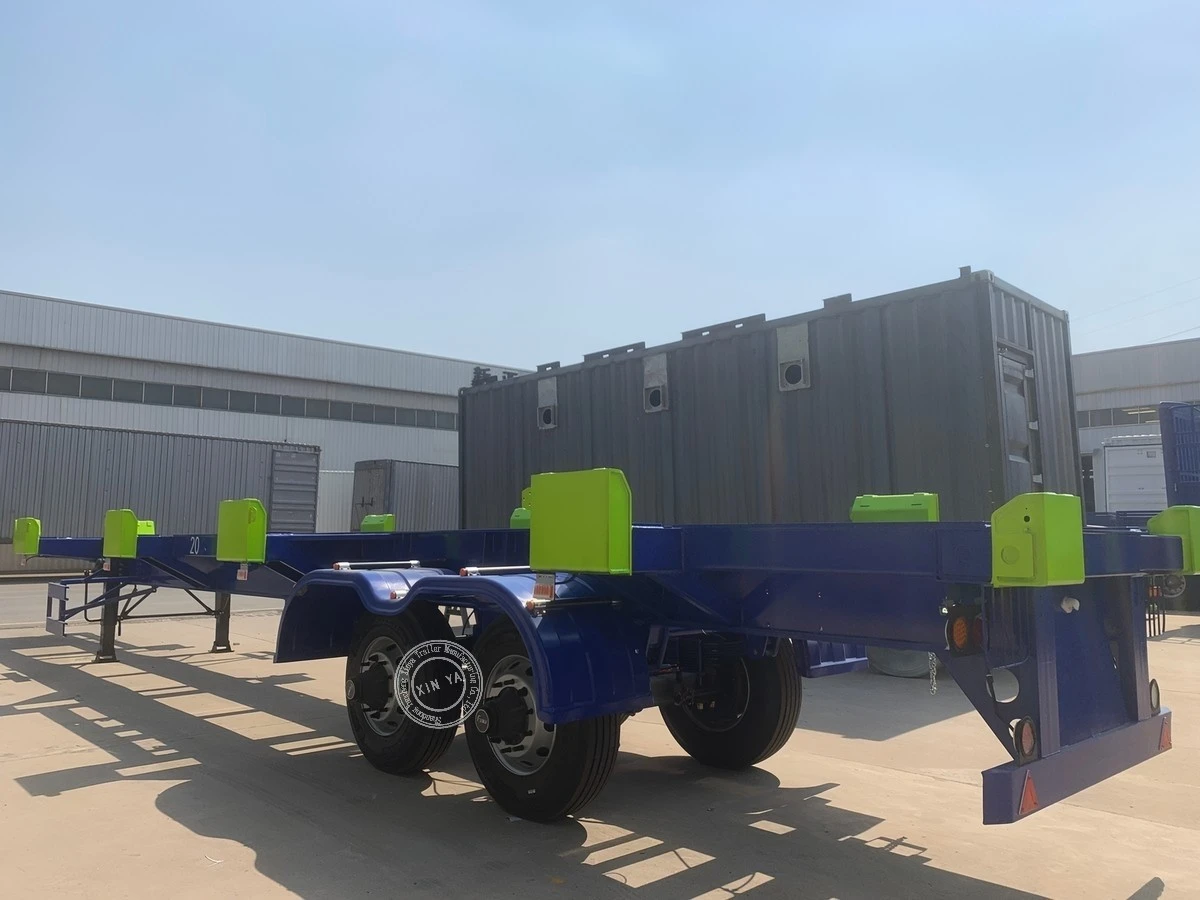

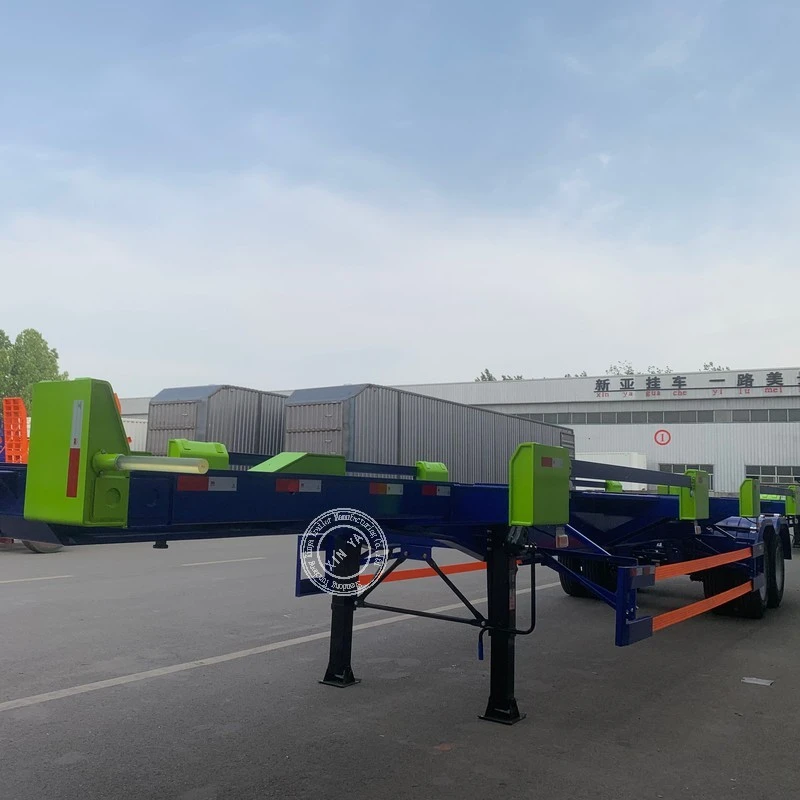

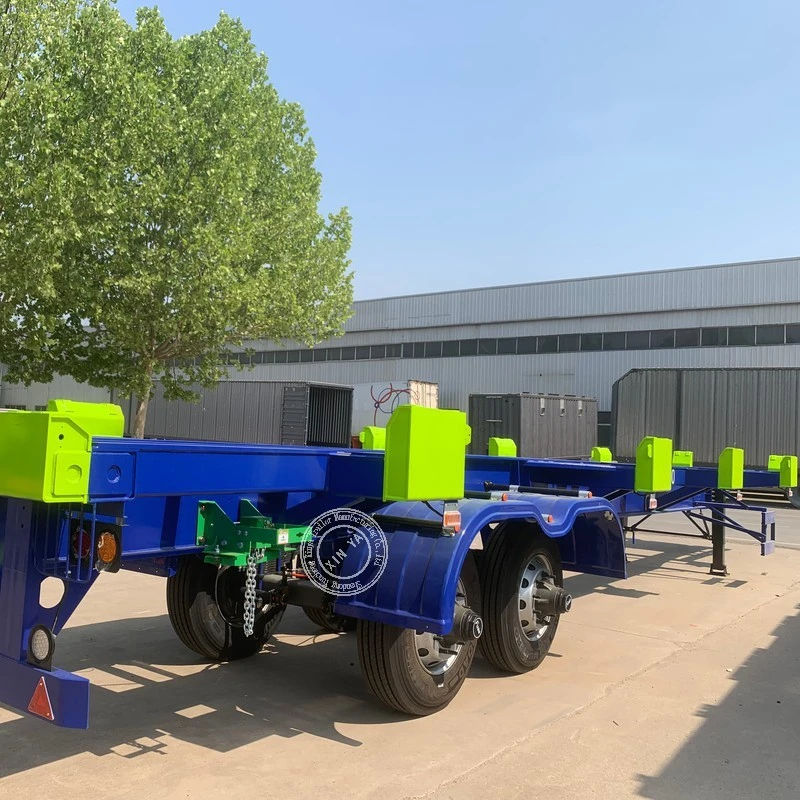

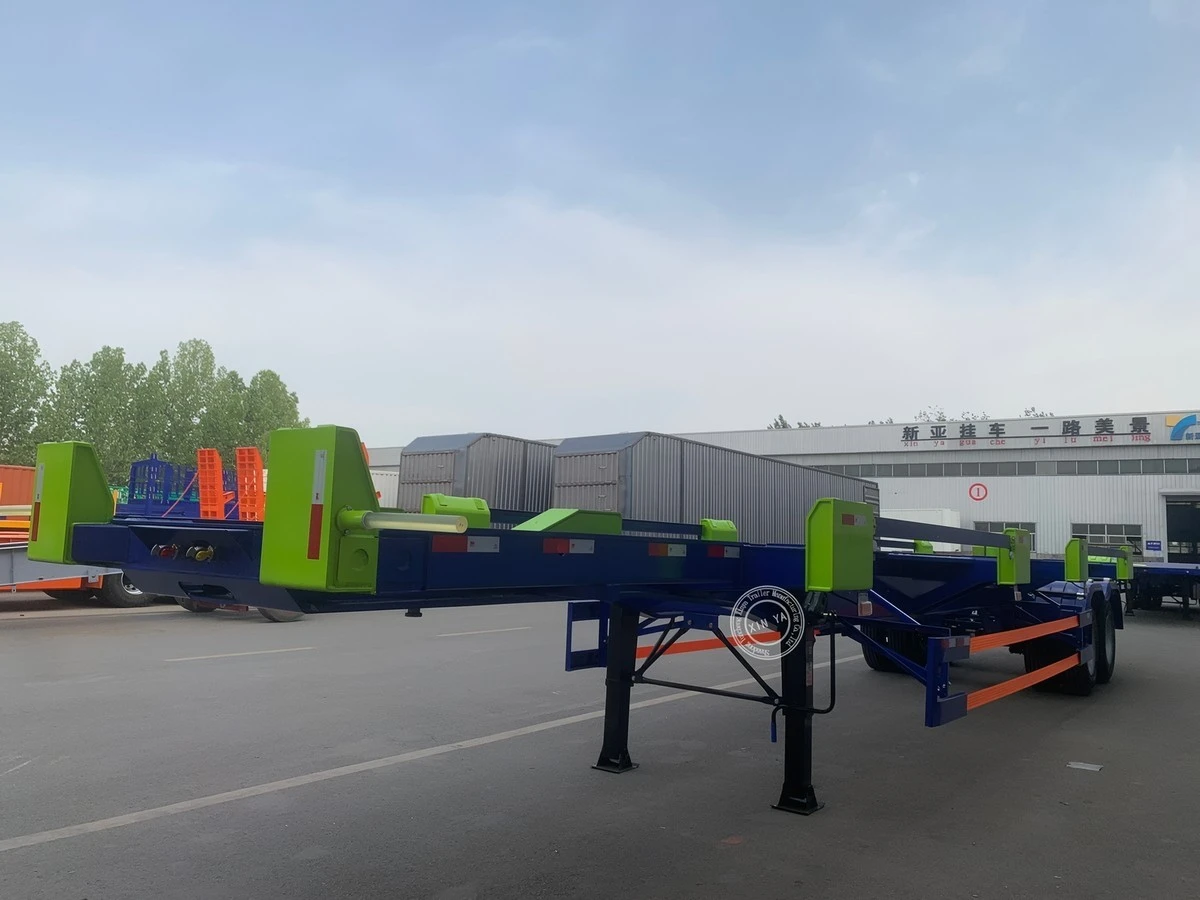

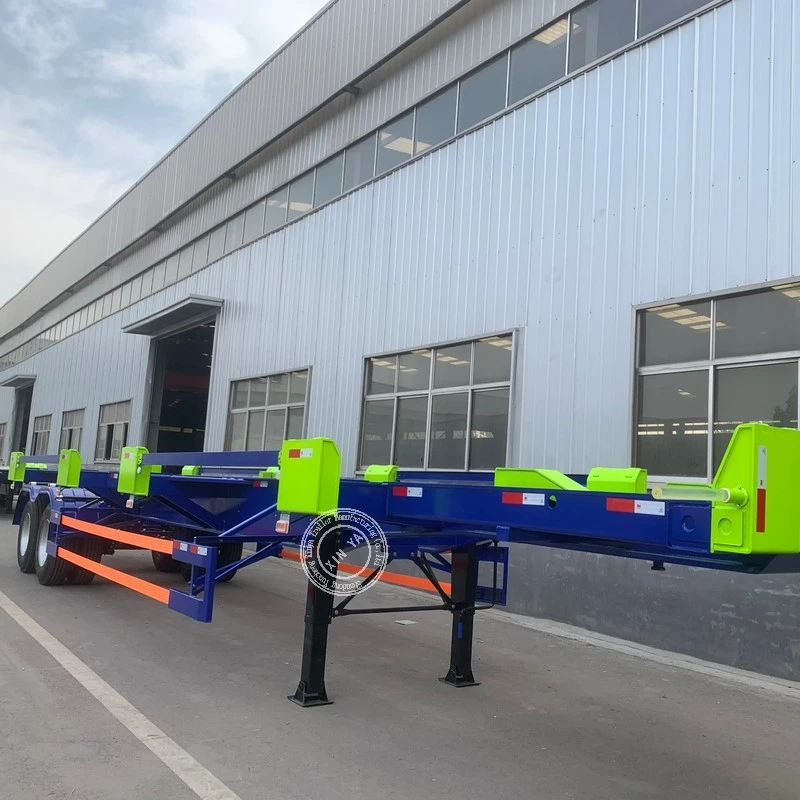

Yard Container Carrier Trailer
Size: 8200 *2800*1820 or customized
Tare weight: 5.7T
Payload: 30-40T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of yard container carrier trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved yard container carrier trailer, welcome to get quotation from our factory.
Product Details
This model is limited to short haul within the port area, with a speed limit of ≤ 50km/h and a heavy load of 60-65 tons. Available in fuel/pure electric versions, with three mainstream specifications of 20ft/40ft/45ft.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
8200 *2800*1820 |
|
Material |
fabricated carbon steel; Type: straight type; Height: 480mm; |
|
Main beam |
Upper plate: 16mm; Bottom plate: 18mm Middle plate: 10mm |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(90×16mm) or Air suspension(China brand or BPW brand) |
|
Tyre |
Brand: Chengshan/Triangle/Linglong / Double Coin; |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
|
sand blaster; |
Our Company
Our company's quality advantage lies in the standard use of T700 high-strength manganese steel beams as the main material, and the triple anti-corrosion of sandblasting rust removal, epoxy primer, and polyurethane topcoat for the entire vehicle. It is durable in coastal salt spray and rainy areas; Automated welding by robots in the entire workshop, with an intelligent production line efficiency increase of 40%. The welds are uniform and reliable, eliminating manual virtual welding.
Our Advantages
1. Lightweight solution: aluminum alloy secondary beam, high-strength lightweight main beam, compliant weight reduction, increased cargo tonnage, in compliance with overseas standard load regulations
2. Full specification skeleton: fixed 20ft/40ft/45ft, adjustable 20/40ft dual-use chassis, refrigerated cabinet specific skeleton, hazardous chemical container chassis;
3.. Flexible OEM: frame color matching, body logo, number of twist locks, suspension (mechanical/air), traction pin 2-inch/3.5-inch customized according to demand.
FAQ
1. How are trailers packed?
A: Bulk loading into container; key parts wrapped with anti-rust film
2.What if goods get damaged on arrival?
A: We take loading photos before shipment. We send free replacement parts upon valid damage photos.
3. What's your after-sale service?
A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
