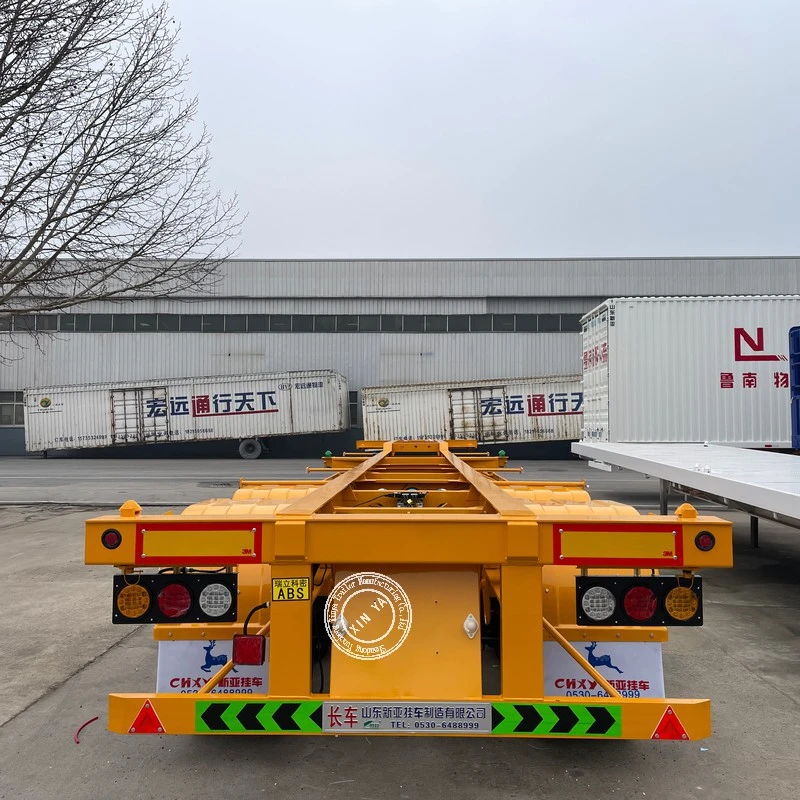

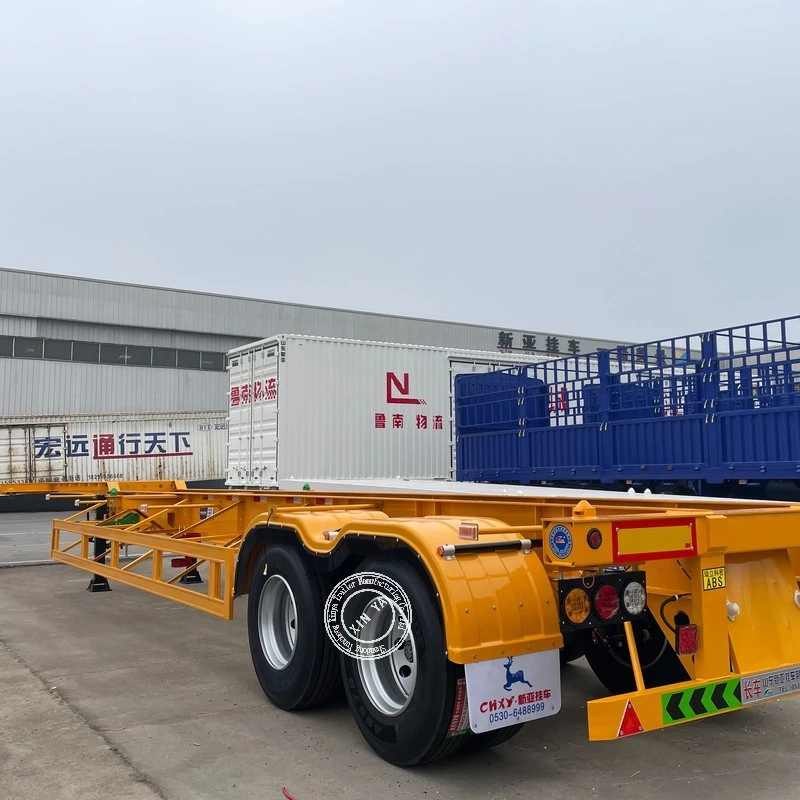

Container Skeleton Trailer
Size: 12350*2480*1520 or customized
Tare weight: 5.6-5.7T
Payload: 30-40T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of container skeleton trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved container skeleton trailer, welcome to get quotation from our factory.
Product Details
Our product process: fully automatic submerged arc welding, vehicle sandblasting rust removal+epoxy primer+RAL national standard topcoat. Traction pin seat: double-layer 20mm thick steel plate, front and rear anti-collision fully enclosed frame.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
12350*2480*1520 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: Gooseneck style Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(90×16mm) or Air suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
XINYA Trailer has been deeply involved in trailer manufacturing for 15 years. It is a high-tech, specialized, and innovative source manufacturer with intelligent production lines that strictly control quality. Both spot goods and customized orders can be accepted. The products are exported to many countries around the world, with complete qualification certification, one-year vehicle warranty, and foreign trade supporting services
Our Advantages
1.400 national after-sales hotline, one-on-one customer manager for foreign trade to follow up on orders throughout the entire process, from quotation, production, shipment, to customs clearance
2.Take photos/videos of the entire process before shipment for record keeping, and provide free replacement of damaged accessories upon arrival based on actual photos; Supply original spare parts to overseas customers at lifetime cost price;
3.Full coverage of all categories of skeleton trailers (fixed/extendable/refrigerated/hazardous skeleton), with OEM customization for body color, suspension, and towing pin size;
FAQ
1. How to contact,negotiate and cooperate with XINYA trailer?
A. Kindly contact XINYA's international team by Email/Telephone and other efficient communication way.
2. Can we print our own logo?
A. Yes, we offer OEM service.
3. When can I get the price?
A. Usually we quote within 24 hours after we get your inquiry.
Hot Tags: container skeleton trailer, China container skeleton trailer manufacturers, suppliers, factory
