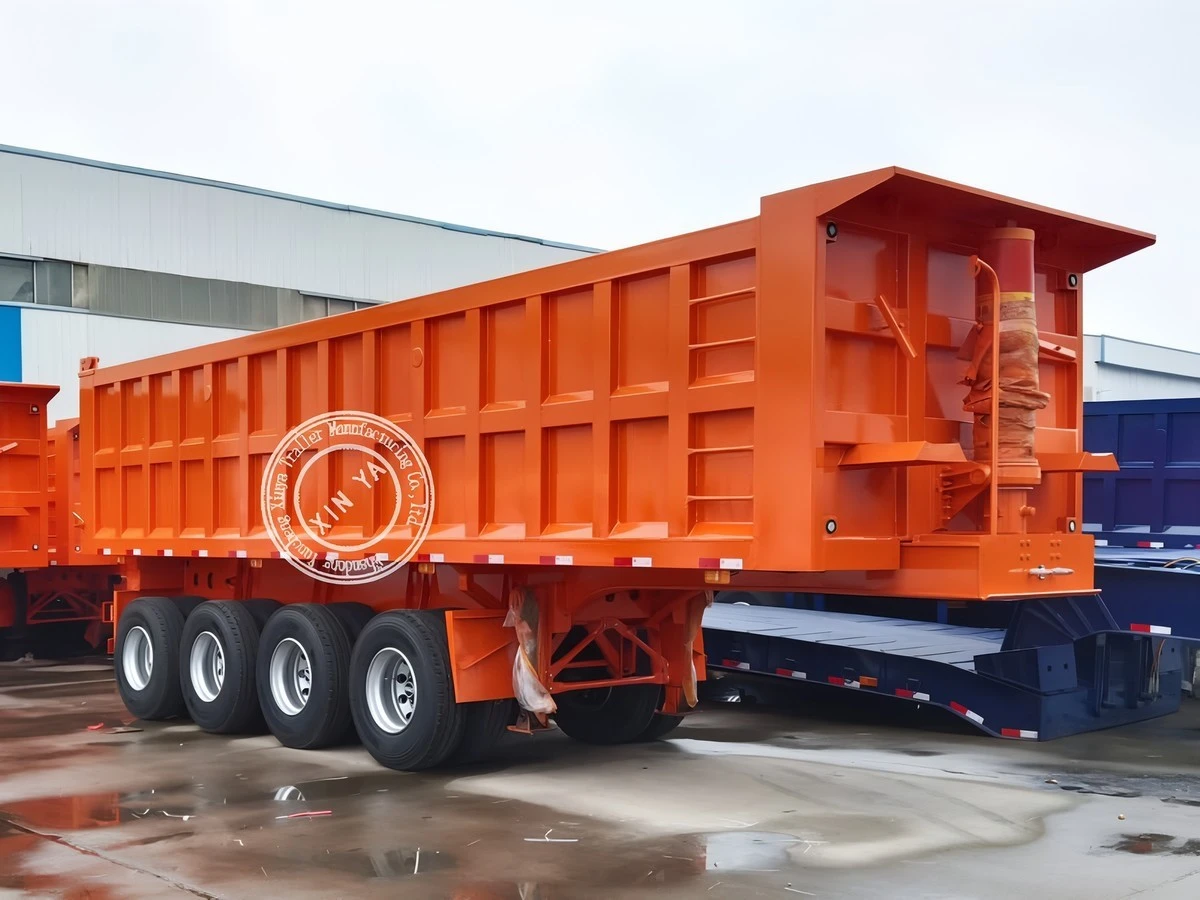

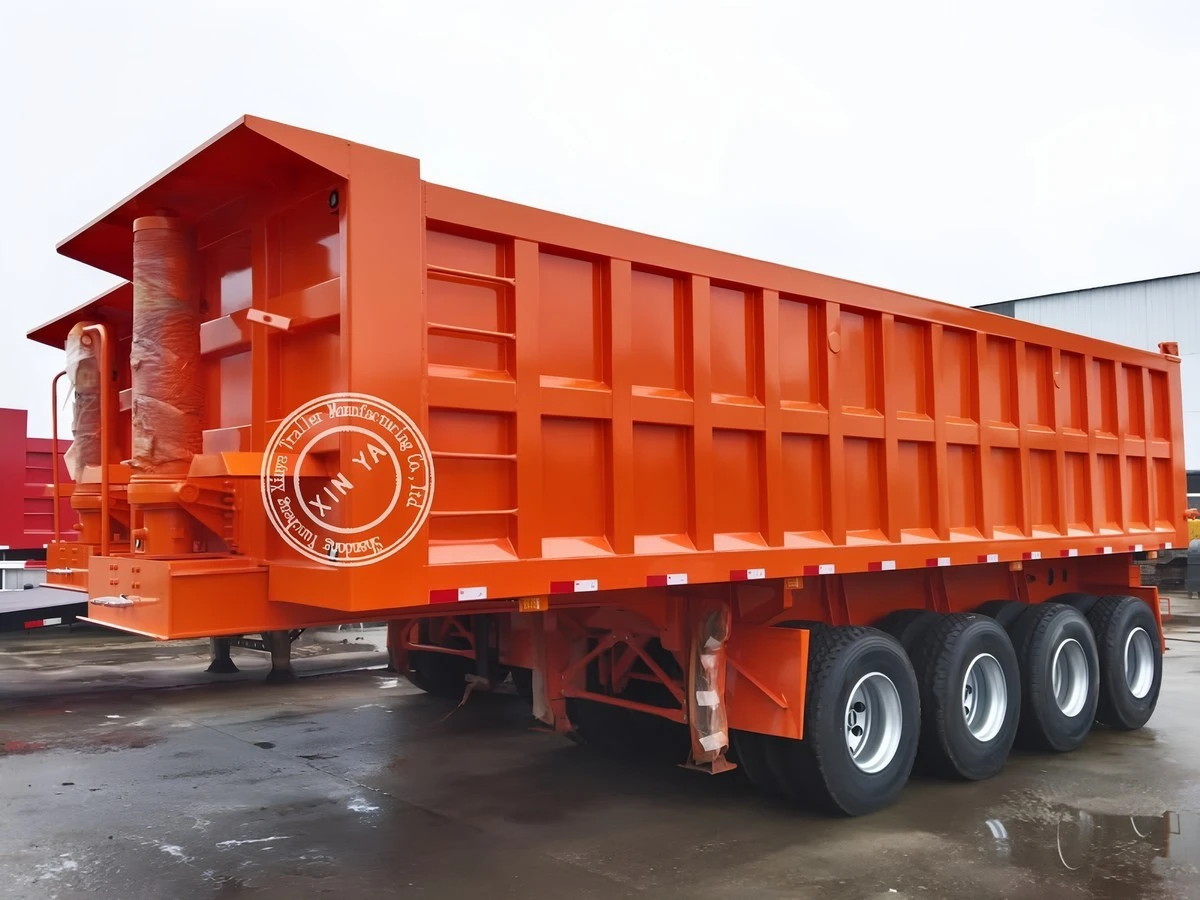

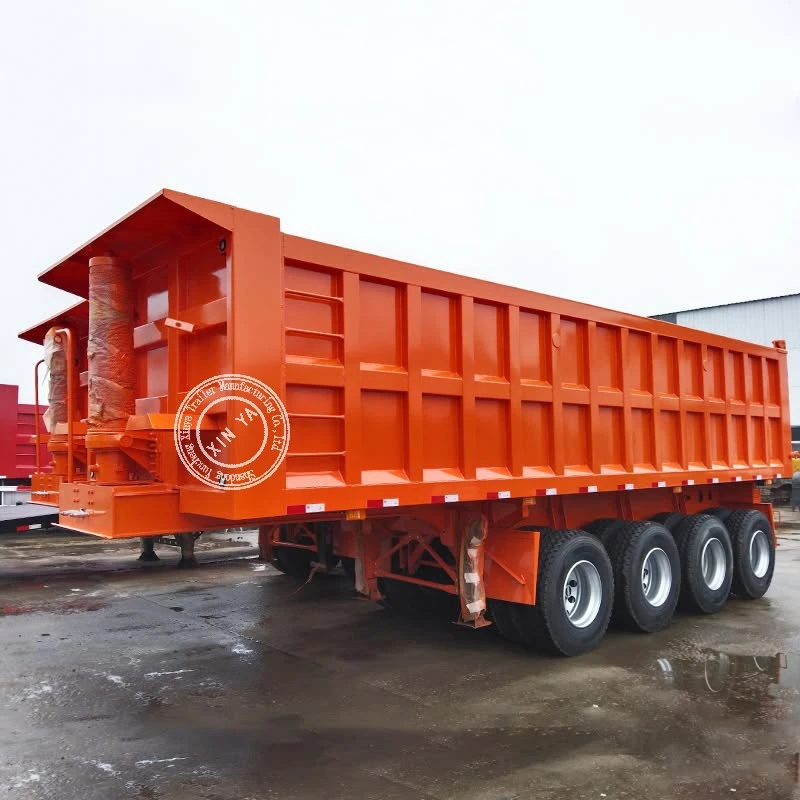

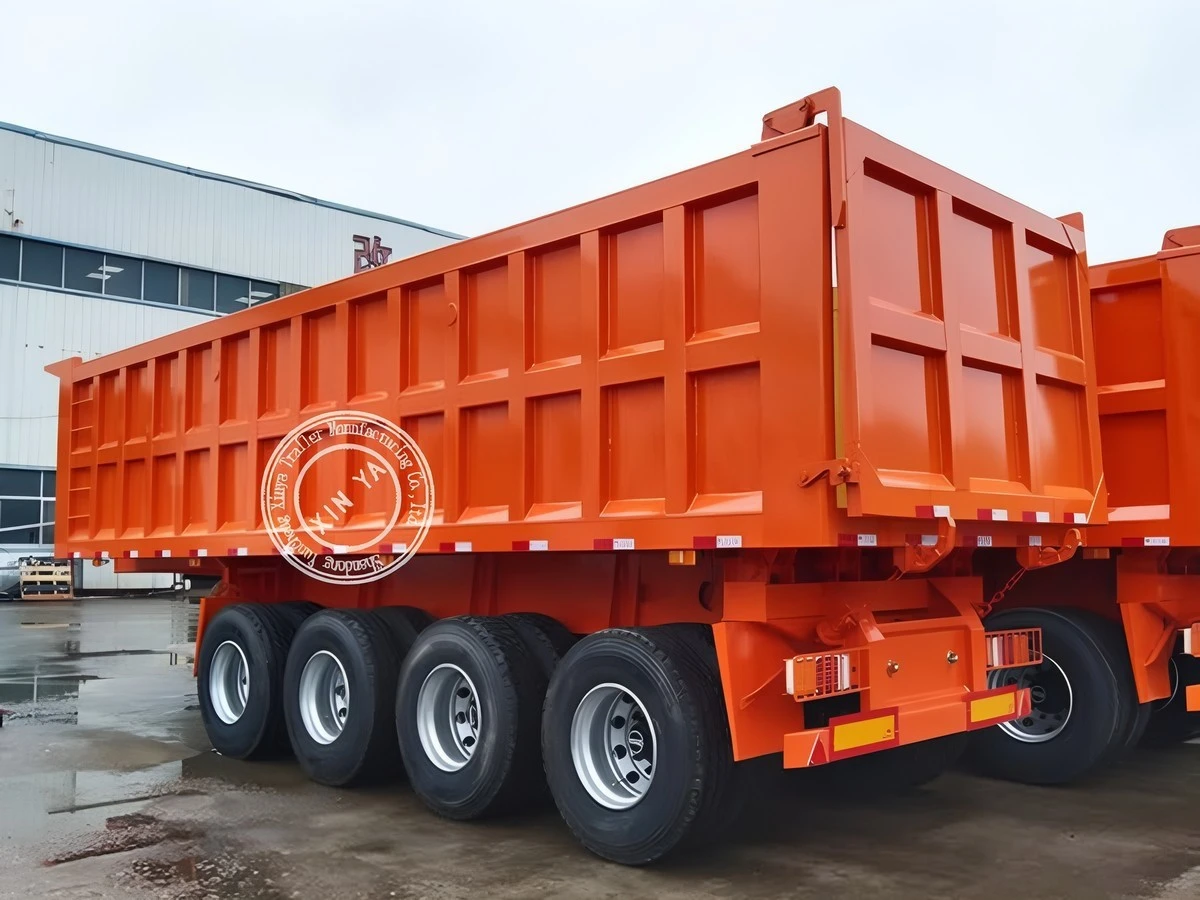

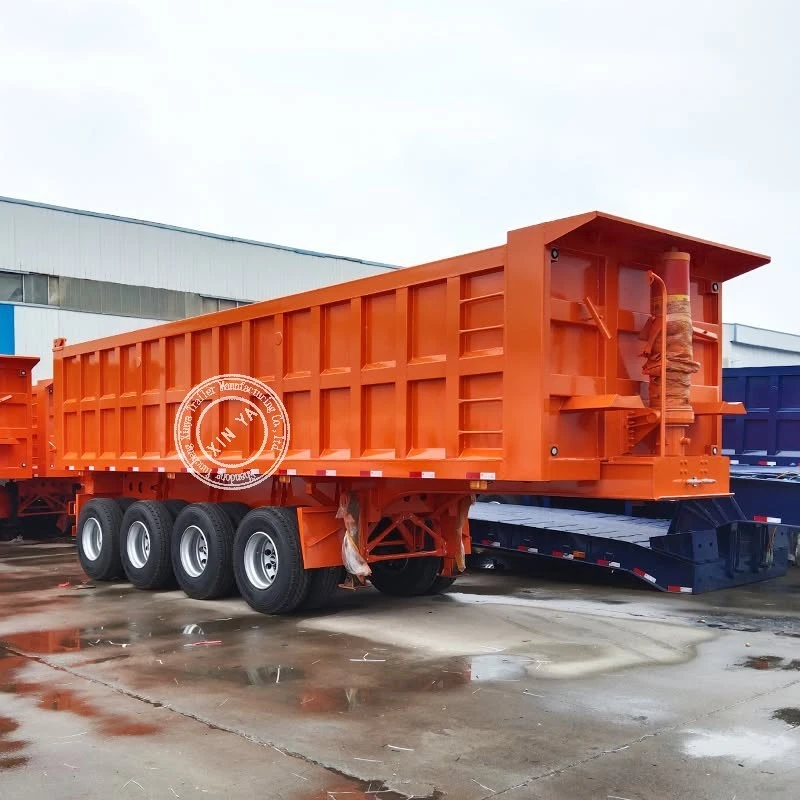

Tipper Rear Dump Semi-Trailer

Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of tipper rear dump semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved tipper rear dump semi-trailer, welcome to get quotation from our factory.







Lead Time: According to quantity and seasons, the lead time is different.

Overall size(L*W*H)mm	8500*2550*3500mm
Material	Q345B fabricated carbon steel
Main beam	Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr
Lifting angel	45°–50°
King pin	90#
Landing gear	28T
Suspension	Mechanical suspension or Air suspension
Axle	Brand: BPW/FUWA/XINYA Capacity: 13T QTY: 3 units
Electric system	24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc.





Our company has welding technology: automatic submerged arc welding, robot welding, uniform and beautiful weld seams, high strength, and frame shot blasting treatment to improve surface strength and corrosion resistance; Customized design: Tailored vehicle models based on customer transportation scenarios (road conditions, cargo types, load requirements), suitable for complex overseas road conditions such as Africa and Southeast Asia





1.The dump truck semi-trailer has the minimum requirements for the site, and can also unload normally in narrow passages and material yards. It is preferred for urban and rural construction sites and short distance slag transportation.
2.The entire rear tilting semi-trailer has a low center of gravity, optimal stability during driving and lifting, and low risk of rollover.
3.The structure is simple, the cost is low, the failure rate is low, and the later maintenance is cheap. It has the largest market retention.
