Tri Axle Tipper Semi Trailer
Carrying capacity:60/80 Tons U Shaped Rear Dump Truck Semi Trailer Tipper Trailer
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of tri axle tipper semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved tri axle tipper semi trailer, welcome to get quotation from our factory.
Product Details
Customizable Tri Axle Tipper Semi-Trailer. All major components are processed with advanced equipment, and the longitudinal beams are welded via automatic submerged arc welding.
We offer various types of three axle dump semi trailers, such as three axle dump semi trailers, 35 ton dump semi trailers, 80 ton dump semi trailers, 100 ton dump semi trailers, and hydraulic dump semi trailers.

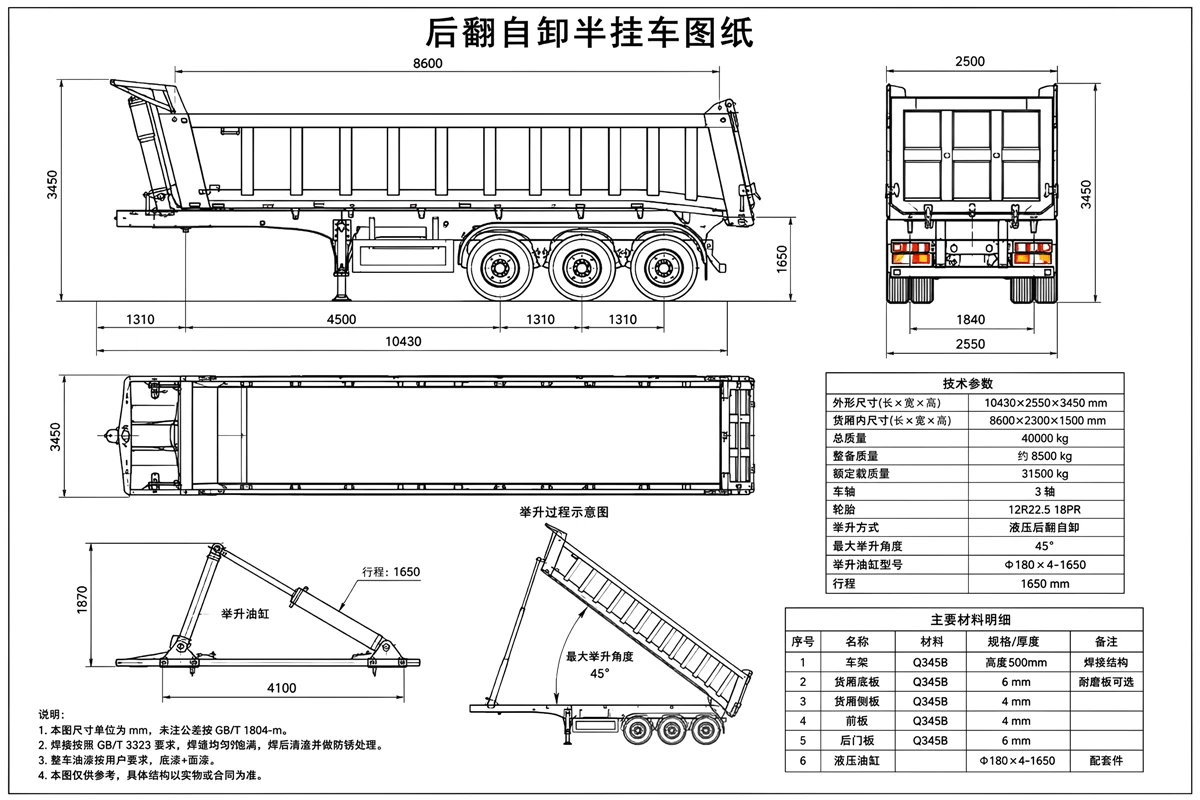

Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
9100mm x 2500mm x 35002mm |
|
Material |
Q345B high-strength steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm |
|
plateform |
3/4mm checker plate |
|
Tyre |
12R22.5 12PR,12+1spare tire |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Leaf spring / Air suspension |
|
Axle |
Brand: BPW/FUWA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
The company has the designated production qualification for automobile trailers approved by the Ministry of Industry and Information Technology of China. Its main products include over 40 types of vehicles, including semi trailers and mining transport semi trailers
Our Advantages
1. The Tri Axle Tipper semi trailer is made of high-quality steel, making the body lighter and sturdy enough to carry heavy loads, allowing transportation companies to load more tonnage of goods
2. According to different cargo requirements, the size and U-shaped structure of the carriage, carriage thickness, HYVA hydraulic cylinder, and optional accessories (two spare tire racks, water tank, fuel tank, etc.) can be customized
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
Hot Tags: tri axle tipper semi trailer, China tri axle tipper semi trailer manufacturers, suppliers, factory
