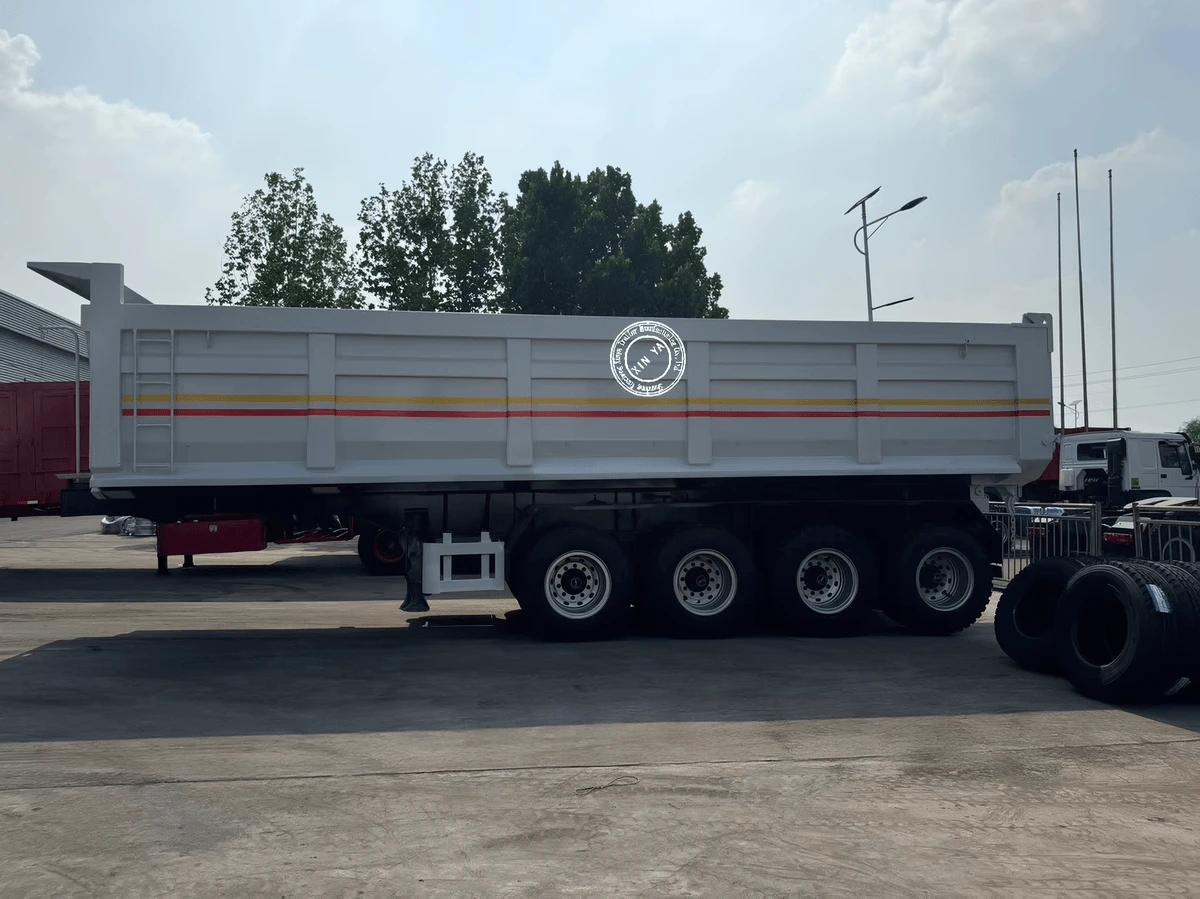

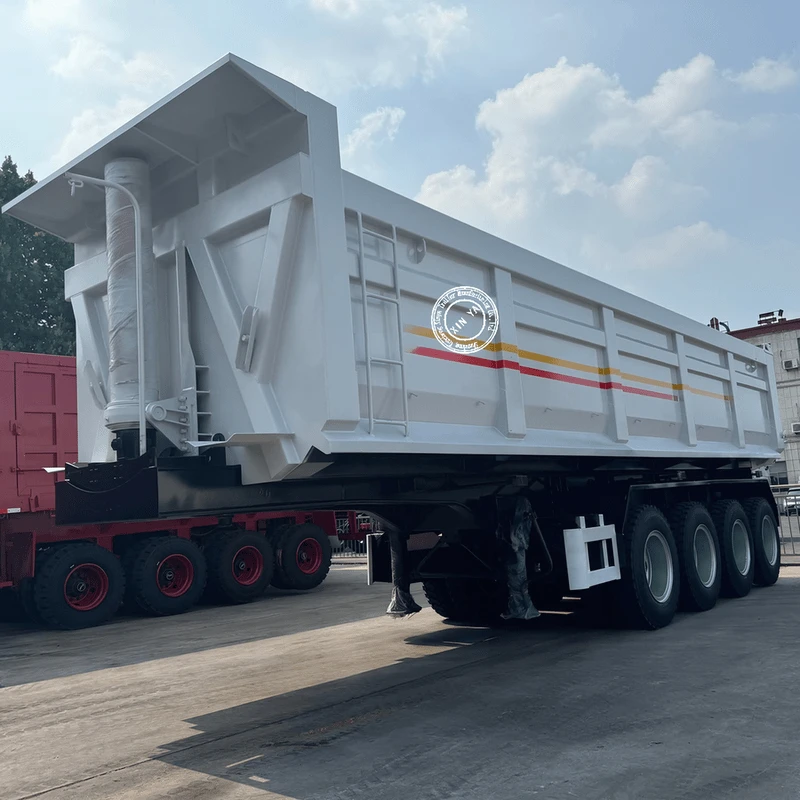

45ton Tipper Semi Trailer
The 45ton tipper semi trailer is made of high-strength steel, which is sturdy and durable when loaded with sand, small stones, or rocks. We use well-known brand axles such as FUWA and BPW, which have excellent performance and reliable use.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 45ton tipper semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 45ton tipper semi trailer, welcome to get quotation from our factory.
Product Details
This dump semi trailer has different cargo capacities of 24 cubic meters, 30 cubic meters, 35 cubic meters, and 45 cubic meters; We can customize dump trailers according to your special needs
Product Parameters
|
Dimension(L*W*H): |
10200*2500*3830 mm(40CBM) |
|
Dump box size: |
9335*2300*1850 mm |
|
Main frame: |
Heavy-duty and extra durability design; Optingfor high tensile low-carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
|
Thethicknessofbody: |
Side wall:8mm |
|
Model: |
SS9600TJZT |
|
Capacity(CBM): |
40CBM |
|
Load Capacity |
50,000kgs |
|
Tare weight(kgs): |
13,000kgs(40cbm) |
|
Kingpin: |
Bolt-in type JOST 3.5inch |
|
Landing gear: |
Two-speed manual operation JOST19" |
|
Tiresize: |
Double coin brand 12R22.5 (16pcs) |
|
Rimsize: |
9.00*22.5(16pcs) Reinforce |
|
Axle: |
BPW14 Tons,4 Axle |
|
Suspension: |
Spring suspension with 8 pcs of leaf spring |
|
Brakesystem: |
With ABS; Dual line with Re-6 emergency relay valve, T30/30air chamber, 46L airtank |
|
Accessory: |
One tool box; one set of standard tool; with manual tarpaulin (including operating platform) |
Our Company
Our Advantages
1.Dump tipping semi trailer, 4 axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation. France technical.
2.The loading capacity varies widely from 30 Tons to 100 tons, we can manufacture it according to your needs.
3.The axles can be Fuwa / BPW with different tonnages by your need with price differences.
FAQ
Q: Do you have stock in your country?
Semi-trailers are custom-made models. The saddle height of each tractor unit is different, and the turning radius varies between 6x2, 4x2, and 6x4.
None of our dealers have stock. If there is stock, it is only for orders placed with other customers.
The fastest production time is only one week, and it takes approximately 20 working days for roll-on/roll-off or container ships to reach your country.
Q: Do you also sell spare parts?
Yes, we provide semi-trailer spare parts for our customers, or you can purchase them directly, which we also provide. Semi-trailer spare parts are international standard parts, such as tires, bearings, taillights, etc. You can also purchase them directly from local spare parts markets.
For special spare parts, we offer air freight delivery services.
