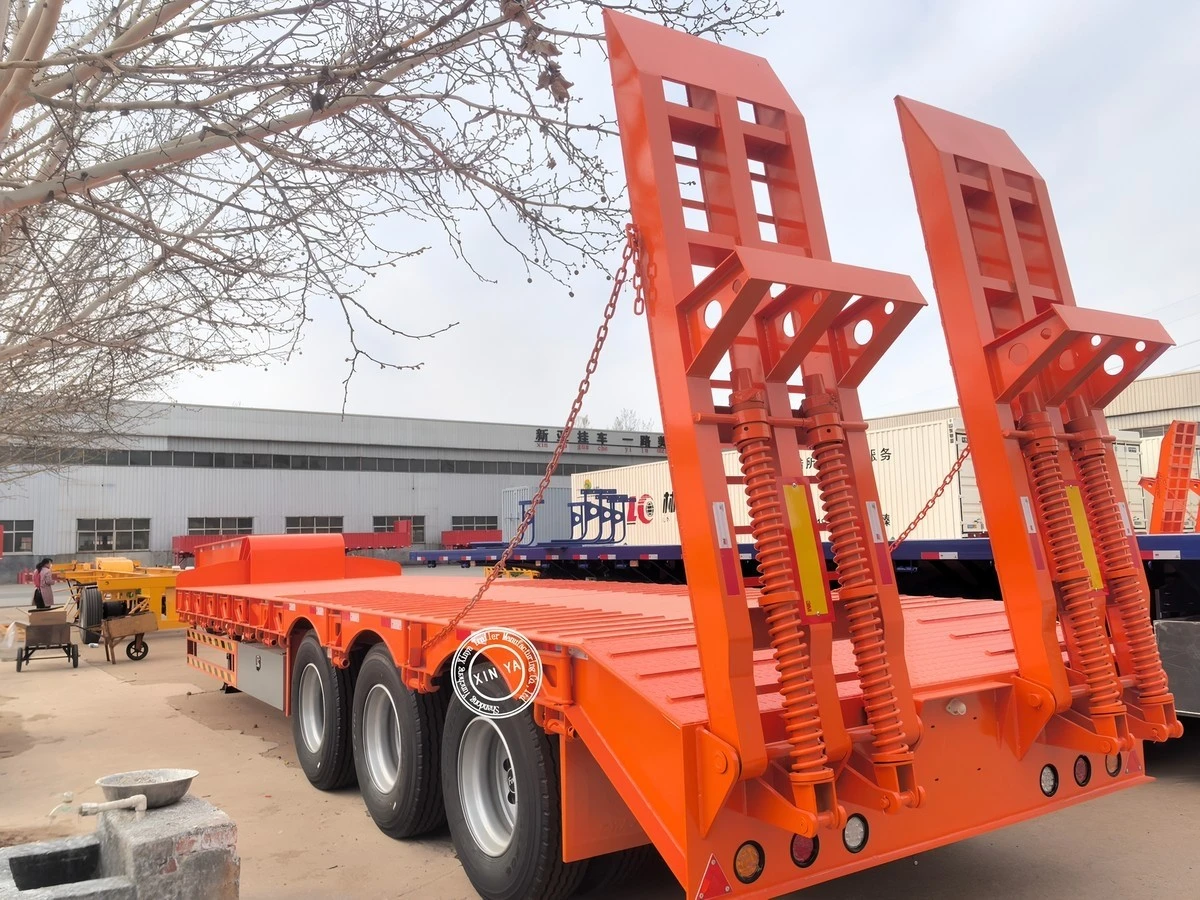

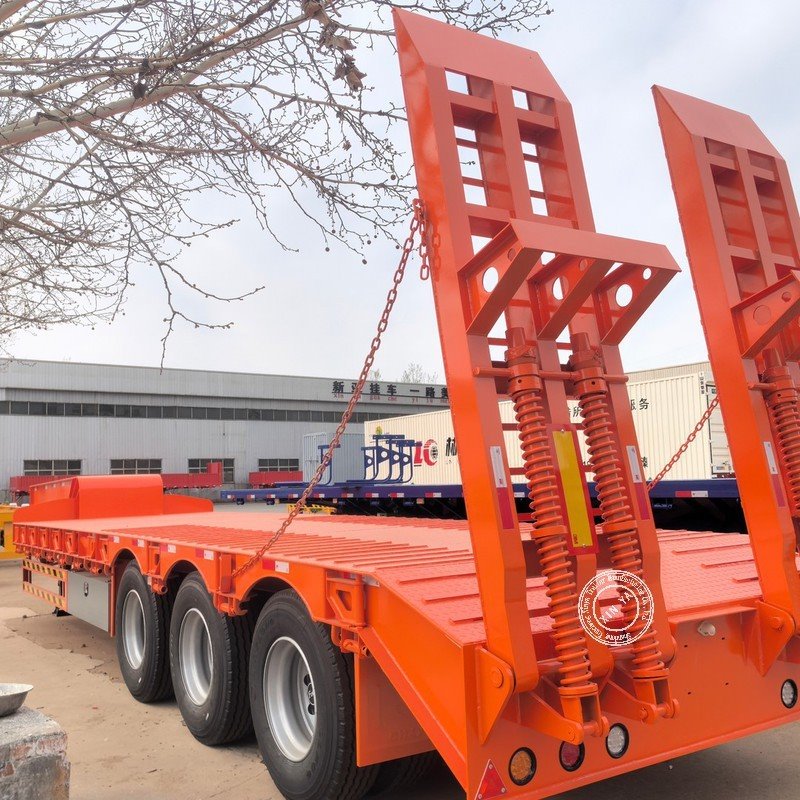

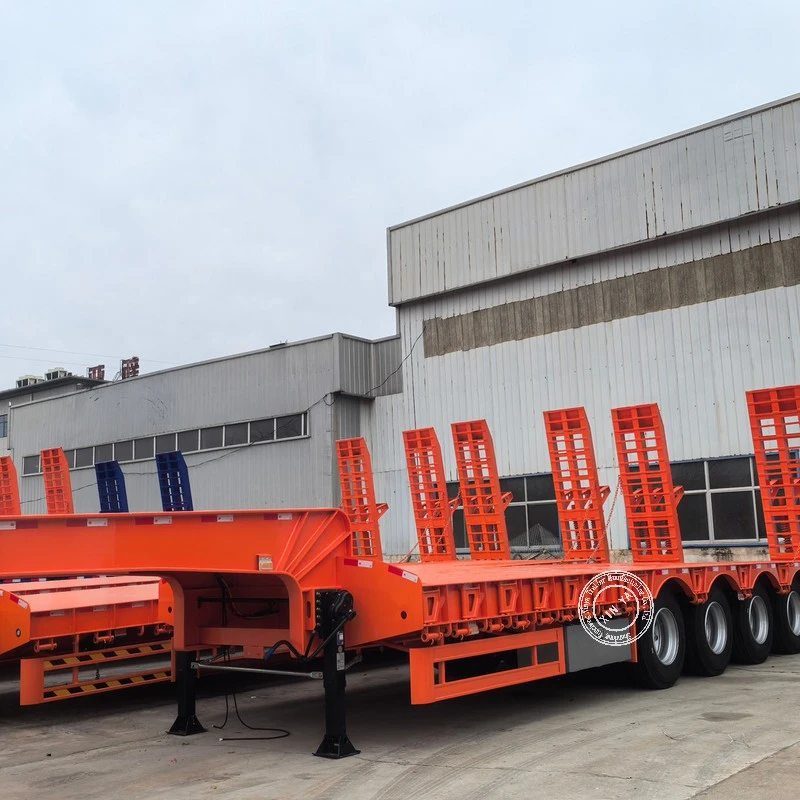

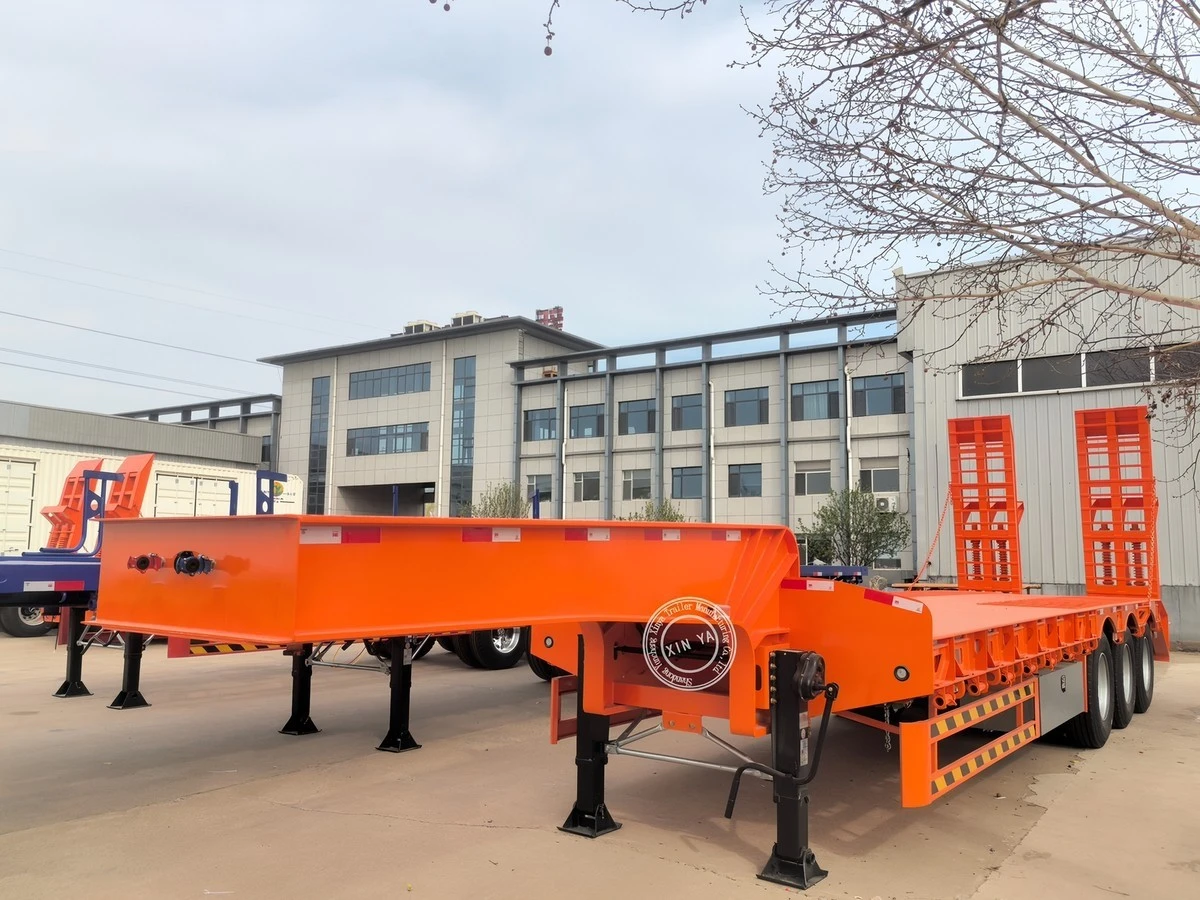

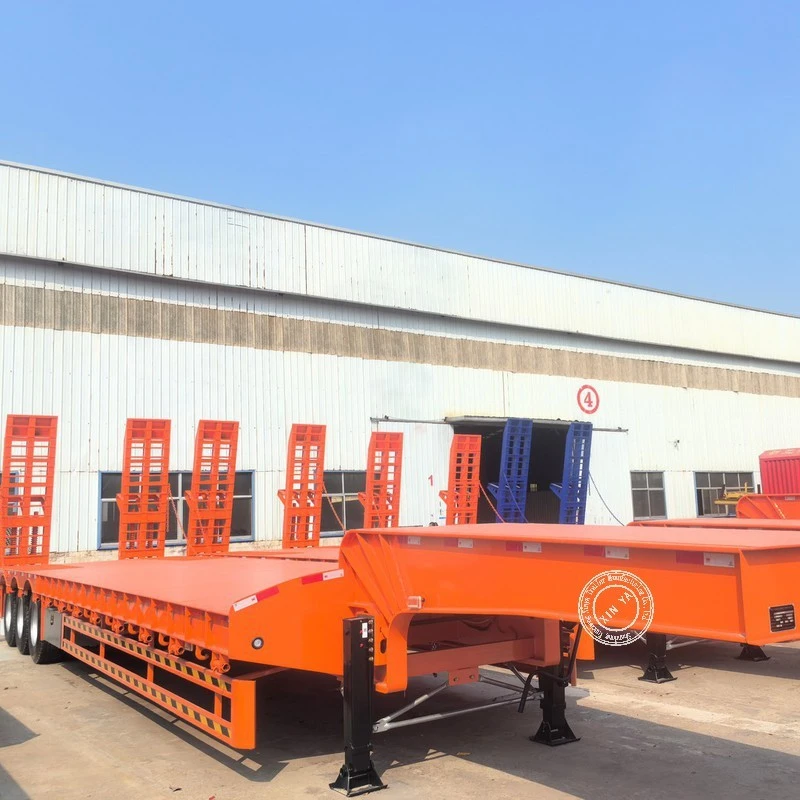

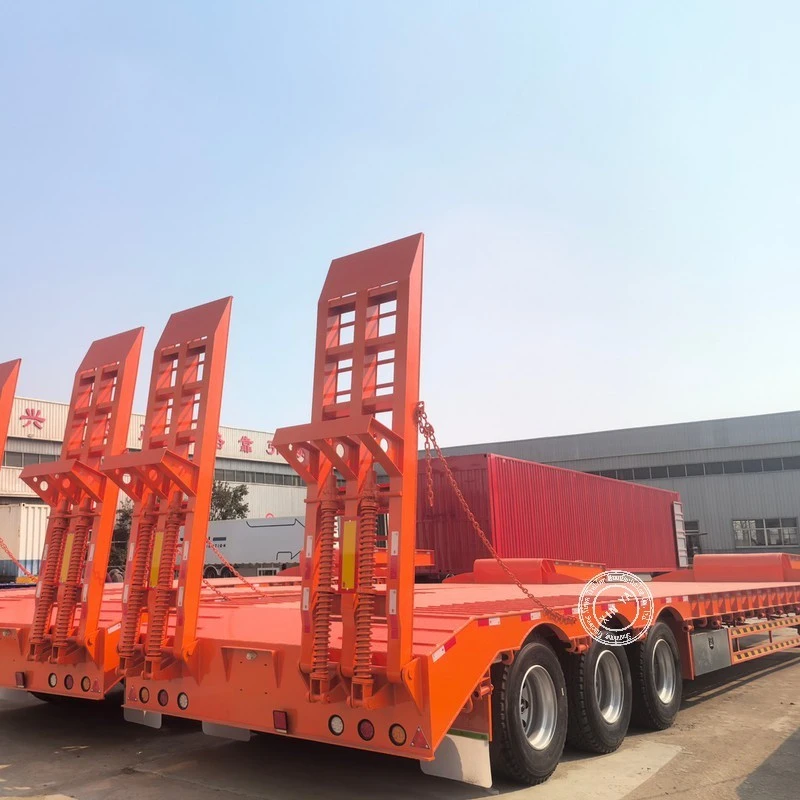

Heavy Duty Low Flatbed Semi-trailer
size 13000*3000*1100mm
Carrying capacity: 60-80 tons
Axle: 3 axles 13T FUWA
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of heavy duty low flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved heavy duty low flatbed semi-trailer, welcome to get quotation from our factory.
Product Details
Sell Heavy duty low flatbed semi transporter, a specialized vehicle designed for transporting heavy machinery, earthmoving equipment, and oversized cargo
Product Parameters
|
Overall size(L*W*H)mm |
13000/16000*2700*11000 or Custom size |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 14mm Process: welded by automatic submerged-acr |
|
Side rail |
250# "工" type |
|
plateform |
4mm checker plate |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|

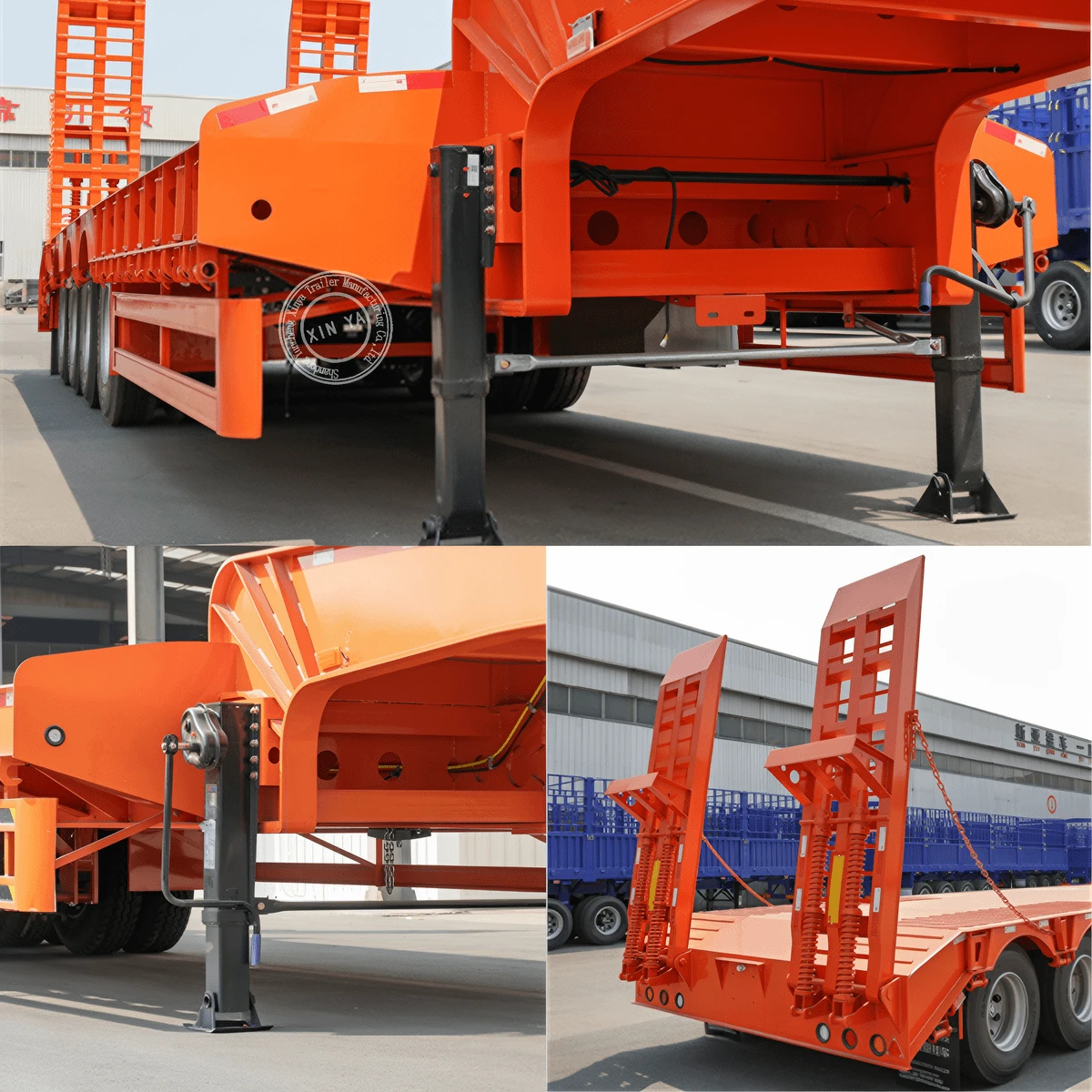

Landing gear |
28 tons two speed, JOST/other brands |
|
Suspension |
Mechanical suspension or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
We are implementing the 6S on-site management system, Equipped with complete production lines and advanced processing equipment. The factory covers a complete process flow including cutting, welding, spraying, and assembly, and has the ability to produce on a large scale. With an experienced technical team and strict quality management system, we ensure that every semi-trailer has excellent performance and stable quality, which can meet the diverse needs of different customers.
Our Advantages
1. Optional mechanical or hydraulic ladders provide effective support and protection for heavy equipment and machinery during loading and unloading processes
2. A low center of gravity cargo platform ensures safe and stable transportation, while providing maximum speed limit for cargo transportation efficiency
3. The entire vehicle has undergone sand blasting, base coating, 2 coats of final paints, and partially galvanized parts
FAQ
1. Are you trading or manufacturer?
A: We are factory
2. How to control the trailer quality?
A: Combining advanced equipment and strict management,we provide high standard and quality trailer for our customers all over the word
3. How long is your delivery time?
A: According to order,try my best send to 15-35days!
4. Is it available to print our own brand on the vehicle?
A: According your wish
5. What are your terms of payment?
A: According your order,Payment >= 10000USD,30%T/T in advance,balance before shippment!
