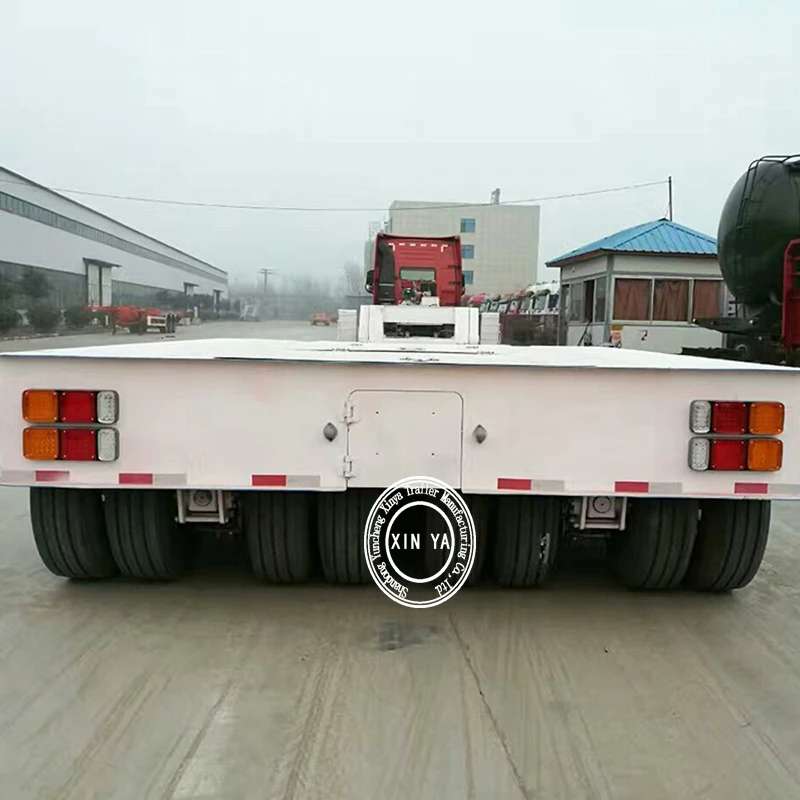

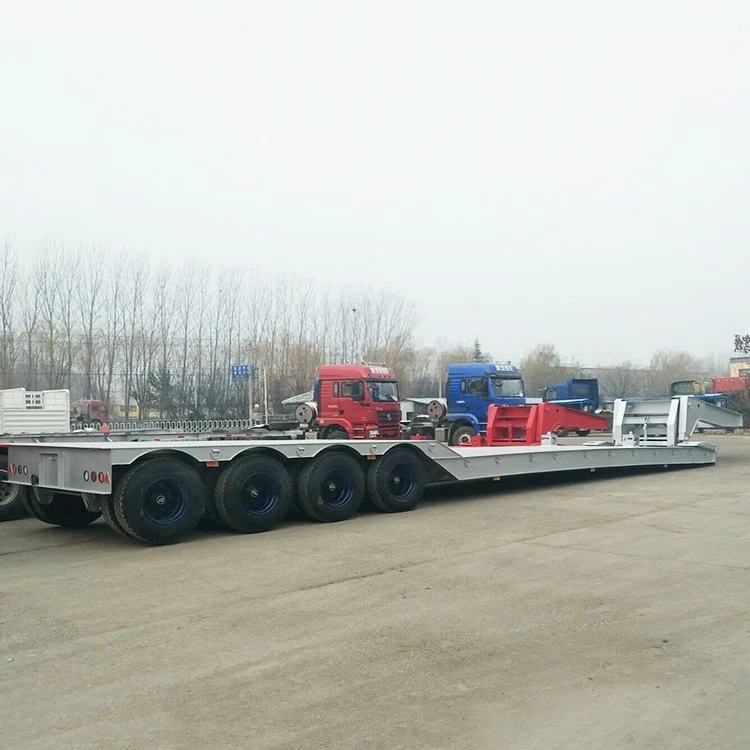

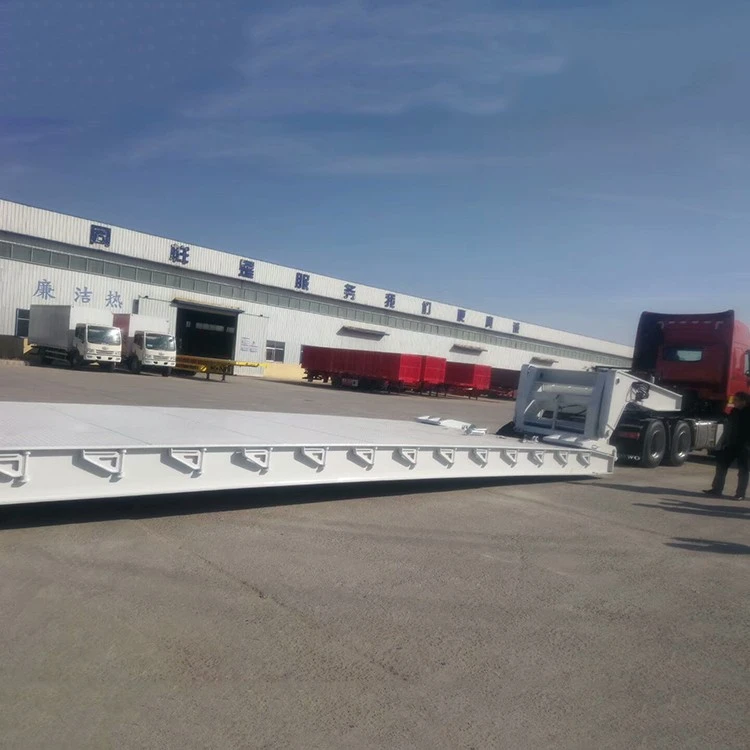

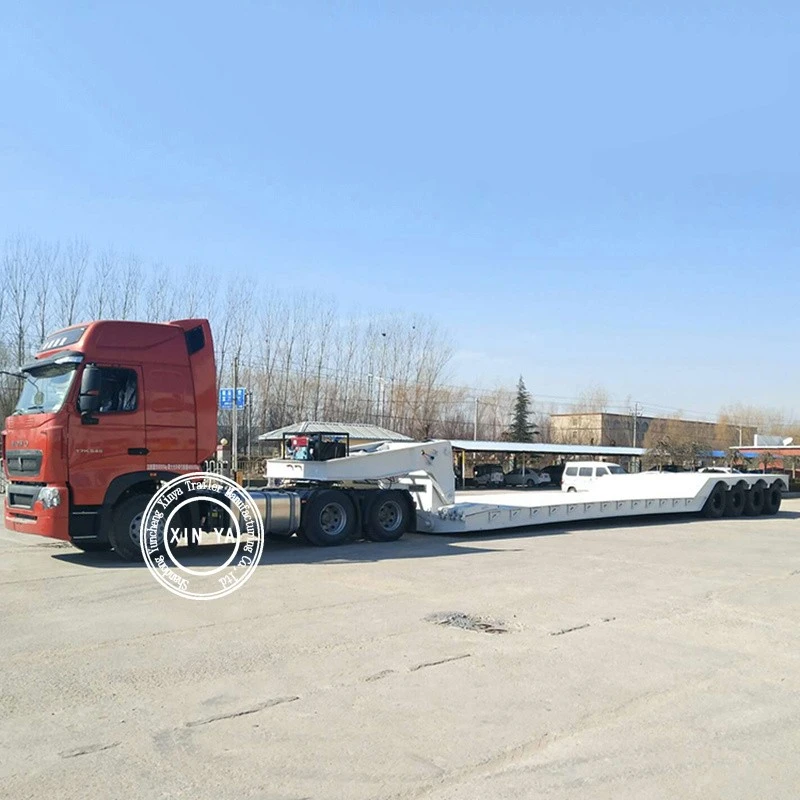

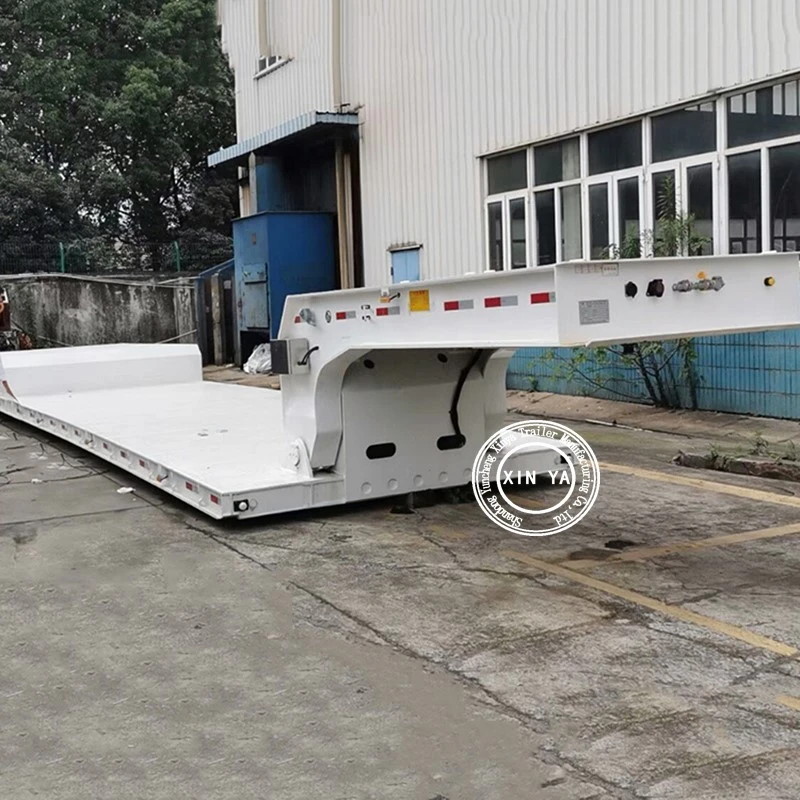

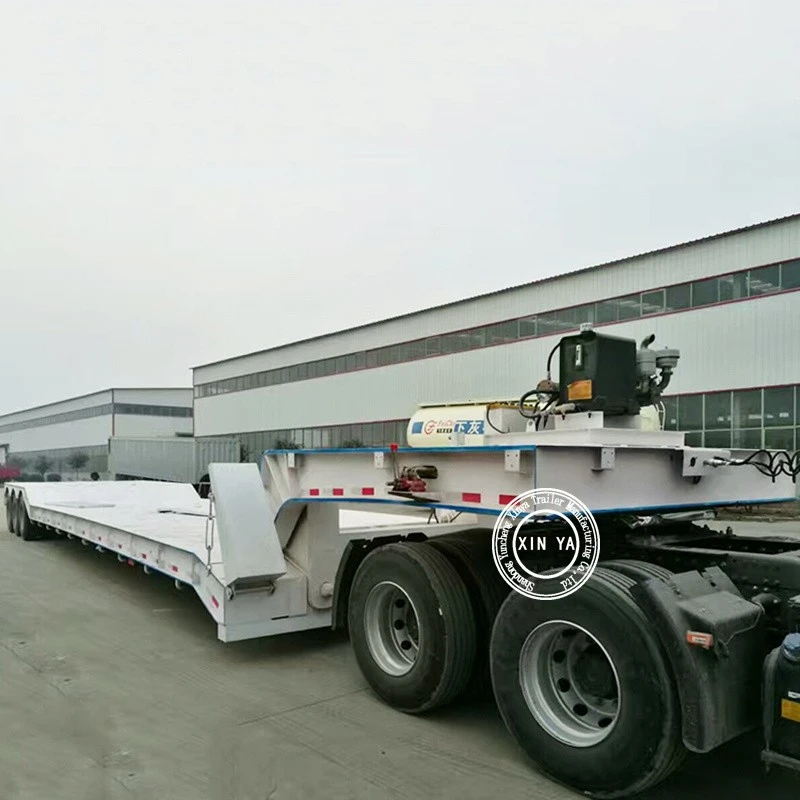

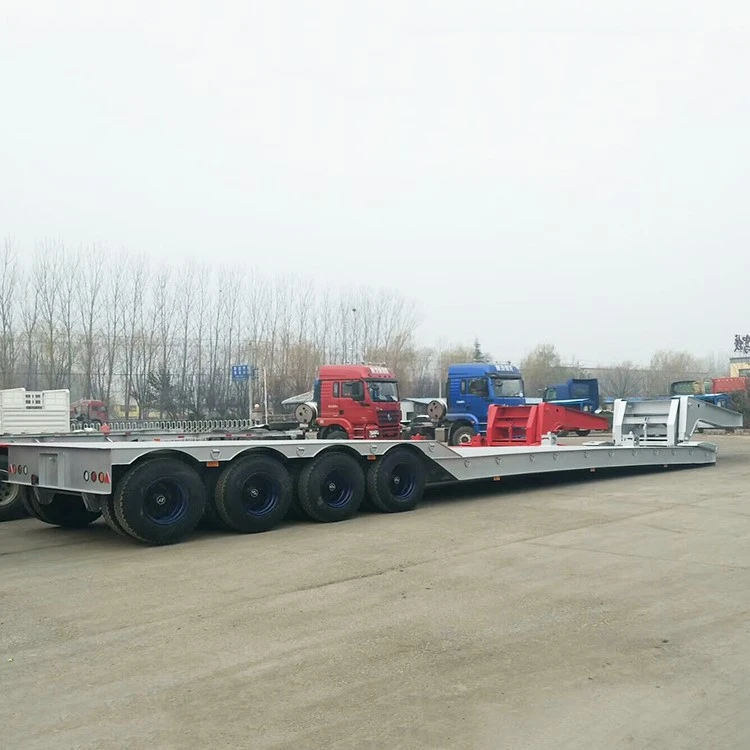

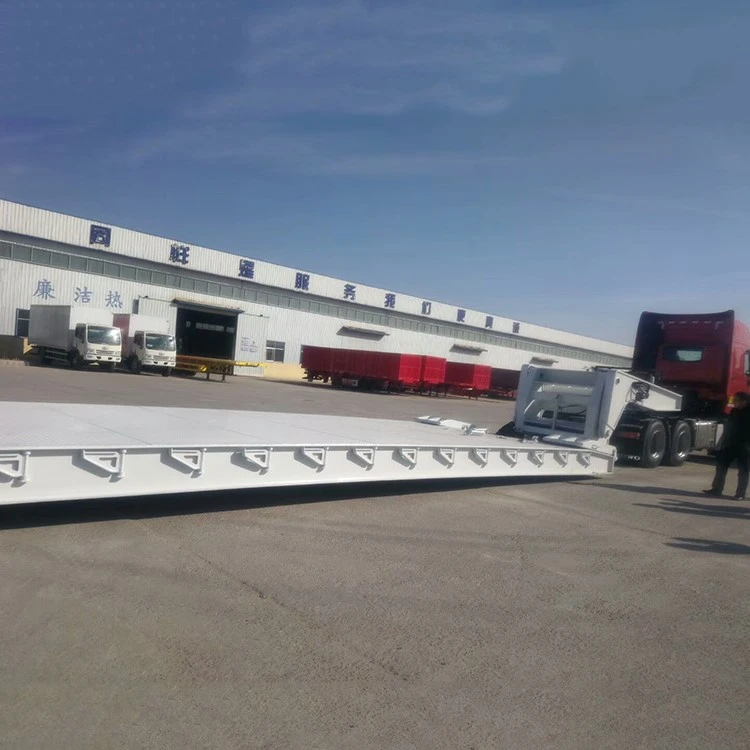

Hydraulic Gooseneck Low Bed Semi-trailer
Dimensions: 15800mm x 3000mm x 2500mm
Loading capacity(T): 60-150T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic gooseneck low bed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved hydraulic gooseneck low bed semi-trailer, welcome to get quotation from our factory.
Product Details
Hydraulic gooseneck low-loader trailer is the top choice for efficient loading and unloading of heavy machinery and equipment. Its front end can be lowered to ground level to facilitate handling operations.
Product Parameters
|
Overall size(L*W*H)mm |
15800mm x 3000mm x 2500mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 14mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side beam |
250# "工" type |
|
plateform |
5mm checker plate |
|
Kingpin |
JOST brand 2.0 or 3.5inch(bolted or welded type) |
|
Suspension |
Mechanical suspension or Air suspension(China brand or BPW brand) |
|
Tire: |
12 units, 8.25R20/10.00R20/11.00R20/12R22.5 |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our products are famous in aftermarket.
We've export to Europe, South America, South Africa and Southeast Asia
We've passed ISO9001:2000 & BV & SGS & CCC certificates
We've set up unified technical departments and testing standards.
Our Advantages
1.The main beam adopts automatic submerged arc welding technology, and the trailer is sandblasted and sprayed with base coating for the whole body. 2 coats of final paints are applied to ensure that it will not lose its luster or fade for 3 years
2.The low bed trailer is made of high-strength structural steel, which is sturdy and durable, improves its load-bearing capacity, and meets the load-bearing requirements of harsh road conditions.
3.The height of the work platform is relatively low, suitable for transporting large goods
FAQ
1. What can you provide me?
-One-year warranty, maintenance personnel can go abroad for repairs, free accessories and models.
2. How can I confirm whether your products will meet my needs?
-You can tell us your needs such as size, material, volume, height and other information, our professional sales will provide solutions, and we supply OEM services.
3. How do you pack the products?
- Standard shipping packaging. And we do supply the OEM package service.
