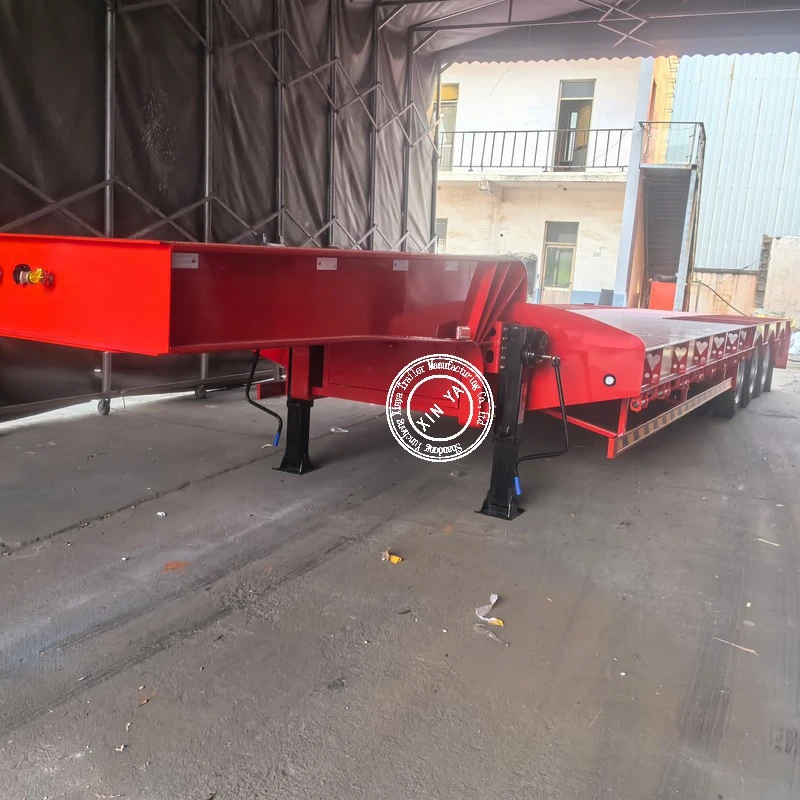

Heavy Duty Gooseneck Lowbed Semi Trailer
Gooseneck low flatbed semi-trailer can be produced in 2/3/4/6 states
The load capacity is 40/50/60/80/100/120 tons
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of heavy duty gooseneck lowbed semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved heavy duty gooseneck lowbed semi trailer, welcome to get quotation from our factory.
Product Details
This heavy-duty three-axis goose neck low flatbed semi-trailer has a load-bearing capacity of 60 tons and can transport various industrial machinery such as excavators, loaders, mining engineering, agricultural equipment, etc
Product Parameters
|
Overall size(L*W*H)mm |
13000/16000*2700*11000 or Custom size |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 14mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side rail |
250# "工" type |
|
plateform |
4mm checker plate |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension or Air suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
|
Chassis |
Sand blasted, base coated, 2 coats of final paints,RAL-color |
|
Rear Loading Ramps |
2 units. Spring loaded & manually operated with safety chain |
Our Company
Shandong Yuncheng Xinya trailer manufacturing Co, Ltd. was established in June 2010. It covers an area of more than 107000m2 and has more than 300 employees. It is registered enterprise in the Ministry of Industry & Information system.
We are professional manufacturer engaged in the research, development, production, sale and service of following items:
Container semi trailer, van box semi trailer, flatbed semi trailer, fence semi trailer, cement tank semi trailer, fuel tank semi trailer, lowboy semi trailer, axles, suspension, tarque, leaf spring, landing gear, kingpin, twist lock, fifth wheel etc.
Our Advantages
- All low bed semi-trailers are built with high-strength steel and automatic submerged arc welding technology, featuring long service life and excellent fatigue resistance.
- It is specially designed for the transportation of heavy equipment. The load capacity of a low bed semi-trailer is determined by the number of axles and tire specifications. More axles mean higher load capacity, with a loading range from 20 to 150 tons.
FAQ
1)Why you will select xinya trailer ?
Because we pay more attention to our customer requirment.we produce as the customer requirment completely
2)What superiority xinya trailer have ?
Good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you
3)What product xinya can supply?
Big trailer company not only have superiority product .our product is diversity
