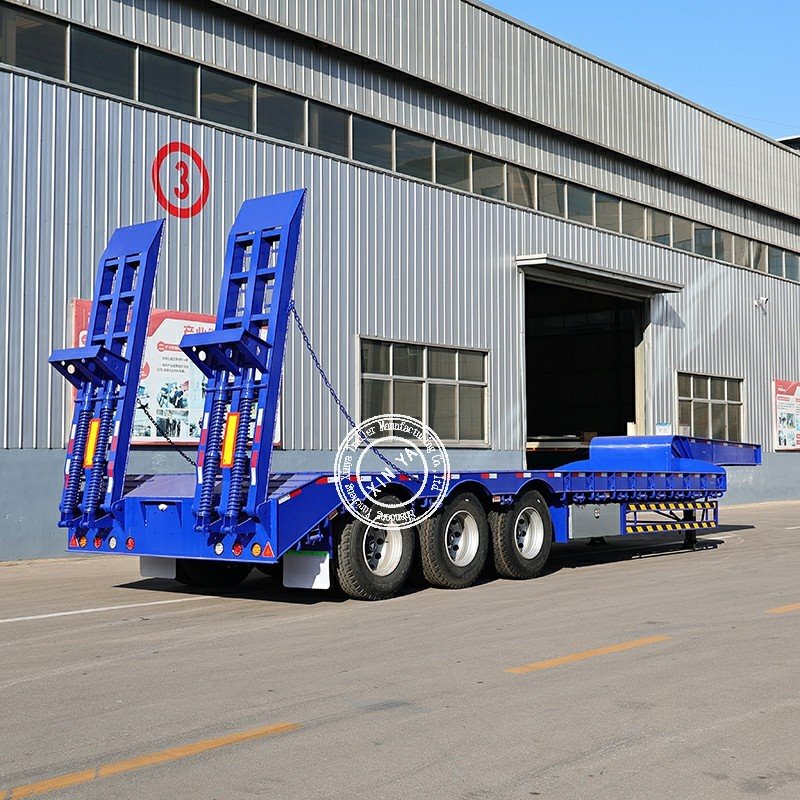

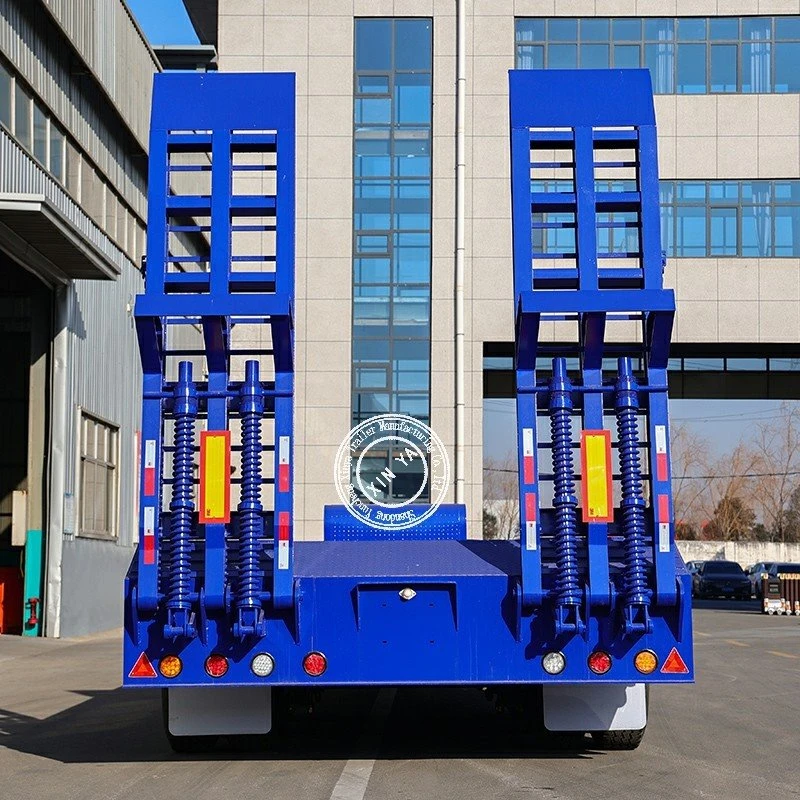

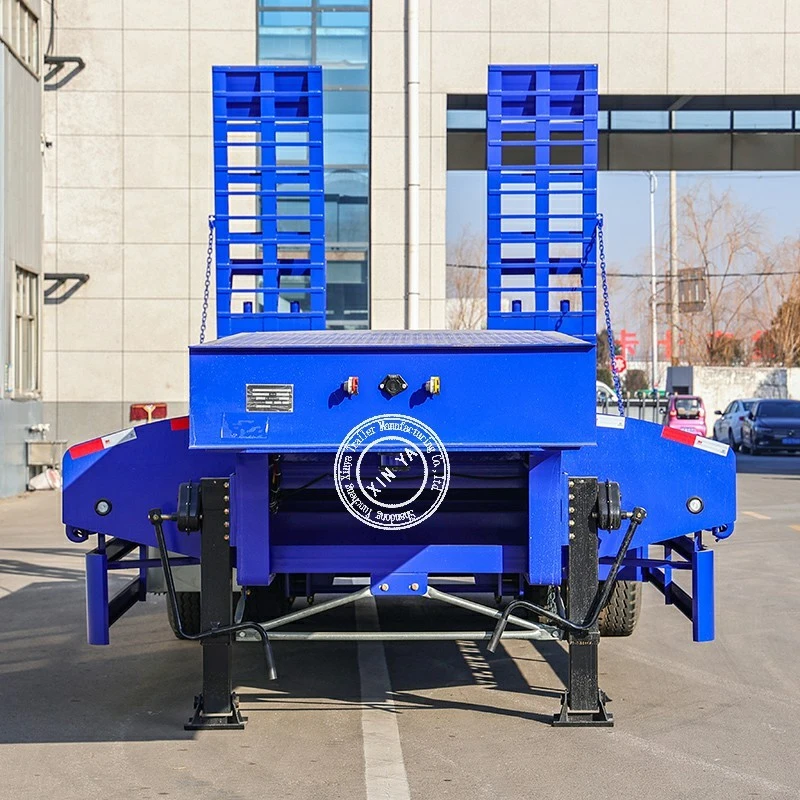

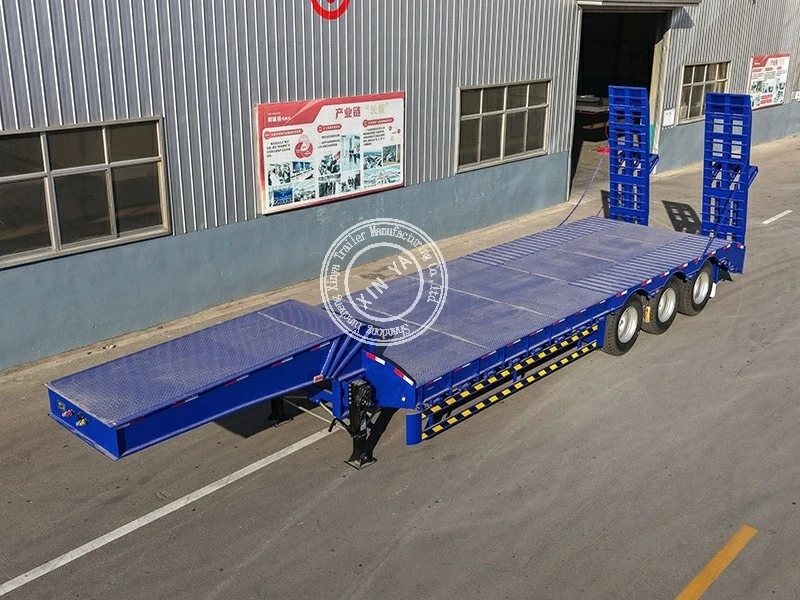

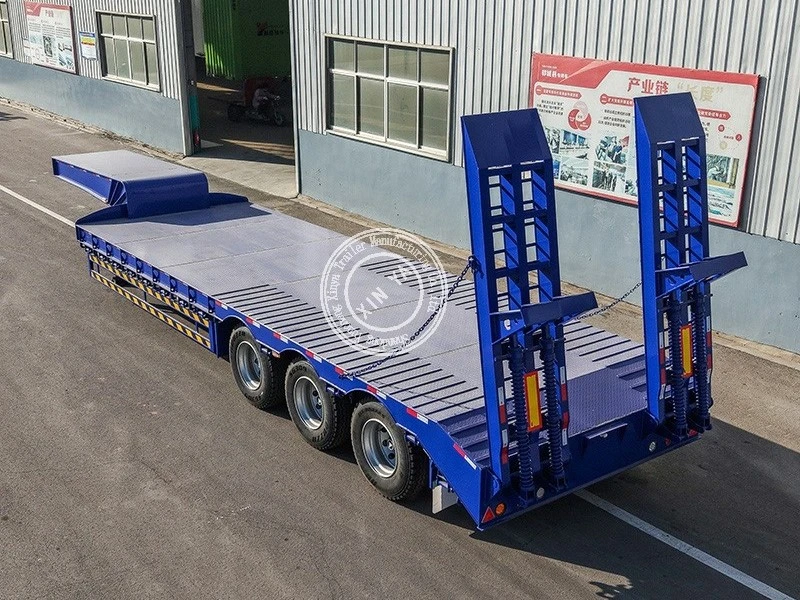

Gooseneck Hydraulic Ramp Lowbed Semi Trailer
This low bed semi-trailer can maintain good stability when loading heavy machinery
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of gooseneck hydraulic ramp lowbed semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved gooseneck hydraulic ramp lowbed semi trailer, welcome to get quotation from our factory.
Product Details
The side beams and main beams are fabricated from high-strength I-section steel, featuring excellent torsional resistance and superior durability compared with steel used on conventional trailers. This design ensures the low-loader trailer remains free from deformation and bending during operation.
Product Parameters
|
Type |
Low bed semi trailer |
|
Loading Capacity |
40-60 tons |
|
Dimensions(LxWxH) |
13000 -17000mm x 3000 x 1750mm |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 12mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side rail |
250# "工" type |
|
plateform |
4mm checker plate |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension System |
Leaf spring suspension / air suspension |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T /20T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
SHANDONG YUNCHENG XINYA TRAILER MANUFACTURING CO., LTD. has established a comprehensive after-sales service guarantee system, providing 7*24 online support. If customers encounter any problems during use, they can contact our professional team at any time. We will respond promptly and provide remote technical guidance, fault diagnosis, and solutions. At the same time, we also provide accessory supply and regular maintenance recommendations to ensure the long-term stable operation of the product.
Our Advantages

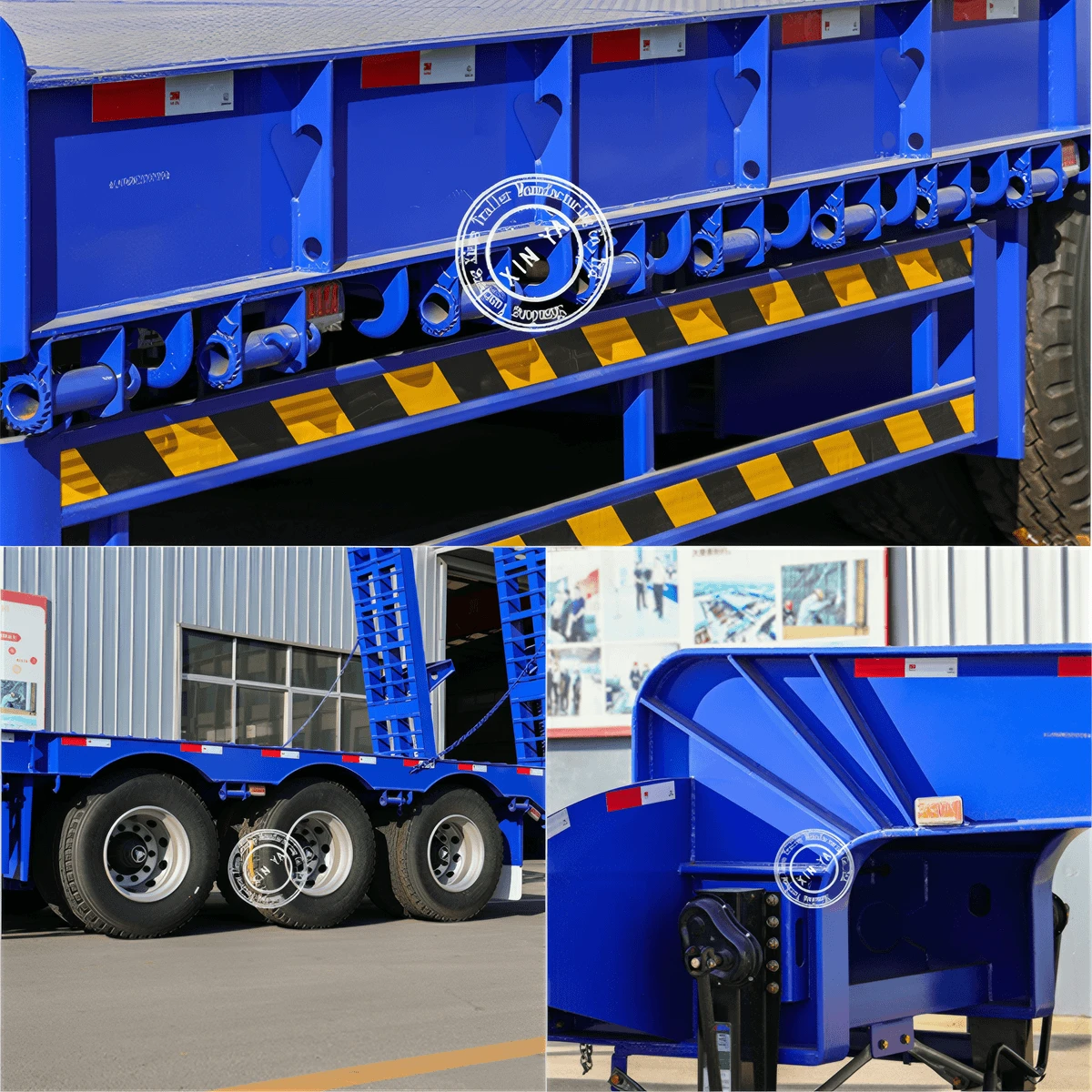

1.1.Lashing Point
High strength steel is treated for corrosion resistance and meets ISO standards, increasing the fixed quantity to improve cargo safety and enhancing loading flexibility to accommodate different types and sizes of goods
2.Landing Gear
Using well-known first-line brands FUWA/JOST landing gear, the vehicle can provide stable support during loading and unloading of goods
3.Tires
Optional brands: Linglong, Triangle, Michelin and Double Coin.
FAQ
1. What payment methods do you support?
We support T/T and LC and other ways you need.
2. What is your minimum order quantity?
One unit.
3. How about the delivery time?
Generally it will takes 10 to 30 days after receiving your deposit. The specific date will be depended on your order and item. We will contact you if we confirm the delivery date. And we will track the goods all the time until the goods reach to the destination.
