40/60 Ton Low Flatbed Semi-trailer
40 ton, 60 ton, 80 ton heavy machinery transport vehicle, low flatbed semi-trailer, 3-axle, 60 ton, 80 ton low flatbed, low loading truck trailer
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 40/60 ton low flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 40/60 ton low flatbed semi-trailer, welcome to get quotation from our factory.
Product Details
We can customize the optimal size design according to your application requirements. The load capacity of low bed trailers ranges from 30 tons to 150 tons, and we can also configure different axle sets to comply with local weight restrictions.
Product Parameters
|
Project Name |
Low flatbed semi-trailer |
|
Material |
Q345B carbon steel |
|
Thoroughfare |
Heavy machinery transportation |
|
Main beam |
I-shaped structure |
|
plateform |
4mm checker plate |
|
Load capacity |
60-120T |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Tri-axle 10-pcs leaf spring suspension with equalizer beam |
|
Axle |
FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles |
|
Tires |
Linglong,/DoubleCoin/Trianglebrand 11.00R20/8.25R20/12.00R22.5, 12unit |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company offers a wide range of products to meet your various needs. Since the establishment of our company, we have always adhered to the business philosophy of "quality first, customer first, and reputation first", and have made every effort to meet the potential needs of our customers. With the unstoppable trend of economic globalization, our company sincerely hopes to cooperate with enterprises from all over the world to achieve mutual benefit and win-win results.

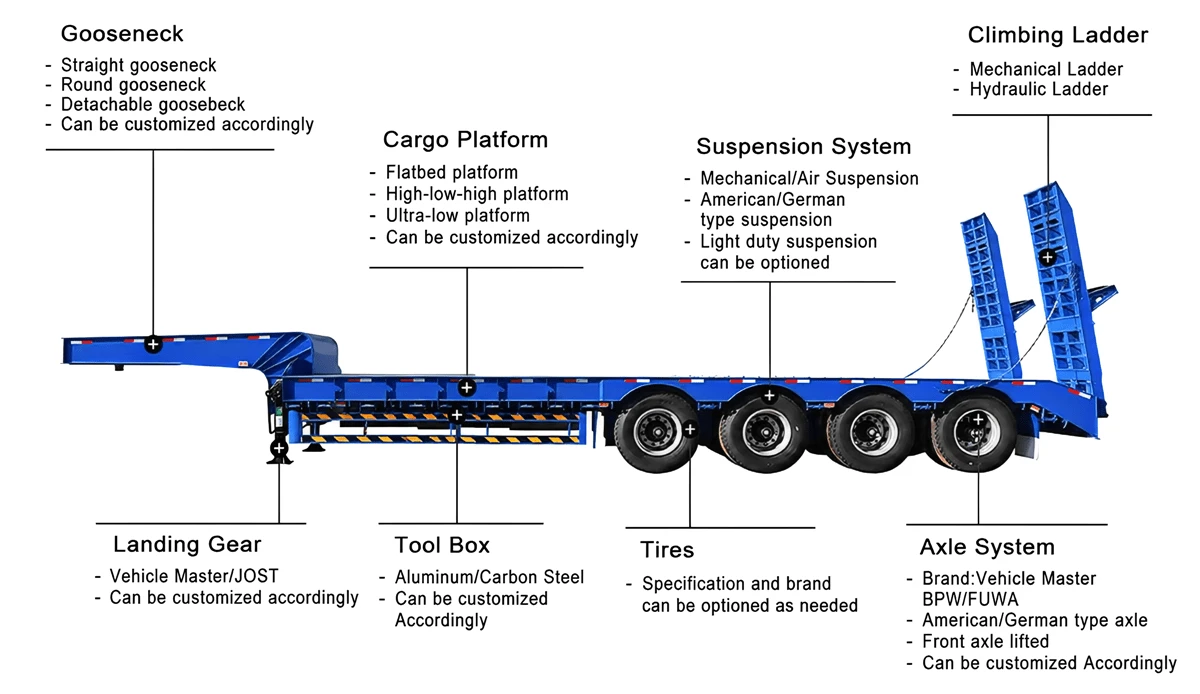

Our Advantages
1. Frame
Equipped with advanced assembly and welding equipment, the frame adopts a spatial frame structure composed of welded longitudinal beams and through-type cross beams. Full consideration is given to the frame's strength, rigidity and toughness, delivering a robust structure capable of heavy-load operation.
2. Low bed goose neck design
The front of the car adopts an integrated bending and thickening goose neck structure, which is suitable for construction machinery and large-scale transportation.
3. Axle
The integral main shaft is fabricated from premium low-alloy steel via special processing, boasting high load capacity, light weight, long service life and superior overall performance. High-precision machining of the brake system ensures consistent and reliable braking performance.
FAQ
Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
Q:How many years of your company's service, especially after-sale service?
A: Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
Q: Production lead time?
A: 20-30 days.
