Standard Flatdeck Semi Trailer
Four axle standard flat deck flatbed semi-trailer with front wall, load capacity of 60 to 80 tons.
Axle fuwa axle, front axle with air suspension and lifting axle
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of standard flatdeck semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved standard flatdeck semi trailer, welcome to get quotation from our factory.
Product Details
This standard 4-axle flatbed semi-trailer is equipped with front bulkhead. Its main beam is manufactured from Q355 steel with the following specifications:
Beam height: 480 mm
Upper plate: 14mm
Bottom plate: 16mm
Middle plate: 10mm
Product Parameters
|

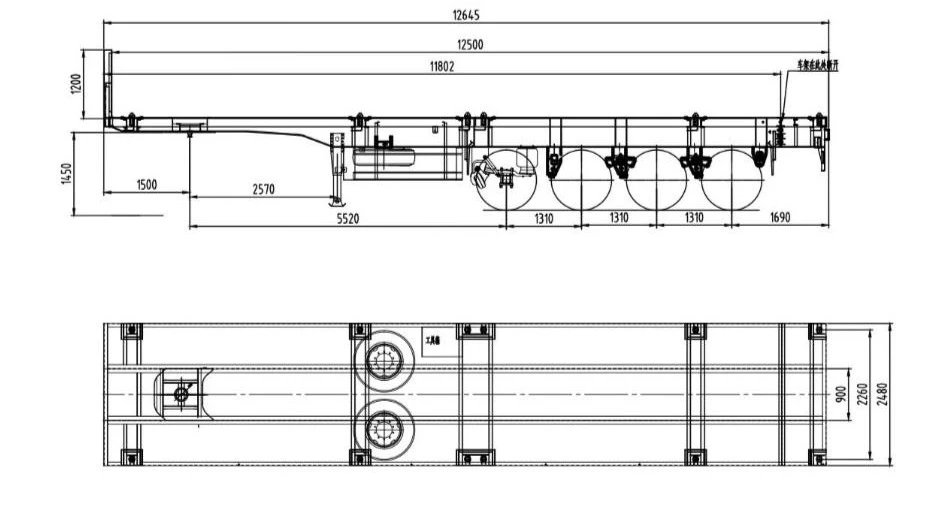

Overall size(L*W*H)mm |
12600*2500*1510 |
|
Material |
Q355 |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 10mm Process: welded by automatic submerged-acr |
|
plateform |
3mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension with one axle air suspension can enhance(China brand or BPW brand) |
|
Axle |
Brand: FUWA Capacity: 13T QTY: 4units |
|
Tyre |
Brand: chengshan/Triangle; Type: 13R22.5; double mounted; QTY: 16 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
This 4-axle flatbed semi-trailer is constructed of Q355 steel, fitted with 16mm channel steel for side rails and 10mm channel steel for cross members to resist deformation under heavy loads. The 3mm diamond patterned floor enhances friction for secured cargo placement.
FAQ
1. How long is the annual production of the factory? How long is the delivery time?
The factory was established in 2010, annual production of 4000-5000 semi-trailers, regular orders 15-25 day
2.Is OEM available?
Yes, we support OEM branding, customized body logos and paint colors, and accept bulk ODM orders.
3.What certificate do you have?
ISO9001; IATF16949; CCC; SGS
Hot Tags: standard flatdeck semi trailer, China standard flatdeck semi trailer manufacturers, suppliers, factory
