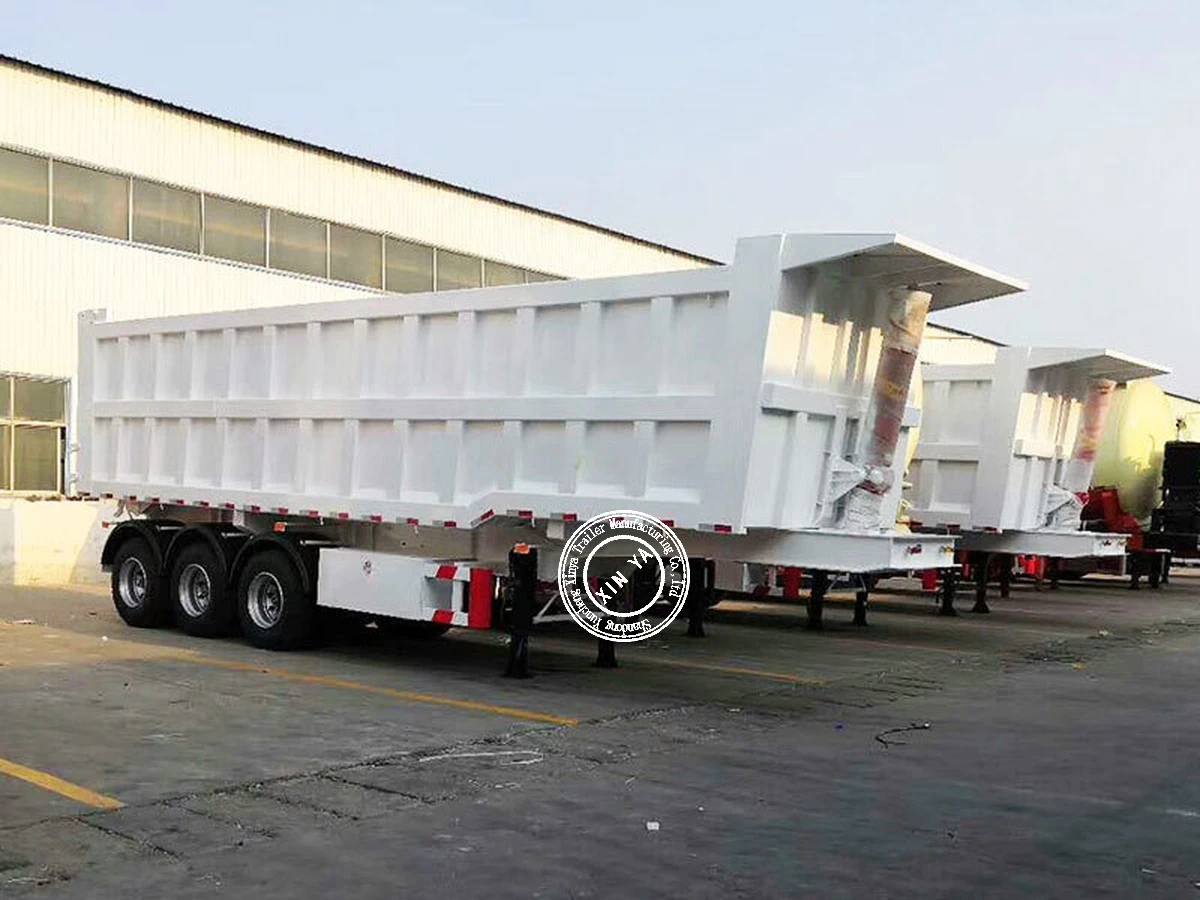

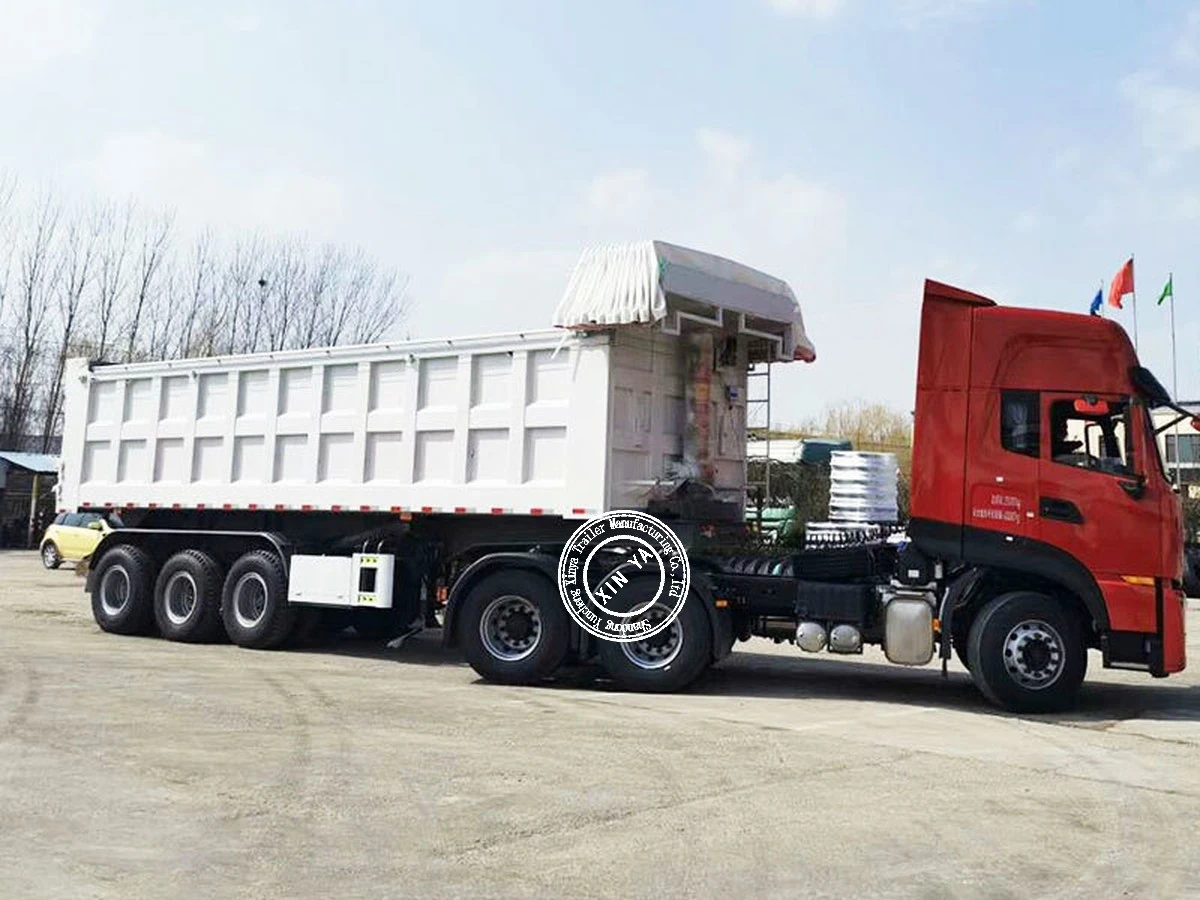

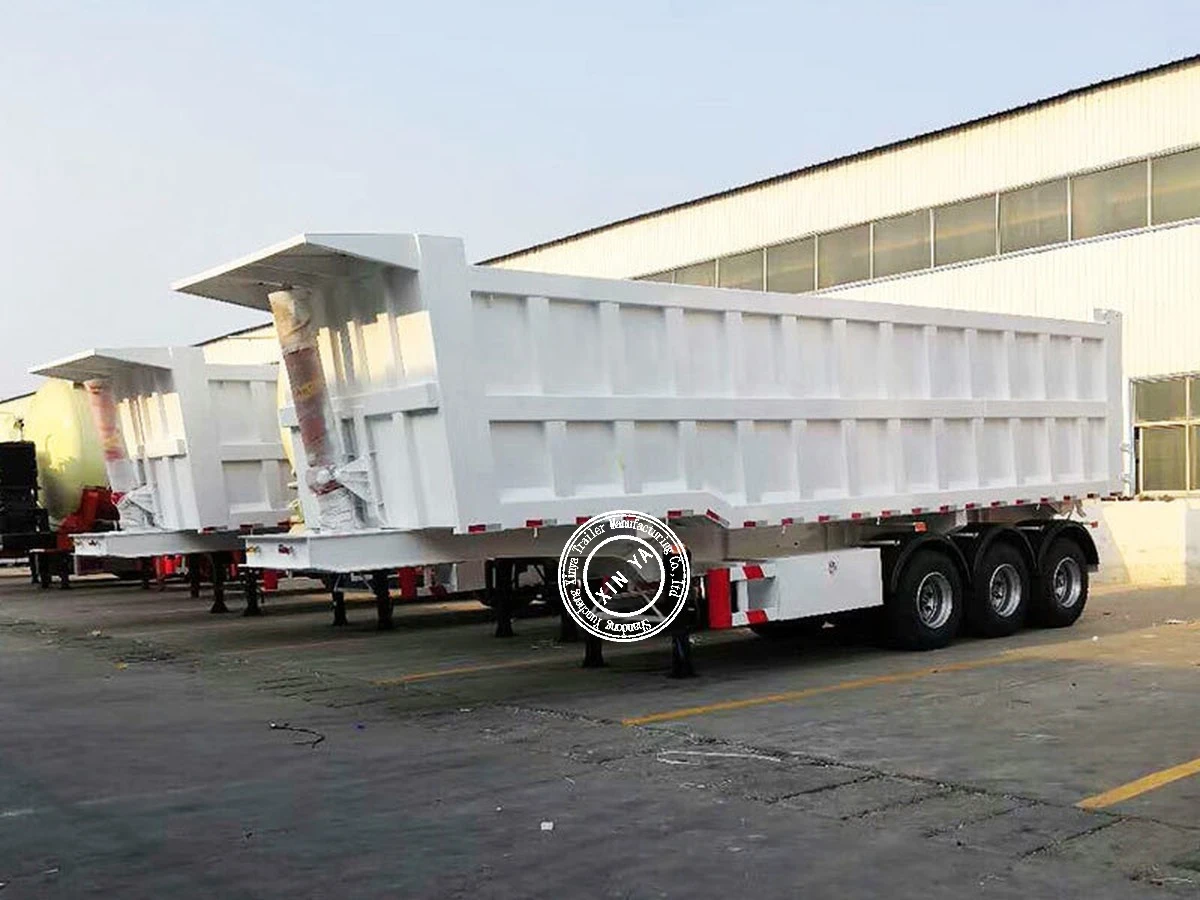

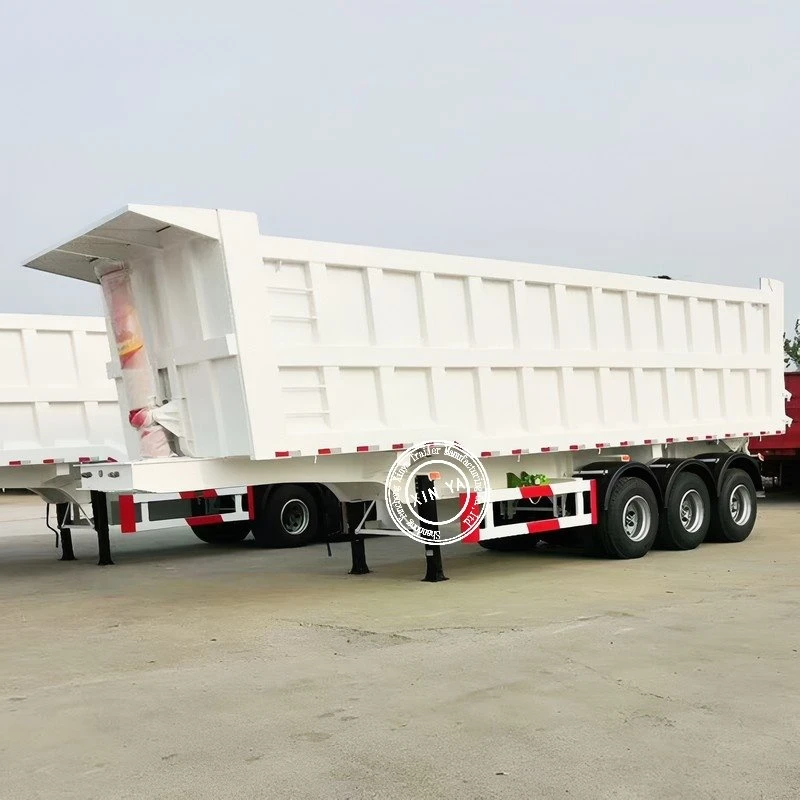

60/80 Ton Dump Semi-trailer
Size: 10000*2500*3500mm or customized
Tare weight: 11T
Payload: 60-80T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of 60/80 ton dump semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved 60/80 ton dump semi-trailer, welcome to get quotation from our factory.
Product Details
Dump semi-trailer, also known as Tipper semi-trailer. It is used for transporting solid building materials and industrial raw materials such as sand, stones, coal, etc. The design of the rear unloading semi-trailer makes unloading more convenient. After locking the rear of the vehicle, sand and other materials can be loaded. After reaching the destination, the hydraulic system will lift the front of the semi-trailer, allowing the cargo to slide out from the rear.

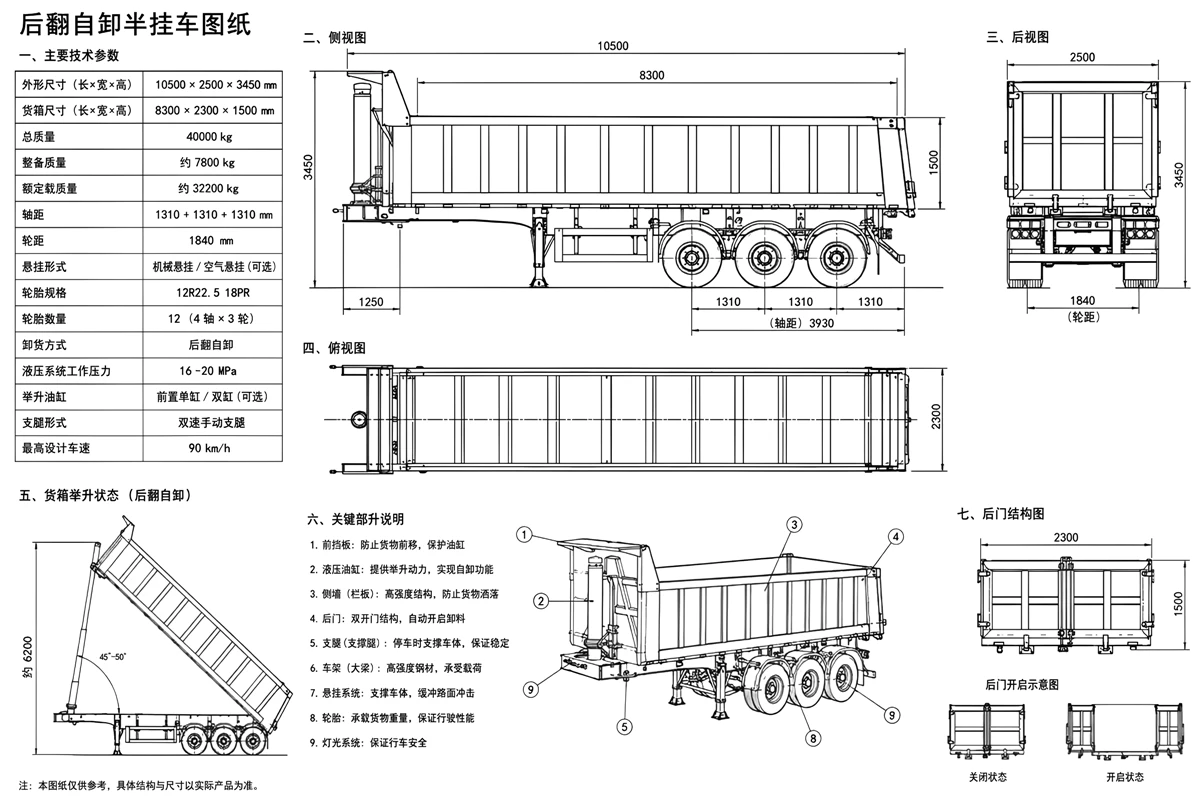

Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
10000*2500*3500mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 500mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Lifting Angle |
45°–50° |
|
plateform |
2-3mm checker plate |
|
Tyre |
12R22.5 |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
3 axles with mechanical system with beams equaliser, strengthen |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 4/6units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness);Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company has established a dedicated vehicle technology research and development center, focusing on lightweight structures, new material applications, and safety performance optimization. Accumulated 43 patents (including utility models and appearance designs), core patents: rear crossbeam of pull-out semi-trailer, container trailer fixing device, trailer straight beam frame, aluminum composite panel box structure, etc.
Our Advantages
1. Self dumping semi-trailer adopts side or rear unloading methods, which can effectively improve the transportation efficiency of bulk and scattered goods
2. The main components of the self dumping semi-trailer are processed using advanced equipment, and the longitudinal beams are welded using fully automatic submerged arc welding. The precision assembly of steel plate springs and wheel axles is completed using an assembly machine
3. Complete English materials: instruction manual, parts drawing, list of vulnerable parts, installation video.
FAQ
1. What's the tare weight?
A: 8-12 tons approx., varies by specs.
2. Why lifting failure?
A: Low oil, pump/solenoid valve fault.
3. Risk of tipping when unloading?
A: Safe on level ground with even load.
