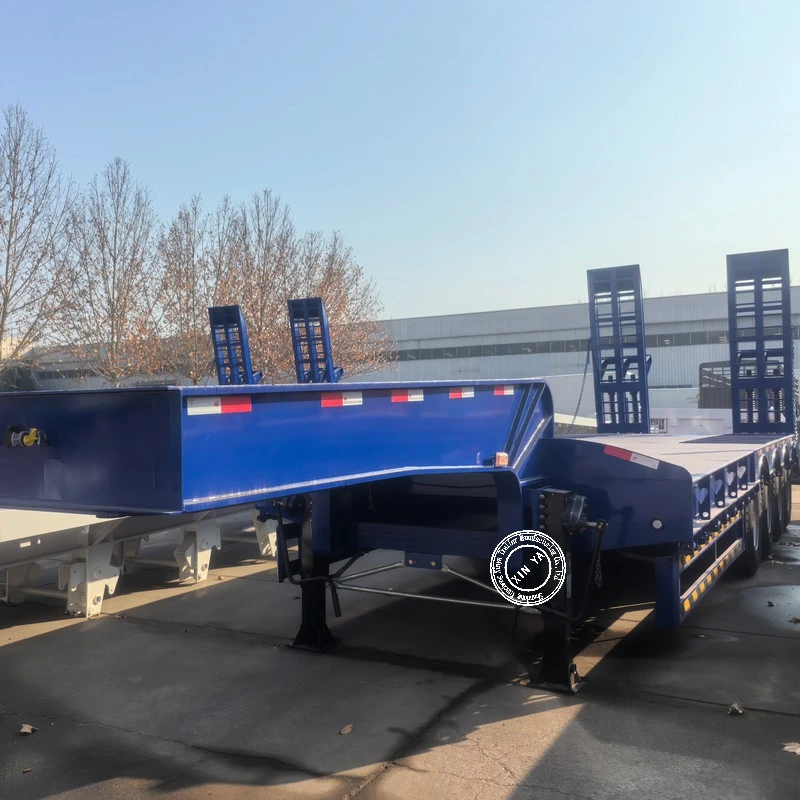

Gooseneck Low Loader Trailer
Suspension: Mechanical suspension with optional air suspension
Ramp: Spring ramp optional hydraulic ramp
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of gooseneck low loader trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved gooseneck low loader trailer, welcome to get quotation from our factory.
Product Details
The 4axle 100t low loader trailer boasts high load capacity. Its body is made of Q355B high-strength steel, with a rated load of 100 tons for mechanical cargo. It is widely used to transport cranes, excavators, crawler loaders and other engineering machinery.
Product Parameters
|
Overall size(L*W*H)mm |
13000*2700*11000 or Custom size |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 14mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side rail |
300#I-beam |
|
plateform |
4mm checker plate |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension or Air suspension(China brand or BPW brand) |
|

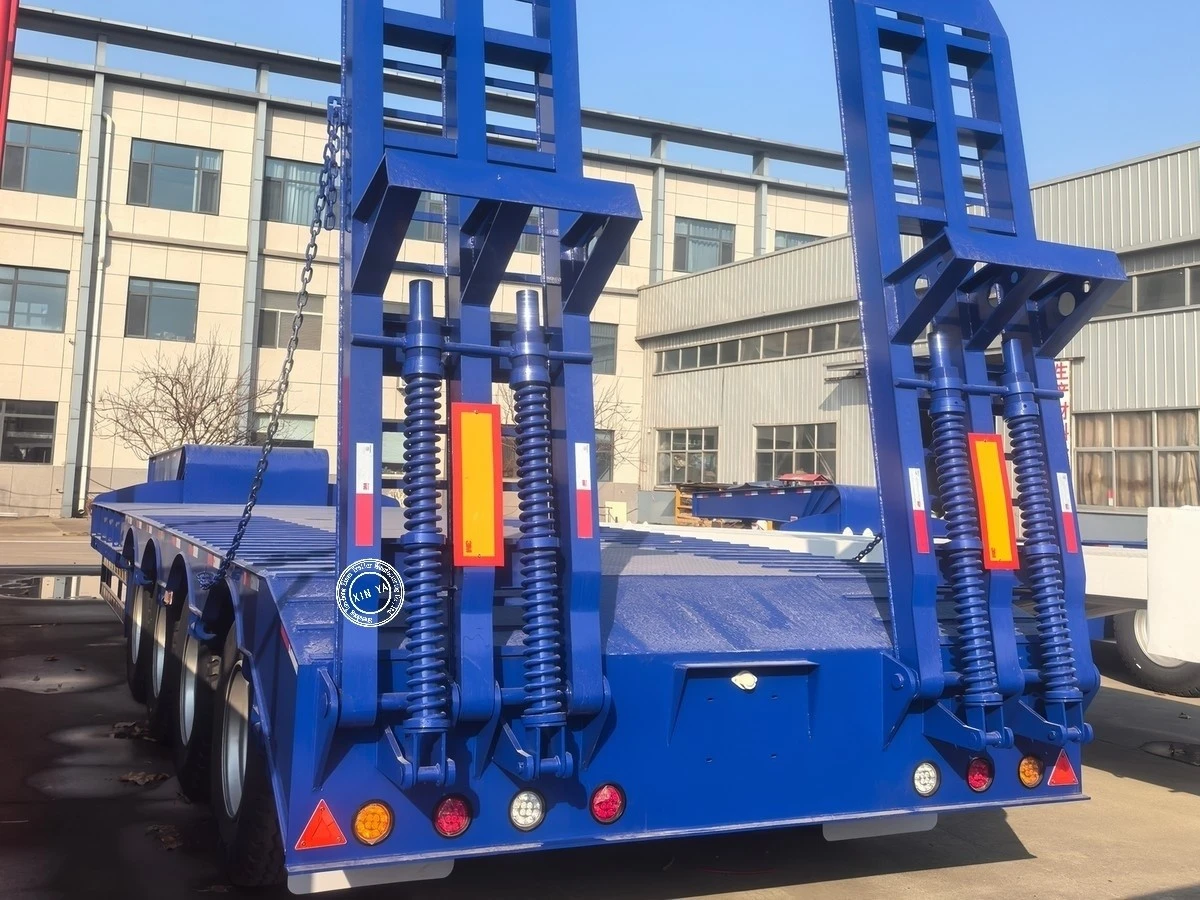

Rear Loading Ramps |

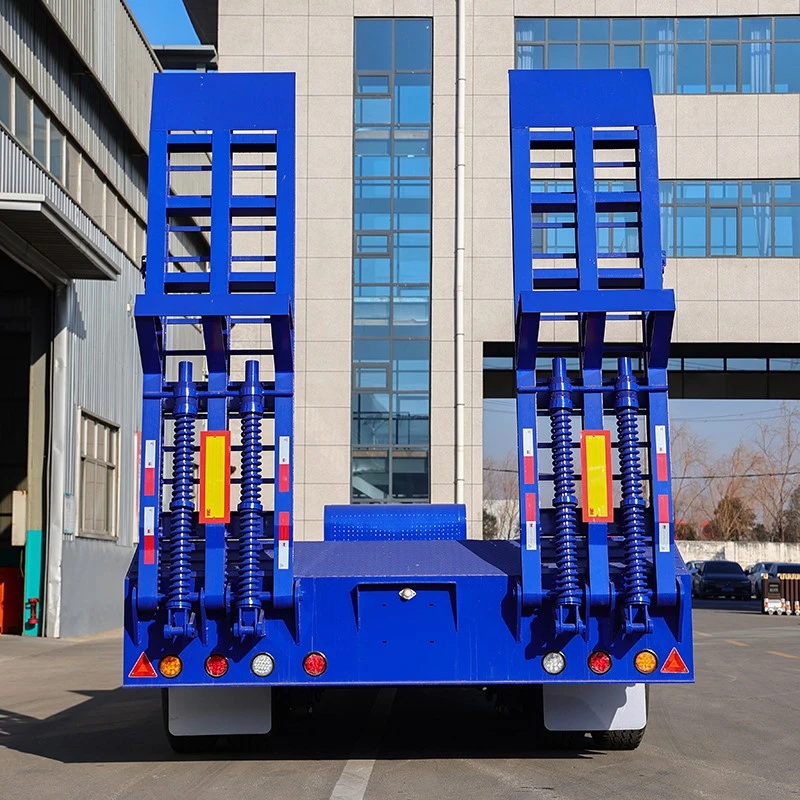

2 units. Spring loaded & manually operated with safety chain |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T/20T QTY: 4units |
|
Electric system |
24V LED light; |
|
Tyres |
Double mounted; 12R22.5, 16PCS |
Our Company
Shandong Yuncheng Xinya trailer manufacturing Co, Ltd. We will be the select provider of trailer parts (axle, suspension, fifth wheel, kingpin, landing gear, twist lock etc) solutions to the heavy-duty transportation industry. The Casing parts capacity by new production line is 8, 000 tons per year, as well as axle is 50, 000 pieces, Fifth wheel is 10, 000 pieces, and welding & casting suspension is 8, 000 sets per years. We take part in many international exhibition, for example: Frankfurt Exhibition. Vietnam International Automobile & Supporting Industries Exhibition; Dubai International Automoblie Show; American Automotive Aftermarket Products Expo; Germany Hanover Commercial Auto Show.
Our Advantages
1.The frame is fabricated from Q355B high-strength steel using fully automatic submerged arc welding. The I-beam structure on both sides of the body provides excellent bending resistance, enabling stable long-term transportation of heavy equipment.

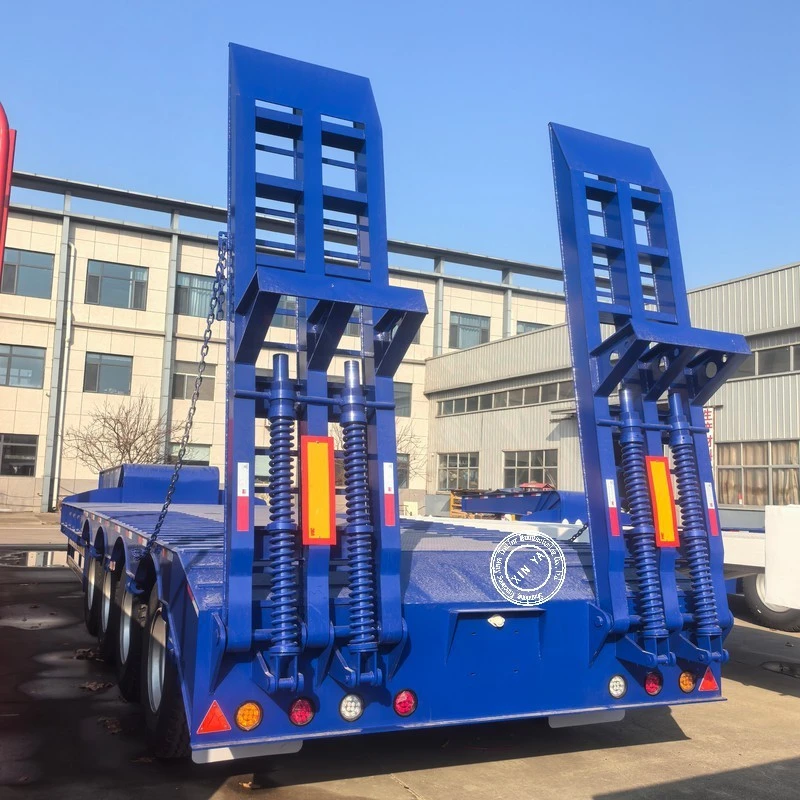

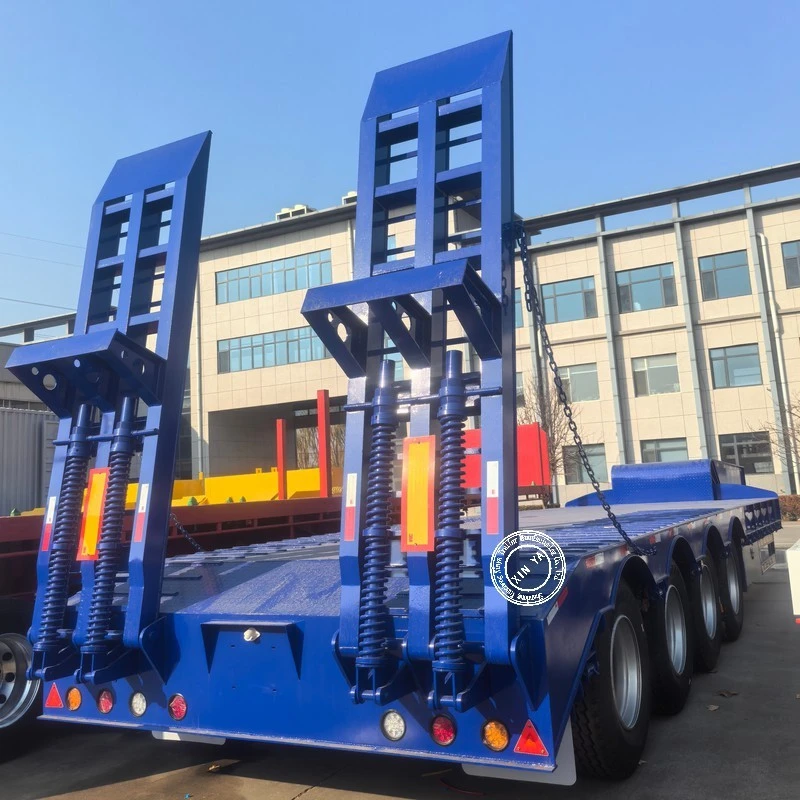

2.Loading Ramps: Spring-assisted ramps or hydraulic ramps are available as options, allowing heavy machinery to drive on/off independently.
3.Optional side extensions can be installed on both sides of the trailer body to widen the platform. Combined with the 4mm checkered steel floor plate, this design enhances cargo friction and ensures the safety and stability of the transported goods.
FAQ
Q: How about the delivery time?
A: Generally, it will take 10 to 30 days after receiving your deposit. The actual date will depend on your order and item. We will contact you to confirm the delivery date and will track the goods until they reach the destination.
Q: How can I confirm whether your products will meet my needs?
A: You can tell us your requirements such as size, material, volume, height, and other specifications. Our professional sales and design team will provide suitable solutions.You are also welcome to visit our factory to monitor it.
Q: Can you customize the products for specific needs?
A: Yes, We can provide the customized products that can meet your specific requirements.
