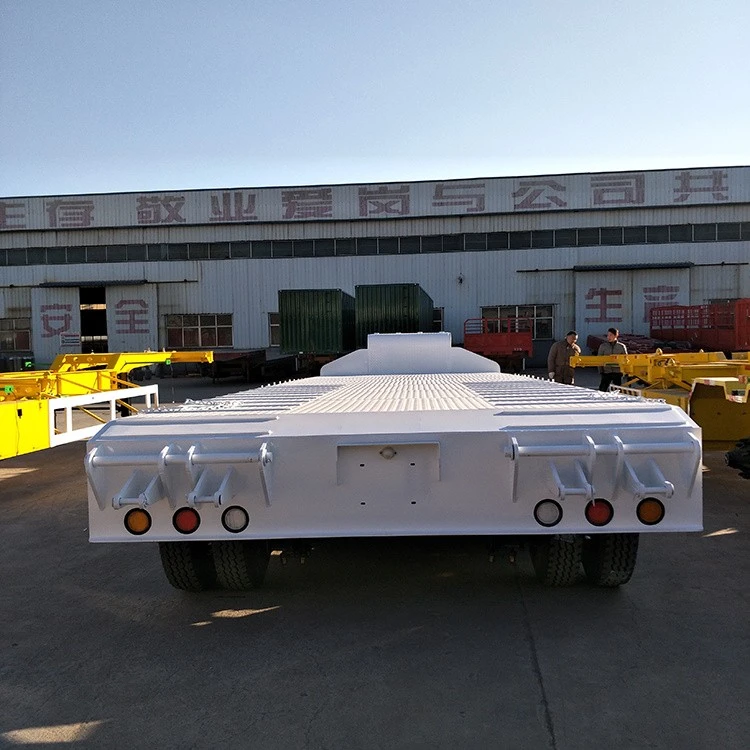

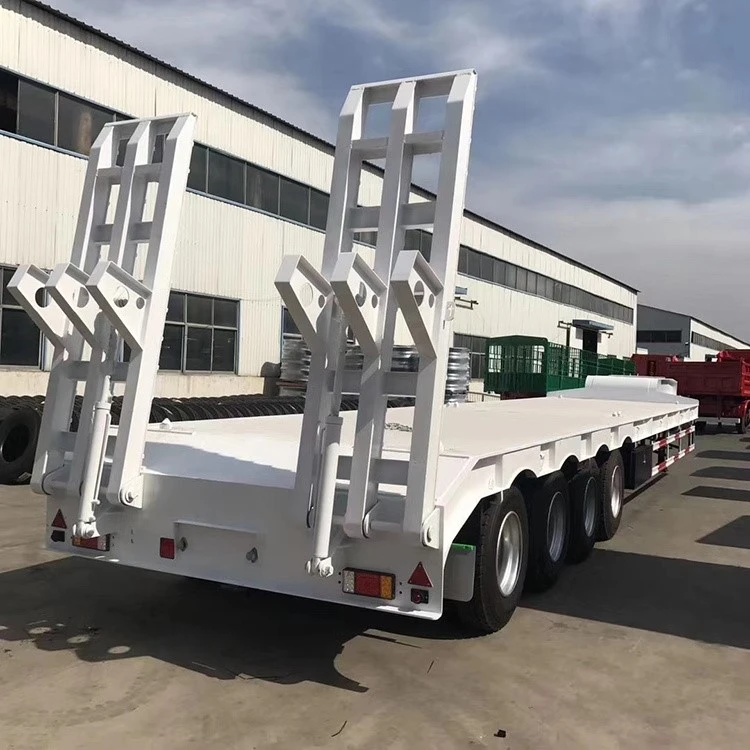

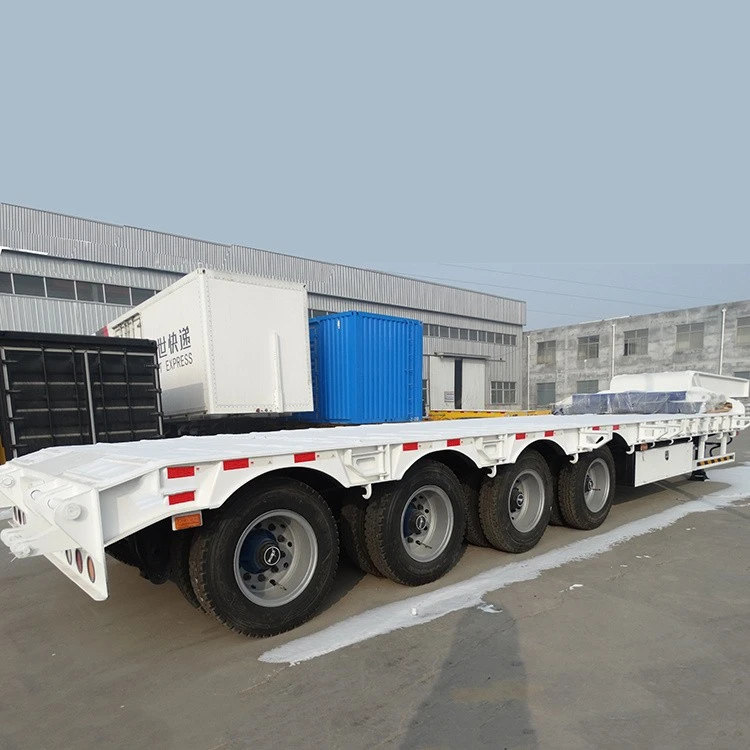

Heavy Low Loader Semi Trailer
Main Beam: Q355B high-strength steel
Floor Plate: 4mm checkered steel plate
Tires: 16 units
Suspension: Mechanical suspension
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of heavy low loader semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved heavy low loader semi trailer, welcome to get quotation from our factory.
Product Details
The Heavy Low Loader Semi-Trailer is typically used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), railway rolling stock, mining machinery, forestry machinery, and construction machinery (such as excavators, bulldozers, loaders, pavers, etc.).
The lower the center of gravity, the better the stability and safety, and the stronger the capability to transport over-height cargo and pass under overhead obstacles.
Product Parameters
|
Overall size(L*W*H)mm |
13000/16000*2700*11000 |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: gooseneck type; Height: 500mm; Upper plate: 20mm; Bottom plate: 20mm Middle plate: 12mm Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side rail |
250# "工" type |
|
plateform |
4mm checker plate |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|
Suspension |
Mechanical suspension (America Type) (Special for export market) |
|
Axle |
Capacity: 13T/16T/20T QTY: 4 units |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. was established in 2010 and is a fully qualified trailer manufacturer. The company integrates production, scientific research and development, and professional sales teams, and can provide comprehensive services for trailers, semi trailers, tractor heads, dump trucks, construction machinery, and trailer accessories
Our Advantages
1.The frame of the low-loader trailer adopts a space frame structure composed of welded longitudinal beams and full-length cross beams. It features excellent strength, rigidity, toughness and load capacity, and is free from permanent deformation.
2.This semi-trailer is manufactured with premium steel, advanced technologies and stringent production processes. The chassis is welded via automatic submerged arc welding to ensure firm and leak-proof welds.
3.Install extension components on both sides of the vehicle to increase its width, allowing for the transportation of oversized cargo
FAQ
Q: How can I confirm whether your products will meet my needs?
A: You can tell us your requirements such as size, material, volume, height, and other specifications. Our professional sales and design team will provide suitable solutions.You are also welcome to visit our factory to monitor it.
Q: What's your payment term?
A: We accpet both T/T and L/C,as well as other methods you may need.
T/T:30% deposit by T/T,70% balance should be paid before shipment.
L/C:100% irrevocable Credit of Letter.
