Light Flatbed Semi-trailer
Size: 12400*2500*1510 or customizable Size
Tare weight: 6.5-7T
Payload: 30-40T
Material: T700
Main beam :Height: 480mm;Upper plate: 10mm；Bottom plate: 12mm; Middle plate: 6mm
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of light flatbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved light flatbed semi-trailer, welcome to get quotation from our factory.
Product Details

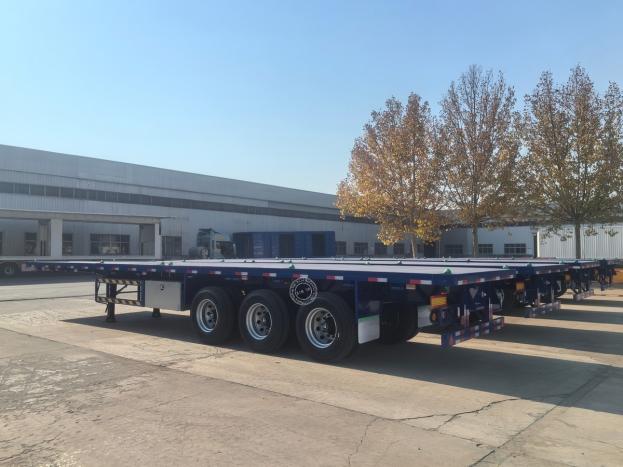

This lightweight tri-axle flatbed semi-trailer features main beams constructed from T700 high-tensile structural steel. It delivers reduced tare weight and increased payload capacity alongside excellent anti-deformation and anti-fatigue performance under heavy-load conditions, ideal for transporting containers, bulk cargo, timber and construction materials.
Product Parameters
|
Overall size(L*W*H)mm |
12400*2500*1510 or custom size |
|
Material |
T700 high strength steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 10mm; Bottom plate: 12mm Middle plate: 6mm Process: welded by automatic submerged-acr |
|
plateform |
2mm checker plate |
|
Twist lock |
12 units |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand) |
|
Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Brake system |
Brand: Xinya Type: Dual line braking system Brake air chamber: 6 in total, T30/30*4 + T30*2 Air tank: 40L*2 unit ABS: none |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our Advantages
- Robust frame construction delivers superior load capacity and compression resistance. The main beams are made of T700 high-tensile steel, paired with 140mm channel steel for side rails and 80mm channel steel for cross members, fundamentally eliminating common issues such as frame bending and deformation.
- Top-tier globally renowned core components Axles, landing gears and brake systems are equipped with premium brands including FUWA, JOST and WABCO to reduce failure rates and maintenance expenses.
- Direct factory supply with customized options Founded in 2010, we possess 15 years of manufacturing and exporting experience with an annual output of 4,000 to 5,000 semi-trailers. Customized solutions are available tailored to clients' loading capacity and local road conditions.
FAQ
1. How about payment?
T/T 30% before products,70% before leaving factory
2. What after-sales service do you have?
Providing 7*24 online support. If customers encounter any problems during use, they can contact our professional team at any time. We will respond promptly and provide remote technical guidance, fault diagnosis, and solutions
3. Can you do OEM and ODM?
Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
