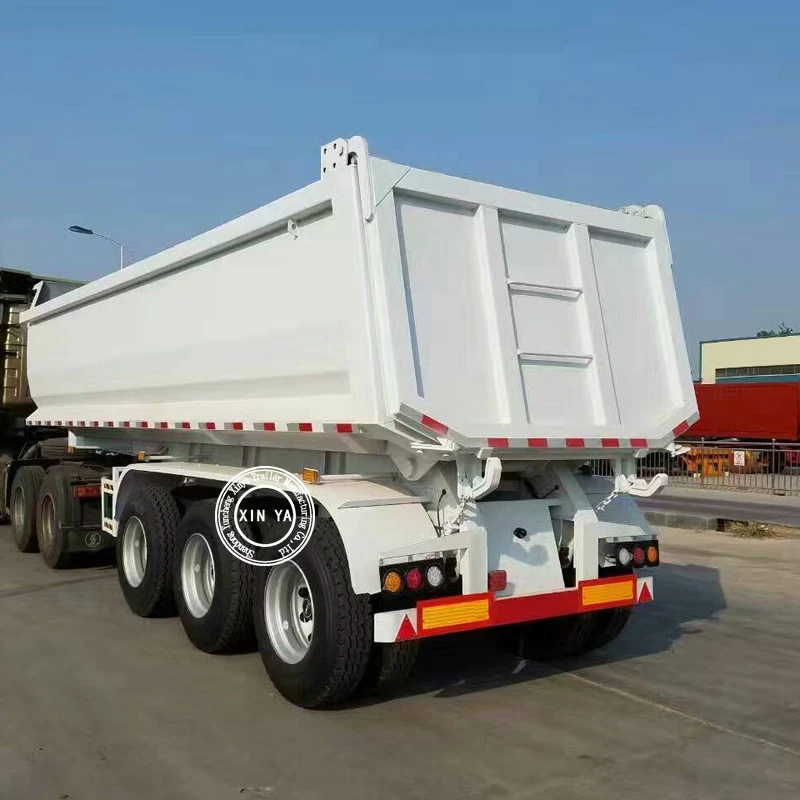

End Dump Semi Trailer
Size: 9000*2500*3500mm or customized
Tare weight: 8T
Payload: 55T
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of end dump semi trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved end dump semi trailer, welcome to get quotation from our factory.
Product Details

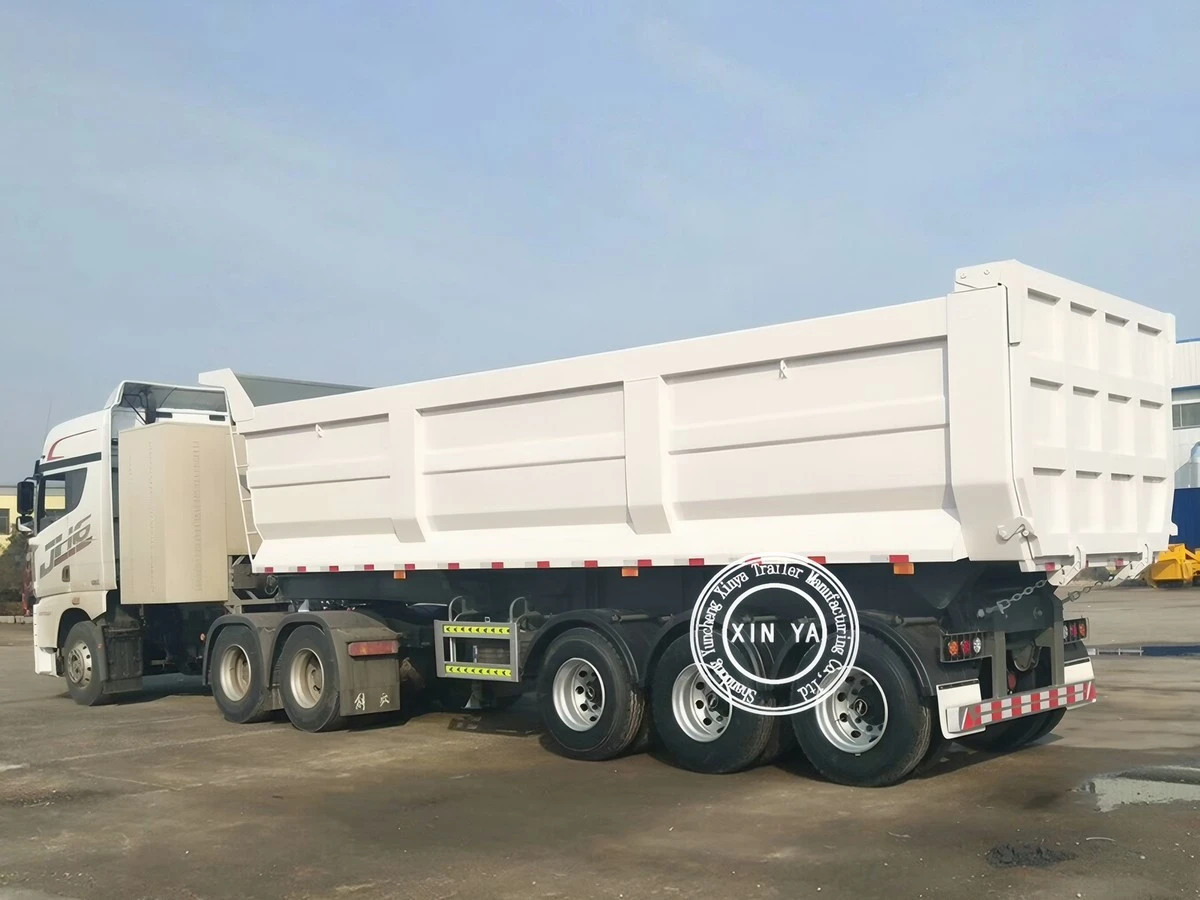

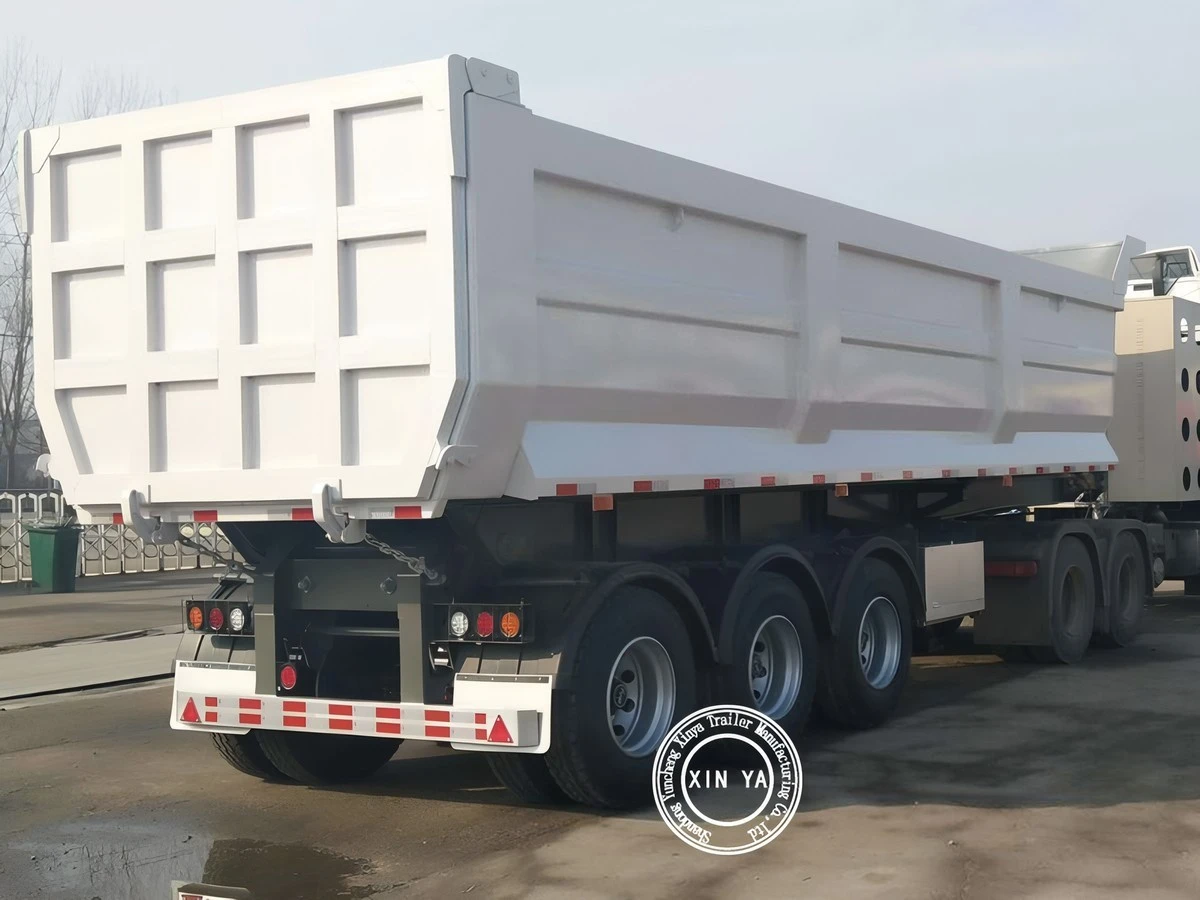

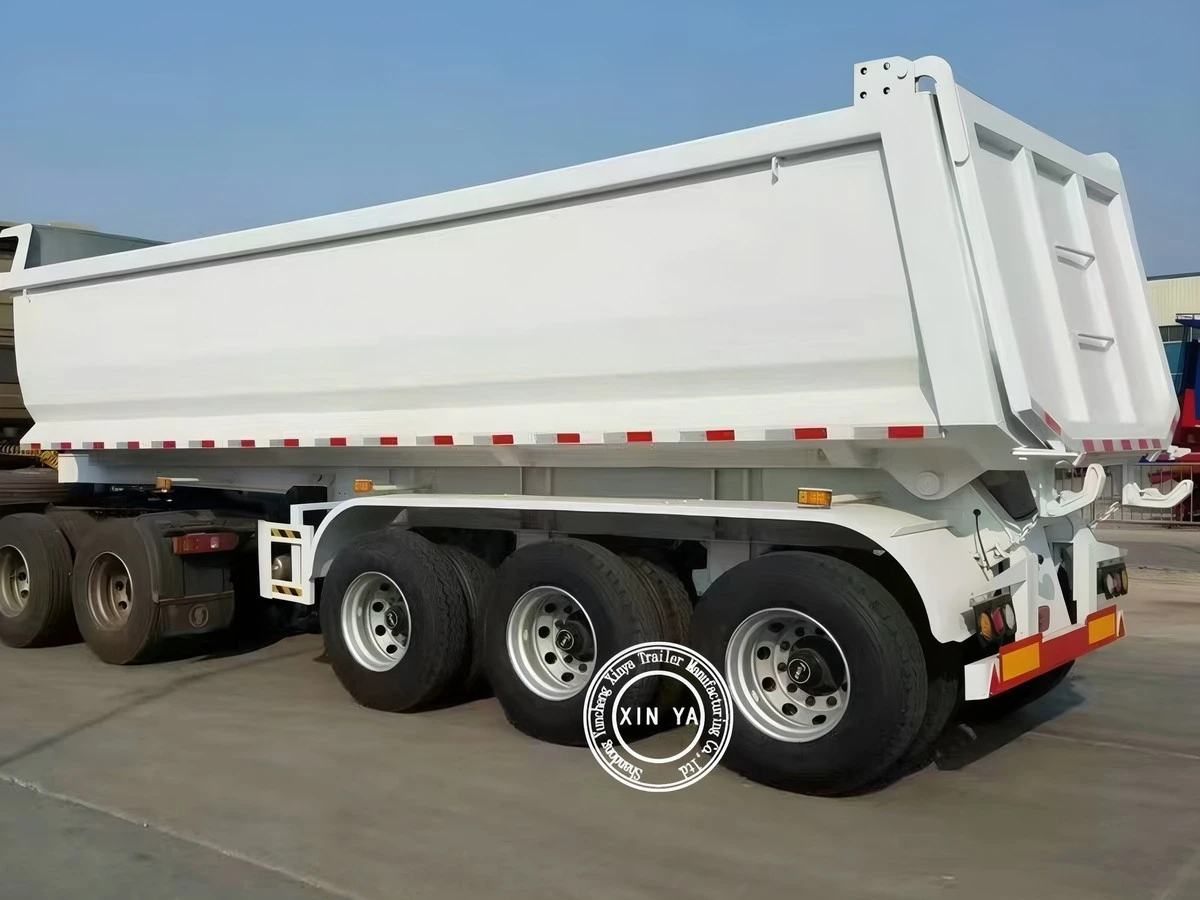

3axle U-type integrated cargo box, smooth inner wall, no material residue, high overall rigidity. Made of Q345B high-strength steel, double web main beam with multiple full-length sub-beams, excellent bending and torsion resistance. Full vertical stiffeners on body side, anti-bulging and anti-deformation.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Overall size(L*W*H)mm |
9000*2500*3500mm |
|
Material |
Q345B fabricated carbon steel |
|
Main beam |
Type: straight type; Height: 480mm; Upper plate: 14mm; Bottom plate: 16mm Middle plate: 8mm Process: welded by automatic submerged-acr |
|
Tyre |
12R22.5 / 315/80R22.5 |
|
plateform |
2-3mm checker plate |
|
King pin |
JOST brand 2.0 or 3.5inch(bolted or welded type) |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; JOST/China Brand |
|
Suspension |
Mechanical suspension or Air suspension |
|
Axle |
Brand: BPW/FUWA Capacity: 13T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Our company's business philosophy is driven by technological innovation, rooted in quality, guided by customer needs, and guaranteed by improved services. Corporate mission: To create lightweight and highly reliable specialized vehicles, help the logistics industry reduce costs and increase efficiency, and promote the upgrading of China's trailer industry. Service commitment: Provide customized design, manufacturing, after-sales maintenance, technical training * * one-stop service, 24-hour response domestically, remote technical support overseas+local cooperative after-sales points
Our Advantages
1. Chinese made dump trucks are equipped with reliable hydraulic cylinders. We can customize dump trucks according to your special needs, such as U-shaped dump trucks, rear dump trucks, side dump trucks, and container dump trucks, including skeleton and flatbed dump trucks.
2. Use 4 auxiliary beams and crossbeams. The lattice structure of the side door makes it more sturdy.
FAQ
1. Payment terms?
A: 30% deposit, 70% before shipment.
2. What brand of hydraulic cylinder?
A: Standard HYVA, customizable.
3. What is the warranty period?
A: 1-year warranty for main structure, excluding wearing parts.
