Mechanical Ladder Lowbed Semi-trailer

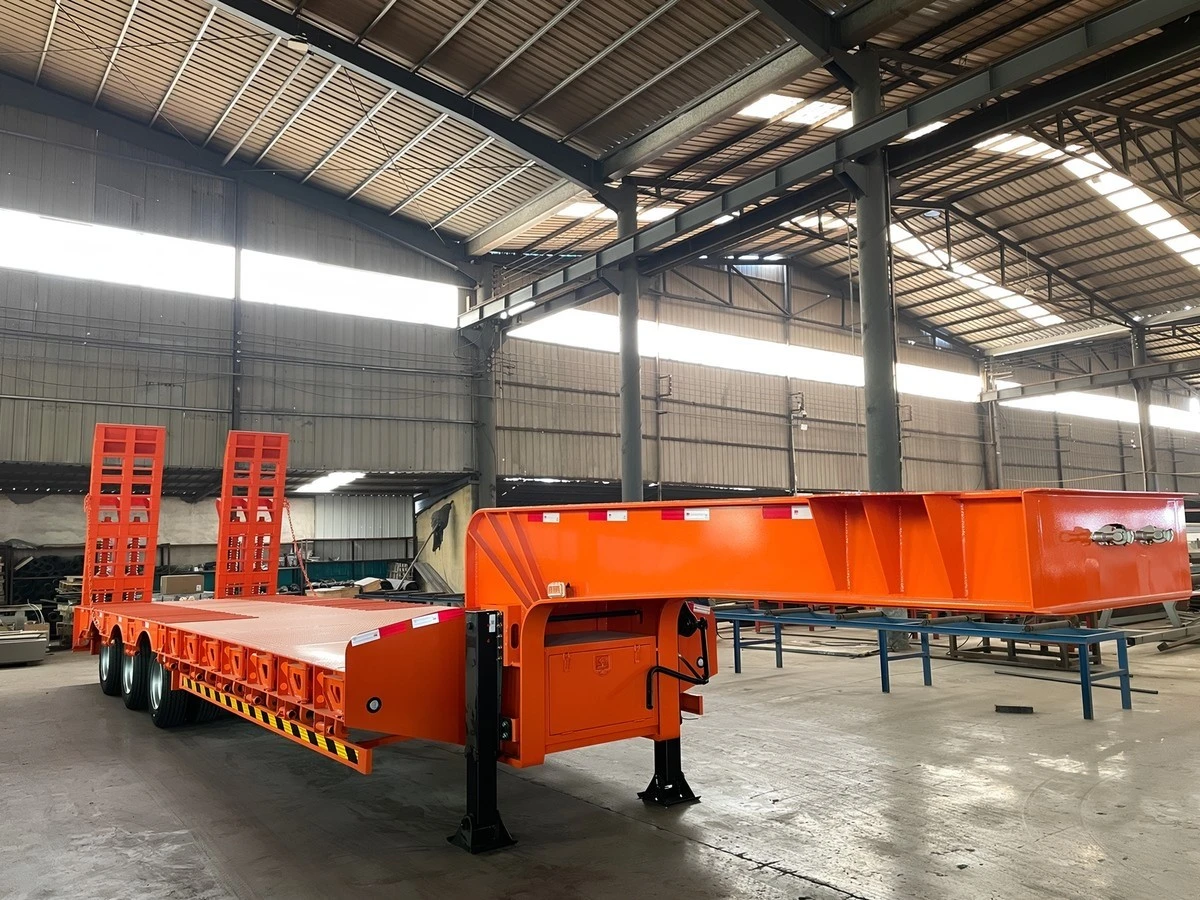

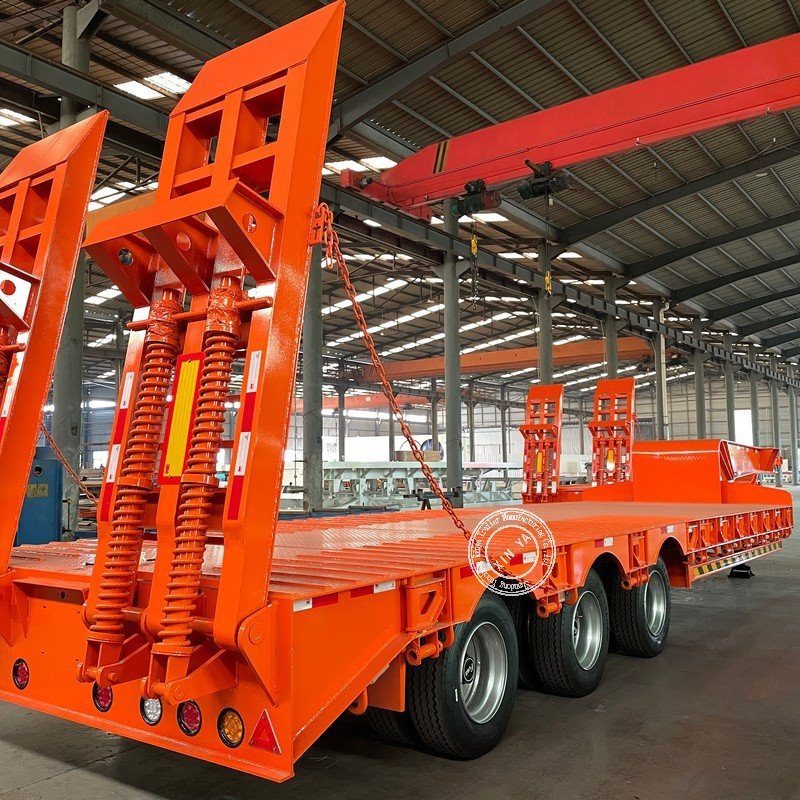

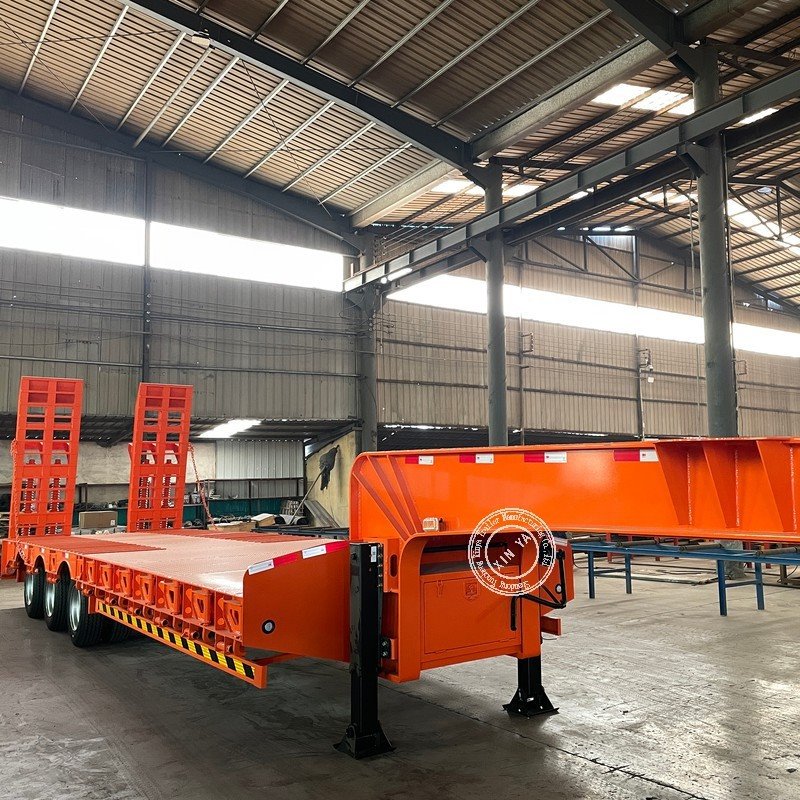

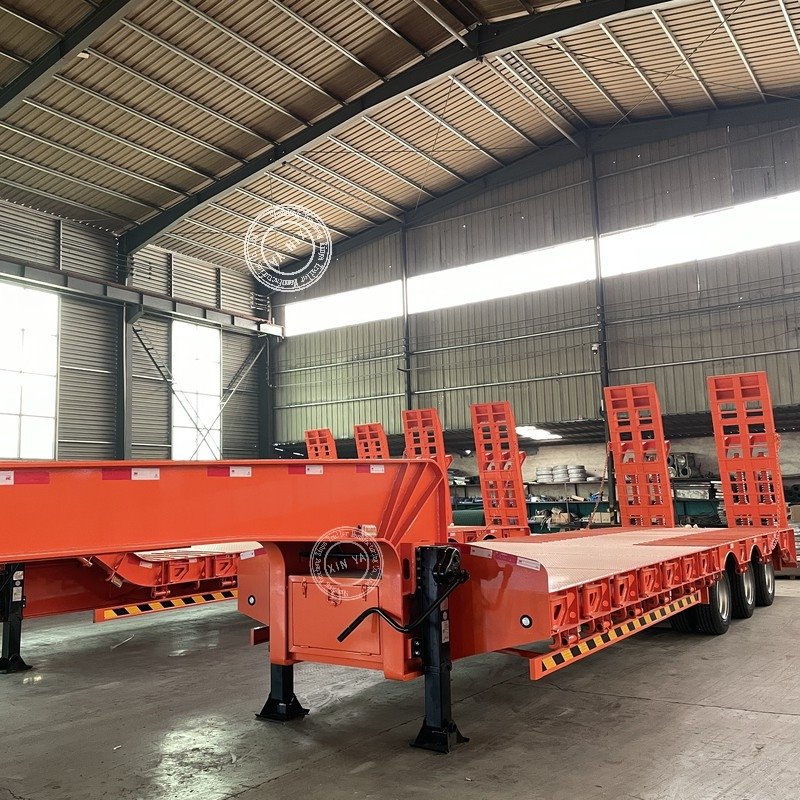

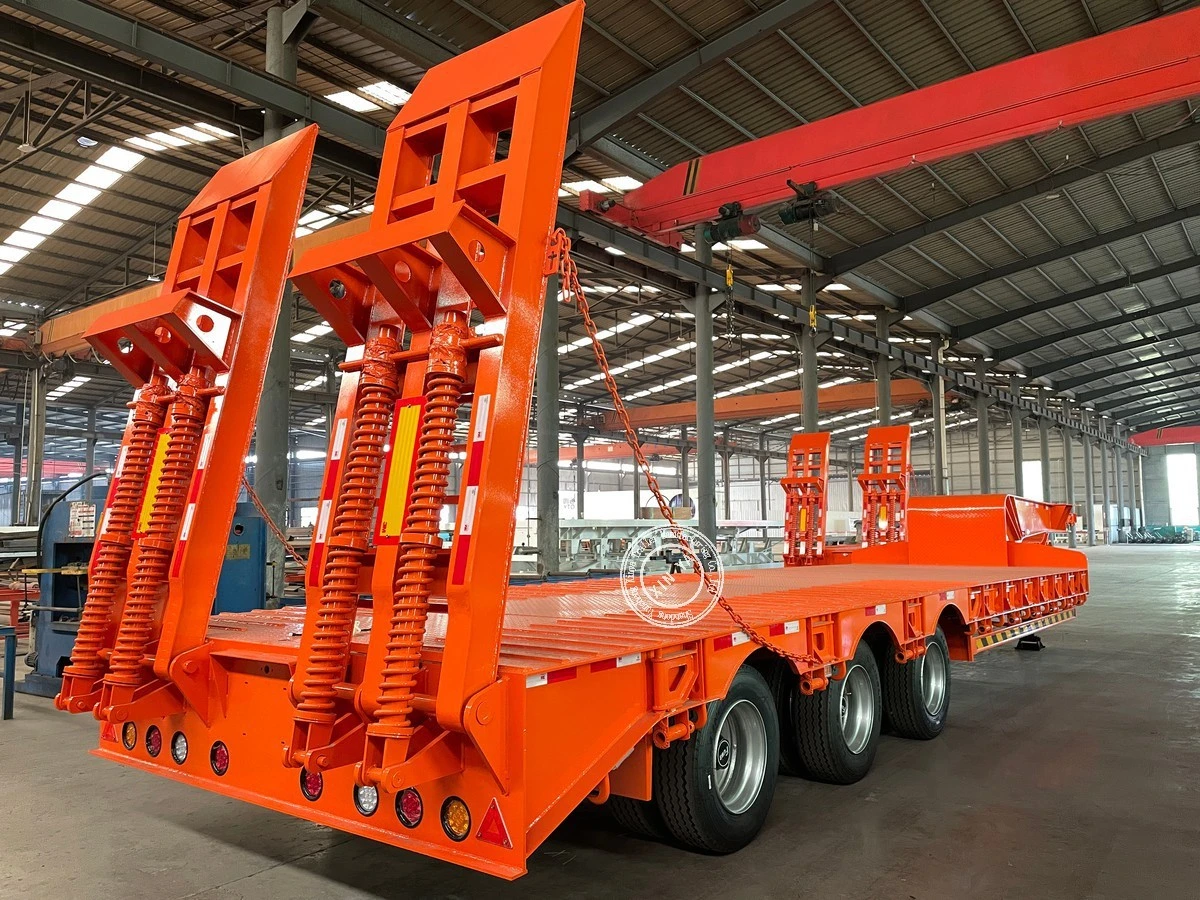

This 3-axle low bed semi-trailer is equipped with two mechanical ramps. It features a low center of gravity, low deck height and high load-bearing capacity, and is specially designed to haul over-width, over-height, over-weight and large-scale equipment.
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of mechanical ladder lowbed semi-trailer in China, featured by high quality customized service and OEM service. If you're going to buy CE approved mechanical ladder lowbed semi-trailer, welcome to get quotation from our factory.
Product Details
The load of a low bed semi-trailer varies depending on the number of axles and the size of the tires. The more axles there are, the greater the load, with a load range between 30-150 tons
Usually used for transporting heavy goods such as containers, heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction machinery, etc. The lower the center of gravity, the better the stability and safety, and the better the ability to transport ultra-high loads and pass overhead obstacles.
Product Parameters
|
Overall size(L*W*H)mm |
13000*3000*1800mm(Size can be chose freely) |
|
Tare Weight |
10t |
|
Loading Weight |
60-80t |
|
Main beam |
The height of the beam is 500 mm, Process: welded by automatic submerged-acr |
|
Cross member |
12#C type or AB type |
|
Side rail |
250# "工" type |
|
plateform |
Q 235, checkered plate, 4 mm. |
|
Hole / lashing |
12pcs per side,24pcs in total |
|
Hook |
9pcs per side,18pcs in total |
|
Landing gear |
28T total Lifting capacity and 50T static capacity; double speed; large pad feet; |
|

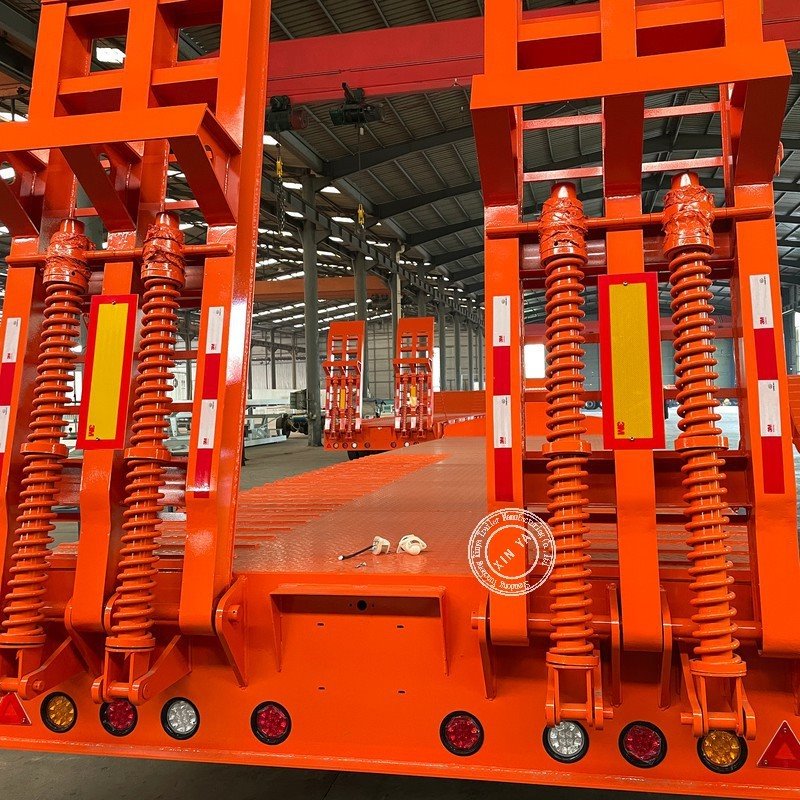

Rear Loading Ramps |
2 units. Spring loaded & manually operated with safety chain |
|
Suspension |
Mechanical suspension |
|

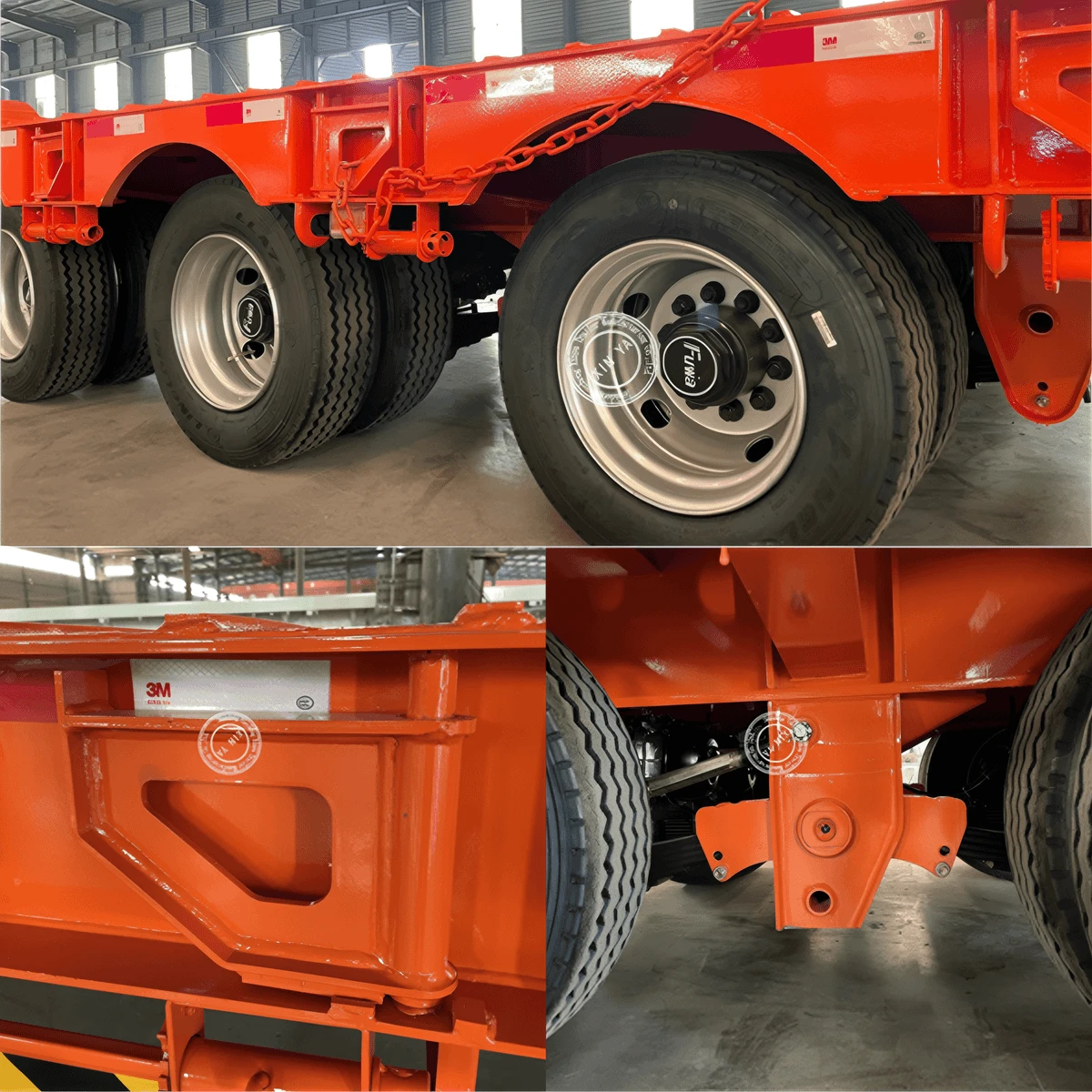

Axle |
Brand: BPW/FUWA/XINYA Capacity: 13T/16T QTY: 3 units |
|
Electric system |
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Our Company
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Congo, Malaysia, Tanzania, Ethiopia, Kenya, Philippines, Vietnam, Mozambique, South Asia, Central America, MID East, Eastern Asia, South America, South-east Asia.
Our Advantages
1. Key components adopt internationally renowned brands
The key load-bearing components adopt fuwa/BPWCaree axles; The walking system adopts Linglong, Chaoyang, Triangle, and Double Coin tires
2.The 4mm thick deck plate delivers a robust base for the low bed semi-trailer. Combined with precision welding technology, it prevents deformation under heavy loads.
FAQ
1.What types of goods can be transported by this type of trailer?
Professional transportation of earthmoving equipment, engineering machinery, and mining machinery
2.Which countries can this low bed trailer be exported to
Can be exported to Africa, Southeast Asia, South America and meet various road and transportation standards
3.Can this trailer be customized?
Yes, the length, width, load capacity, axles, suspension, and tires of the trailer can be customized according to your requirements
